Electrolux FAVORIT 50672 Manuale utente

FAVORIT 50672

User manual Dishwasher

Dear Customer

Thank you for choosing one of our highquality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per

formance and control  indeed we are setting the highest standards of excel

lence.

In addition to this you find environmental and energy saving aspects as an inte

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

3Contents

Contents

Operating Instructions 4

Safety 4

Diagram of appliance 5

Control panel 6

Prior to using for the first time 8

Setting the water softener 8

Adding special salt 10

Filling up with rinse aid 11

In daily use 14

Loading cutlery and dishes 14

Adjusting the height of the upper basket 17

Adding detergent 18

Using 3in1 detergents 20

Selecting the dishwashing cycle (Cycle Table) 22

Starting a dishwashing cycle 24

Setting the Delay Timer 24

Switching off the dishwasher 25

Care and cleaning 26

What to do if… 28

Remedying small malfunctions 28

If the dishwashing results are not satisfactory 30

Disposal 31

Technical data 31

Notes for Test Institutes 32

Installation and connection instructions 33

Safety information for the installation 33

Installing the dishwasher 33

Connecting the dishwasher 34

Guarantee/Customer Service 37

Service 39

Operating Instructions4

Operating Instructions

1Safety

Prior to using for the first time

•Follow the ”Instructions for installation and connection”.

Correct use

•The dishwasher is only intended for washing domestic dishes.

•Additions or modifications to the dishwasher are not permitted.

•Use only special salt, detergent and rinse aid suitable for domestic dishwash

ers.

•Do not put any solvents in the dishwasher. This could cause an explosion.

Child safety

•Keep packaging away from children. There is a risk of suffocation.

•Children often do not recognise the hazards associated with electrical appli

ances. Don’t allow children to use the dishwasher unsupervised.

•Make sure that children and pets don’t climb into the dishwasher. Could en

danger life!

•Dishwasher detergents can cause chemical burns to the eyes, mouth and

throat. Could endanger life! Comply with the safety instructions of the dish

washer detergent manufacturer.

•The water in the dishwasher is not for drinking. Risk of chemical burns.

General safety

•Repairs to the dishwasher are only to be carried out by qualified service engi

neers.

•When the dishwasher is not being used, switch it off and shut off the water

tap.

•Never unplug the appliance by pulling on the cable. Always pull the plug.

•Ensure that the door of the dishwasher is always closed when it is not being

loaded or unloaded. In this way you will avoid anybody tripping over the open

door and hurting themselves.

•Never sit or stand on the open door.

•If the dishwasher is located in a room where there may be a frost, remove the

connection hose from the tap after each use of the dishwasher.

5Diagram of appliance

Diagram of appliance

Upper basket spray arm

and floor spray arm

Water hardness

dial

Dispenser

for special salt

Dispenser

for detergent

Dispenser

for rinse aid

Rating plate

Filters

Control panel6

Control panel

The ON/OFF button is used to turn the dishwasher on and off.

The Programme buttons are used to select the desired dishwashing cycle.

ON/OFF button

Multidisplay

Programme buttons

Function buttons

123 Set delay timer

Control indi



cator

End of cycle indicator

7Control panel

Function buttons: In addition to the preset dishwashing cycle, the following

functions can also be set using these buttons:

The rinse aid inflow is only affected, if the 3in1 function is selected.

The multidisplay can indicate:

–the start time that has been set.

–3 horizontal bars: the setting mode has been activated with function buttons

–1 horizontal bar: dishwashing cycle is running

–Multidisplay is off: dishwashing cycle is completed

The control indicators have the following meanings:

Function button 1 Sets the water softener

Function button 2 Activates/deactivates rinse aid inflow when 3in1 on

Function button 3  not programmed 

Buttons Multitab Activates/deactivates the 3in1 function

1) These control indicators are never illuminated while a dishwashing cycle is running.

Refill with special salt

1) Refill with rinse aid

Multitab 3 in 1 function activated

Prior to using for the first time8

Prior to using for the first time

3If you wish to use 3 in 1 detergent:

– First read the section “Using 3in1 detergents”.

– Do not fill up with special salt or rinse aid.

If you do not use 3in1 detergent, before using for the first time

1. Set the water softener

2. Fill up with special salt for water softeners

3. Fill up with rinse aid

Setting the water softener

The water softener must be set manually and electronically:

3To avoid scale deposits on the dishes and in the dishwasher, the dishes must be

washed with soft water, i.e. water with a low lime content. The water softener

must be set according to the table to the water hardness in the area where you

live. Your local water company will be able to give you information about the

water hardness in your area.

The dishwasher must be switched off.

Setting manually:

1. Open the dishwasher door.

2. Remove the lower basket from the

dishwasher.

3. Turn water hardness dial on the left wall of

the dishwasher interior to 1 or 2 (see table).

9Prior to using for the first time

Setting electronically:

1. Press the ON/OFF button.

3If the only LED indicator illuminated is one that belongs to a programme button,

this means that this dishwashing cycle has been activated. The dishwashing cy

cle must be deselected:

Press function buttons 2and 3 simultaneously for approx. 2 seconds.

The LED indicators of all the programme buttons that can be selected light up.

2. Press function buttons 2and 3simultaneously and keep them pressed.

The LED indicators for function buttons 1 to 3 will flash.

3. Press function button 1.

The LED indicator for function button 1will flash.

The LED indicator for the end of the dishwashing cycle will flash simultaneously:

–The number of times that the LED indicator for the end of the dishwashing cy

cle flashes corresponds to the hardness setting.

–This sequence of flashes is repeated several times, with a 3 second pause in

between.

4. Pressing function button 1increases the hardness setting by 1 degree.

(Exception: hardness setting 1 follows hardness setting 10).

5. When the hardness setting is correct, press the ON/OFF button.

The hardness setting is now saved.

If the water softener is set electronically to “1”, this switches off the control in

dicator for special salt.

Water hardness Adjusting the hardness setting Number of

flashes

in °d1)

1) (°d) German degree, measure of the hardness of water

in mmol/l2)

2) [mmol/l] millimol per litre, international unit for water hardness

Range Manual Electronic

51  70

43  50

37  42

29  36

23  28

9,0  12,5

7,6  8,9

6,5  7,5

5,1  6,4

4,0  5,0

103)

3) On this setting the length of the dishwashing cycle may be slightly longer.

*) factory setting

19  22

15  18

3,3  3,9

2,6  3,2 III 5*

11  14 1,9  2,5 II 3 3

4  10 0,7  1,8 I/II 2 2

below 4 below 0.7 I

no salt

necessary

Prior to using for the first time10

Adding special salt

To decalcify the water softener, it must be filled up with special salt. Use only

special salt suitable for domestic dishwashers.

If you do not use 3 in1 detergent, fill up with special salt:

–Before using the dishwasher for the first time.

–When the control indicator for special salt is illuminated on the control panel.

1. Open the door and remove the lower

basket.

2. Screw open the lid on the salt dispenser by

turning it anticlockwise.

3. Only when using the dishwasher for the

first time:

Fill the salt dispenser with water.

4. Place the funnel (supplied) over the dis

penser opening.

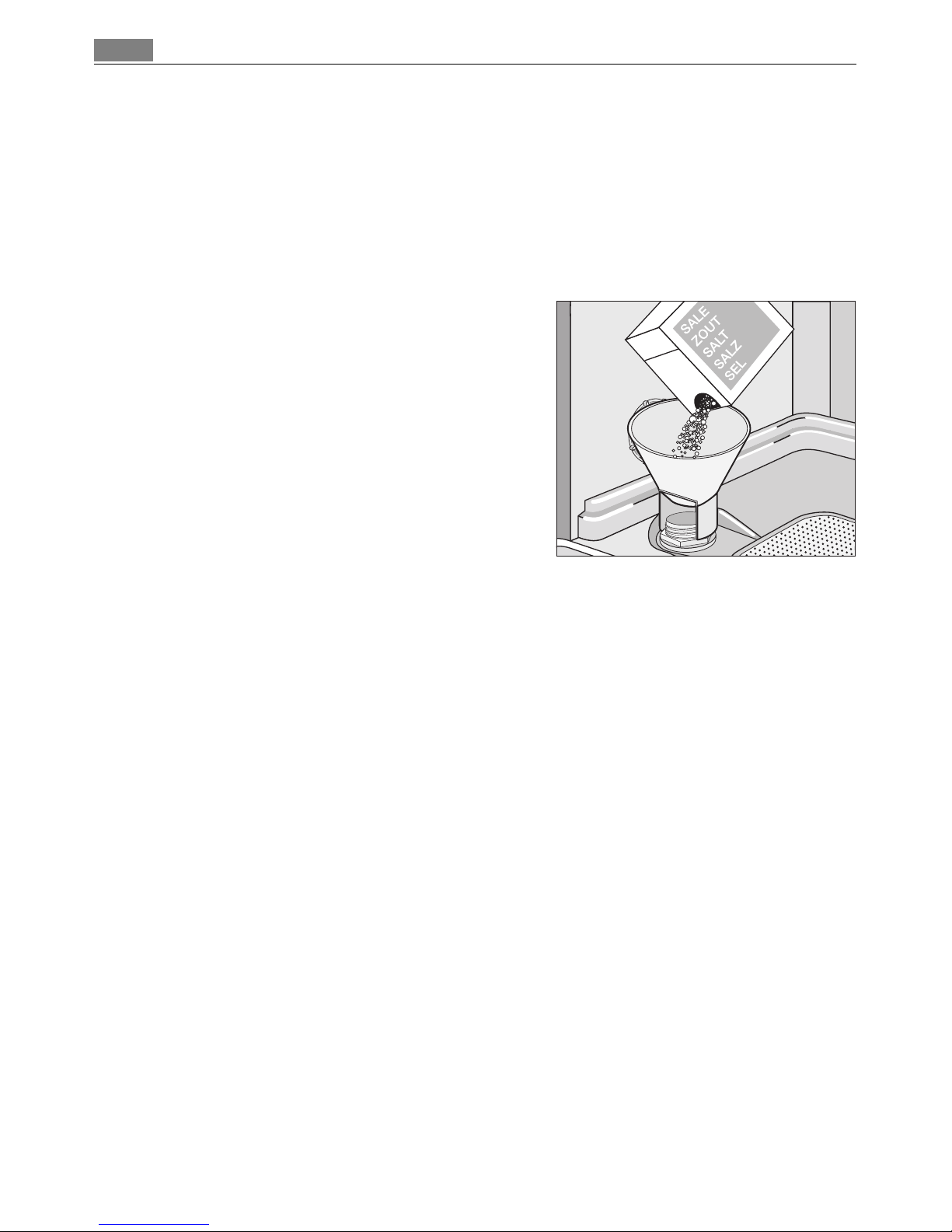

Fill the dispenser with special salt; the ca

pacity of the dispenser is approx. 1.01.5

kg, depending on the size of the grains. Do

not overfill the dispenser.

3If water overflows when filling up with special salt, this is completely harmless.

5. Clean away any salt remnants from the dispenser opening.

6. Screw the lid back on in a clockwise direction.

7. Run a dishwashing cycle after filling the salt dispenser with special salt.

This will wash away salt water and salt crystals that have been spilt.

3Depending on the size of the salt grains, it can take several hours for the salt to

dissolve in the water and for the control indicator for special salt to go out.
