Electrolux FAVORIT 50777 Manuale utente

FAVORIT 50777

Dishwasher

Instruction book

PERFEKT IN FORM UND FUNKTION

152950 34/0en 15-02-2006 9:22 Pagina 1

Dear customer,

Please read this User Information carefully and keep it to refer to at a

later date.

Pass it on to any subsequent owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Notes that concern your personal safety.

Attention! Notes that show how to avoid damage to the appliance.

Useful tips and hints

Environmental information

Your dishwasher has the new washing system ”IMPULSE WASHING”.

With this dishwashing system the motor speed and spray pressure

are varied during the wash cycle to achieve better cleaning of the

dishes. It is for this reason that the noise level varies during the

dishwashing cycle.

152950 34/0en 15-02-2006 9:22 Pagina 2

CONTENTS

Operating instructions 4

Safety instructions 4

Disposal 6

Economical and ecological dishwashing 6

Description of the appliance 7

The control panel 8

Prior to using for the first time 12

The water softener 12

Filling with dishwasher salt 15

Rinse aid 16

In daily use 18

Loading cutlery and dishes 18

The lower basket 20

The cutlery basket 21

The upper basket 22

Adjusting the height of the upper basket 23

Use of detergent 24

Different kinds of detergent 25

Washing programmes 27

Starting a washing programme 28

Maintenance and cleaning 31

Cleaning the filters 31

Something not working 34

Service 37

Guarantee terms 38

Technical specifications 41

Installation instructions 42

Fitting under a counter 42

Levelling 42

Water supply connections 43

Water inlet hose with safety valve 44

Water outlet hose connection 45

Electrical connection 46

Hints for test centres 47

Contents

152950 34/0en 15-02-2006 9:22 Pagina 3

OPERATING INSTRUCTIONS

Safety instructions

The safety of AEG electrical appliances conforms to accepted rules of

technology and the Appliance Safety Act. We as manufacturers,

however, see ourselves as being obliged to familiarise you with the

following safety instructions.

It is most important that this instruction book should be retained

with the appliance for future reference. Should the appliance be

sold or transferred to another owner, or should you move house

and leave the appliance, always ensure that the book is left with

the appliance in order that the new owner can get to know the

functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety.

You MUST read it carefully before installing or using the

appliance.

Installation

●Check your dishwasher for any transport damage. Never connect a

damaged machine. If your dishwasher is damaged, you should

contact your supplier.

●For safety reasons it is dangerous to alter the specifications or

attempt to modify this product in any way.

●Any electrical and plumbing work required to install this appliance

should be carried out by a qualified and competent person.

●Care must be taken to ensure that the appliance does not stand on

the electrical supply cable.

●The sides of the dishwasher must never be drilled to prevent

damage to hydraulic components.

Child safety

●This appliance is designed to be operated by adults.

●Children should not be allowed to tamper with the controls or play

with the product.

●Ensure the packaging materials for this appliance are kept away

from children so as to prevent the risk of injury or suffocation.

Operating instructions

152950 34/0en 15-02-2006 9:22 Pagina 4

●The water in your dishwasher is not for drinking. Detergent residues

may still be present in your machine. Keep children well away from

your dishwasher when the door is open.

●Keep all detergents in a safe place out of children's reach.

Your dishwasher in day-to-day use

●Items that are contaminated by petrol, paint, steel or iron debris,

corrosive, acidic or alkaline chemicals must not be washed in this

dishwasher.

●Under no circumstances should you open the door whilst the

appliance is in operation, especially during the washing phase, hot

water may escape. However, if the door is opened, a safety device

ensures that the machine stops.

●Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

●Long bladed knives stored in an upright position are a potential

hazard.

●Long and/or sharp items of cutlery such as carving knives must be

positioned horizontally in the upper basket.

●Ensure that the door of the dishwasher is always closed when it is

not being loaded or unloaded. In this way you will avoid anybody

tripping over the open door and hurting themselves.

●When finishing loading or unloading close the door, as an open

door can be a hazard.

●Do not sit or stand on the open door.

●Isolate the appliance from the power supply and turn off the water

supply after use.

●This product should be serviced by an authorised service engineer,

and only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine

yourself. Repairs carried out by inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Force Centre. Always insist on genuine

spare parts.

Operating instructions

152950 34/0en 15-02-2006 9:22 Pagina 5

Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material.

>PS< for polystyrene, e.g. padding material (always CFC-free).

>POM< for polyoxymethylene, e.g. plastic clips.

Cardboard packaging is manufactured from recycled paper and should

be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from

service, your should render it unserviceable before having it disposed

of.

Warning! Children at play could lock themselves in your dishwasher or

otherwise endanger their lives. Therefore cut off the power supply

cable and make the door closing device unusable to prevent children

from being trapped inside.

For the disposing of the appliance please take it to a recycling centre

or to your dealer who may, for a small contribution to the costs,

dispose it for you.

The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could

otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please

contact your local city office, your household waste disposal service or

the shop where you purchased the product.

Economical and ecological dishwashing

●Ensure that the water softener is correctly adjusted.

●Do not pre-wash under running water.

●Select the wash programme to suit the nature and degree of the

soiling on the dishes.

●Do not use more detergent, dishwasher salt and rinse aid than is

recommended in these operating instructions and by the

manufacturer of the respective product.

Operating instructions

152950 34/0en 15-02-2006 9:22 Pagina 6

Operating instructions

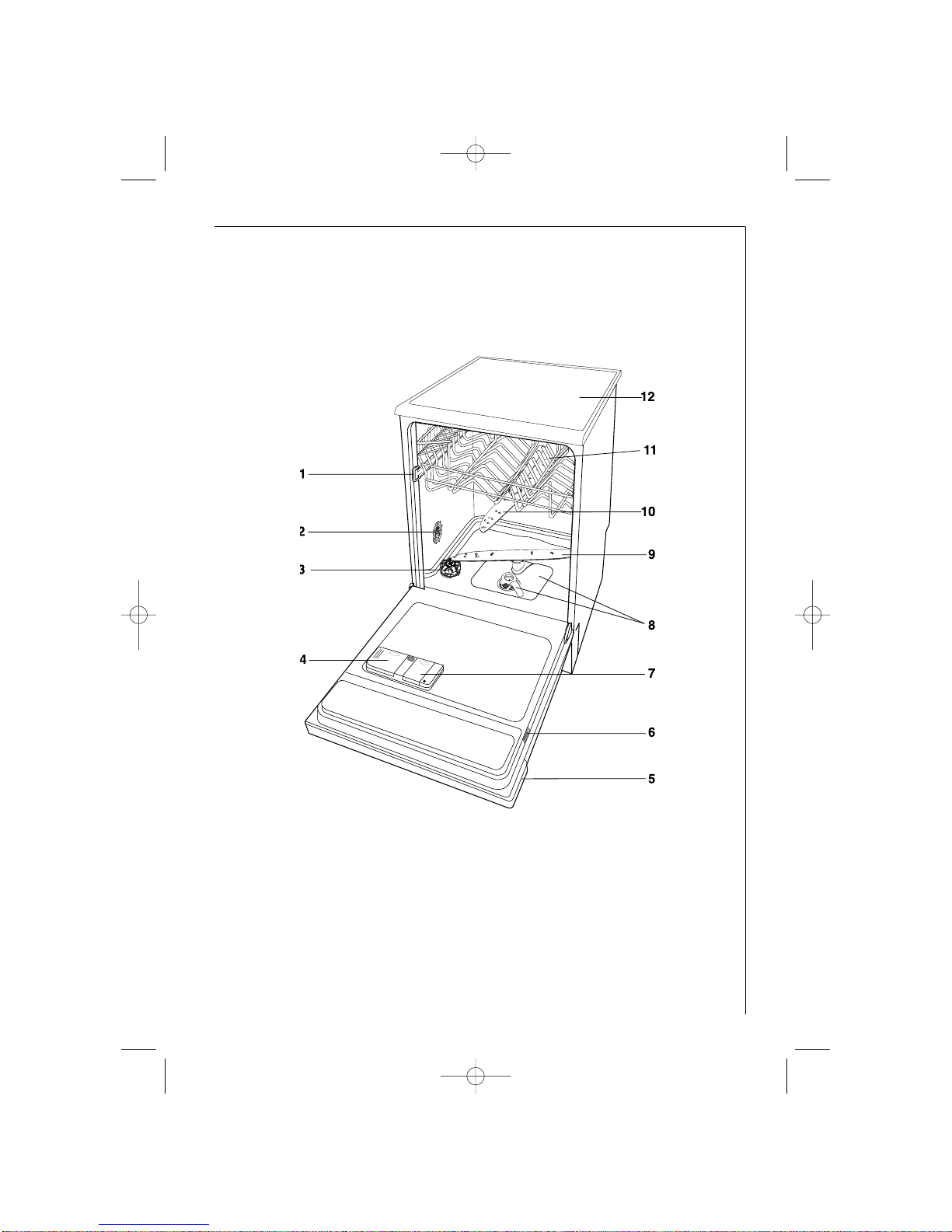

Description of the appliance

1. Upper basket stop

2. Water hardness dial

3. Salt container

4. Detergent dispenser

5. Control panel

6. Rating plate

7. Rinse aid dispenser

8. Filters

9. Lower spray arm

10. Upper spray arm

11. Upper basket

12.Worktop

IN144

152950 34/0en 15-02-2006 9:22 Pagina 7

Operating instructions

Function buttons: in addition to the dishwashing programme

selected, the following functions can also be set with the help of these

buttons:

- the setting of the water softener,

- activation/deactivation of the rinse aid dispenser,

- the cancelling of a programme in progress,

- activation/deactivation of the 3 in 1 function.

Programme selection buttons: the selection of a washing

programme occurs by pressing one of these buttons (see "Washing

programmes" chart).

"Delay start" button: this option allows the start of the programme

to be delayed from 1 to 19 hours.

The digital display indicates:

- the level of hardness to which the water softener is set,

- if the rinse aid dispenser is activated/deactivated,

- the approximate remaining time of the running programme,

- the end of the programme (a zero 0will appear in the digital

display),

- the countdown of the delay start,

- fault codes concerning malfunction of the dishwasher.

On/Off button

Programme selection buttons

Function buttons Indicator

lights

“Delay start”

button

123 4

The control panel

Digital display

Door handle

On/Off

indicator light

152950 34/0en 15-02-2006 9:22 Pagina 8

Operating instructions

Indicator lights: have the following meanings:

The salt and rinse aid indicator lights are never illuminated while a

washing programme is running even if filling with salt and rinse aid is

necessary.

3 in 1 function

This appliance is equipped with the 3 in 1 function, that allows the

use of the "3 in 1" combi detergent tablets.

This function can be selected with all washing programmes.

With the selection of this function the inflow of rinse aid and salt

from each respective supply container is automatically deactivated and

also the indicator lights for salt and rinse aid are deactivated.

Select the 3 in 1 function before the set of a washing programme.

Once selected this function (indicator light illuminated ) it will remain

active also for the following washing programmes.

With the use of the 3 in 1 function, the cycle durations may change.

In this case, in the digital display, the indication of the running time of

the programme is automatically updated.

NOTE: Once the programme is running, the 3 in 1 function can NO

longer be changed. If you want to exclude the 3 in 1 function you

have to cancel the programme setting (see chapter "Starting a washing

programme" - "Cancel a washing programme in progress") and then

deactivate the 3 in 1 function.

In this case you have to set a washing programme again.

3 IN 1 "3 in 1 function":indicates the activation/deactivation of

the "3 in 1 function" (see "3 in 1 function").

Salt refilling indicator light, illuminates when the salt has

run out

Rinse aid refilling indicator light, illuminates when the rinse

aid has run out

152950 34/0en 15-02-2006 9:22 Pagina 9

Activation/deactivation of the 3 in 1 function

(The dishwasher must be switched off)

1. Press the On/Off button. The On/Off indicator light illuminates

(setting mode).

If a programme button indicator light is on, this means that a

wash programme is set. The programme must be cancelled: press

simultaneously function buttons 2and 3for about 2 seconds.

All the indicator lights will turn off (except for the On/Off indicator

light and eventually salt and rinse aid indicator lights) indicating

that the set programme has been cancelled and the machine is

now in setting mode.

2. Press simultaneously function buttons 2and 3, until the indicator

lights of function buttons 1, 2,3and 4start flashing.

3. Press function button 4, the indicator lights of function buttons 1,

2and 3turn off while the indicator light of function button 4goes

on flashing.

4. Press function button 4again, the "3 in 1" indicator light

illuminates, indicating that the "3 in 1 function" is active.

To deactivate the function press function button 4again, the

indicator light turns off.

5. To memorise the operation, switch off the dishwasher by pressing

the On/Off button or wait about 60 seconds after which the

dishwasher will automatically return to setting mode.

Operating instructions

3 in 1 active indicator light on

3 in 1 not active indicator light off

152950 34/0en 15-02-2006 9:22 Pagina 10

Indice

Altri manuali Electrolux Lavastoviglie

Electrolux

Electrolux EWDW6505GB - Fully Integrated Dishwasher Manuale utente

Electrolux

Electrolux EX601SC Manuale utente

Electrolux

Electrolux ESF 68500 Manuale utente

Electrolux

Electrolux ESI5510LAW Manuale utente

Electrolux

Electrolux ESL 63010 Manuale utente

Electrolux

Electrolux ESL8530RO Manuale utente

Electrolux

Electrolux ESS67300SW Manuale utente

Electrolux

Electrolux ESL 4125 Manuale utente

Electrolux

Electrolux ESF4510LOW Manuale utente

Electrolux

Electrolux GA60GLV Manuale utente

Electrolux

Electrolux ei24id50qs0b Manuale utente

Electrolux

Electrolux ESF 6710ROX Manuale utente

Electrolux

Electrolux ESI4620RAX Manuale utente

Electrolux

Electrolux GA55SLV Manuale utente

Electrolux

Electrolux ESF5512LOX Manuale utente

Electrolux

Electrolux FAVORIT 40860 Manuale utente

Electrolux

Electrolux GA60KV Manuale utente

Electrolux

Electrolux ESF63030 Manuale utente

Electrolux

Electrolux Millennium 2G Manuale utente

Electrolux

Electrolux GA55LIWE Manuale utente

Electrolux

Electrolux ESF 63021 Manuale utente

Electrolux

Electrolux FAVORIT 55010 I Manuale utente

Electrolux

Electrolux GA55GLV220 Manuale utente

Electrolux

Electrolux ESI64060 Manuale utente

Manuali Lavastoviglie popolari di altre marche

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Siemens

Siemens SN 56N591 Manuale utente
