CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMMES................................................................................................. 7

6. SETTINGS..........................................................................................................9

7. OPTIONS..........................................................................................................12

8. BEFORE FIRST USE....................................................................................... 13

9. DAILY USE....................................................................................................... 15

10. HINTS AND TIPS........................................................................................... 16

11. CARE AND CLEANING..................................................................................17

12. TROUBLESHOOTING....................................................................................20

13. TECHNICAL INFORMATION......................................................................... 23

14. GUARANTEE ................................................................................................ 24

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away unless continuously supervised.

•Children of less than 3 years of age should be kept

away unless continuously supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Obey the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

www.electrolux.com4

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS

1362) fuse.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• Without electrical power, the water

protection system is not active. In this

case there is a risk of flooding.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

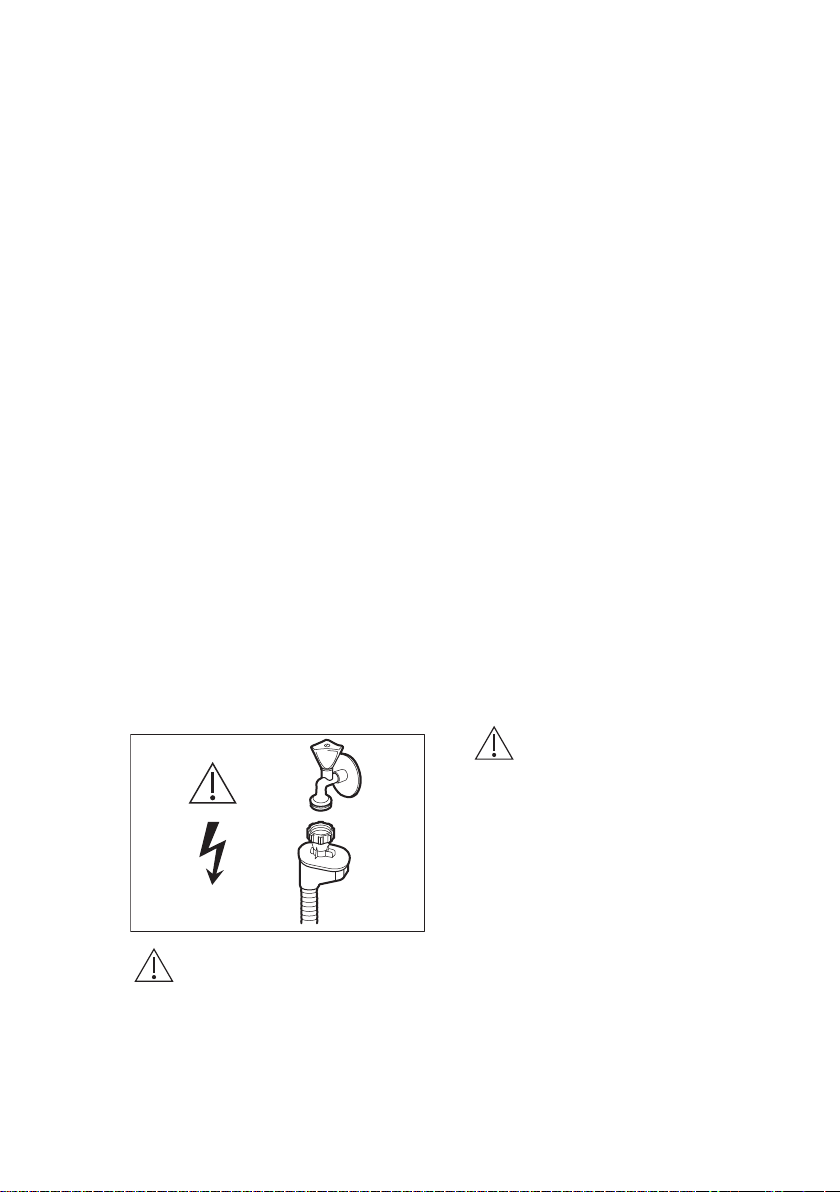

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Service

• To repair the appliance contact an

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

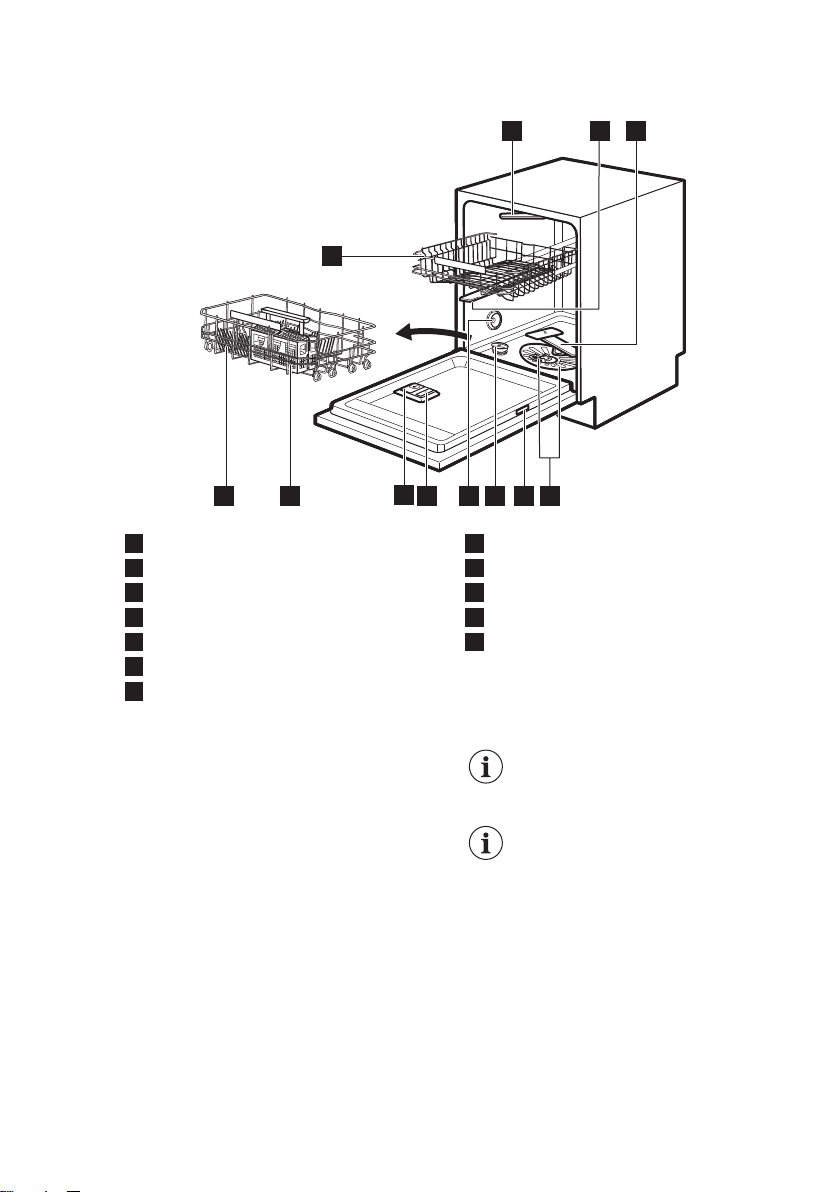

3. PRODUCT DESCRIPTION

9 8

11 10

1Top spray arm

2Upper spray arm

3Lower spray arm

4Filters

5Rating plate

6Salt container

7Air vent

8Rinse aid dispenser

9Detergent dispenser

10 Cutlery basket

11 Lower basket

12 Upper basket

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is

displayed on the floor below the

appliance door.

• When the programme starts, a red

light comes on and stays on for the

duration of the programme.

• When the programme is completed, a

green light comes on.

• When the appliance has a

malfunction, the red light flashes.

The Beam-on-Floor is off

when the appliance is

deactivated.

When AirDry is activated

during the drying phase, the

projection on the floor may

not be completely visible. To

see if the cycle has ended,

check the control panel.

www.electrolux.com6

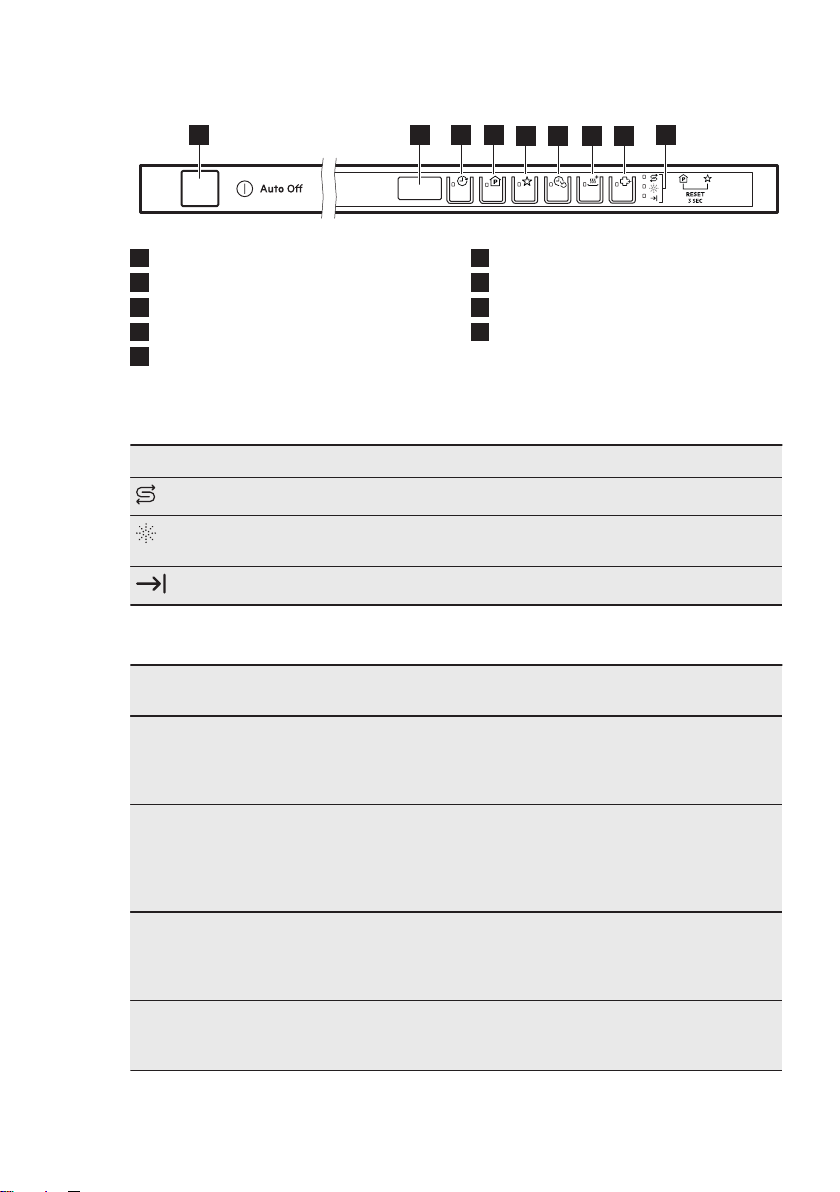

4. CONTROL PANEL

1239

45678

1On/off button

2Display

3Zeitvorwahl / Départ Différé button

4Program button

5MyFavourite button

6TimeSaver button

7XtraDry button

8XtraHygiene button

9Indicators

4.1 Indicators

Indicator Description

Salt indicator. It is on when the salt container needs refilling.

Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐

ing.

End indicator. It is on when the programme is completed.

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme pha‐

ses

Options

Eco 1)

• Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• XtraHygiene

• XtraDry

AutoSense 2)

• All

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash from 45 °C

to 70 °C

• Rinses

• Dry

• XtraHygiene

• XtraDry

Intensiv / Inten‐

sif 3)

• Heavy soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• TimeSaver

• XtraHygiene

• XtraDry

89 Min Intensiv 4)

• Normal soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

• Dry

• XtraHygiene

• XtraDry

ENGLISH 7

Programme Degree of soil

Type of load

Programme pha‐

ses

Options

30 Min 5)

• Light soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

• XtraHygiene

• XtraDry

Gläser /

Verre6)

• Normal or light

soil

• Delicate crock‐

ery and glass‐

ware

• Wash 45 °C

• Rinses

• Dry

• XtraDry

Extra Silent 7)

• Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• XtraDry

Machine Care 8)

• No load • Self-cleaning

1) This programme offers the most efficient use of water and energy consumption for crock‐

ery and cutlery with normal soil. (This is the standard programme for test institutes).

2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐

matically adjusts the temperature and quantity of water, energy consumption and pro‐

gramme duration.

3) This programme is designed to wash heavily soiled items with high water pressure and at

a high temperature.

4) This is a programme designed to wash a load with normal soil.

5) This programme is designed to wash a load or a half load with fresh or light soil. It gives

good washing results in a short time.

6) The water pressure and temperature in the appliance are adjusted to provide the best

washing results and special care for delicate items and glassware.

7) This is the most silent programme. The pump works at a very low speed to reduce the

noise generated by the appliance. Due to the low speed, the programme duration is long.

8) This programme is designed to clean the inside of the appliance effectively and efficient‐

ly. It removes limescale and grease buildup. The programme should be run at least once

every 2 months with a descaler or a cleaning product designed for dishwashers and without

any load.

5.1 Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

Eco

10.5 0.921 233

AutoSense

8 - 15 0.7 - 1.7 46 - 170

Intensiv / Intensif

12.5 - 14.5 1.4 - 1.7 170 - 190

www.electrolux.com8

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

89 Min Intensiv

12.9 1.14 89

30 Min

10 0.9 30

Gläser / Verre

12 - 14 0.8 - 1.0 82 - 92

Extra Silent

12 - 13 1.1 - 1.3 230 - 250

Machine Care

10 0.86 60 - 70

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

5.2 Information for test

institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of the rinse

aid empty notification.

• The level of rinse aid according to the

required dosage.

• Activation or deactivation of the

acoustic signal for the end of a

programme.

• Activation or deactivation of AirDry.

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

How to set the programme

selection mode

The appliance is in programme selection

mode when the display shows the

programme number P1.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold simultaneously and

until the appliance is in programme

selection mode.

How to enter user mode

Make sure the appliance is in

programme selection mode.

To enter the user mode, press and hold

simultaneously and until the

indicators , , , and flash

and the display is blank.

ENGLISH 9

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Water hardness

German de‐

grees (°dH)

French de‐

grees (°fH)

mmol/l Clarke de‐

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Whether you use a standard detergent

or multi-tabs (with or without salt), set

the proper water hardness level to

keep the salt refill notification active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

How to set the water softener

level

Make sure the appliance is in user mode.

1. Press .

• The indicators , , and

are off.

• The indicator still flashes.

• The display shows the current

setting: e.g. = level 5.

2. Press repeatedly to change the

setting.

3. Press on/off to confirm the setting.

6.3 The rinse aid empty

notification

The rinse aid helps to dry the dishes

without streaks and stains. It is

automatically released during the hot

rinse phase.

When the rinse aid chamber is empty,

the rinse aid indicator is turned on

notifying to refill rinse aid. If the drying

results are satisfactory while using multi-

tablets only, it is possible to deactivate

the notification for refilling rinse aid.

www.electrolux.com10

Altri manuali per GA60LV

Indice

Lingue:

Altri manuali Electrolux Lavastoviglie

Electrolux

Electrolux EMS47320L Manuale utente

Electrolux

Electrolux ESL 63010 Manuale utente

Electrolux

Electrolux COMPACT MIDI + EDW 500 Manuale utente

Electrolux

Electrolux GA60LV Manuale utente

Electrolux

Electrolux ESF 66860 Manuale utente

Electrolux

Electrolux BW450 Manuale utente

Electrolux

Electrolux FMB330RGB0 Manuale utente

Electrolux

Electrolux EUC40G1 Manuale utente

Electrolux

Electrolux ESF 65060 Manuale utente

Electrolux

Electrolux ESL7510RO Manuale utente

Electrolux

Electrolux EES69310L Manuale utente

Electrolux

Electrolux ESF5206LOW Manuale utente

Electrolux

Electrolux EDW7505HPS Manuale utente

Electrolux

Electrolux ESZ89301UW Manuale utente

Electrolux

Electrolux DIVA 45-60-BIG Manuale utente

Electrolux

Electrolux ESL 67030 Manuale utente

Electrolux

Electrolux U20149 DW 80 Manuale utente

Electrolux

Electrolux Westinghouse WSF6606 Manuale utente

Electrolux

Electrolux ESF65710 Manuale utente

Electrolux

Electrolux ESL 414 Manuale utente

Electrolux

Electrolux ESF 6141 Manuale utente

Electrolux

Electrolux FAVORIT 40760 Manuale utente

Electrolux

Electrolux EES69300L Manuale utente

Electrolux

Electrolux ESL 4114 Manuale utente

Manuali Lavastoviglie popolari di altre marche

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Siemens

Siemens SN 56N591 Manuale utente
