Electrolux EDC 506 E Manuale utente

TUMBLE DRYER

SECADORA

INSTRUCTION BOOKLET

MANUAL DE USO

EDC 506 E

125 995 670

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in

the first pages.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle emphasize information that is particularly important for your safety or correct

functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

ENGLISH

Contents

Important safety information..........4-5

Disposal............................................................5

Tips for environmental protection 5

Your new tumble dryer ..........................6

Description of the appliance..............6

Installation ......................................................7

Positioning ............................................................7

Electrical connection ............................................7

Stacking kit............................................................7

Connecting a drain hose ......................................7

Use........................................................................8

The control panel ..............................................8-9

Programme chart ................................................10

Operating sequence............................................11

Useful hints ........................................................12

Maintenance and Cleaning................13

External cleaning ................................................13

Cleaning the filter................................................13

Cleaning the condenser unit ..............................13

Emptying the water reservoir ............................13

Something not working?....................14

Technical specifications

DIMENSIONS: Height 85 cm

Width 60 cm

Depth 60 cm

ELECTRICAL CONNECTION: 220/230 V/50 Hz

MAX. POWER ABSORBED: 2600 W

MIN. FUSE RATING: 16 A

DRYING CAPACITY: Cotton, linen 5 kg

Synthetics 2.5 kg

CONSUMPTION: Cotton, linen 3.9 kWh (5 kg store dry)

Cotton, linen 3.1 kWh (5 kg iron dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Important safety information

Installation

• Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Use

• This appliance is designed for domestic use only. If

the machine is used for any other purposes or is

not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be

placed in the dryer.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

• Do not dry canvas shoes or sports shoes, as they

could get stuck between the door and the drum,

thus blocking this latter.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filter after using tumble dryer. To prevent

fire risks, do not use the appliance if the fluff filter is

damaged or without filter.

General safety

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Electrolux

Service Centre. Always insist on genuine Electrolux

spare parts.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or

using the appliance.

ENGLISH

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

To save energy and to help protect the environment,

we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

Select the drying programme according to the type

of laundry and the required degree of dryness.

• To utilize the maximum load, laundry which is to be

dried ready to put away (store dry) can be dried

together with items to be ironed. To do this, select

the programme for iron-dry, remove the iron-dry

items at the end of the programme and then finish-

dry the rest of the load.

• Clean the filter and condenser unit regularly to

avoid excessive drying times and high electricity

consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

Tips for environmental protection

• Packaging materials

The materials marked with the symbol are

recyclable.

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

• Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

Disposal

Your new tumble dryer

Description of the appliance

This tumble dryer will give your wash that soft, relaxed feel whatever the weather.

Extremely high quality standards both during development and manufacturing guarantee a long service life for

your appliance.

Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and

short drying times.

1 Control panel

2 Water reservoir

3 Programme chart

4 Fluff filter

5 Rating plate

6 Condenser unit

7 Adjustable feet

EDC505 E

ENGLISH

Installation

Positioning

It is recommended that, for your convenience, the

machine is positioned close to your washing

machine.

The tumble dryer must be installed in a clean place,

where dirt does not build up.

Air must be able to circulate freely all round the

appliance. Do not obstruct the front ventilation grille

or the air intake grilles at the back of the machine.

To keep vibration and noise to a minimum when the

dryer is in use, it should be placed on a firm, level

surface.

Once in its permanent operating position, check that

the dryer is absolutely level with the aid of a spirit

level. If it is not, raise or lower the feet until it is.

The feet must never be removed.

Do not restrict the floor clearance through deep-

pile carpets, strips of wood or similar. This might

cause heat build-up which would interfere with

the operation of the appliance.

Important

The hot air emitted by the tumble dryer can reach

temperatures of up to 60°C. The appliance must

therefore not be installed on floors which are not

resistant to high temperatures.

When operating the tumble dryer, the room

temperature must not exceed 35°C, as it may affect

the performance of the appliance.

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.6 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury through

failure to comply with the above safety

precaution.

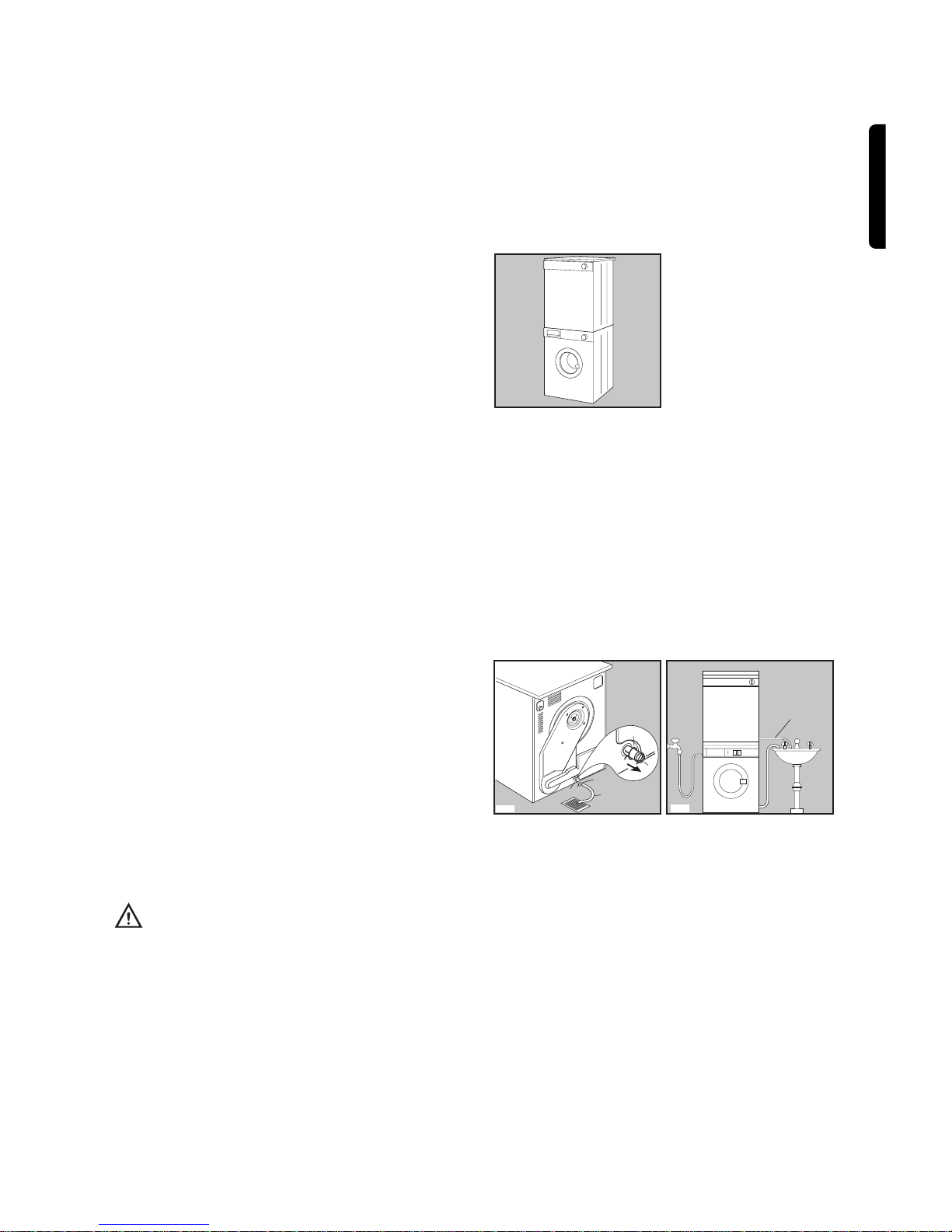

Stacking kit

A special stacking kit is available through your

dealer, to enable the mounting of the dryer on top of

your washing machine.

Connecting a drain hose

If there is a sink or drain near the appliance, the

condensed water can be discharged directly through

a hose that is available on the market.

In order to connect the hose to the appliance

proceed as follows:

• Remove the clamp (A);

• Pull out the plug (B);

• Insert the drain hose (C);

• Fasten the hose (C) to the appliance using the

clamp (A).

If the appliance is stacked on the washing machine,

the condensed water can be discharged through the

hose as shown in figure, but take into account that

the hose must be pointed downwards.

P1046

P1043

P1044

Use

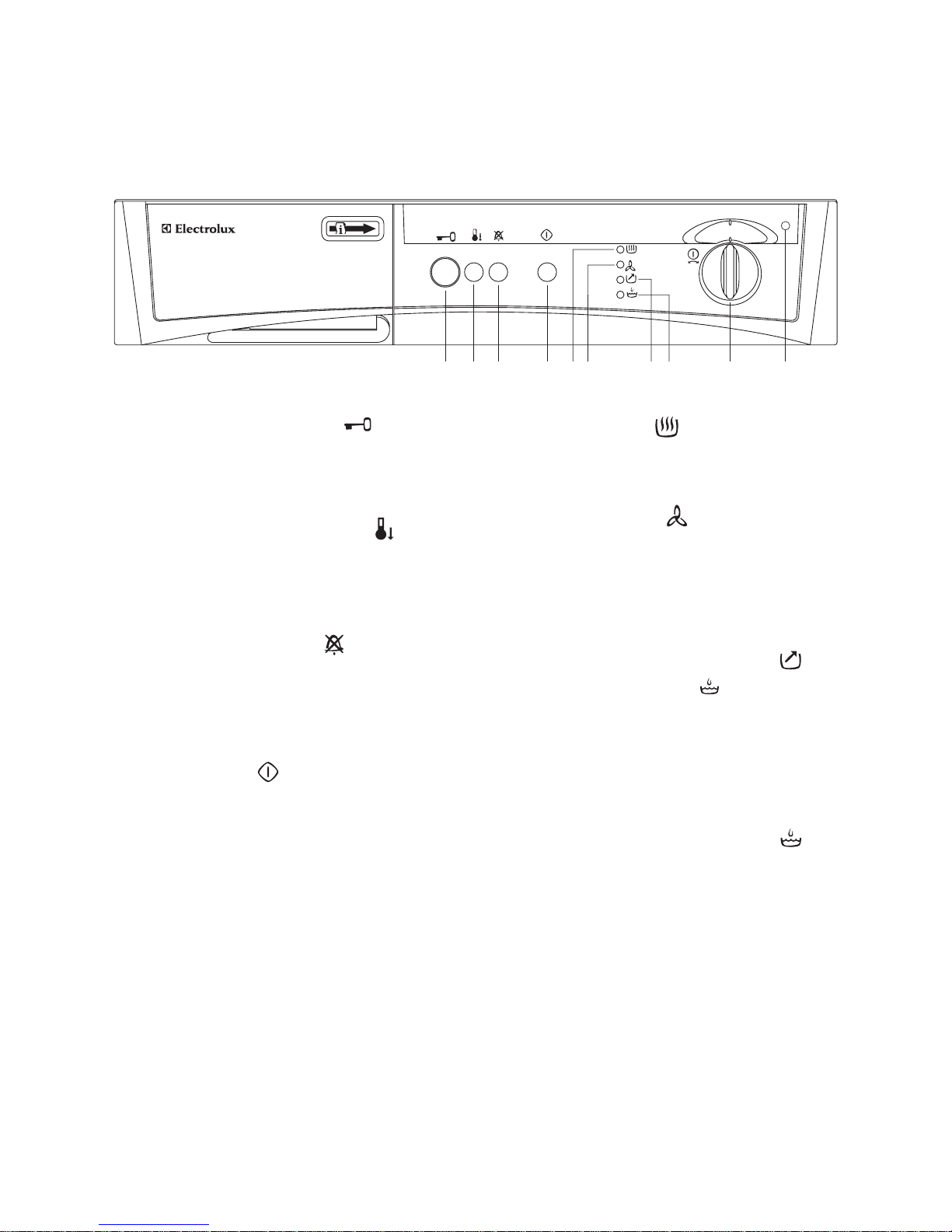

The control panel

1 Door opening button

To open door, press this button. Should the door be

opened while the appliance is working, the tumble

dryer will stop functioning.

2 Low temperature button

Press this button to reduce drying temperature.

This option should be used only when drying

synthetics with a time controlled programme.

3 Buzzer OFF button

During the anti-crease phase, the buzzer will sound.

Press this button to switch the sound off.

Important: If the water container is full, the buzzer

will sound even if this button has been depressed.

4 Start button

After selecting the programme or drying time depress

this button to start the appliance.

Should the door be opened while appliance is

drying, the START button has to be depressed

again after closing the door to allow the

programme to continue.

This button must be depressed also after a power

failure and after having re-inserted the water

container, if it has been emptied during the drying

programme.

5 “Drying” light

This light indicates that the machine is performing

the drying programme.

6 “Cooling” light

This light will illuminate when the cooling phase is in

operation.

A cooling phase of 9 minutes is performed at the end

of the drying programme before the anti-crease

phase.

7 “End of programme” light

This light flashes (alternately to light) at the end

of the programme (after the cooling phase) and

continues to flash during the anti-crease phase to

remind you that filter needs cleaning and water

container must be emptied. It goes out when you

open the door or turn the programme selector dial to

“0”.

8 “Water container full” light

This light flashes when the container is full.

EDC 506 E

10987654321

ENGLISH

9 Programme and time selector

dial

It allows you to select an automatic drying

(graduation in letters) or a time controlled drying

(graduation in minutes).

Automatic drying (electronic programmes)

The appliance operates in these programmes by

means of dampness sensors. All you have to do is to

set the selector dial to the programme required (A,

B, C or D), according to the type of laundry and the

degree of drying required (see programme table).

Time controlled drying

You can select a time up to 90 mins. to finish off

drying, if necessary, or to use your tumble dryer

independently of the electronic control system.

When selecting a short drying time, remember that

during the last 9 mins. of operation, the heat is cut off

in order to carry out a cooling phase.

To cancel a programme in operation, turn the

selector dial to “0”.

When drying is completed, switch off the appliance

by turning the dial to “0” before opening the door.

10 Mains-on light

This light lights up by selecting the programme or

time and goes out by turning the selector dial to “0”

or by opening the door.

Programme chart

Automatic drying (electronic programmes)

(*) According to CEI 1121 Standards.

Type of laundry Degree of drying

required Max-load (1)

kg Programme

Cotton & linen

Synthetics

extra dry

store dry

iron dry

store dry

2.5

B (*)

C (*)

D (*)

Degree of drying

required Spin speed Max-load (1)

kg Drying time

Degree of drying

required Spin speed Max-load (1)

kg Drying time

Store dry

Iron dry

Store dry Short spin at 650 r.p.m. 2.5

0.5

45-60 min.

30-45 min.

20 min.

800-1000 r.p.m.

1000-1200 r.p.m.

800- 1000 r.p.m.

1000-1200 r.p.m.

3.5

2.0

3.5

2.0

3.5

2.0

3.5

2.0

75-90 min.

60-75 min.

45-60 min.

60-75 min.

45-60 min.

30-45 min.

Time controlled drying

Cotton and linen

Synthetics: depress pushbutton

(1) Never overfill the drum (do not load large quilts, for example).

Drying times vary according to:

• The type of laundry

• The size of the load

• The degree of spinning prior to drying.

Fresh & Cool

This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour

of moth-balls).

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the

following guidelines:

•cotton, linen: drum full but not too tightly packed;

•synthetics: drum no more than half full;

•delicate fabrics: drum no more than one third full.

Indice

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux LAVATHERM 58840R Manuale utente

Electrolux

Electrolux Dito 601837 Manuale utente

Electrolux

Electrolux EFME617SIW Manuale utente

Electrolux

Electrolux EDC 5330 Manuale utente

Electrolux

Electrolux EDH3488GDE Manuale utente

Electrolux

Electrolux EDE1072PDW Manuale utente

Electrolux

Electrolux 1Q-Touch Manuale utente

Electrolux

Electrolux EWMED65HIW - 27" Perfect Steam Electric... Manuale utente

Electrolux

Electrolux EIGD55H - Gas Dryer With 8.0 cu. Ft.... Manuale utente

Electrolux

Electrolux EW7H558E2 Manuale utente

Electrolux

Electrolux EDH903R9WB Manuale utente

Electrolux

Electrolux UltimateCare 700 Manuale utente

Electrolux

Electrolux EDE 5335 Manuale utente

Electrolux

Electrolux FER641FS Manuale utente

Electrolux

Electrolux TWGL5E303 Manuale utente

Electrolux

Electrolux EIED50LIW Istruzioni per l'installazione

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Guida rapida

Electrolux

Electrolux EDH3498RDL Manuale utente

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuale utente

Electrolux

Electrolux EFMG617STT Manuale utente

Electrolux

Electrolux EDH3686GDE Manuale utente

Electrolux

Electrolux T5190LE Manuale utente

Electrolux

Electrolux TW5459F Manuale utente

Electrolux

Electrolux EIGD55HIW - 27" Gas Dryer Guida rapida

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
