Welcome to the world of Electrolux

Thank you for choosing a first class product from

Electrolux, which hopefully will provide you with lots of

pleasure in the future. The Electrolux ambition is to

offer a wide variety of quality products that make your

life more comfortable. You find some examples on

the cover in this manual. Please take a few minutes

to study this manual so that you can take advantage

of the benefits of your new machine. We promise that

it will provide a superior User Experience delivering

Ease-of-Mind. Good luck!

4 contents electrolux

The following symbols areused in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

Contents

Safety information..............................5

Product description ...........................8

Control panel .....................................8

Use....................................................9

Drying hints ................................13-14

Drying programme .....................15-16

Programme information ...................17

Care and cleaning ...........................18

Something not working ..............21-23

Technical data .................................24

Consumption values ........................25

Installation ..................................26-27

Environment concerns .....................28

Guarantee conditions ......................29

Customer service centres ................30

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain

with the appliance if it is moved or

sold, so that everyone using it

through its life will be properly

informed on appliance use and safety.

General safety

• It is dangerous to alter the specifica-

tions or attempt to modify this prod-

uct in any way.

•This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or lack of

experience and knowledge, unless

they have been given supervision or

instruction concerning use of the

appliance by a person responsible for

their safety.

•Make surethat small pets do not

climb into the drum. Toavoid this,

please check into the drum before

using.

•Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

• In order to avoid danger of fires

caused by excessive drying, do not

use appliance to dry the following

items: Cushions, quilts and the like

(these items accumulate heat).

•Items such as foam rubber (latex

foam), shower caps, waterproof tex-

tiles, rubber backed articles and

clothes or pillows fitted with foam

rubber pads should not be dried in

the tumble dryer.

•Always unplug the appliance after

use, clean and maintenance.

•Under no circumstances should you

attempt to repair the machine your-

self. Repairs carried out by inexperi-

enced persons may cause injury or

serious malfunctioning. Contact your

local Service Centre. Always insist on

genuine spare parts.

•Items that have been soiled with sub-

stances such as cooking oil acetone,

petrol, kerosene, spot removers, tur-

pentine, waxes and wax removers

should be washed in hot water with

an extra amount of detergent before

being dried in the tumble dryer.

•D

n: Never tumble

dry items that have been in contact

with inflammable solvents (petrol,

methylated spirits, dry cleaning fluid

and the like). As these substance are

volatile, they could cause an explo-

sion. Only tumble dry items washed

with water.

• R

e: items that have been

spotted or soaked with vegetable or

cooking oil constitute a fire hazard

and should not be placed in the tum-

ble dryer.

• If you have washed your laundry with

stain remover you must execute an

extra rinse cycle before loading your

tumble dryer.

• Please make sure that no gas lighters

6electrolux safety information

or matches have accidentally been

left in pockets of garments to be

loaded into appliance

• This appliance is heavy. Care should

be taken when moving it.

• When unpacking the appliance,

check that it is not damaged. If in

doubt, do not use it and contact the

Service Centre.

• All packing and transit bolts must be

removed before use. Serious damage

can occur to the product and to

property if this is not adhered to. See

relevant section in the user manual.

• The final part of a tumble dryer cycle

occurs without heat ( cool down cycle

) to ensure that the items are left at a

temperature that ensures that items

will not be damaged.

• Any electrical work required to install

this appliance should be carried out

by a qualified electrician or competent

person.

• Care must be taken to ensure that

the appliance does not stand on the

electrical supply cable.

• If the machine is situated on a car-

peted floor, please adjust the feet in

order to allow air to circulate freely.

• After having installed the appliance,

check that it is not pressing or stand-

ing on its electrical supply cable.

• If the tumble dryer is placed on top

of a washing machine, it is compulso-

ry touse the stacking kit (optional

accessory).

• This appliance is designed for

domestic use. It must not be used for

purposes other than those for which it

was designed.

• Only wash fabrics which are

designed to be machine dried. Follow

the instructions on each garment

label.

• Do not dry unwashed items in the

tumble dryer.

• Do not overload the appliance. See

the relevant section in the user manu-

al.

• Clothes which are dripping wet

should not be placed in the dryer.

• Garments which have been in con-

tact with volatile petroleum products

should not be machine dried. If

volatile cleaning fluids are used, care

should be taken to ensure that the

fluid is removed from the garment

before placing in the machine.

• Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

• Never use the tumble dryer if the

power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the tumble dryer is accessible.

• Fabric softeners, or similar products

should be used as specified by the

fabric softener instructions.

• This machine is not intended for use

by young children or infirm persons

without supervision.

safety information electrolux 7

• Children should be supervised to

ensure that they do not play with the

appliance.

• The packaging components (e.g.

plastic film, polystyrene) can be dan-

gerous to children - danger of suffo-

cation! Keep them out of children’s

reach.

• Keep all detergents in a safe place

out of children’s reach.

• Make sure that children or pets do

not climb into the drum.

8electrolux product description/control panel

Product description

Control panel

Fluff filters

Rating Plate

Condenser unit

Water reservoir

Adjustable feet

Drum Light

Control panel

Programme selector dial

Delicate button

Buzzer button

Dryness button

Long -Anti Crease button

1 3 4 5 7 8 96

Display

Start/Pause button

Delay button

Indicator lights

Use

First Use

●

Ensure that the electrical connections

comply with the installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Before using your tumble dryer for

the first time, werecommend that you

to place a few damp clothsinside the

appliance and dry for 30 minutes.

There may be dust inside a brand

new tumble dryer.

Daily Use

Load the laundry

Connect the appliance.

Open the door (see picture).

Place the laundry in the drum, one item at a

time, shaking them out as much as possible.

Select the required programme

Turn the programme selector dial to the

required programme.

The light Start/Pause starts to flash.

The selector dial is divided into following

sections:

 Cottons

 Synthetics

 Time

 Special

Allows you to select electronically

controlled or time controlled drying. Turn

the dial to the required programme or time.

)

The appliance runs these programmes with

the help of probes which detect the degree

of dampness of the laundry. Simply select

the programme according to the type of

laundry and degree of drying required. The

selector dial can be turned either clockwise

or anticlockwise.

At the end of the programme the

selector dial must be turned to

position O, to switch the machine off.

Attention!

If you turn the programme selector dial

to another programme when the machine is

working, the lights of the programme progress

display start to flash. The machine will

not perform the new selected programme.

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start/Pause button. When these buttons

are pressed, the corresponding pilot lights

use electrolux 9

10 electrolux use

come on. When they are pressed again, the

pilot lights go out.

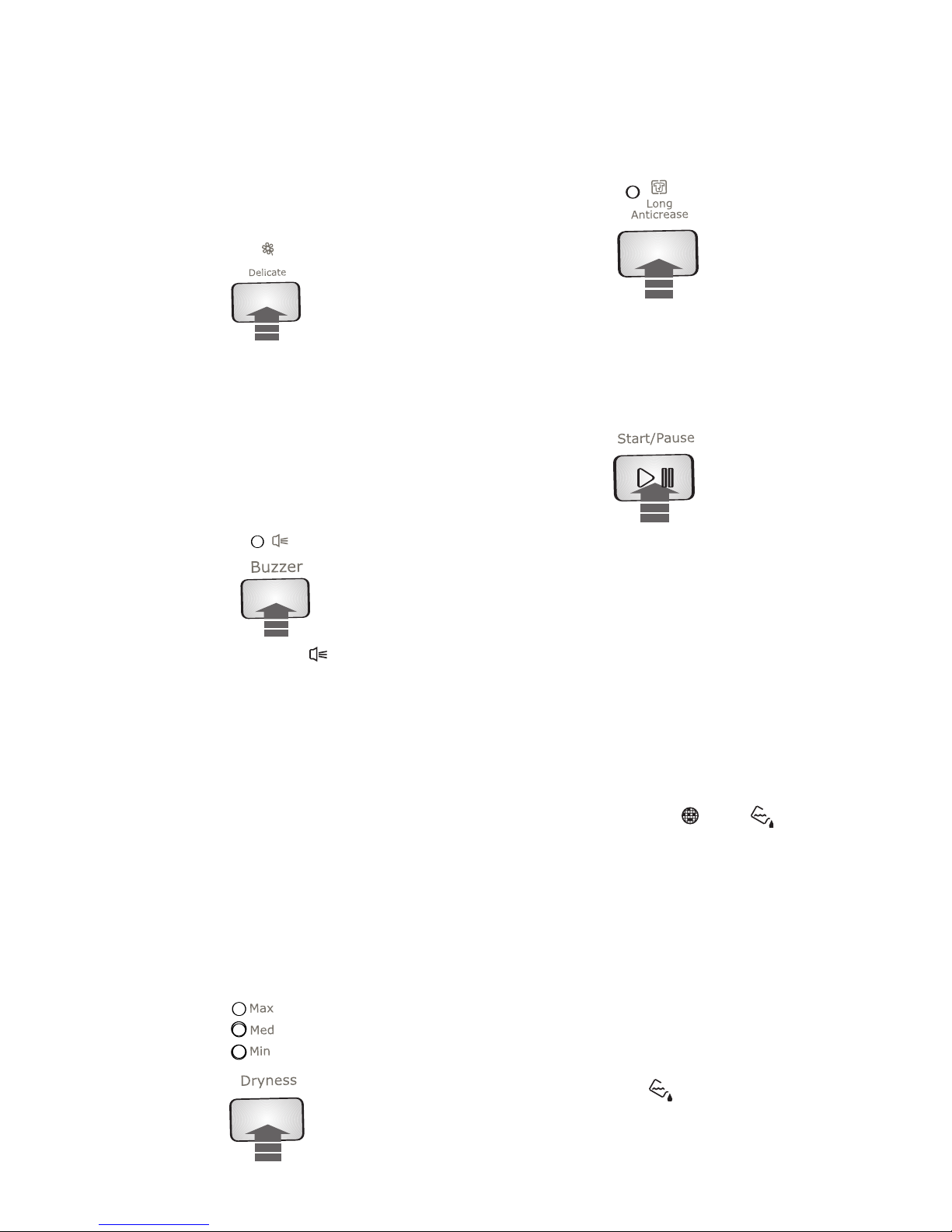

Select Delicate

Pressing this button allows drying to be

performed at a lower temperature, for

delicate items.

The corresponding pilot light comes on. This

option can also be used for time controlled

drying. DELICATE is only suitable for use

with loads of up to 3kg!

Select the Buzzer

When the drying cycle has finished, an

intermittent audible signal will sound.

By depressing button the acoustic

signal is switched off in the following cases:

•when selecting the programme

•when depressing the buttons

• when the programme selector dial is

turned to another position during the

programme or when you depress an

option button during the cycle

• at the end of the programme.

The corresponding light comes on

Select the Dryness

Press the Dryness button repeatedly, to

select the desired option. The relevant

light will light up. Laundry becomes

dryer from MIN to MAX.

When the programme has finished the

pilot lights End is on.

Select the Long-Anticrease button

The drying cycle is automatically followed by

a anti-crease phase which lasts around

90 minutes.

Select the Start/Pause

Press this button to start the dryer after

having selected the programme and

the options. The relevant light will stop

flashing. If the programme selector dial

is turned to another position, when the

machine is running, the buzzer will

sound and the programme phase indicator

lights will flash. The drum turns alternately

in both directions during drying.

All drying programmes end with a 10 minute

cooling phase (light Cooling is on). You may

remove the laundry after this phase.

The display will show the symbol Long

Anticrease, and lights and illumi-

nate and the buzzer sounds

In both cases the light of the Start/Pause

button flashes to remind you that the

start button needs to be pressed again.

Altri manuali per EDC 77550W

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux EDE1074PDW Manuale utente

Electrolux

Electrolux EDC 5339 Manuale utente

Electrolux

Electrolux TDV 850 Manuale utente

Electrolux

Electrolux T5130 Manuale utente

Electrolux

Electrolux Iron Aid EDI97170W Manuale utente

Electrolux

Electrolux EDC 5366 Manuale operativo

Electrolux

Electrolux EDE420E Manuale utente

Electrolux

Electrolux FGQ332E Manuale utente

Electrolux

Electrolux WT31RT Manuale di istruzioni

Electrolux

Electrolux EDC 77550W Manuale utente

Electrolux

Electrolux TK SL5 E Manuale utente

Electrolux

Electrolux T4650 Manuale utente

Electrolux

Electrolux EW9H378S Manuale utente

Electrolux

Electrolux EW2H328R2 Manuale utente

Electrolux

Electrolux EDE 37100W Manuale utente

Electrolux

Electrolux QuickDry N1130 Manuale utente

Electrolux

Electrolux EWMED6CIRR0 Manuale utente

Electrolux

Electrolux EW7H437P Manuale utente

Electrolux

Electrolux U04488 WT40 Manuale utente

Electrolux

Electrolux TW SL4 E Manuale utente

Electrolux

Electrolux EDE1070PDW Manuale utente

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Manuale utente

Electrolux

Electrolux 864500 Manuale utente

Electrolux

Electrolux SAGQ7000FS0 Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
