User Manual 3

2 www.electrolux.com

CONTENTS

1. SAFETY INFORMATION ................4

1.1 Conditions Of Use ............................4

1.2 Child Safety ......................................5

1.3 Dryer Safety......................................5

1.4 Installation ........................................6

1.5 Electrical connection.........................6

1.6 Fire Hazards.....................................7

2. PRODUCT DESCRIPTION ..................8

2.1 Accessories ......................................9

3. control panel.......................................10

3.1 Display............................................11

4. PROGRAM TABLE.............................12

5. OPTIONS AND SETTINGS ................13

5.1 Option Table ...................................13

5.2 Dryness Level.................................14

5.3 Time Dry .........................................14

5.4 Dry Temp ........................................15

5.5 Delay Start......................................15

5.6 Extra Anticrease .............................15

5.7 Child Lock Function........................15

5.8 Enabling/Disabling

End-Of-Dry Buzzer .........................16

6. DAILY USE .........................................17

6.1 Start a program without

delay start.......................................17

6.2 Starting the program with

delay start.......................................17

6.3 Change a program..........................17

6.4 Interruption of a program................17

6.5 At the end of the program...............18

6.6 Stand-by function............................18

7. DRYING HINTS..................................19

7.1 Preparing the laundry .....................19

7.2 Guide..............................................20

8. CARE AND CLEANING......................21

8.1 Cleaning the lint filter......................21

8.2 Cleaning the drum ..........................21

8.3 Cleaning the control panel..............22

9. TROUBLESHOOTING .......................23

9.1 Troubleshooting..............................23

9.2 If the drying results are not

satisfactory .....................................24

10. TECHNICAL DATA ...........................24

11. INSTALLATION.................................25

11.1 Unpacking.....................................25

11.2 Positioning ....................................25

11.3 Machine Leveling..........................26

11.4 Electrical Connection ....................27

12. ENVIRONMENTAL CONCERNS .....27

ENGLISH 3

Adherence to the directions for use in this manual is extremely important for health and

safety. Failure to strictly adhere to the requirements in this manual may result in personal

injury, property damage and a󰀨ect your ability to make a claim under the Electrolux

manufacturer’s warranty provided with your product. Products must be used, installed and

operated in accordance with this manual. You may not be able to claim on the Electrolux

manufacturer’s warranty in the event that your product fault is due to failure to adhere to

this manual.

- Read the supplied instructions.

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it

has been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time. Welcome to Electrolux.

We recommend the use of original spare parts.When contacting Service, ensure that

you have the following data available. The information can be found on the rating plate.

Model, PNC, Serial Number.

Subject to change without notice.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Get usage advice, brochures, trouble shooter, service information, buy

accessories & spare parts, online product registration :

www.electrolux.com

IMPORTANT INFORMATION THAT MAY IMPACT YOUR

MANUFACTURER’S WARRANTY

WE’RE THINKING OF YOU

CUSTOMER CARE AND SERVICE

Visit our website to:

4 www.electrolux.com

1. SAFETY INFORMATION

1.1 Conditions Of Use

This appliance is intended to be used in household and

similar applications such as:

• sta󰀨 kitchen areas in shops, o󰀩ces and other working

environtment;

• farm houses;

• by clients in hotels, motels, and other residential type

environments;

• bed and breakfast type environtments;

• areas for communal use in blocks of ats or in

launderettes.

WARNING! The appliance must not be supplied

through an external switching device, such as timer, or

connected to a circuit that is regularly switched on and

o󰀨 by utility.

In the interest of your safety and to ensure the correct

use, before installing and rst using the appliance,

read this user manual carefully, including its hints and

warnings.

To avoid unnecessary mistakes and accidents, it is

important to ensure that all people using the appliance

are thoroughly familiar with its operation and safety

features.

Save these instructions and make sure that they

remain with the appliance if it is moved or sold, so

that everyone using it through its life will be properly

informed on appliance use and safety.

ENGLISH 5

1.2 Child Safety

• This washing machine is not intended for use by

young children or inrm persons without supervision.

• Young children should be supervised to ensure that

they do not play with the appliance.

• Keep children and pets away from the appliance

when the door is open. Make sure that children or

pets do not climb into the drum.

• The packaging components (e.g. plastic lm,

polystyrene) can be dangerous to children - danger of

su󰀨ocation! Keep them out of children’s reach.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.3 Dryer Safety

• Failure to follow these safety

instructions could damage the dryer

or your clothes.

You may then not be covered by

warranty for this damage.

• Only plug this appliance directly into

an AC power supply, which is

properly earthed and has the correct

voltage.

• CAUTION: Connect the mains

plug to the mains socket only at the

end of the installation process. Make

sure that the mains plug is accessible

after installation.

See the serial number sticker

located on the bottom of the

door opening for voltage

information.

For safety reasons we strongly

advise against the use of double

adaptor, extension cords or power

boards.

• If the electrical cord of this appliance

is damaged, it must be replaced by

the Manufacturer, Authorised Service

Agent or similarly qualified person in

order to avoid a hazard.

• These dryers are for drying clothes,

towels and linen at home. Do not use

them for any other purpose.

• Lint must not be allowed to

accumulate around the tumble dryer.

• Do not dry unwashed items in the

tumble dryer.

• Never stop a tumble dryer before the

end of the drying cycle unless all

items are quickly removed and

spread out so that the heat is

dissipated.

6 www.electrolux.com

• The appliance must not be supplied

through an external switching device,

such as a timer, or connected to a

circuit that is regularly switched on

and off by a utility.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• If laundry has been washed with a

stain remover, carry out an additional

rinse cycle before starting a drying

cycle.

• Dry only fabrics that are suitable to

dry in the appliance. Follow the

cleaning instruction on the item label.

• Do not sit or stand on the open door

of the appliance.

• Do not dry dripping wet clothes in the

appliance.

• Do not exceed the maximum load of

maximum capacity of your dryer

(refer to the “Program chart” chapter).

• CAUTION: Do not run the

appliance without a filter. Clean

the lint filter before or after each

use. (refer to the “Care and

Cleaning” chapter)

1.4 Installation

1.5 Electrical connection

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be lower

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

WARNING!

Risk of fire and electric shock.

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is

levelled correctly with the aid of a

spirit level. If it is not, adjust the feet

accordingly.

ENGLISH 7

Foam rubber materials can produce

fire by spontaneous combustion

when heated.

• Rubber-backed articles, clothes fitted

with foam rubber pads, pillows,

rubber boots and rubber-coated

sports shoes.

For your safety, and to reduce the risk

of fire or an explosion, DO NOT store

or use petrol or other inflammable

vapours and liquids near your dryer.

1.6 Fire Hazards

Some fabrics are not suitable for tumble

drying. The following MUST NOT be

placed in your dryer due to the risk of a

fire or an explosion:

• Items that have been spotted or

soaked with vegetable oil, cooking

oil, suntan oil, linseed oil, salad oil,

lubrication oil or grease. Oil affected

items can ignite spontaneously,

especially when exposed to heat

sources such as in a tumble dryer.

The items become warm, causing as

oxidation reaction in the oil. Oxidation

creates heat. If heat cannot escape,

the items can become hot enough to

ignite.

Pilling, stacking or storing oil-affected

items can prevent heat from escaping

and create a fire hazard.If it is

unavoidable that fabrics that contain

vegetable or cooking oil, or have

been contaminated by hair care

products be placed in a tumble dryer,

they should first be washed with hot

water with extra detergent - this will

reduce, but not eliminate the hazard.

The final part of tumble dryer cycle

occurs without heat (Cooling cycle) to

ensure that the items are left at the

temperature that ensures that the

items will not be damage.

• Item that have previously been

cleaned in, washed in, or spotted with

petrol/gasoline, industrial chemicals

used only for cleaning, dry-cleaning

solvents or other flammable or

explosive substances are highly

flammable.

Highly flammable or explosive

commonly found around the house

include acetone, (nail polish remover)

denatured alcohol, petrol/gasoline,

kerosene,some spot removers,

turpentine, waxes and wax removers

should not be put in the dryer.Items

containing foam rubber (also known

as latex foam) or similarly textured

rubber-like materials.

8 www.electrolux.com

Work top

Lint filter

Control panel

Appliance door

Front feet

Drum lifter

Exhaust grille

Air inlet duct

Outlet cover

Back feet

2. PRODUCT DESCRIPTION

1 1

ENGLISH 9

2.1 Accessories

Wall Mounting Kit:

to invert the dryer on a wall upside down.

Dryer Venting Kit:

designed for dryers positioned directly against an

outside wall.

Control Panel Invert Sticker

10 www.electrolux.com

Program selector knob Press the touch buttons with your

finger in the area with the symbol

or name of the option. Do not wear

gloves when you operate the control

panel. Make sure that the control

panel is always clean and dry.

Extra Anticrease touch button

Dryness Level touch button

Child Lock option

Delay Start touch button

Display

Time Dry touch button

Start/Pause touch button

Dry Temp touch button

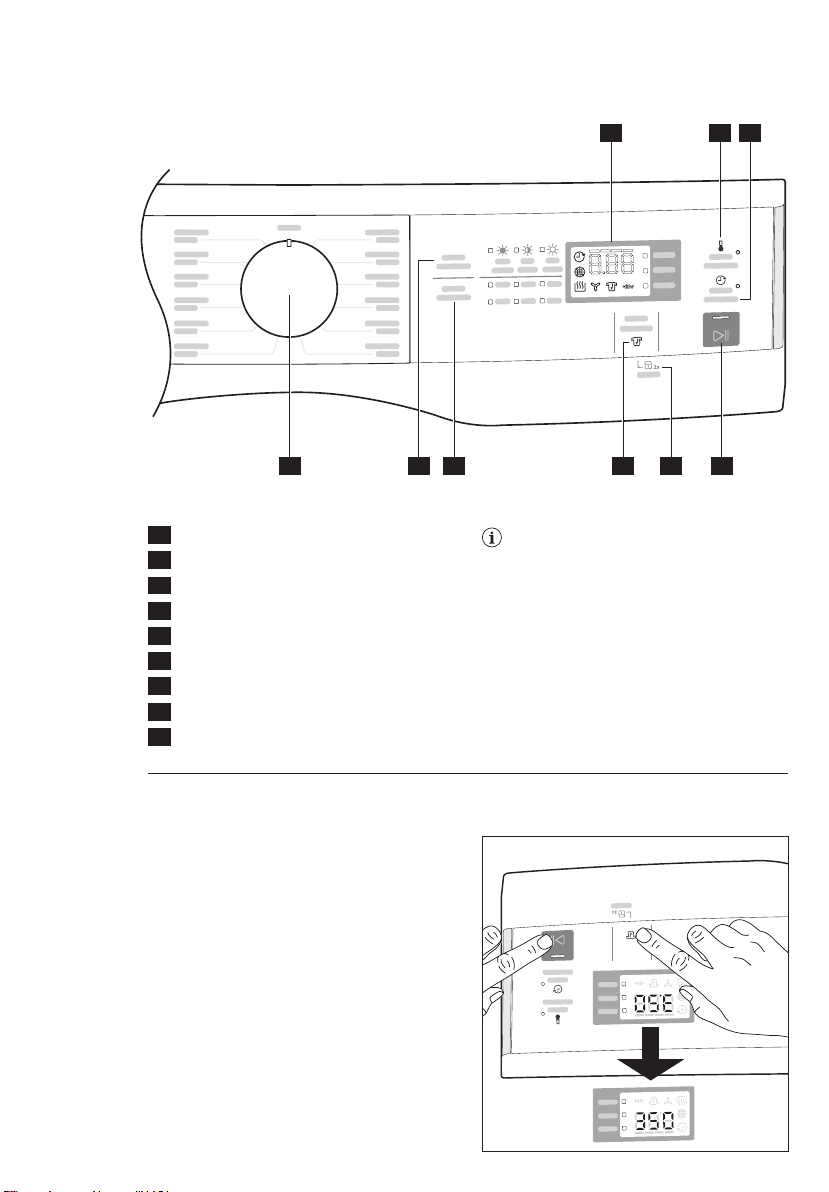

3. CONTROL PANEL

1 3 4 5 6

8 7

Inverted Mounting Mode

The vented dryer allows for inverted wall

mounting and you can set the dryer to

an Inverted Mounting Mode through a

hidden key combination. (Invert control

panel sticker supplied with the machine.)

This would adjust the display to read

correctly when it is wall-mounted up-

side-down.

To set the appliance to Inverted

mounting mode, press and hold the

“Extra Anticrease” and “Start/Pause”

touchpad at the same time about 5

seconds, the display will be inverting

digit number with the sound “BEEP,

BEEP”.

Extra

Anticrease

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux EDH3896GDW Manuale utente

Electrolux

Electrolux T4650 Manuale utente

Electrolux

Electrolux TWSL4E300 Manuale utente

Electrolux

Electrolux EDH913R9WB Manuale utente

Electrolux

Electrolux SWISSLINE TW SL5M 100 Manuale utente

Electrolux

Electrolux EDE1070PDW Manuale utente

Electrolux

Electrolux EIMED55I RR Manuale utente

Electrolux

Electrolux EIED55IKG - 8.0 cu. Ft. Electric Dryer Manuale utente

Electrolux

Electrolux QuickDry QDC Manuale utente

Electrolux

Electrolux T4290 Manuale utente

Electrolux

Electrolux EWMGD70J IW Manuale utente

Electrolux

Electrolux TW SL EP Manuale utente

Electrolux

Electrolux ELFE4222AW Manuale utente

Electrolux

Electrolux WT252 Manuale di istruzioni

Electrolux

Electrolux TC2 Manuale utente

Electrolux

Electrolux EDE1074PDW Manuale utente

Electrolux

Electrolux TW GL4 E Manuale utente

Electrolux

Electrolux EDC704GEWA Manuale utente

Electrolux

Electrolux QuickDry N1130 Manuale utente

Electrolux

Electrolux SD10 Manuale di istruzioni

Electrolux

Electrolux EDR 1000 Manuale utente

Electrolux

Electrolux EIED55H IW Foglio di istruzioni

Electrolux

Electrolux EW8H359SP Manuale utente

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
