Finding Information

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide

is part of our commitment to customer satisfaction and product quality throughout the life of your new

appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,

please use this page to record important product information.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)

For online support and product information visit http://www.electroluxappliances.com

Table of contents

Finding information ......................................................... 2

SAFETY ..................................................................... 3-5

Features .......................................................................... 6

Operating instructions ............................................... 7-18

• Getting Started ........................................................... 7

Normal Operating Sounds .......................................... 7

Operating Your Dryer ............................................... 8-9

Cycle Selection .................................................... 10-12

Drying Temperature .................................................. 13

Dryness Level ........................................................... 14

Options ................................................................ 15-16

Dryer Features .......................................................... 17

Dryer Settings Chart ................................................. 18

Care & Cleaning ............................................................ 19

Solutions to Common Problems ............................. 20-21

Common Drying Problems ....................................... 20

Service Prevention Checklist .................................... 21

Warranty information .................................................... 22

Safety

ImpoAant Safety Instructions

Recognize safety symbols, words and

labels

Your safety and the safety of others is very

important.

We have provided many important safety

messages in the Use and Care Guide, Installation

Instructions and on your appliance. Always read

and obey all safety messages.

Safety items throughout this manual are labeled

with a WARNING or CAUTION based on the risk

type as described below:

ik WARNING This symbol alerts you to situa-

tions that may cause serious body

harm, death or property damage.

/_k CAUTION This symbol alerts you to situa-

tions that may cause bodily injury

or property damage.

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

,, Do not try to light any appliance.

,, Do not touch any electrical switch; do

not use any phone in your building.

,, Clear the room, building or area of all

occupants.

,, Immediately call your gas supplier from

a neighbor's phone. Follow the gas

supplier's instructions.

,, If you cannot reach your gas supplier,

call the fire department.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Save these instructions for future reference.

240 v Electric Dryer

I0-30R I_ _

3-wire

(fused 30 amp)

14-30R

4-wire

120 v Gas Dryer

(fused 30 amp)

Grounding type

wall receptacle

UL-approved service Do no[. under

any circumstances,

cord must be installed _

on electric dryers [no[ _/-_i[_.J cUt,orbypassrem°ve'the

provided with unit

except those ,,_'_'_q grounding prong.

manufactured for sale

in Canada], _j

Power cord with

3-prong grounded plug

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord

or remove grounding prong from electrical power cord. Failure to follow this warning

can cause serious injury, fire or death.

Safety

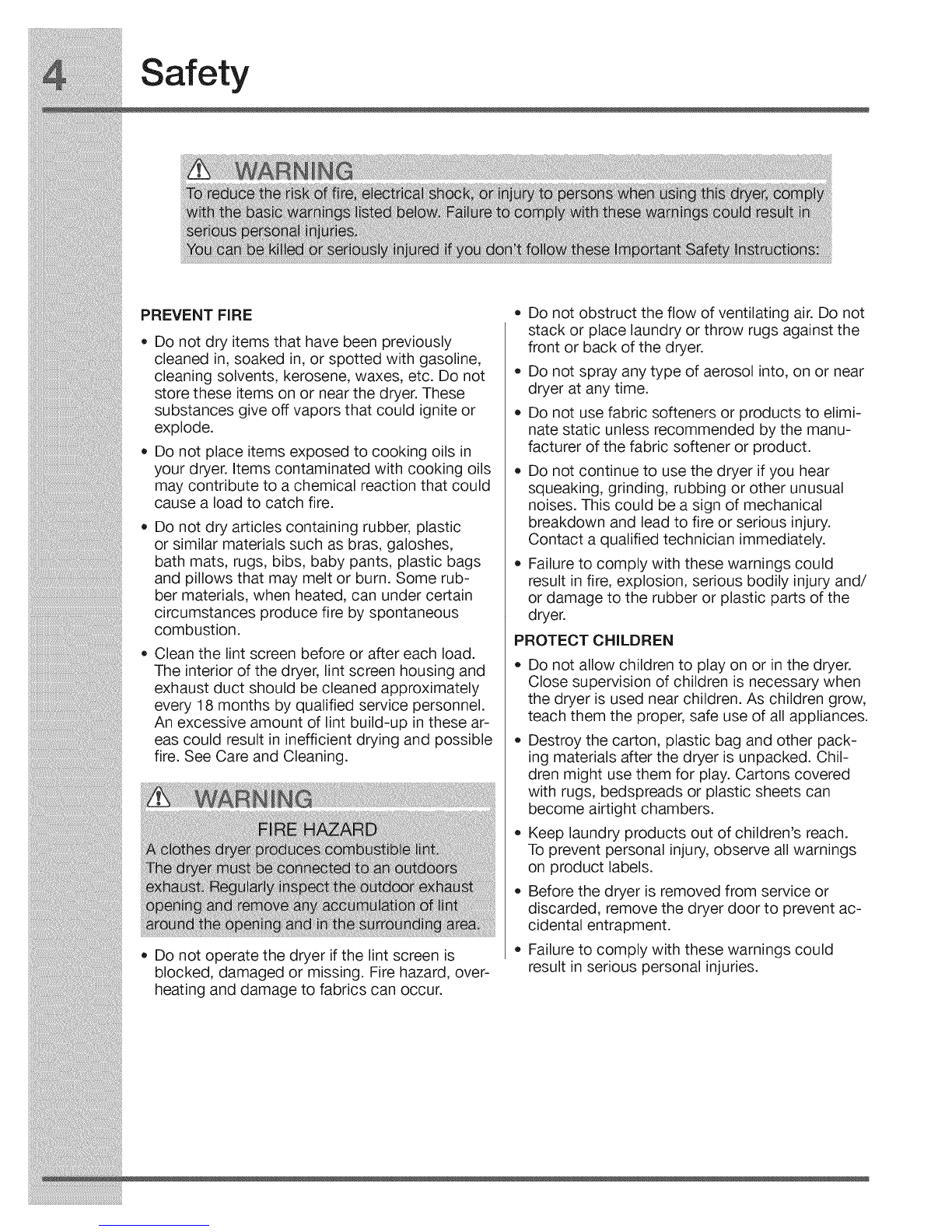

PREVENT FiRE

• Do not dry items that have been previously

cleaned in, soaked in, or spotted with gasoline,

cleaning solvents, kerosene, waxes, etc. Do not

store these items on or near the dryer. These

substances give off vapors that could ignite or

explode.

Do not place items exposed to cooking oils in

your dryer. Items contaminated with cooking oils

may contribute to a chemical reaction that could

cause a load to catch fire.

Do not dry articles containing rubber, plastic

or similar materials such as bras, galoshes,

bath mats, rugs, bibs, baby pants, plastic bags

and pillows that may melt or burn. Some rub-

ber materials, when heated, can under certain

circumstances produce fire by spontaneous

combustion.

Clean the lint screen before or after each load.

The interior of the dryer, lint screen housing and

exhaust duct should be cleaned approximately

every 18 months by qualified service personnel.

An excessive amount of lint build-up in these ar-

eas could result in inefficient drying and possible

fire. See Care and Cleaning.

• Do not operate the dryer ifthe lint screen is

blocked, damaged or missing. Fire hazard, over-

heating and damage to fabrics can occur.

Do not obstruct the flow of ventilating air. Do not

stack or place laundry or throw rugs against the

front or back of the dryer.

Do not spray any type of aerosol into, on or near

dryer at any time.

Do not use fabric softeners or products to elimi-

nate static unless recommended by the manu-

facturer of the fabric softener or product.

Do not continue to use the dryer if you hear

squeaking, grinding, rubbing or other unusual

noises. This could be a sign of mechanical

breakdown and lead to fire or serious injury.

Contact a qualified technician immediately.

Failure to comply with these warnings could

result in fire, explosion, serious bodily injuryand/

or damage to the rubber or plastic parts of the

dryer.

PROTECT CHILDREN

Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. As children grow,

teach them the proper, safe use of all appliances.

Destroy the carton, plastic bag and other pack-

ing materials after the dryer is unpacked. Chil-

dren might use them for play. Cartons covered

with rugs, bedspreads or plastic sheets can

become airtight chambers.

Keep laundry products out of children's reach.

To prevent personal injury, observe all warnings

on product labels.

Before the dryer is removed from service or

discarded, remove the dryer door to prevent ac-

cidental entrapment.

Failure to comply with these warnings could

result in serious personal injuries.

Safety

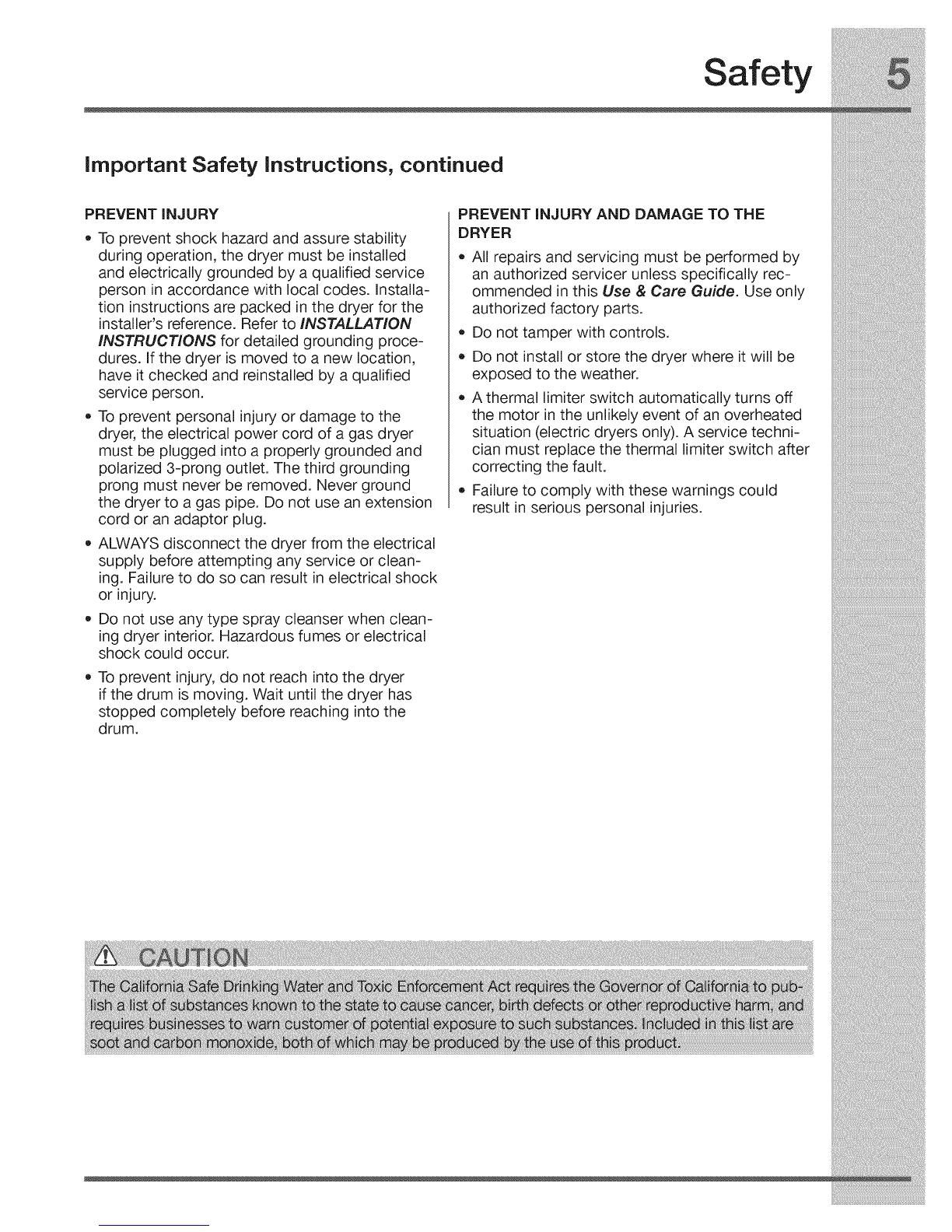

important Safety instructions, continued

PREVENTINJURY

*To prevent shock hazard and assure stability

during operation, the dryer must be installed

and electrically grounded by a qualified service

person in accordance with local codes. Installa-

tion instructions are packed in the dryer for the

installer's reference. Refer to INSTALLATION

INSTRUCTIONS for detailed grounding proce-

dures. If the dryer is moved to a new location,

have it checked and reinstalled by a qualified

service person.

*To prevent personal injuryor damage to the

dryer, the electrical power cord of a gas dryer

must be plugged into a properly grounded and

polarized 3-prong outlet. The third grounding

prong must never be removed. Never ground

the dryer to a gas pipe. Do not use an extension

cord or an adaptor plug.

*ALWAYS disconnect the dryer from the electrical

supply before attempting any service or clean-

ing. Failure to do so can result in electrical shock

or injury.

*Do not use any type spray cleanser when clean-

ing dryer interior. Hazardous fumes or electrical

shock could occur.

•To prevent injury,do not reach intothe dryer

if the drum is moving. Wait until the dryer has

stopped completely before reaching into the

drum.

PREVENT iNJURY AND DAMAGE TO THE

DRYER

All repairs and servicing must be performed by

an authorized servicer unless specifically rec-

ommended in this Use & Care Guide. Use only

authorized factory parts.

Do not tamper with controls.

Do not install or store the dryer where it will be

exposed to the weather.

A thermal limiter switch automatically turns off

the motor in the unlikely event of an overheated

situation (electric dryers only). A service techni-

cian must replace the thermal limiter switch after

correcting the fault.

Failure to comply with these warnings could

result in serious personal injuries.

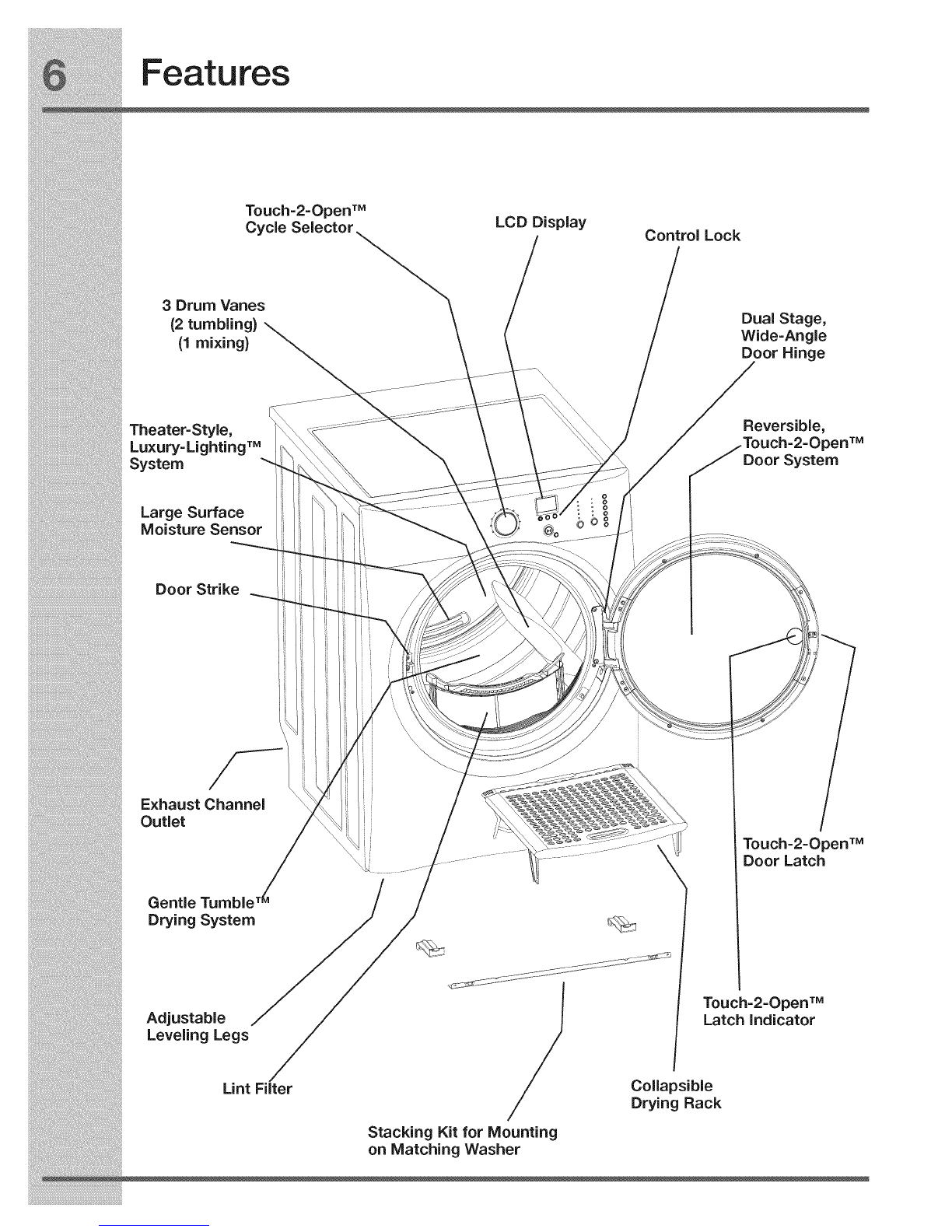

Touch=2=OpenTM

Cycle Selector LCD Display Control Lock

Dual Stage,

Wide-Angle

Door Hinge

Theater=Style,

Luxury=LightingTM

ystem

Large Surface

Moisture Sensor

Door Strike

Reversible, Open TM

Door System

/---

ExhaustChannel

Outlet

Gentle Tumble

Drying System

Touch-2=Open T_

Door Latch

Adjustable

Leveling Legs

Lint

Stacking Kit for Mounting

on Matching Washer

Touch.2.OpenTM

Latch Indicator

Collapsible

Drying Rack

Operating instructions

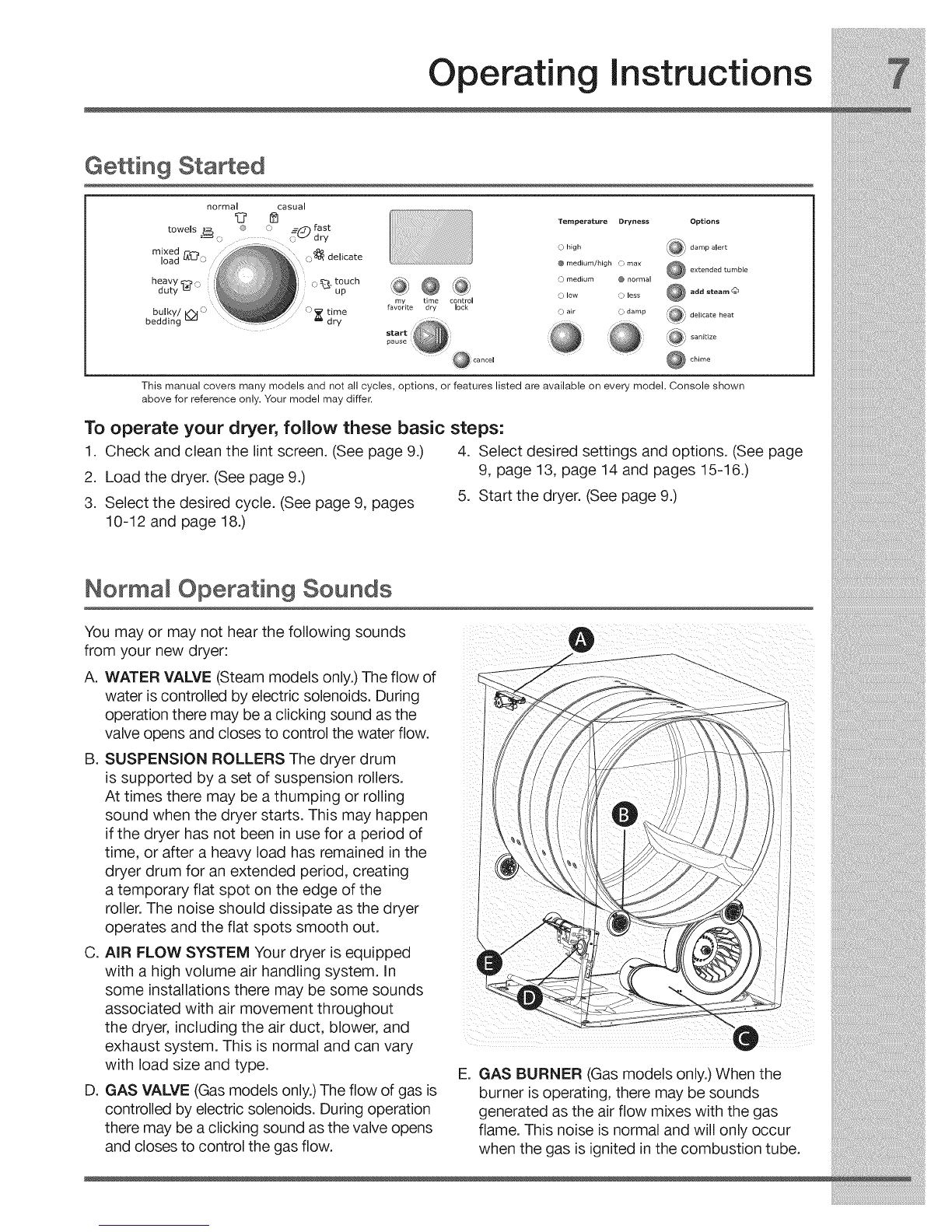

Getting Started

normal casual

towels _ c C_(_) fast

,dry

mixed _[_O O I_ delicate

Joad

heavy _ _ C _-_- touch

duty _' up

bulky/ _o _ time

bedding dry

my time control

favorite dry lock

Temperature Dryness Options

O high

@ medium/high () max

O medium @ normal

C> low © less

add stearn _

1_) sanitize

This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown

above for reference only. Your model may differ.

To operate your dryer, follow these basic steps:

1. Check and clean the lint screen. (See page 9.) 4. Select desired settings and options. (See page

2. Load the dryer. (See page 9.) 9, page 13, page 14 and pages 15-16.)

5. Start the dryer. (See page 9.)

3. Select the desired cycle. (See page 9, pages

10-12 and page 18.)

Normal Operating Sounds

You may or may not hear the following sounds

from your new dryer: O

A. WATER VALVE (Steam models only.) The flow of

water iscontrolled by electric solenoids. During

operation there may be a clicking sound as the

valve opens and closes to control the water flow.

B. SUSPENSION ROLLERS The dryer drum

is supported by a set of suspension rollers.

At times there may be a thumping or rolling

sound when the dryer starts. This may happen

if the dryer has not been in use for a period of

time, or after a heavy load has remained inthe

dryer drum for an extended period, creating

a temporary flat spot on the edge of the

roller. The noise should dissipate as the dryer

operates and the flat spots smooth out. fk

C. AIR FLOW SYSTEM Your dryer is equipped

with a high volume air handling system. In

some installations there may be some sounds

associated with air movement throughout

the dryer, including the air duct, blower, and

exhaust system. This is normal and can vary

with load size and type.

D. GAS VALVE (Gas models only.) The flow of gas is

controlled by electric solenoids. During operation

there may be a clicking sound as the valve opens

and closes to control the gas flow.

E. GAS BURNER (Gas models only.) When the

burner isoperating, there may be sounds

generated as the air flow mixes with the gas

flame. This noise is normal and will only occur

when the gas is ignited inthe combustion tube.

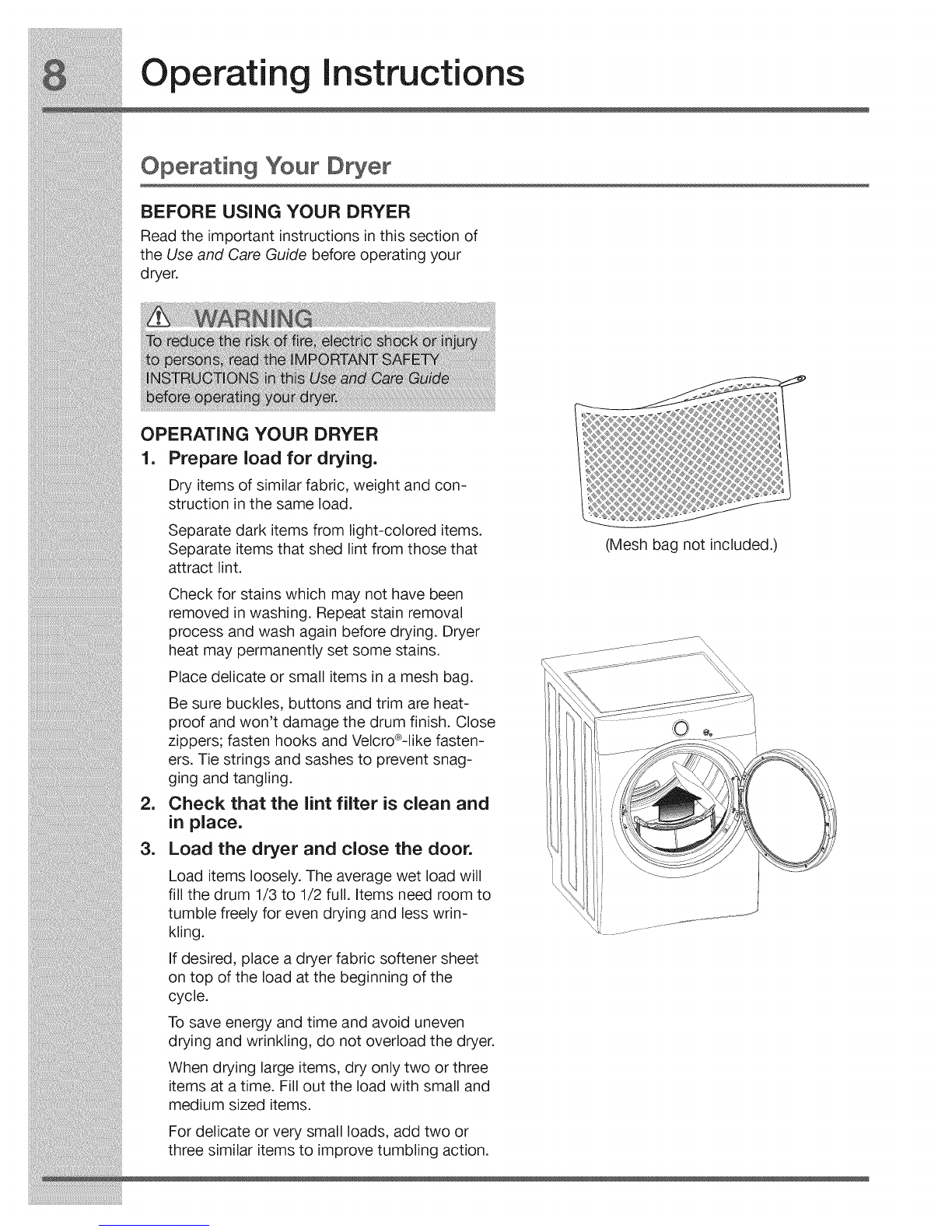

Operatin instructions

Operating Your Dryer

BEFORE USING YOUR DRYER

Read the important instructions in this section of

the Use and Care Guide before operating your

dryer.

OPERATING YOUR DRYER

1. Prepare load for drying.

Dry items of similar fabric, weight and con-

struction in the same load.

Separate dark items from light-colored items.

Separate items that shed lint from those that

attract lint.

Check for stains which may not have been

removed in washing. Repeat stain removal

process and wash again before drying. Dryer

heat may permanently set some stains.

Place delicate or small items in a mesh bag.

Be sure buckles, buttons and trim are heat-

proof and won't damage the drum finish. Close

zippers; fasten hooks and Velcro®-Iike fasten-

ers. Tie strings and sashes to prevent snag-

ging and tangling.

Check that the lint filter is clean and

in place.

Load the dryer and close the door.

Load items loosely. The average wet load will

fill the drum 1/3 to 1/2 full. items need room to

tumble freely for even drying and less wrin-

kling.

If desired, place a dryer fabric softener sheet

on top of the load at the beginning of the

cycle.

To save energy and time and avoid uneven

drying and wrinkling, do not overload the dryer.

When drying large items, dry only two or three

items at a time. Fill out the load with small and

medium sized items.

For delicate or very small loads, add two or

three similar items to improve tumbling action.

Mesh bag not included.)

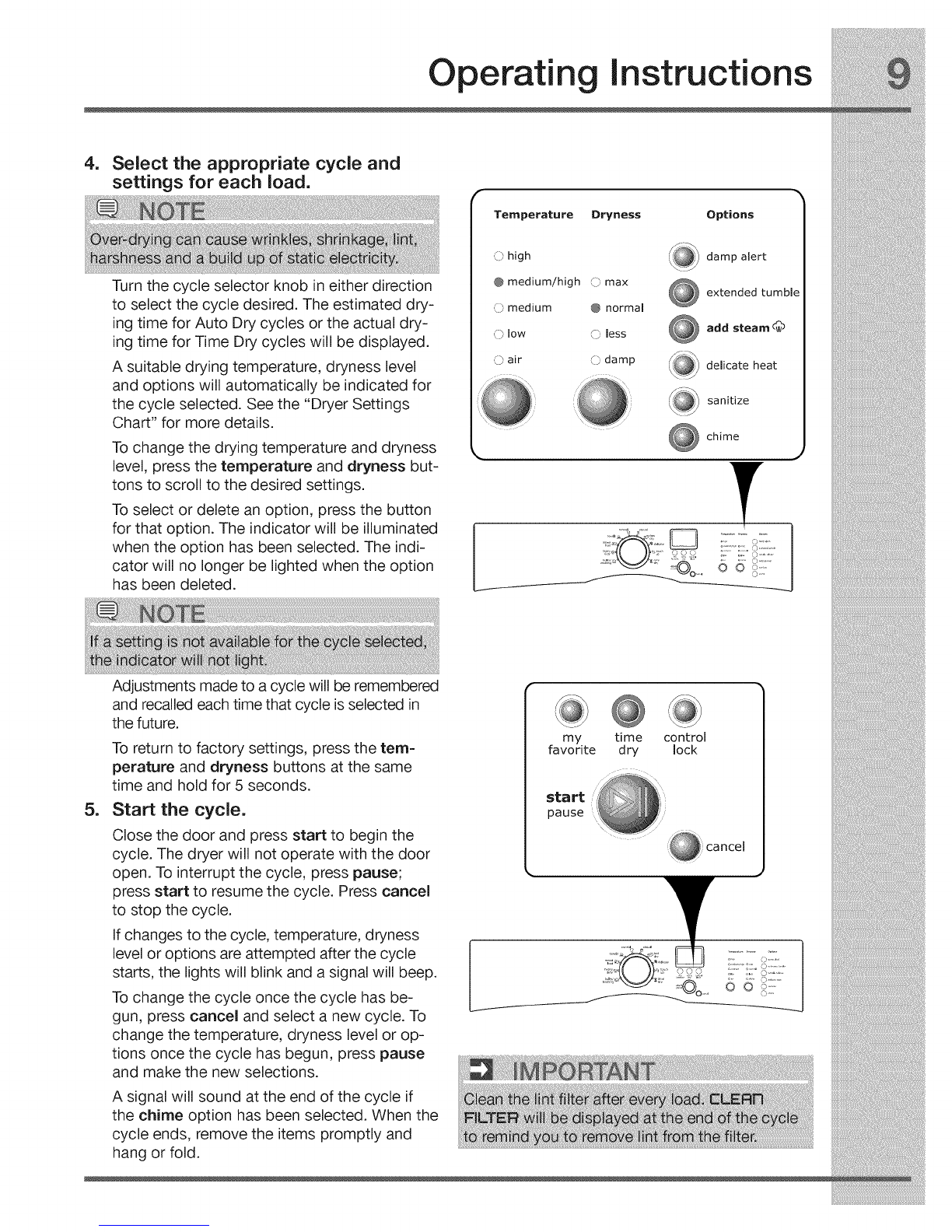

Operating Instructions

.Select the appropriate cycle and

settings for each load.

Turn the cycle selector knob in either direction

to select the cycle desired. The estimated dry-

ing time for Auto Dry cycles or the actual dry-

ing time for Time Dry cycles will be displayed.

A suitable drying temperature, dryness level

and options will automatically be indicated for

the cycle selected. See the "Dryer Settings

Chart" for more details.

To change the drying temperature and dryness

level, press the temperature and dryness but-

tons to scroll to the desired settings.

To select or delete an option, press the button

for that option. The indicator will be illuminated

when the option has been selected. The indi-

cator will no longer be lighted when the option

has been deleted.

Temperature Dryness Options

O high

@ medium/high O max

O medium @ normal

() low C) less

O air O damp

,_ damp alert

extended tumble

add steam d_

delicate heat

sanitize

chime

::;'02..... !if:

Adjustments made to a cycle will be remembered

and recalled each time that cycle isselected in

the future.

To return to factory settings, press the tern=

perature and dryness buttons at the same

time and hold for 5 seconds.

Start the cycle.

Close the door and press start to begin the

cycle. The dryer will not operate with the door

open. To interrupt the cycle, press pause;

press start to resume the cycle. Press cancel

to stop the cycle.

If changes to the cycle, temperature, dryness

level or options are attempted after the cycle

starts, the lights will blink and a signal will beep.

To change the cycle once the cycle has be-

gun, press cancel and select a new cycle. To

change the temperature, dryness level or op-

tions once the cycle has begun, press pause

and make the new selections.

A signal will sound at the end of the cycle if

the chime option has been selected. When the

cycle ends, remove the items promptly and

hang or fold.

my time control

favorite dry lock

start

pause

Operatin Instructions

Cycle Selection

Turn the cycle selector in either direction to the

cycle desired. The indicator for that cycle will be

illuminated. Press on the cycle selector knob to

extend it or return it flush to the console.

For best results

Follow the fabric care label instructions

on items to be dried.

To change the cycle once it has begun, press the

cancel button before selecting a new cycle. Just

turning the cycle selector knob to another selec-

tion will not change the cycle.

AUTO DRY CYCLES

Auto Dry cycles take the guesswork out of select-

ing the correct drying time for each load. Moisture

sensing bars at the back of the dryer drum sense

the moisture level of the load as it tumbles through

the heated air. With Auto Dry cycles, the load will

automatically be dried at the selected temperature

to the desired dryness level.

Auto Dry cycles save time and energy and protect

fabrics. When the load has reached the selected

dryness level, it will continue to tumble, unheated,

during a cool down period. This helps reduce

wrinkling and makes items easier to handle during

unloading.

Drying time varies depending on size and damp-

ness of load and fabric type. If the load is too small

or almost dry, the moisture sensing bars may not

detect enough moisture to continue the cycle and

the cycle may end after a few minutes. If this oc-

curs, then select the time dry cycle to dry such

loads.

Room temperature and humidity, type of installa-

tion and electrical voltage or gas pressure can also

affect drying time.

casual

bulky/_ '_

bedding

Temperature Dryness

O high

@ medium/high () max

O medium @ normal

O low O less

O air O damp

Options

damp alert

extended tumble

add steam

delicate heat

sanitize

chime J

Altri manuali per EIMED55I MB

Indice

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux TE1120 Manuale utente

Electrolux

Electrolux EIGD55HIW - 27" Gas Dryer Istruzioni per l'installazione

Electrolux

Electrolux EDE 425 M Manuale utente

Electrolux

Electrolux edh3897sde Manuale utente

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW Manuale utente

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuale utente

Electrolux

Electrolux EDE 67550W Manuale utente

Electrolux

Electrolux EDE 421 E Manuale utente

Electrolux

Electrolux EDE 45100 W Manuale utente

Electrolux

Electrolux TW SL6 E Manuale utente

Electrolux

Electrolux Tumble dryer Manuale utente

Electrolux

Electrolux T4900 Manuale utente

Electrolux

Electrolux T4130 Manuale utente

Electrolux

Electrolux T4130 Manuale utente

Electrolux

Electrolux T4530 Manuale utente

Electrolux

Electrolux EDP2074PEW Manuale utente

Electrolux

Electrolux EDE 429E Manuale utente

Electrolux

Electrolux EDC804Q5WB Manuale utente

Electrolux

Electrolux TWSL5E300 Manuale utente

Electrolux

Electrolux 300 Series Manuale utente

Electrolux

Electrolux EWGD65H Manuale utente

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuale utente

Electrolux

Electrolux EIMED60LT Manuale utente

Electrolux

Electrolux EFLS210TIW Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
