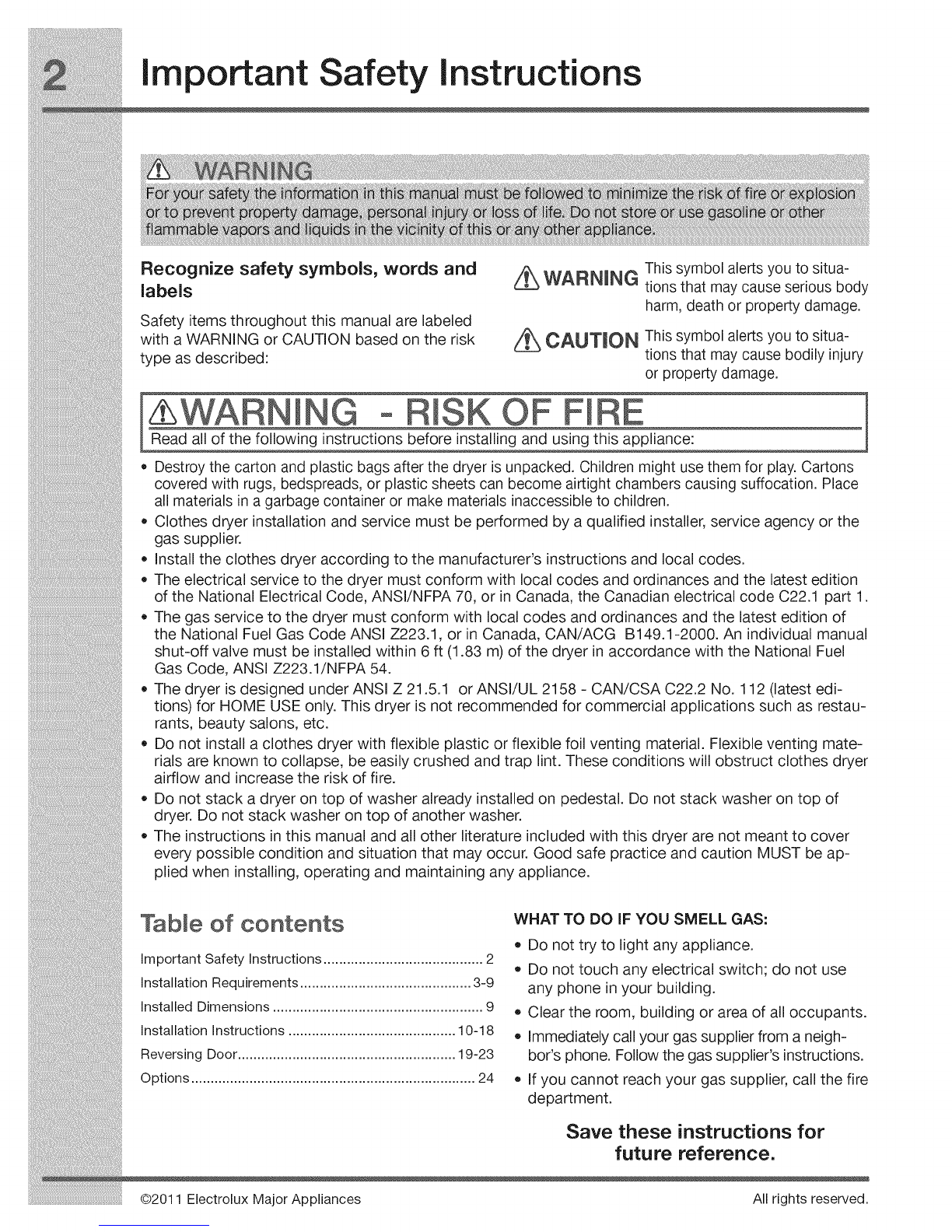

important Safety instructions

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled

with a WARNING or CAUTION based on the risk

type as described:

WARNING This symbol alerts you to situa-

tions that may cause serious body

harm, death or property damage.

CAUTION This symbol alerts you to situa-

tions that may cause bodily injury

or property damage.

[ WARNING -RISK OF F RE

Read all of the following _ structions before installing and using this appliance:

• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons

covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place

all materials in a garbage container or make materials inaccessible to children.

• Clothes dryer installation and service must be performed by a qualified installer, service agency or the

gas supplier.

, Install the clothes dryer according to the manufacturer's instructions and local codes.

• The electrical service to the dryer must conform with local codes and ordinances and the latest edition

of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.

The gas service to the dryer must conform with local codes and ordinances and the latest edition of

the National Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual

shut-off valve must be installed within 6 ft (1.83 m) of the dryer in accordance with the National Fuel

Gas Code, ANSI Z223.1/NFPA 54.

The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest edi-

tions) for HOME USE only. This dryer is not recommended for commercial applications such as restau-

rants, beauty salons, etc.

Do not install a clothes dryer with flexible plastic or flexible foil venting material. Flexible venting mate-

rials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer

airflow and increase the risk of fire.

Do not stack a dryer on top of washer already installed on pedestal. Do not stack washer on top of

dryer. Do not stack washer on top of another washer.

The instructions in this manual and all other literature included with this dryer are not meant to cover

every possible condition and situation that may occur. Good safe practice and caution MUST be ap-

plied when installing, operating and maintaining any appliance.

TaMe of contents

Important Safety Instructions ......................................... 2

Installation Requirements ............................................ 3-9

Installed Dimensions ...................................................... 9

Installation Instructions ........................................... 10-18

Reversing Door ........................................................ 19-23

Options ......................................................................... 24

WHAT TO DO iF YOU SMELL GAS:

• Do not try to light any appliance.

Do not touch any electrical switch; do not use

any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neigh-

bor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire

department.

Save these instructions for

future reference.

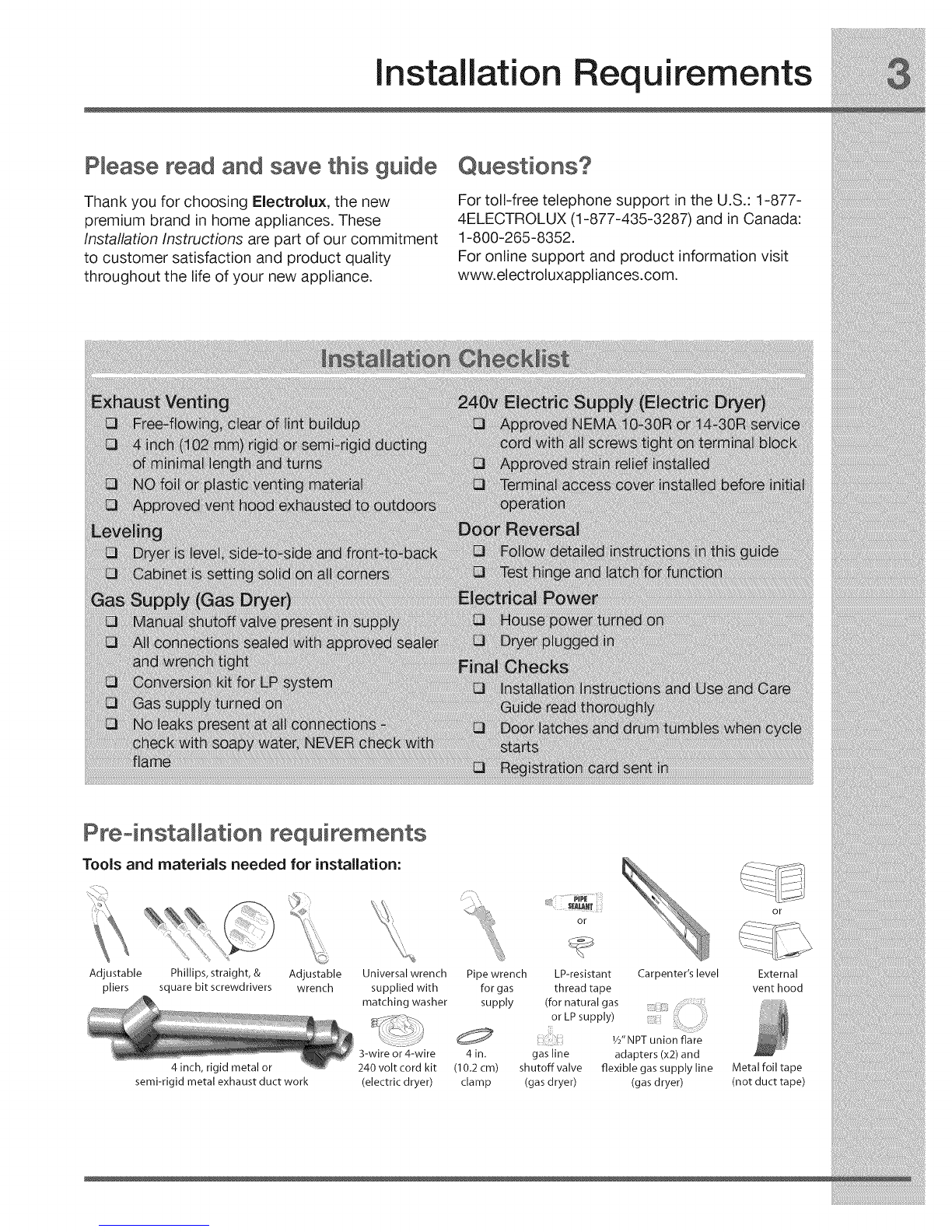

Installation Requirements

Please read and save this guide

Thank you for choosing Electrolux, the new

premium brand in home appliances. These

Installation Instructions are part of our commitment

to customer satisfaction and product quality

throughout the life of your new appliance.

For toll-free telephone support in the U.S.: 1-877-

4ELECTROLUX (1-877-435-3287) and in Canada:

1-800-265-8352.

For online support and product information visit

www.electroluxappliances.com.

PreqnstaHation requirements

Tools and materials needed for installation:

or or

Adjustable Phillips, straight, & Adjustable Universal wrench

pliers square bit screwdrivers wrench supplied with

matching washer

4 inch, rigid metal or

semi-rigid metal exhaust duct work

3-wire or 4-wire

240 volt cord kit

(electric dryer)

Pipe wrench LP-resistant Carpenter's level External

for gas thread tape vent hood

supply (for natural gas ..

or LP supply) 'J2".PTunionflare

4 in, gas line adapters (x2) and

(10.2 cm) shutoff valve flexible gas supply line Metal foil tape

clamp (gas dryer) (gas dryer) (not duct tape)

Installation Requirements

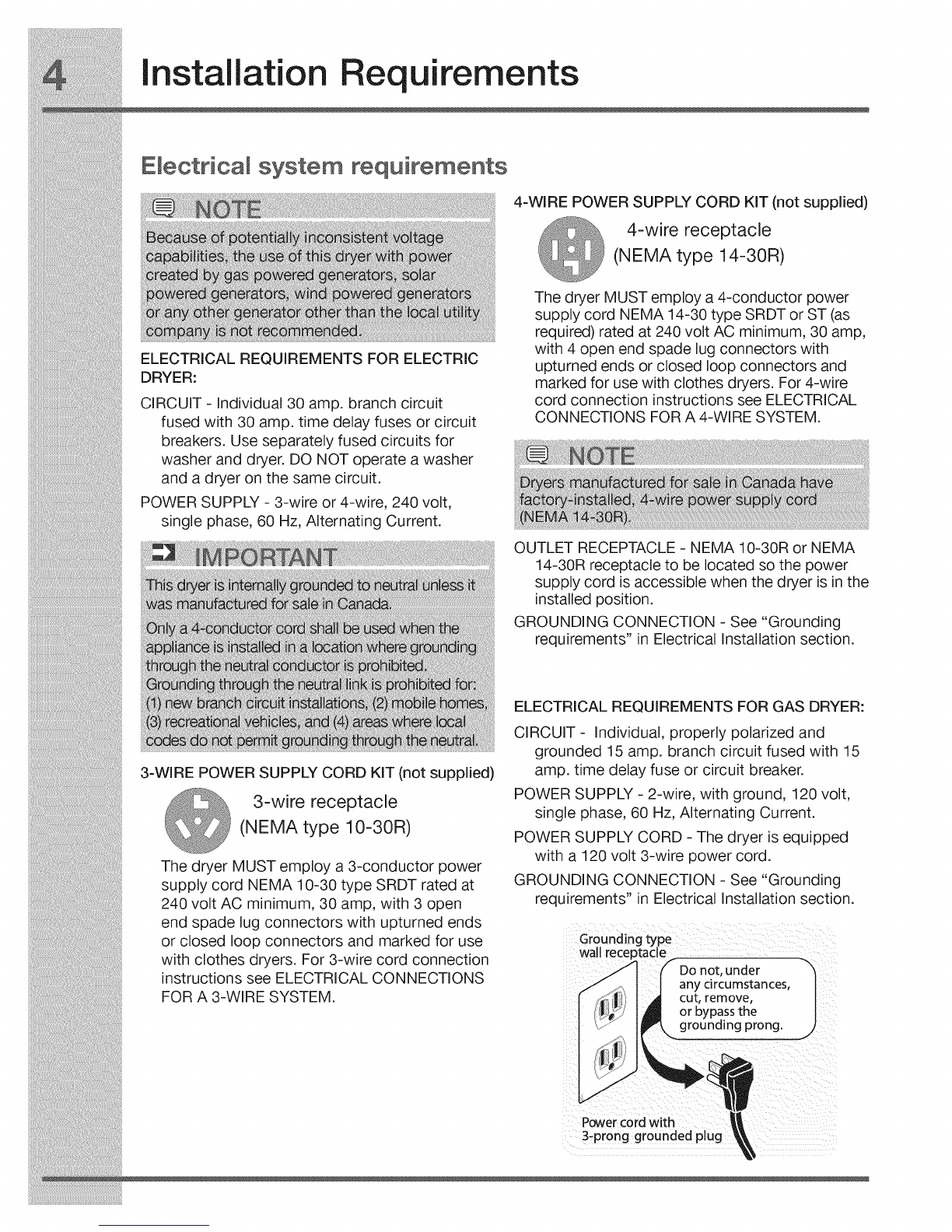

Electrical system requirements

ELECTRICAL REQUIREMENTS FOR ELECTRIC

DRYER:

CIRCUIT - Individual 30 amp. branch circuit

fused with 30 amp. time delay fuses or circuit

breakers. Use separately fused circuits for

washer and dryer. DO NOT operate a washer

and a dryer on the same circuit.

POWER SUPPLY - 3-wire or 4-wire, 240 volt,

single phase, 60 Hz, Alternating Current.

4-WIRE POWER SUPPLY CORD KIT (not supplied)

4-wire receptacle

(NEMA type 14-30R)

The dryer MUST employ a 4-conductor power

supply cord NEMA 14-30 type SRDT or ST (as

required) rated at 240 volt AC minimum, 30 amp,

with 4 open end spade lug connectors with

upturned ends or closed loop connectors and

marked for use with clothes dryers. For 4-wire

cord connection instructions see ELECTRICAL

CONNECTIONS FOR A 4-WIRE SYSTEM.

OUTLET RECEPTACLE - NEMA 10-30R or NEMA

14-30R receptacle to be located so the power

supply cord is accessible when the dryer is in the

installed position.

GROUNDING CONNECTION - See "Grounding

requirements" in Electrical Installation section.

3-WIRE POWER SUPPLY CORD KIT (not supplied)

3-wire receptacle

(NEMA type 10-30R)

The dryer MUST employ a 3-conductor power

supply cord NEMA 10-30 type SRDT rated at

240 volt AC minimum, 30 amp, with 3 open

end spade lug connectors with upturned ends

or closed loop connectors and marked for use

with clothes dryers. For 3-wire cord connection

instructions see ELECTRICAL CONNECTIONS

FOR A 3-WIRE SYSTEM.

ELECTRICAL REQUIREMENTS FOR GAS DRYER:

CIRCUIT - Individual, properly polarized and

grounded 15 amp. branch circuit fused with 15

amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120 volt,

single phase, 60 Hz, Alternating Current.

POWER SUPPLY CORD - The dryer is equipped

with a 120 volt 3-wire power cord.

GROUNDING CONNECTION - See "Grounding

requirements" in Electrical Installation section.

Grounding type

wall receptacle Donot, under "_

any circumstances,

cut, remove,

or bypassthe

grounding prong. /

Powercord with

3-prong grounded plug

Installation Requirements

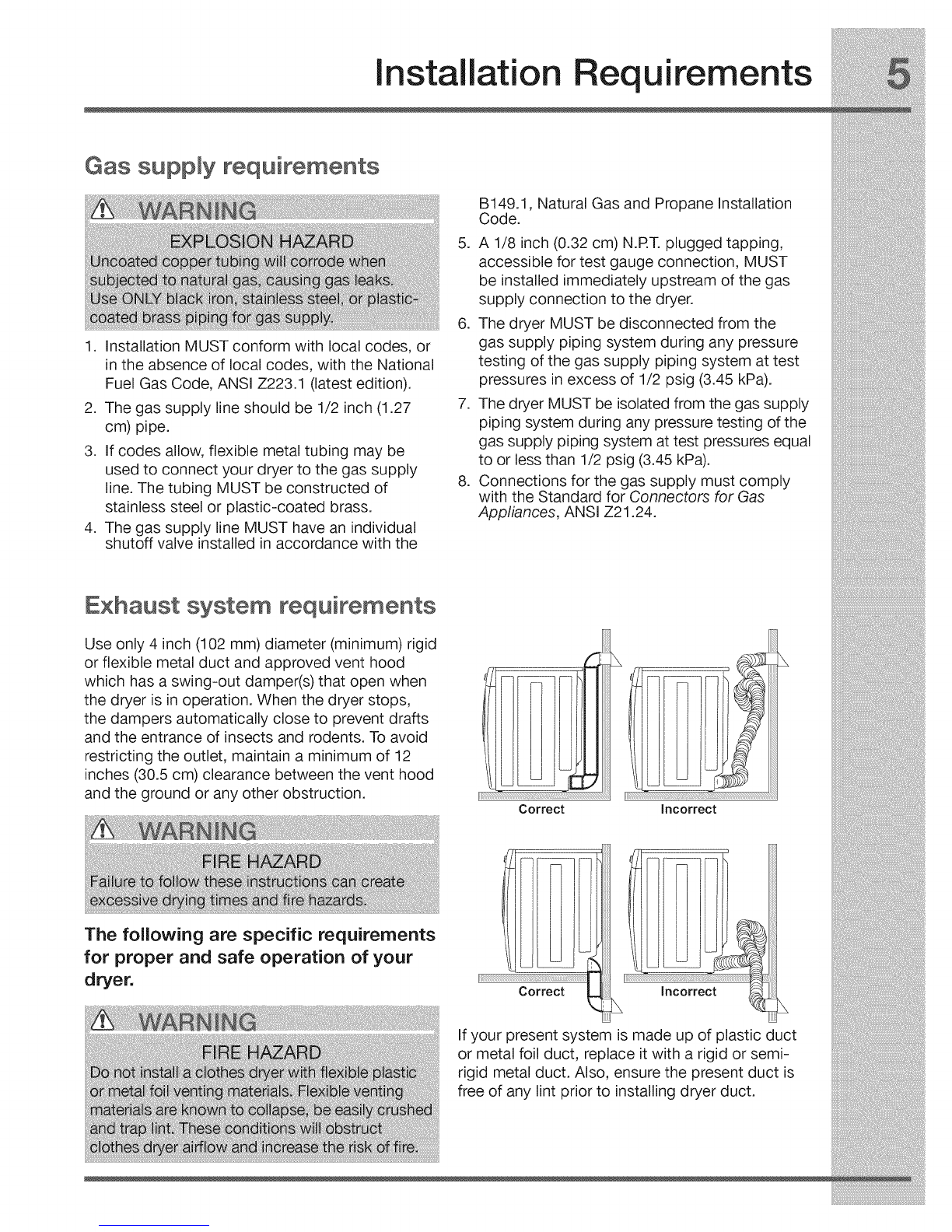

Gas supply requirements

1. Installation MUST conform with local codes, or

in the absence of local codes, with the National

Fuel Gas Code, ANSI Z223.1 (latest edition).

2. The gas supply line should be 1/2 inch (1.27

cm) pipe.

3. If codes allow, flexible metal tubing may be

used to connect your dryer to the gas supply

line. The tubing MUST be constructed of

stainless steel or plastic-coated brass.

4. The gas supply line MUST have an individual

shutoff valve installed in accordance with the

B149.1, Natural Gas and Propane Installation

Code.

5. A 1/8 inch (0.32 cm) N.RT. plugged tapping,

accessible for test gauge connection, MUST

be installed immediately upstream of the gas

supply connection to the dryer.

6. The dryer MUST be disconnected from the

gas supply piping system during any pressure

testing of the gas supply piping system at test

pressures in excess of 1/2 psig (3.45 kPa).

7. The dryer MUST be isolated from the gas supply

piping system during any pressure testing of the

gas supply piping system at test pressures equal

to or less than 1/2 psig (3.45 kPa).

8. Connections for the gas supply must comply

with the Standard for Connectors for Gas

Appliances, ANSI Z21.24.

Exhaust system requirements

Use only 4 inch (102 mm) diameter (minimum) rigid

or flexible metal duct and approved vent hood

which has a swing-out damper(s) that open when

the dryer is in operation. When the dryer stops,

the dampers automatically close to prevent drafts

and the entrance of insects and rodents. To avoid

restricting the outlet, maintain a minimum of 12

inches (30.5 cm) clearance between the vent hood

and the ground or any other obstruction. Correct !1

incorrect

The following are specific requirements

for proper and safe operation of your

dryer.

If your present system _smade up of plastic duct

or metal foil duct, replace itwith a rigid or semi-

rigid metal duct. Also, ensure the present duct is

free of any lint prior to installing dryer duct.

Installation Requirements

Exhaust system requirements, continued

The dryer must be connected to an exhaust

outdoors. Regularly inspect the outdoor exhaust

opening and remove any accumulation of lint

around the outdoor exhaust opening and in the

surrounding area.

MAXIMUM LENGTH

of 4" (102mm) Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

(10.2cm) Iouvered

125 ft. (38.10m)

115 ft. (35.05m)

105 ft. (32.00m)

95 ft. (28.96m)

85 ft. (25.91 m)

2.5"

(6.35cm)

110 ft. (33.53m)

100 ft. (30.48m)

90 ft. (27.43m)

80 ft. (24.38m)

70 ft. (21.34m)

EXHAUST DIRECTION

Directional exhausting can be accomplished by

installing a quick-turn 90° dryer vent elbow directly

to exhaust outlet of dryer. Dryer vent elbows are

available through your local parts distributor or

hardware store.

See also CLEARANCE

REQUIREMENTS on the

next page.

Installation Requirements

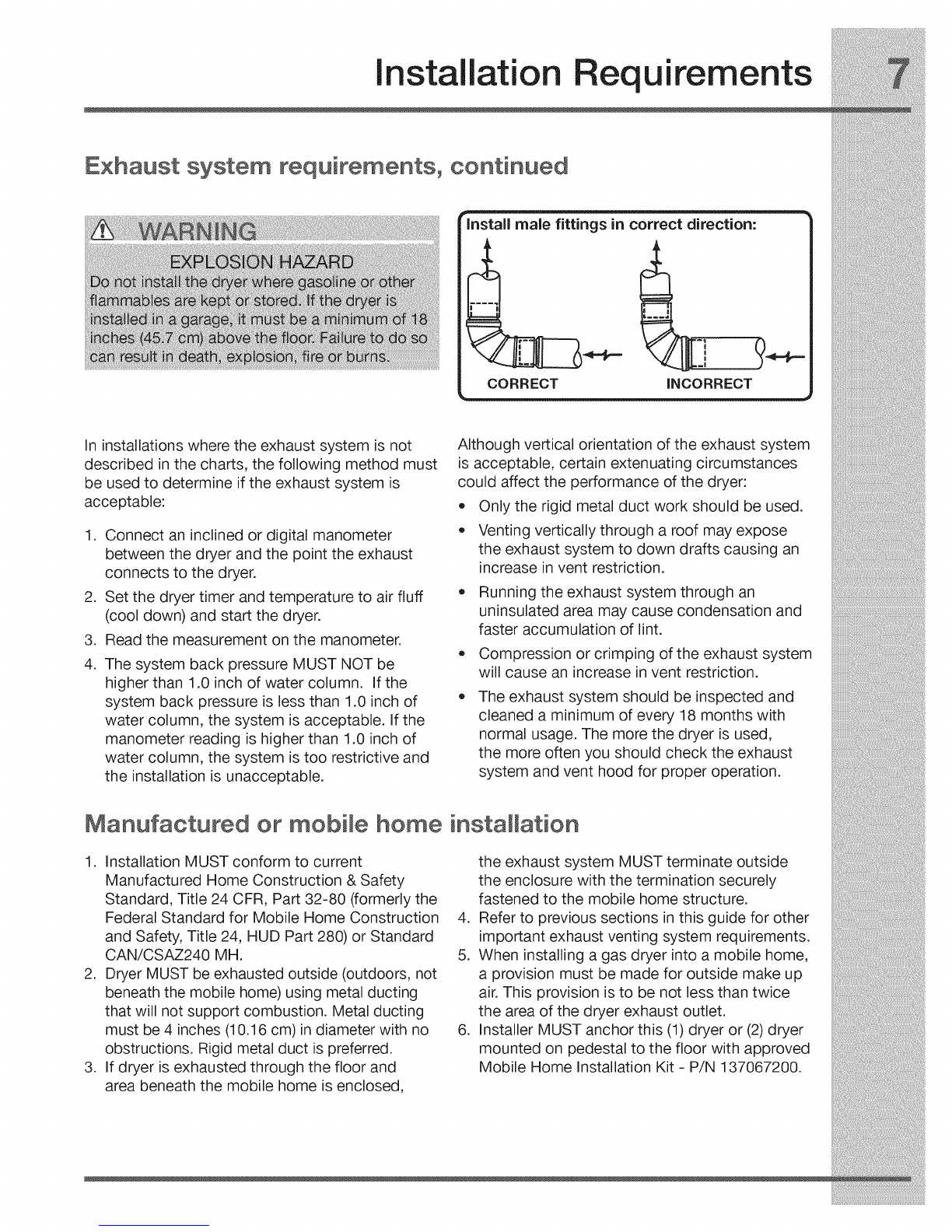

Exhaust system requirements, continued

Install male fittings in correct direction:

CORRECT INCORRECT

In installations where the exhaust system is not

described in the charts, the following method must

be used to determine if the exhaust system is

acceptable:

Connect an inclined or digital manometer

between the dryer and the point the exhaust

connects to the dryer.

Set the dryer timer and temperature to air fluff

(cool down) and start the dryer.

Read the measurement on the manometer.

The system back pressure MUST NOT be

higher than 1.0 inch of water column. If the

system back pressure is less than 1.0 inch of

water column, the system is acceptable. If the

manometer reading is higher than 1.0 inch of

water column, the system is too restrictive and

the installation is unacceptable.

Although vertical orientation of the exhaust system

is acceptable, certain extenuating circumstances

could affect the performance of the dryer:

• Only the rigid metal duct work should be used.

Venting vertically through a roof may expose

the exhaust system to down drafts causing an

increase in vent restriction.

Running the exhaust system through an

uninsulated area may cause condensation and

faster accumulation of lint.

Compression or crimping of the exhaust system

will cause an increase in vent restriction.

The exhaust system should be inspected and

cleaned a minimum of every 18 months with

normal usage. The more the dryer is used,

the more often you should check the exhaust

system and vent hood for proper operation.

Manufactured or mobile home installation

1. Installation MUST conform to current

Manufactured Home Construction & Safety

Standard, Title 24 CFR, Part 32-80 (formerly the

Federal Standard for Mobile Home Construction

and Safety, Title 24, HUD Part 280) or Standard

CAN/CSAZ240 MH.

2. Dryer MUST be exhausted outside (outdoors, not

beneath the mobile home) using metal ducting

that will not support combustion. Metal ducting

must be 4 inches (10.16 cm) in diameter with no

obstructions. Rigid metal duct is preferred.

3. If dryer is exhausted through the floor and

area beneath the mobile home is enclosed,

the exhaust system MUST terminate outside

the enclosure with the termination securely

fastened to the mobile home structure.

4. Refer to previous sections in this guide for other

important exhaust venting system requirements.

5. When installing a gas dryer into a mobile home,

a provision must be made for outside make up

air. This provision is to be not less than twice

the area of the dryer exhaust outlet.

6. Installer MUST anchor this (1) dryer or (2) dryer

mounted on pedestal to the floor with approved

Mobile Home Installation Kit - P/N 137067200.

installation Requirements

Clearance requirements

INSTALLATION IN A RECESS OR CLOSET

1. A dryer installed in a bedroom, bathroom,

recess or closet, MUST be exhausted outdoors.

2. No other fuel burning appliance shall be

installed in the same closet as the gas dryer.

3. Your dryer needs the space around it for proper

ventilation.

DO NOT install your dryer in a closet with a solid

door.

.Closet door ventilation required: A minimum

of 120 square inches (774.2 cm 2)of opening,

equally divided at the top and bottom of the

door, is required. Openings should be located

3 inches (7.6 cm) from bottom and top of door.

Openings are required to be unobstructed

when a door is installed. A Iouvered door with

equivalent air openings for the full length of the

door is acceptable.

i (7-6cm)

i(7,6cm)

closet door

60 sq. in.

(387.1cm 2)

MINIMUM INSTALLATION CLEARANCES -Inches (cm)

SIDES REAR TOP FRONT

Alcove 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a

Under- 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a

Counter

Closet 0" (0 cm) 0" (0 cm)* 0" (0cm) 1" (2.5 cm)

For other than straight back venting, a quick-turn 90°

dryer vent elbow must be installed to achieve 0" (0 cm)

0"41 I#

(Ocm) ol

Installation Requirements

Dryer dimensions

53.5" (136 cm)*

to clear open door

freestand dryer

on floor

floor line

31.5" (79.5 cm)*

to front of closed door ..J

dryer mounted on

optional pedestal

53.5" (136 cm)*

to clear open door

floor line

31.5" (79.5 cm)*

to front of c osed door

75.75"

(192.5 cm)

*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.

_Power supply cord length on gas dryer approximately 60 inches (152.5 cm).

Hot and cold inlet hose length on washer approximately 48.5 inches (123 cm).

3Drain hose length on washer approximately 59 inches (150 cm).

4Power supply cord length on washer approximately 60 inches (152.5 cm).

38,0"

(96.5 cm)

27.0" --

(68.5 cm)

53.25"

(135.5 cm)

gas supply

Dpe on rear

of gas unit

l--17.0"

(43 cm)

electrical

supply on

rear of unit _

centerline

height for

rear vent

19.0"

(48 cm)

water supply

connection on

rear of unit 2 \

gas supply

pipe on rear

of gas unit

39.0"

(99 cm)

drain hose on

rear of uniP

electrical

supply on

rear of unit4

centerline

height for

rear vent

)ower cord on

rear of unit 4

41.0"

(105 cm)

Installation Instructions

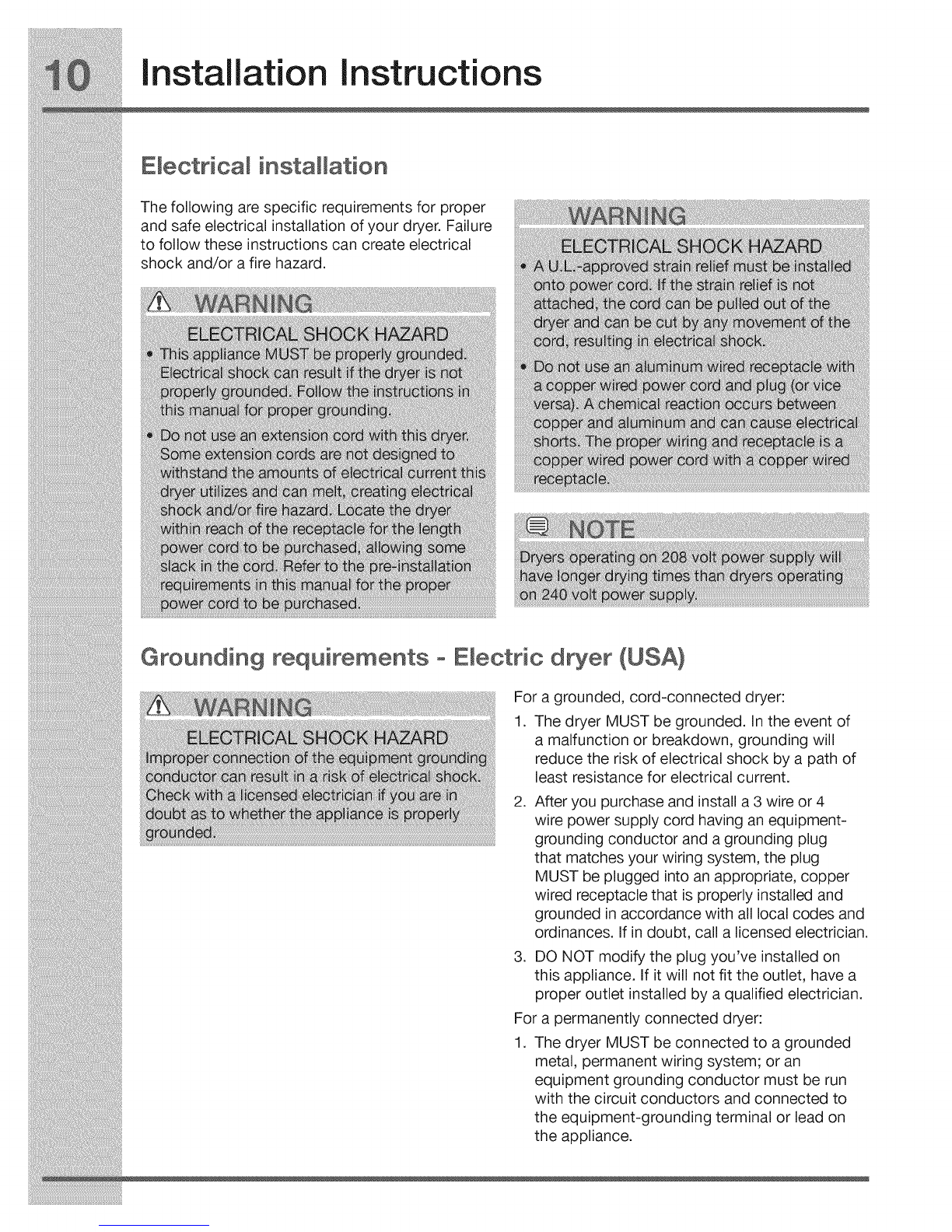

Electrica installation

The following are specific requirements for proper

and safe electrical installation of your dryer. Failure

to follow these instructions can create electrical

shock and/or a fire hazard.

Grounding requirements -Emectdc dryer (USA}

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of

a malfunction or breakdown, grounding will

reduce the risk of electrical shock by a path of

least resistance for electrical current.

2. After you purchase and install a 3 wire or 4

wire power supply cord having an equipment-

grounding conductor and a grounding plug

that matches your wiring system, the plug

MUST be plugged into an appropriate, copper

wired receptacle that is properly installed and

grounded in accordance with all local codes and

ordinances. If in doubt, call a licensed electrician.

3. DO NOT modify the plug you've installed on

this appliance. If it will not fit the outlet, have a

proper outlet installed by a qualified electrician.

For a permanently connected dryer:

1. The dryer MUST be connected to a grounded

metal, permanent wiring system; or an

equipment grounding conductor must be run

with the circuit conductors and connected to

the equipment-grounding terminal or lead on

the appliance.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux T4900 Manuale utente

Electrolux

Electrolux EDH97950W Manuale utente

Electrolux

Electrolux EW8H258BC Manuale utente

Electrolux

Electrolux EWMED65HIW - 27" Perfect Steam Electric... Manuale utente

Electrolux

Electrolux EWED65H SS Manuale utente

Electrolux

Electrolux XDEX75NZHS Manuale utente

Electrolux

Electrolux SD10 Manuale di istruzioni

Electrolux

Electrolux ENV06 Manuale utente

Electrolux

Electrolux Dito 601979 Manuale utente

Electrolux

Electrolux GLER642CAS3 Manuale utente

Electrolux

Electrolux EDC 5372 Manuale operativo

Electrolux

Electrolux edh3897sde Manuale utente

Electrolux

Electrolux IQ-Touch EIMGD60LT Manuale utente

Electrolux

Electrolux EDP2074PEW Manuale utente

Electrolux

Electrolux T4530 Manuale utente

Electrolux

Electrolux EDC 77550W Manuale utente

Electrolux

Electrolux MKR62GWTWB Manuale utente

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuale utente

Electrolux

Electrolux 137018200 C Manuale utente

Electrolux

Electrolux EFMG627UIW Manuale utente

Electrolux

Electrolux EWMED65H Manuale utente

Electrolux

Electrolux EDC1072LDW Manuale utente

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuale utente

Electrolux

Electrolux TK K2 E Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
