Electrolux T4190 Manuale utente

Installation manual

T4190

Compass Control 487 05 42 61.00

*Applies only to floor mops containing polypropylene.

Safety instructions

This machine is only intended for drying water-washed

garments.

Clothes that have been cleaned with chemicals/inflammable

liquids, must NOT be dried in the machine.

Remove clothes from the tumble dryer as soon as they are dry.

This prevents them from becoming creased, and reduces the

risk of spontaneous ignition.

The machine must not be used for drying foam rubber or foam-

like materials.

The machine must not be used for drying floor mops*.

The machine must not be used by minors.

The machine must not be hosed down with water.

Mechanical, electrical and gas installations must only be carried

out by authorised personnel.

If the machine has a fault, this must be reported as soon as

possible to the person in charge. This is important for your own

safety and for the safety of others.

Gas dryers only:

The machine is not to be installed in rooms containing cleaning

machines with perchloroethylene, TRICHLOROETHYLENE or

CHLOROFLUOROCONTAINING HYDROCARBONS as cleaning

agents.

What to do if you smell gas:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in

your building.

Evacuate the room, building or area.

Contact the laundry manager.

The dryer must not be installed behind a lockable door or sliding

door. In the room where the dryer is to be installed the door hinges

must be on the outer side.

Contents

Safety instructions........................................................................................ 3

Technical data.............................................................................................. 6

Unpackning.................................................................................................. 8

Ship installation............................................................................................ 9

Door reversal.............................................................................................. 10

Installation...................................................................................................11

Function check........................................................................................... 21

The manufacturer reserves the right to modify design and material

specifications without notice.

Technical data

Heating Electric Gas

Drum volume: 190 litres 190 litres

Weight: Net 103 kg 103 kg

Drum: Diameter 680 mm 680 mm

Depth 555 mm 555 mm

RPM 50 rpm 50 rpm

G-factor 0.8 0.8

Capacity: Factor 1:25 7.5 kg 7.5 kg

Factor 1:33 5.8 kg 5.8 kg

Heat effect: Electric 6.0 kW 6.0 kW

8.0 kW 8.0 kW

Air consumption: Heat effect 6.0 kW 270 m3/h 270 m3/h

8.0 kW 290 m3/h 290 m3/h

Piping: Evacuation Ø 125 Ø 125

Gas piping ISO 7/1 - R1/2

Pressure drop: Evacuation 6.0 kW 380 Pa 380 Pa

8.0 kW 350 Pa 350 Pa

Sound power level: LW < 68 dB (A) < 68 dB (A)

Technical data

ABCDEFGHI K

mm 720 745 1130 420 110 120 960 45 55 1445

mm 575 80

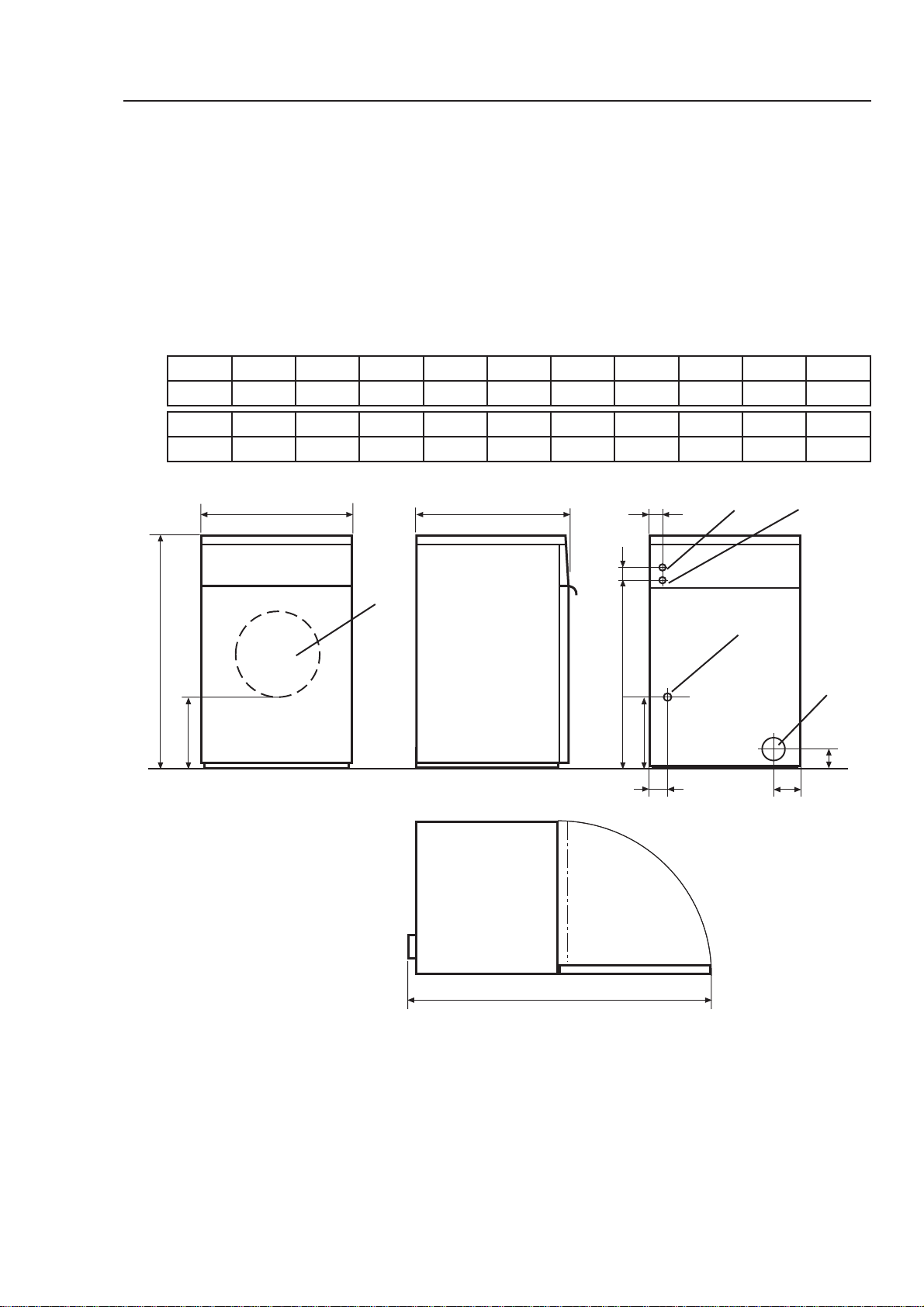

Dimension sketch

1 Door opening 5Gas connection

2 El. connection

3 Pipe connection, evacuation

4 Connection for external control

Technical data

Unpacking

Unpack the dryer from the packaging.

Loosen the dryer from the pallet by cutting the

plastic ribbons.

Positioning

Place the tumble dryer to ensure that work can be

done as easily as possible by the user and the

service technician alike. The door hanging can be

changed.

The distance to the wall or other equipment

behind the dryer should be min. 300 mm and the

distance to the sides min. 10 mm. However, there

should be free access to the back of the dryer for

the purpose of servicing it.

Mechanical installation

Adjust the dryer to ensure that it is horizontal and

stands ﬁrmly on all four feet.

The maximum height adjustment of the feet is 50

mm.

When the adjustment has been made, lock the

feet by means of the lock-nuts.

Normally, the dryer requires no bolting to the ﬂoor

or foundation.

However, tumblers on a base do require

anchoring.

The ﬁttings are fastened to the foundation using

M10 expansion bolts or other devices of the same

dimension. Special ﬁttings are available from the

supplier for this purpose.

Fig

20 Nm

M10

Min 400

675

M10

600

Ship installation

To ensure the steadiness of the dryer it is important to fasten it to the

delivered base.

Fasten the 4 ﬁttings (supplied with the dryer) to the foundation using 4 x

M10 set screws or other devices of the same dimension (not supplied).

The 4 feet from the dryer are mounted on the base and the feet are

fastened to the ﬁttings.

The dryer is fastened to the base using 4 x M10 bolts (supplied with the

base) and is tightened with 20 Nm.

Fig

Dryer

Front

Drilling template

1010

Door reversal

The door reversal illustrated below is on a

lefthinged door.

Reversing the door

• Disconnect the power to the dryer.

On the dryer

• Demount T-ﬁtting A and screw the screws

back into the same holes (in order to secure

the plate on the back).

• Disengage the door by carefully lifting it away

from the front. (Make sure to get a good grip

on the door - it is heavy).

• Demount the front panel.

• Demount T-ﬁtting A and B and mount on the

opposite side.

• Loosen cable hanger with cable and mount on

the opposite side. Strap the cable.

• Move door switch to the opposite side.

• Mount T-ﬁtting A at the bottom of the right

side.

On the door

• Move door handle to the opposite side, screw

screws into holes.

• Mount T-ﬁtting B at the top of the right side.

• Move ball lock in the door to the opposite side

without turning the lock, move cover plate.

On the dryer

• Adjust the ball lock if required. Adjust the

door height using the T-pieces.

Start the dryer

• Reconnect the power to the dryer.

• Check that the door switch is working:

The drum must stop when the door is opened.

Door

Fig
