MaintenanceManual

Tumbledryer

T5190LE

TypeN1190..

4389098-10/EN

Originalinstructions2014.06.12

Contents

1Symbols.............................................................................................................................5

2General..............................................................................................................................5

3Maintenance.......................................................................................................................6

3.1Cleanthelintlters.....................................................................................................6

3.2Speciallter................................................................................................................7

3.3Airintakeandfanmotor.............................................................................................8

3.4Cleanthewatervalve.................................................................................................9

3.5Maintenancetobecarriedoutbyqualiedservicepersonnel....................................9

Themanufacturerreservestherighttomakechangestodesignandcomponentspecications.

Symbols5

1Symbols

Caution

Caution,hotsurface

Readtheinstructionsbeforeusingthemachine

2General

Itistheresponsibilityoftheownerofthemachine/thelaundrymanagertomakesurethatthe

followingmaintenanceisperformed.

Checkandcleanlteronaregularbasisorifthemachinenotify“CLEANSPECIALFILTER”.

Duetovariousinstallationsanddependingontheuseofthemachineotherintervalsmaybe

necessary.

Note!

Addingtoomuchdetergentinthewashingprocesswillincreasecleaningintervalofthe

lintlters.

Note!

Hardwatermayrequiremoremaintenanceofltersduetotendancyofusingtoomuch

detergentinthewashingprocess.

Note!

Lackofmaintenancemaydeterioratetheperformanceofthemachineandmaycause

damagetocomponents.

Note!

Allthreelintltersmustbeinplacewhenthemachineisrunning.

6Maintenance

3Maintenance

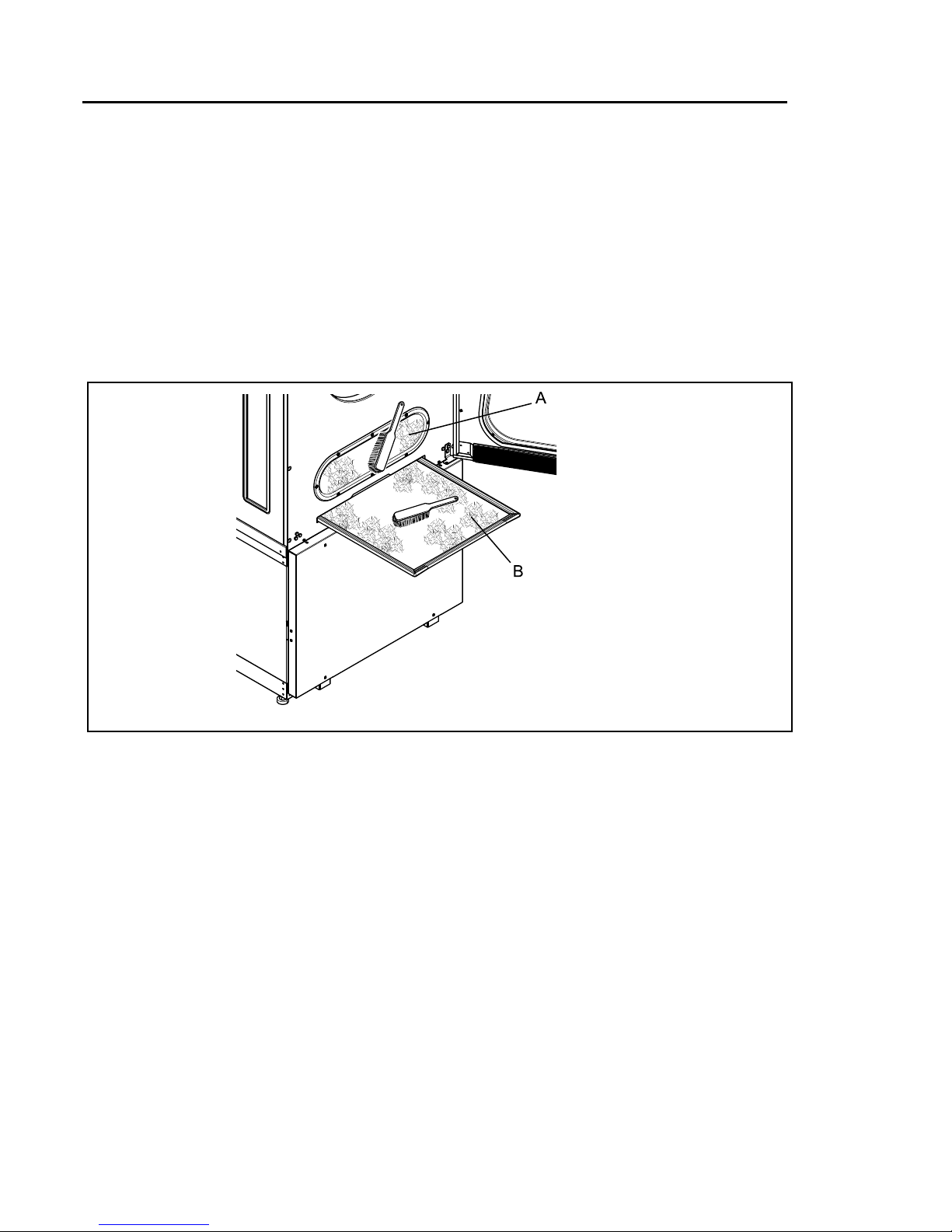

3.1Cleanthelintlters

Disconnectthepowertothemachine.

Openthedoor.

Checkthatthetwolters(A)and(B)arecleanandunbroken.(Thosetwoltersshallbecleaned

aftereachdryingcyclebytheuser).

Cleanorreplaceifnecessary.

①

g.8015C

Maintenance7

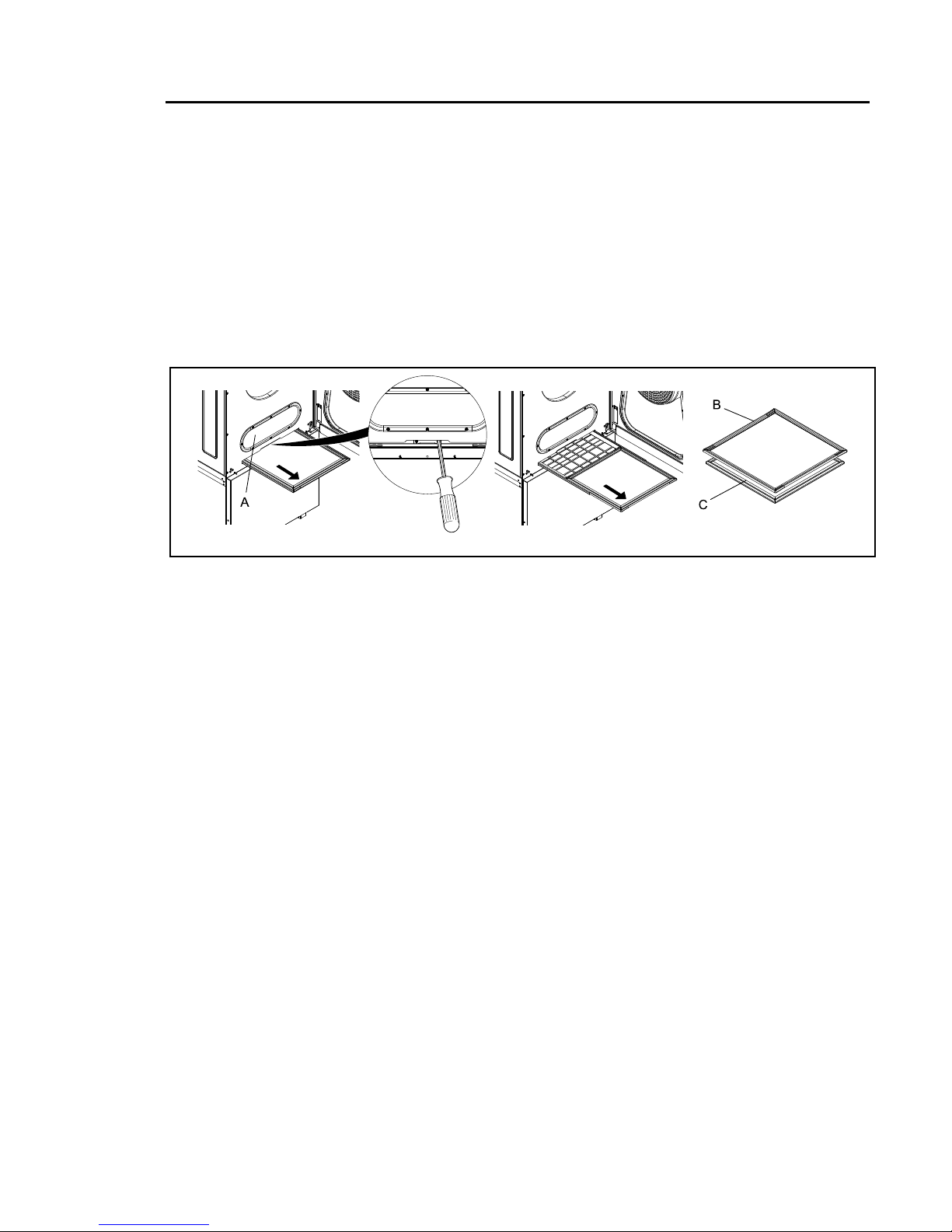

3.2Speciallter

TheSpeciallter(C)isplacedunderthelintlter(B).

Pullouttheltersasfaraspossible.

Loosenthetwonutsonthelockingbracket.

Itisalsopossibletoreachthenutsfrombehindthelter(A).Demountthelter(A)andloosen

thetwonutsonthelockingbracket.

RemovetheltersandcleantheSpeciallter(C)withavacuumcleaner.

②

g.W00731

Note!

ReplacetheSpeciallterwhenneeded.Itcanbevacuumcleaneduptofourtimes.

Note!

DonotusewatertocleantheSpeciallter.

Whenremounting;positiontheSpeciallter(C)belowthelintlter(B).MakesuretheSpeciallter

(C)isincenterpositionwheninsertingtheltersonthelterbracket.

Makesuretheltersareinpositionandbelowthelockingbracket.Tightenthenutsonthelocking

bracket,pressthelockingbracketdownatthesametimeastighteningthenuts.

Ifthelter(A)hasbeendemounted;remountthelter(A).

8Maintenance

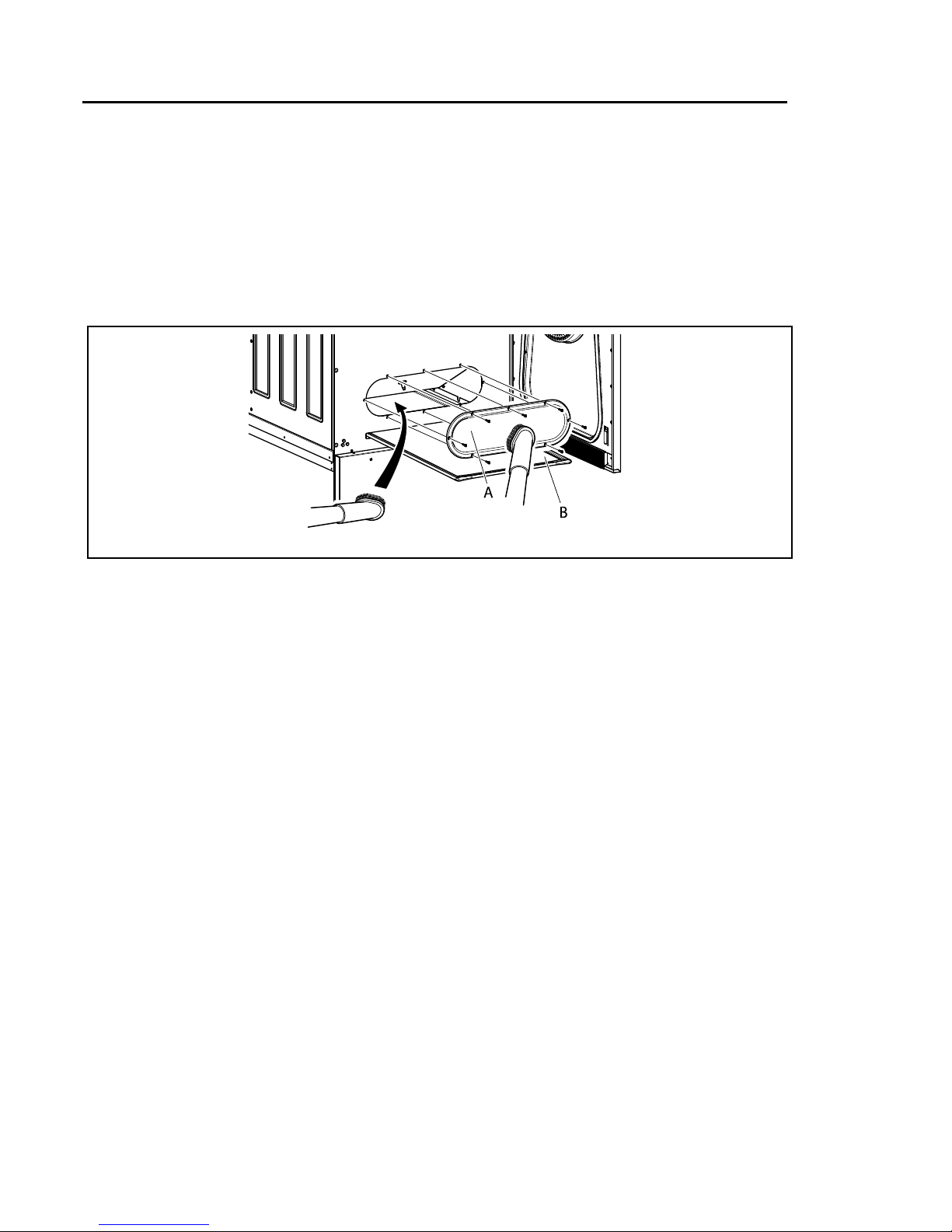

3.3Airintakeandfanmotor

Atregularbasis,checkthattheairintakeonthefrontofthemachineisnotcloggedbylintand

dustorotherwiseblocked.

Disconnectthepowertothemachine.

Removethescrewstothelter(A),pulloutthelter(B)andcleantheairinletandthefanwheel

withavacuumcleaner.Becarefulnottodamagetheparts.

③

g.8016A

Maintenance9

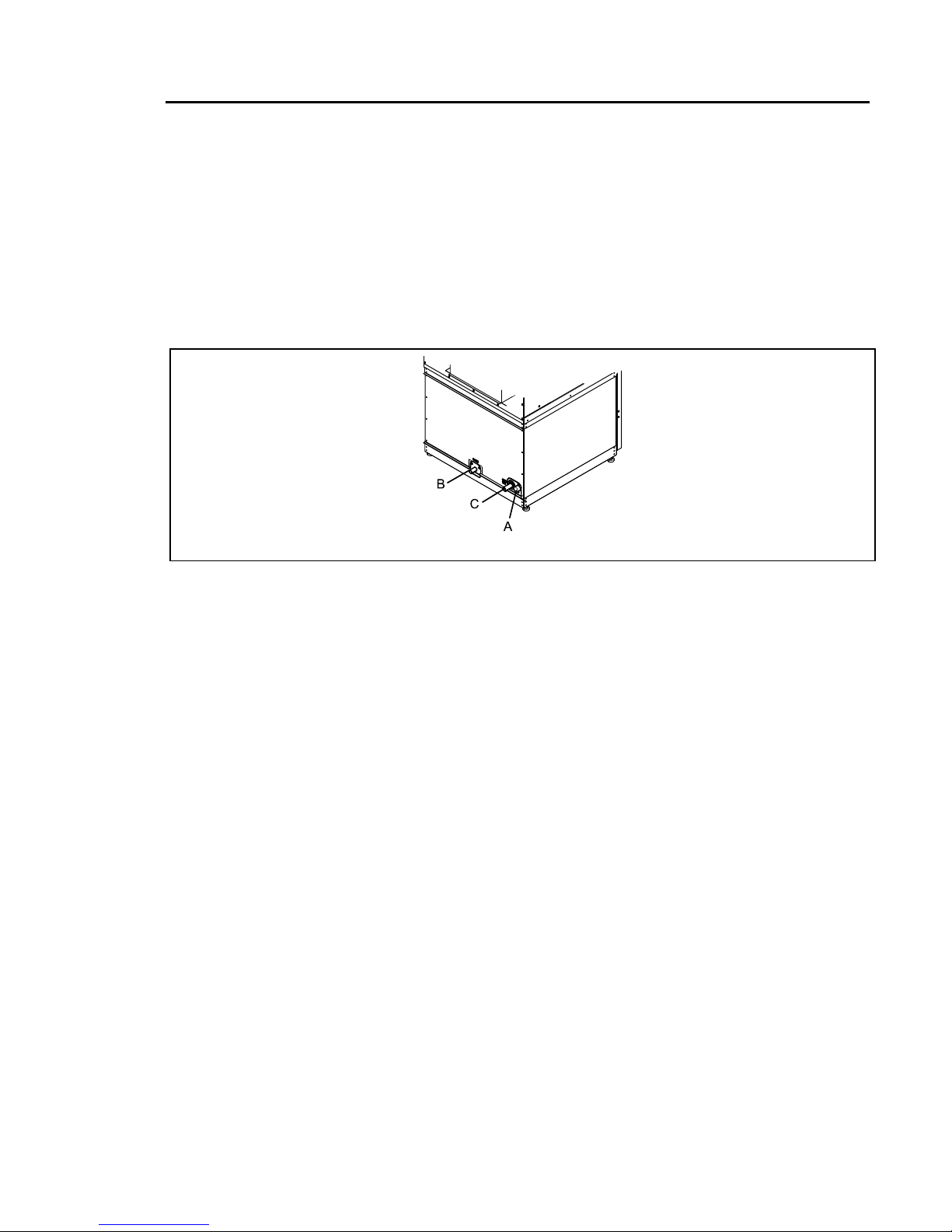

3.4Cleanthewatervalve

Atregularbasis,checkthewatervalveandlter.

Disconnectthepowertothemachine.

Disconnectthewatersupplytotheheatpump.

Disassemblethewatervalve(A)andcheckthattheholeisnotblocked.Checkthelter.

Checkthedrainforcondensedwater(B)andthedrainforcoolingwater(C).

④

g.8038A

Cleanandremoveanydirtorcoatingifnecessary.

Remountthevalve.

3.5Maintenancetobecarriedoutbyqualiedservicepersonnel

Serviceshouldbedoneaccordingtotheservicemanual.Ifneglectedperformancewilldecrease

andthemachinecanbedamaged.

After800hoursofoperationoronceayear,whichevercomesrst,contactqualiedservice

personneltoperformthefollowingmaintenancefore.g:

•Cleantheheatpumpunitinside.

•Cleancondenser,evaporatorandfan.

•Cleantheareaaroundthedrum.

•CleantheglidesurfaceontheRMCgraphitecollector.

•Cleanthemotor.

•Cleanthecomponentunit.
