REPAIR

PARTS

LIST

253.16949101

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

FREEZER CHEST

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995519724

253.16949101

07/08 2

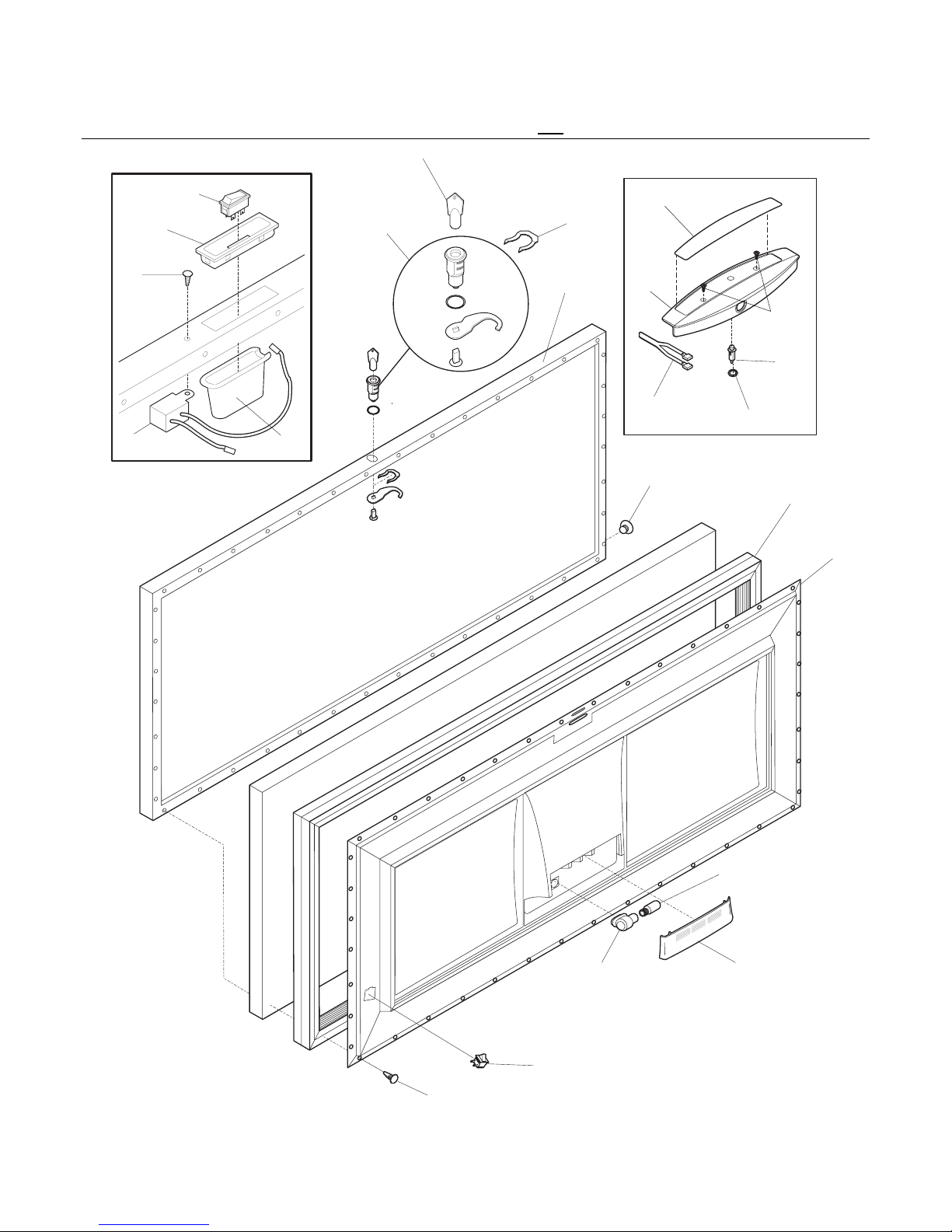

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

22A

X08D0302

BACK OF LID

253.16949101

# Functional Parts 3 07/08

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216481004 Gasket-door, black

2 297090200 Lock Assy

2A 297090900 Clip, spring

5 297147700 Key, lock

9 216967500 Panel-inner door, frzr

10 216923002 Plug button, black

11 216117936 Lid, black

* 216858001 Screw, 8-18x.50 AB, #10

14 216998000 Switch, light/lamp, ramp

15 297048600 Light Bulb/Lamp, short

16 216817600 Socket, light/lamp, 25 W

18 216884804 Handle-door

23 216212700 Light-signal, amber

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

34 297013900 Shield, light

35 216205400 Washer, signal light

36 5309948955 Clip-panel

40 216922700 Fastener, .330 dia stud, handle, (2)

44 216823300 Switch, rocker

47 # 297092400 Harness lid/defrost

53 216713600 Buzzer, alarm

55 297092800 Housing-switch

56 297015600 Cap, sig light seal

57 216885502 Overlay

92 5303272319 Screw, hex washer head, 8-32 x 7/16, buzzer

* 5303917276 Insulation-door, fiberglass, (bulk)

253.16949101

07/08 4

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

18 75

P08C1139

253.16949101

# Functional Parts 5 07/08

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 297014101 Catch-lock, black

3 216502600 Plug, drain, interior

4 297013606 Plug-button, black

6 216855707 Breaker, hinge side

7 216855708 Breaker, lock side

11 216855709 Breaker, chest end, (2)

12 297083900 Nameplate

18 216873600 Knob-control

21 # 216787600 Control, temperature

23 297087600 Light-signal, round, amber

27 216337701 Screw, HWH, 10-24 x 0.500, Swage

28 216478801 Hinge, black

30 216105504 Breaker-corners, black

59 216848200 Basket

62 5304463819 Screw, AB, 8-18X3/8

75 216782001 Access panel, black

94 216140400 Lens, frost indicator, blue

* 216794011 Energy Guide

* 297087900 Owners Manual

* 297010501 Service Data Sheet

* 5995519724 Repair Parts List

* 5303321321 Paint, touch-up, black

253.16949101

07/08 6

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

P08S0360

86 86

253.16949101

# Functional Parts 7 07/08

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300120781 Condenser

4 216987500 Drier-filter

5 297092300 Harness main

* 216707801 Screw, PH, 8-32 x 1/2, wiring harness

22 216056401 Clip-compressor mtg

27 5308002681 Grommet, compressor

29 # 297199800 Compressor, w/grommets

30 216954217 Controller

32 216954300 Clip, controller

55 218909911 Capacitor, run

86 216707701 Screw, 8-18 X 1/2
