Electrolux 253.28459806 Manuale

P08F0134.eps P08D0615.eps P08C1200.eps P08S0422.eps

REPAIR

PARTS

LIST

253.28459806

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

UPRIGHT FREEZER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995549218

253.28459806

08/09 2

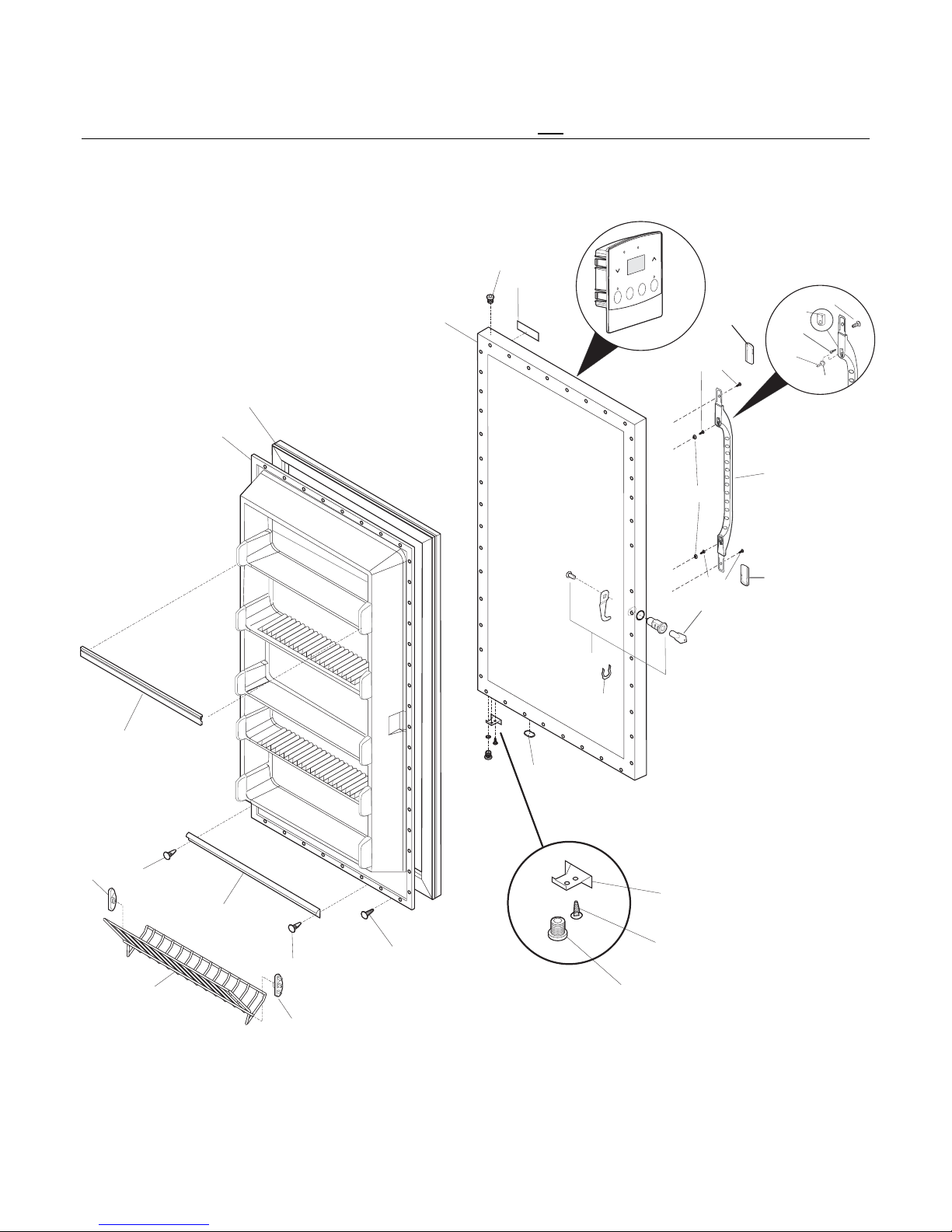

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

173 93

174

172

37A

151

21A

22A

P08D0615

12A

172

253.28459806

# Functional Parts 3 08/09

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216522307 Gasket-door, black

2 # 297213400 Lock Assy

2A 297213300 Clip, spring

5 297147700 Key, lock

9 216527615 Panel-inner door, frzr

11 297316307 Panel-outer door, black

12A 297083900 Nameplate

13 297257001 Door Stop, black

18 218803903 Handle-door, gray

* 240537301 Nut-anchor, door hdl screw

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524301 Gasket, secondary

27 5304472186 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951601 Rack-door, (4)

37A 218771203 Trim-handle, 1.34", gray

64 216403700 Plug-button, hole filler, door base

72 297118101 Shelf, tilt out, tall, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297242001 Control-electronic, assy, black, 115V

172 218397000 Button-handle mtg, dovetail

173 218396700 Block-handle mtg, dovetail

174 240521303 Screw, #10-16 x 1/2

253.28459806

08/09 4

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

34 15

71A

59A

139

42C

138

137B

59B

71A 71A

42A

P08C1200

41 28

93A

169

170

253.28459806

# Functional Parts 5 08/09

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200300 Breaker Kit w/corners, no lock slot

7 297200500 Breaker Kit w/corners, incl lock catch

9 297200200 Breaker Kit w/corners, 28", top and bottom

13 # 297250000 Motor, fan, 115 V

14 216998100 Switch, light/lamp, black, ramp

15 297114000 Light Bulb, short, blue tint, 40W

16 297139500 Socket, light/lamp

19 216204900 Gasket, evap cover

25 297098651 Cover-evaporator

26 216503300 Ramp, door closer

28 297283900 Hinge-bottom, stepped pin

29 216313504 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

37 297273901 Trim-cabinet corner, black, (2)

38 297283800 Hinge-upper

40 297164401 Cover-upper hinge, black

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297166803 Glass-shelf

42A 297119901 Shelf, 14.50 X 23.88, white

* 216502400 Grommet-shelf mtg

42C 297183801 Divider, blue, glass shelf

47 297192901 Baffle, air

50 216394050 Bracket, fan motor mount

59 297308700 Basket, bottom

59A 216486500 Stop-basket, (2)

59B 297308500 Basket, mid-level

60 297013500 Slide, basket

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 297146800 Screw, 8-18AB x 0.470

72 297199001 Grille/Kickplate, 28", black

79 3017666 Nut-insert

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 297174300 Screw, #8, 18x.63, self pierce

* 216327800 Clip, wire

137B 297166903 Frame

138 297232301 Trim-shelf, front

139 297232201 Trim-shelf, rear

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

170 297280401 Valve, breather, black

* 216795319 Energy Guide

* 297245600 Use & Care Guide

* 297246001 Service Data Sheet

* 297257300 Label, start guide

* 297258300 Instructions, elect guide, Precision

* 5995549218 Repair Parts List

* 297001704 Insulation, 24", drain tube

253.28459806

08/09 6

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

253.28459806

# Functional Parts 7 08/09

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987500 Drier-filter

5 # 297237601 Harness-main

5* 240555002 Screw-#8-32 X 3/8

14 297216201 Heater-defrost

15 # 216997200 Evaporator

15A 216565700 Heat Exchanger

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

20 297216600 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297223600 Compressor, w/o electricals

30 216954214 Controller, compressor

31A 297216900 Pan-drain

32 216954300 Clip, controller

34 5306594529 Sleeve-compressor

35 5304460607 Screw, Ind hex sems, 1/4-28 unfx, compressor

43B 297315800 Clip, wire

55 216985001 Capacitor-run, 15 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 297014500 Plug-suction line

* 297018400 Thermistor

* 297174300 Screw, #8, 18x.63, self pierce

*# 297169904 Cord-power
