Electrolux Prostore

400 liter digital waterproof freezers

The Electrolux Prostore range is produced for the customer who needs refrigeration products suitable for

gastronorm containers. The product range is comprised of 400 liter models with full door either in AISI 304 or

stainless steel. All the internal finishes are in stainless steel. The Prostore 400 liter models detailed in this sheet

are freezers with remote or built in refrigeration unit.

691184

MATERIALS

• Internal and external in stainless

steel AISI 304 (galvanized back

and exterior).

• Runners and supports in

stainless steel easily disassembled

(without any tool) for more

convenient cleaning.

EASY TO INSTALL

• All models require only 1 phase

220/240V supply. They can

therefore be plugged straight into

an existing power socket.

EASY TO USE

• Automatic evaporation of the

defrosting water by hot gas on the

top.

• Designed to operate at ambient

temperatures up to +43 °C.

• Hidden evaporator thus

guaranteeing higher storage

capacity and less corrosion

problems.

• Simple control panel: on/off

switch, digital thermometer with

increasing and reduction button,

control lamps and light switch.

• Self closing and reversible

left/right doors (not for glass door)

• Door microswitch to stop the fan

once the door is opened.

• Light as standard in all models.

• Easy access to the main

components for an easy

maintenance.

EASY TO MAINTAIN

• Insulation thickness: 60 mm to

ensure effective insulation with

minimum energy consumption.

• Door handle entirely in pressed

stainless steel (without plastic)

without joints gathering dust and

dirt.

• Joints between side and bottom

inner panels less than 0.5 mm

(according to hygienic rules) in

order to avoid the deposit of dirty

residual that are origin of bacterial

proliferation.

• Inner cell with rounded corners,

bottom pressed in only one piece.

• Full frontal and sides waterproof

design: possible to clean with

hose.

Electrolux Prostore

400 liter digital waterproof freezers

Internet: http://www.electrolux.com/foodservice

HAHB0202011-07-13Subject to change without notice

STAINLESS STEEL GRID 530x400 880162 880162

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457

PLASTIC-COATED GRID 530x400 880307 880307

PEDAL OPENING FOR REFRIGERATORS/FREEZERS 880172 880172

PAIR OF RUNNERS FOR PROSTORE REFR. 880558 880558

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205

KIT HACCP EKIS 922166

BASE FRAME TO SUPPORT TRAY RACK 880078

1/1 GN RILSAN STEEL WIRE BASKET H=150 MM 881043 881043

ACCESSORIES

PLASTIC-COATED GRID 530x400 5 5

PEDAL OPENING FOR REFRIGERATORS/FREEZERS 1 1

INCLUDED ACCESSORIES

Net weight - kg. 115 105

installed-electric 0.69 0.17

Power - kW

at evaporation temperature - °C -26 -23.3

Refrigerant power

Refrigeration power - W 640 806

Refrigerant quantity - g. 220

Refrigerant type R404a R404a

N° defrost in 24 hrs. 4/30' max 4/30'

Compressor power - HP 1/2

N° and type of grids (included) 5, 530x400 5, 530x400

Door hinges Right Side Right Side

N° and type of door 1 1

height adjustment 12, 30

height 2112 2112

depth/with open doors 665, 1200 665, 1200

width 600 600

External dimensions - mm

Control type Digital Digital

Cooling unit Built-In Remote

Gross capacity (D.I.N. 8952) - l. 440 440

panels 304 AISI 304 AISI

External material

Operating mode Ventilated Ventilated

Operating temperature - min/max °C -22/-15 -22/-15

TECHNICAL DATA

PS04F1F

691184

PS04F1FR

691185

EASY ON THE ENVIRONMENT

• CFC and HCFC free

environmentally friendly: R404a

gas in refrigeration circuit. Gas in

foam: Cyclopentane.

• Low noise level - less than 57 dB

(A).

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

• All models comply with the

standards required by the main

international approval bodies and

are H marked.

Electrolux Prostore

400 liter digital waterproof freezers

Internet: http://www.electrolux.com/foodservice

HAHB0202011-07-13Subject to change without notice

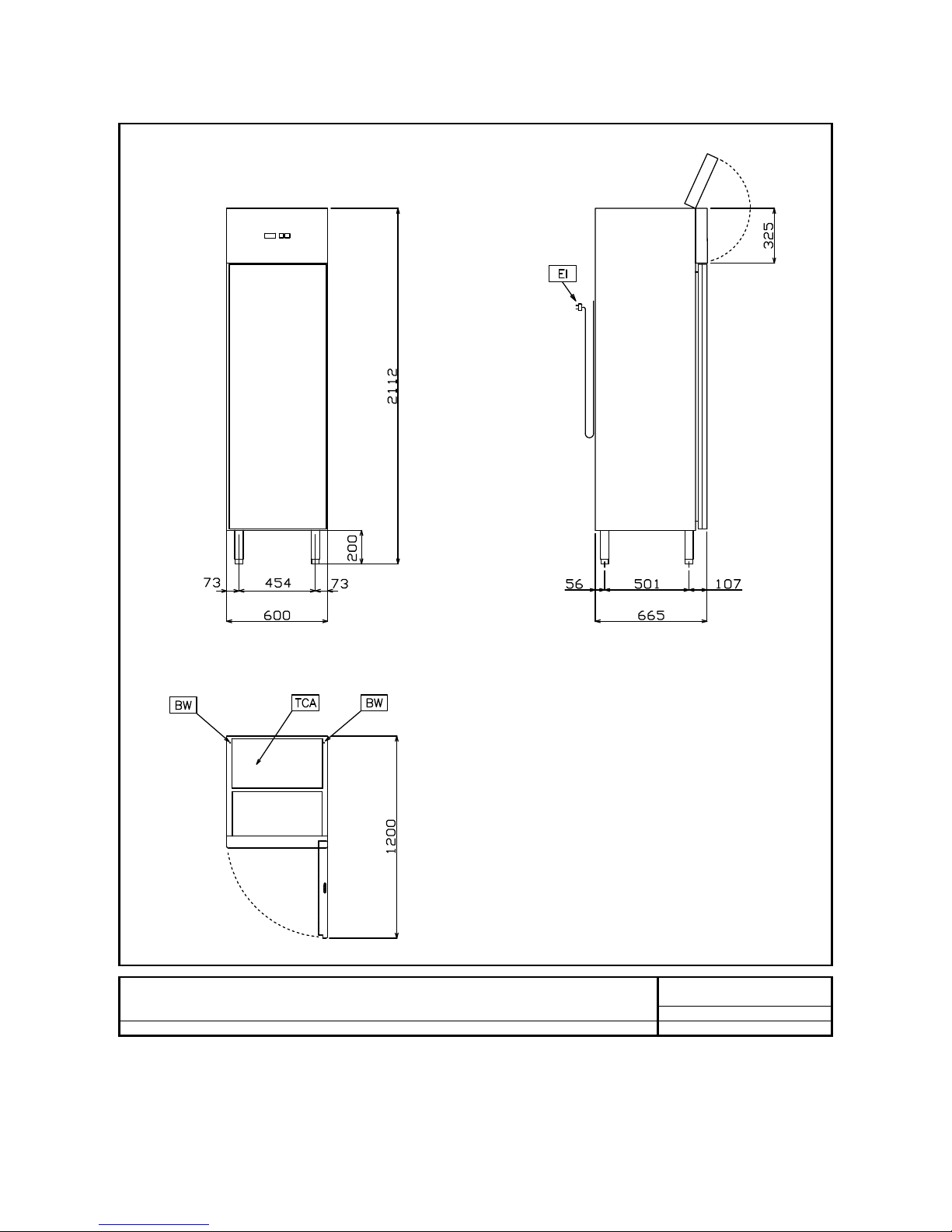

EI - Electrical connection 230 V, 1N, 50

LEGEND

PS04F1F

691184

Electrolux Prostore

400 liter digital waterproof freezers

Internet: http://www.electrolux.com/foodservice

HAHB0202011-07-13Subject to change without notice

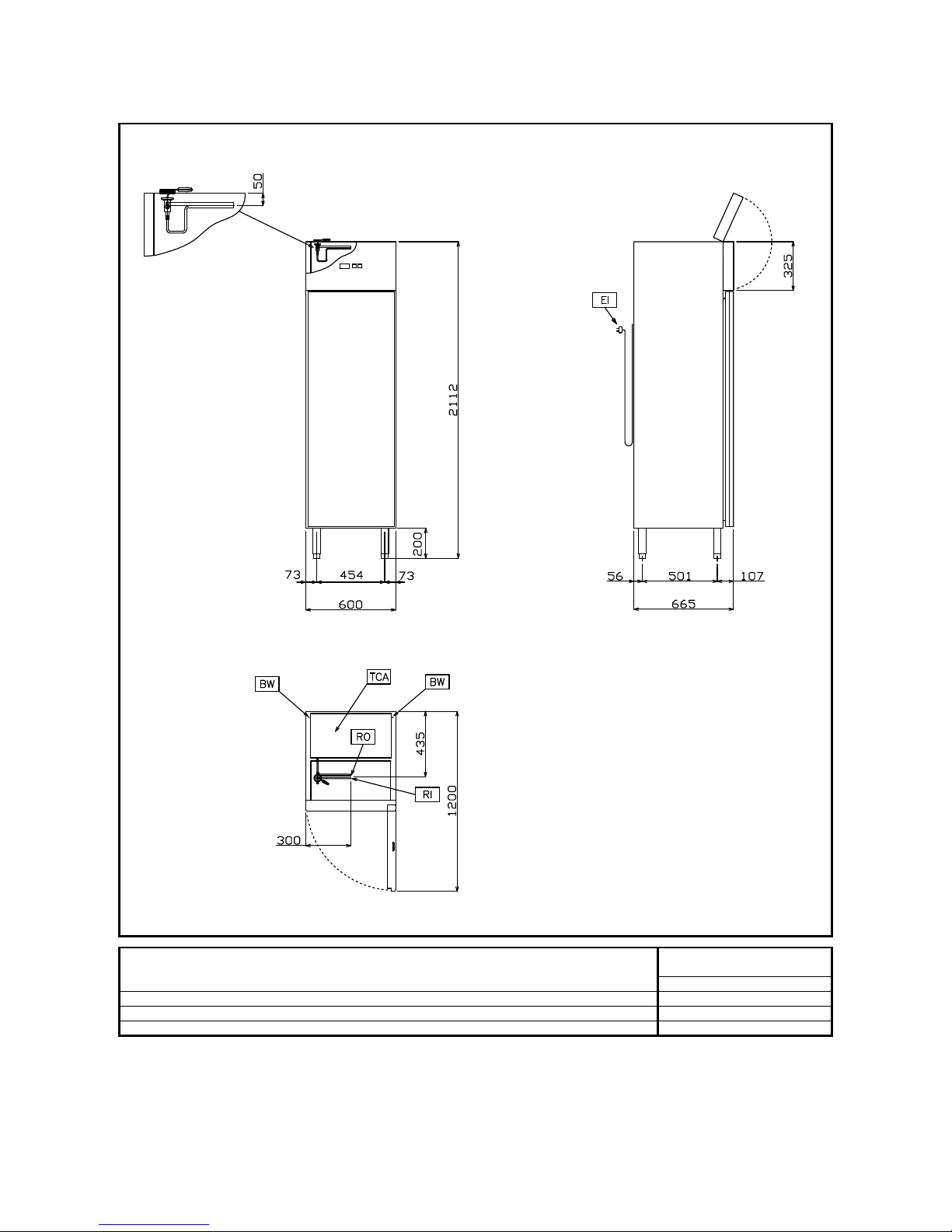

RI - Remote refrigeration connection ●

EI - Electrical connection 230 V, 1N, 50

ED - Remote electrical connection ●

LEGEND

PS04F1FR

691185
