Electrolux E30MO65GSSA Manuale utente

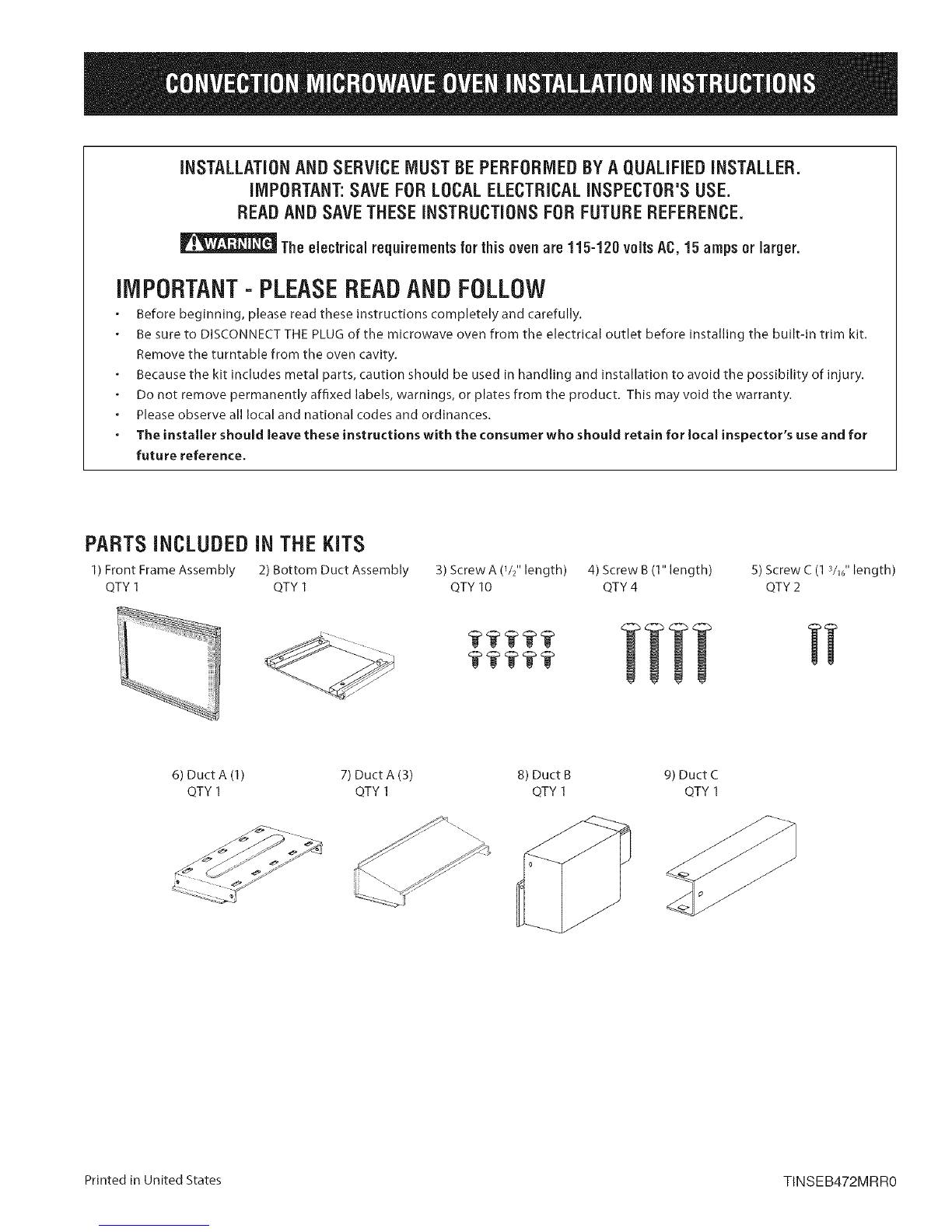

iNSTALLATiONANDSERVICEMUSTBEPERFORMEDBYAQUALiFiEDiNSTALLER.
iMPORTANT:SAVEFORLOCALELECTRICALiNSPECTOR'SUSE.
READANDSAVETHESEiNSTRUCTiONSFORFUTUREREFERENCE.
The electrical requirementsfer this evenare 115-120 voltsAC,15 amps or larger.
iMPORTANT-PLEASEREADANDFOLLOW
Before beginning, please read these instructions completely and carefully.
Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.
Remove the turntable from the oven cavity.
Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
Please observe all local and national codes and ordinances.
The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.
PARTS INCLUDED IN THE KITS
1) Front Frame Assembly 2) Bottom Duct Assembly
QTY 1 QTY 1 3) Screw A (V2" length) 4) Screw B(1" length) 5) Screw C (1 V_6"length)
QTY lO QTY 4 QTY 2
6) Duct A (1) 7) Duct A (3) 8) Duct B 9) Duct C
QTY 1 QTY 1 QTY 1 QTY 1
Printed in United States TINSEB472MRRO

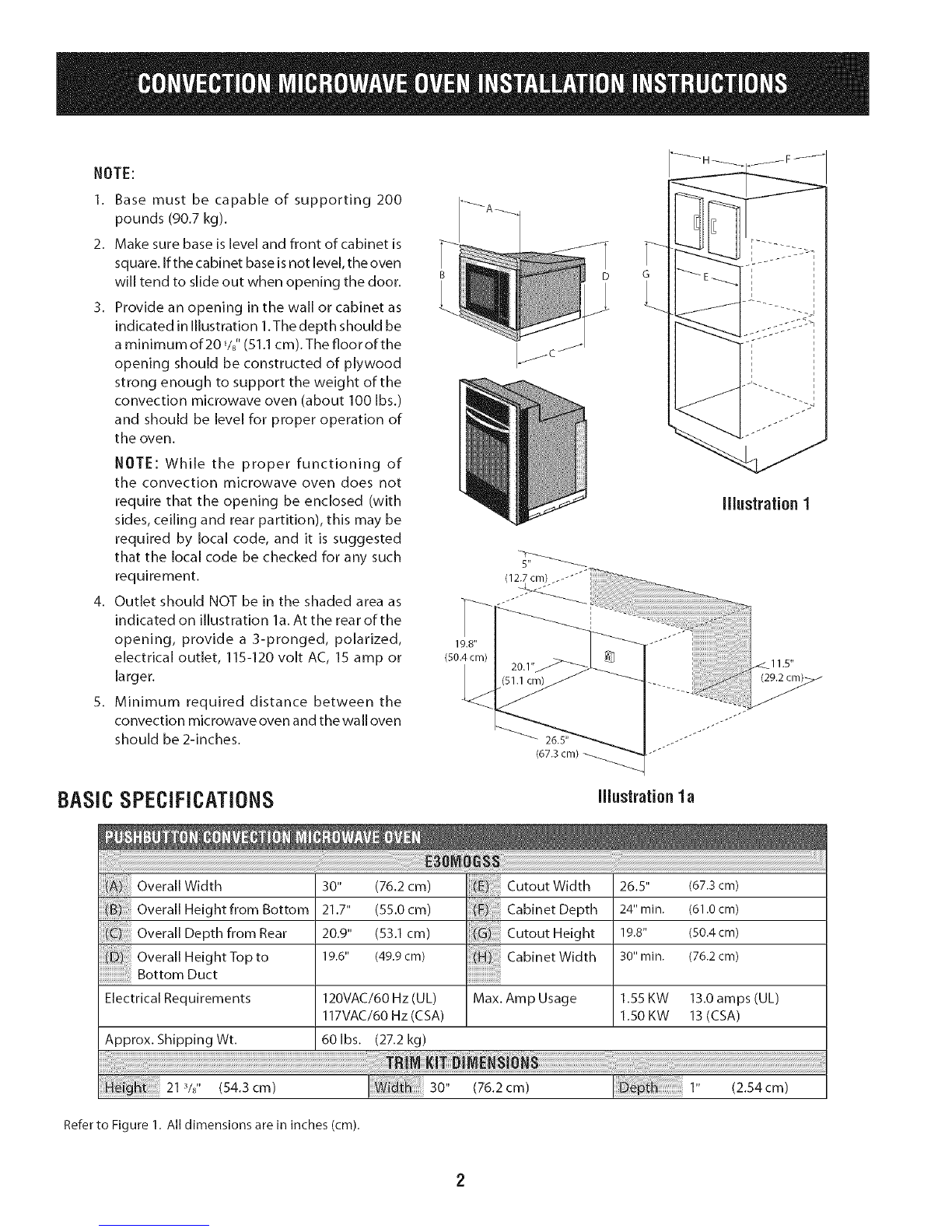

NOTE:
1. Base must be capable of supporting 200
pounds (90.7 kg).
2. Make sure base is level and front of cabinet is
square. Ifthe cabinet base isnot level, the oven
will tend to slide out when opening the door.
3. Provide an opening in the wall or cabinet as
indicated in Illustration 1.The depth should be
a minimum of 20 VB"(51.1 cm).The floorofthe
opening should be constructed of plywood
strong enough to support the weight of the
convection microwave oven (about 100 Ibs.)
and should be level for proper operation of
the oven.
NOTE: While the proper functioning of
the convection microwave oven does not
require that the opening be enclosed (with
sides, ceiling and rear partition), this may be
required by local code, and it is suggested
that the local code be checked for any such
requirement.
4. Outlet should NOT be in the shaded area as
indicated on illustration la. At the rear of the
opening, provide a 3-pronged, polarized,
electrical outlet, 115-120 volt AC, 15 amp or
larger.
5. Minimum required distance between the
convection microwave oven and the wa IIoven
should be 2-inches.
D
J
5"
19.8"
(50.4 cm)
Illustration 1
J
BASIC SPECIFICATIONS Illustration 1a
Overall Width
Overall Height from Bottom
Overall Depth from Rear
Overall Height Top to
BottomDuct
Electdca[ Requirements
30" (76.2 cm)
21.7" (55.0 cm)
20.9" (53.1 cm)
19.6" (49.9cm)
CutoutWidth
CabinetDepth
CutoutHe ght
CabinetWidth
Max. Amp Usage
26.5" (67.3 cm)
24" min. (61.0 cm)
19.8" (50.4 cm)
30" min. (76.2 cm)
120VAC/60 Hz (UL) 1.55 KW 13.0amps (UL)
117VAC/60 Hz (CSA) 1.50 KW 13(CSA)
Approx. Shipping Wt. 60 Ibs. (27.2 kg)
21%" (54.3 cm) ': 30" (76.2 cm)
Referto Figure 1. All dimensions are in inches (cm).
J 1" (2.54cm)

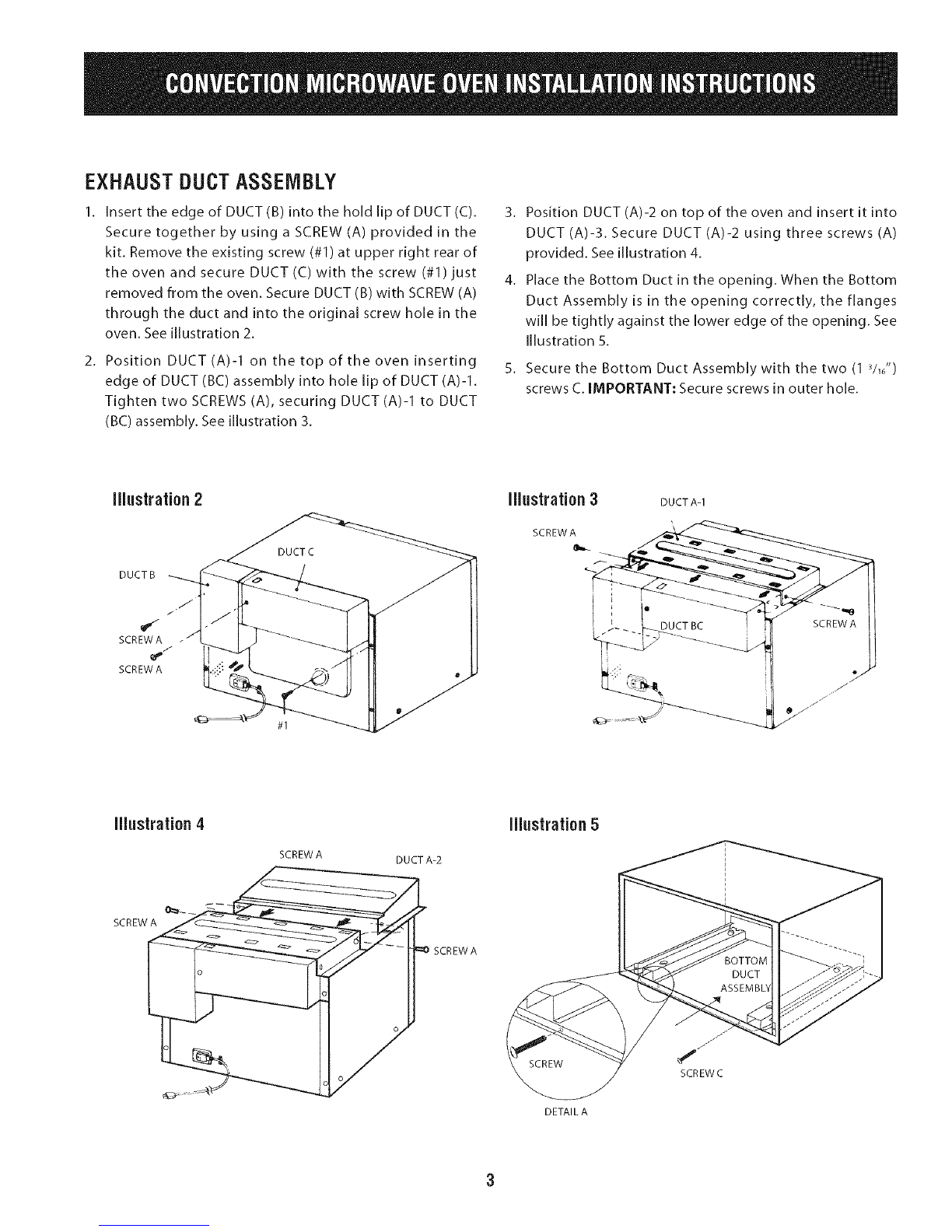

EXHAUSTDUCTASSEMBLY
1. Insert the edge of DUCT(B) into the hold lip of DUCT(C).
Secure together by using a SCREW (A) provided in the
kit. Remove the existing screw (#1) at upper right rear of
the oven and secure DUCT (C) with the screw (#1) just
removed from the oven. Secure DUCT (B) with SCREW (A)
through the duct and into the original screw hole in the
oven. See illustration 2.
2. Position DUCT (A)-I on the top of the oven inserting
edge of DUCT (BC) assembly into hole lip of DUCT (A)-I.
Tighten two SCREWS (A), securing DUCT(A)-1 to DUCT
(BC) assembly. See illustration 3.
3. Position DUCT (A)-2 on top of the oven and insert it into
DUCT (A)-3. Secure DUCT (A)-2 using three screws (A)
provided. See illustration 4.
4. Place the Bottom Duct in the opening. When the Bottom
Duct Assembly is in the opening correctly, the flanges
will be tightly against the lower edge of the opening. See
Illustration 5.
5. Secure the Bottom Duct Assembly with the two (1 VJ)
screws C. IMPORTANT: Secure screws in outer hole.
Illustration 2
DUCTB
/
SCREWA
SCREWA
Illustration 3
SCREWA
DUCTA-1
oDUCT BC
Illustration 4
SCREW A DUCT A-2
SCREW -- _--
==OSCREWA
Illustration 5
///"
SCREWC
DETAIL A

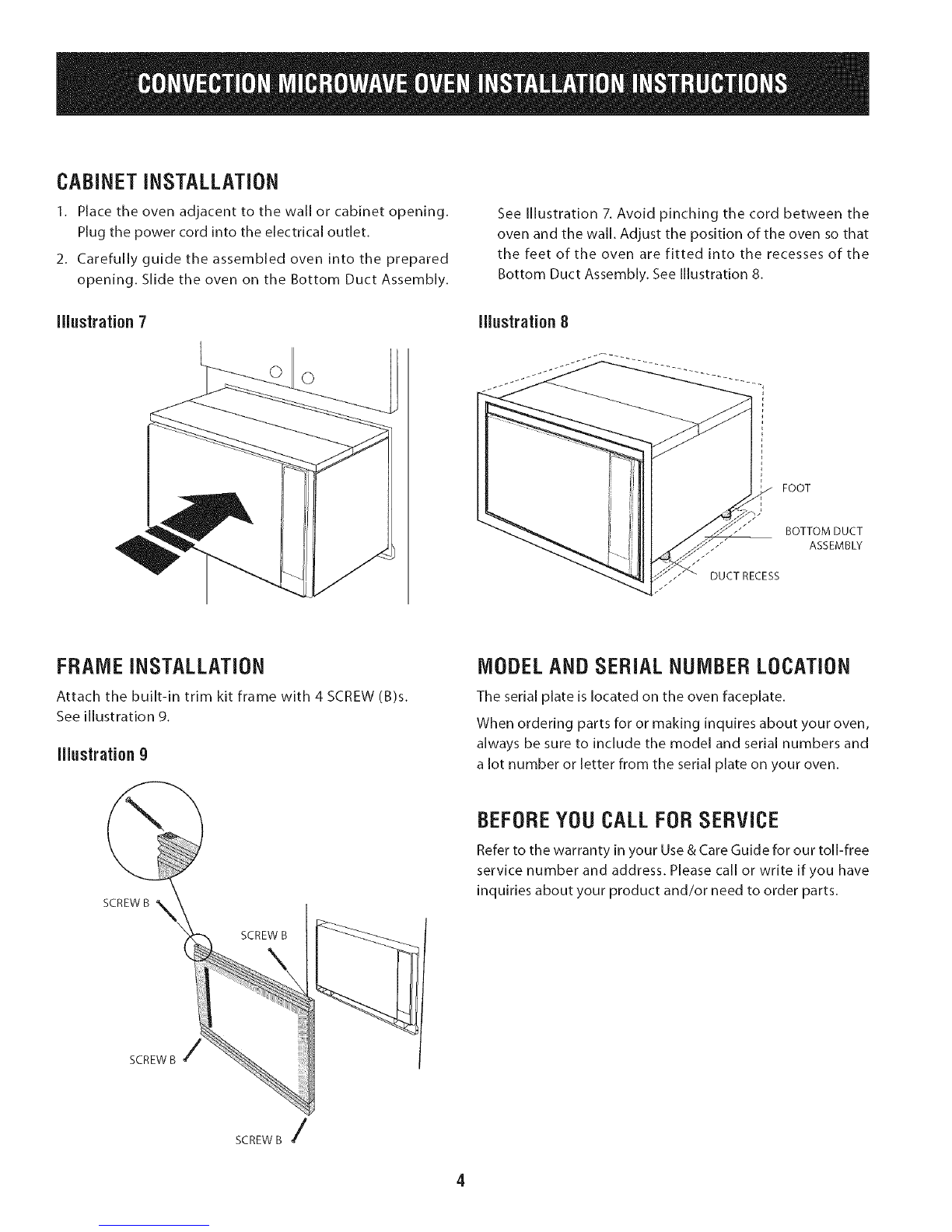

CABINET iNSTALLATiON
1. Place the oven adjacent to the wall or cabinet opening.
Plug the power cord into the electrical outlet.
2. Carefully guide the assembled oven into the prepared
opening. Slide the oven on the Bottom Duct Assembly.
Illustration 7
See Illustration 7. Avoid pinching the cord between the
oven and the wall. Adjust the position of the oven so that
the feet of the oven are fitted into the recesses of the
Bottom Duct Assembly. See Illustration 8.
Illustration 8
©
FOOT
/BOTTOM DUCT
ASSEMBLY
DUCT RECESS
FRAME INSTALLATION
Attach the built-in trim kit frame with 4 SCREW (B)s.
See illustration 9.
Illustration 9
MODELAND SERIAL NUMBER LOCATION
The serial plate islocated on the oven faceplate.
When ordering parts for or making inquires about your oven,
always be sure to include the model and serial numbers and
a lot number or letter from the serial plate on your oven.
SCREW B
SCREW B /
SCREW B
BEFOREYOU CALL FOR SERVICE
Refer to the warranty in your Use & Care Guide for our toll-free
service number and address. Please call or write if you have
inquiries about your product and/or need to order parts.
SCREW B /
