Electrolux E30MO65GSSA Manuale utente

E30M065GSS cover.eps E30M065GSS cabinet.eps E30M065GSS controls.eps

E30M065GSS wiring.eps

Product No. E30MO65GSSA

Series convection

Market North America

Color stainless steel

Volts 120

Watts 900

Wiring Diagram 5304461201

Owner's Guide 5304461201

Installation Instructions 5304461201

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995489001

07/04/17

(EN/SERVICE/ECL)

099

COUNTER-TOP

MICROWAVE

Model No.

E30MO65G

Publication No: 5995489001 E30MO65GSSA

04/07 2

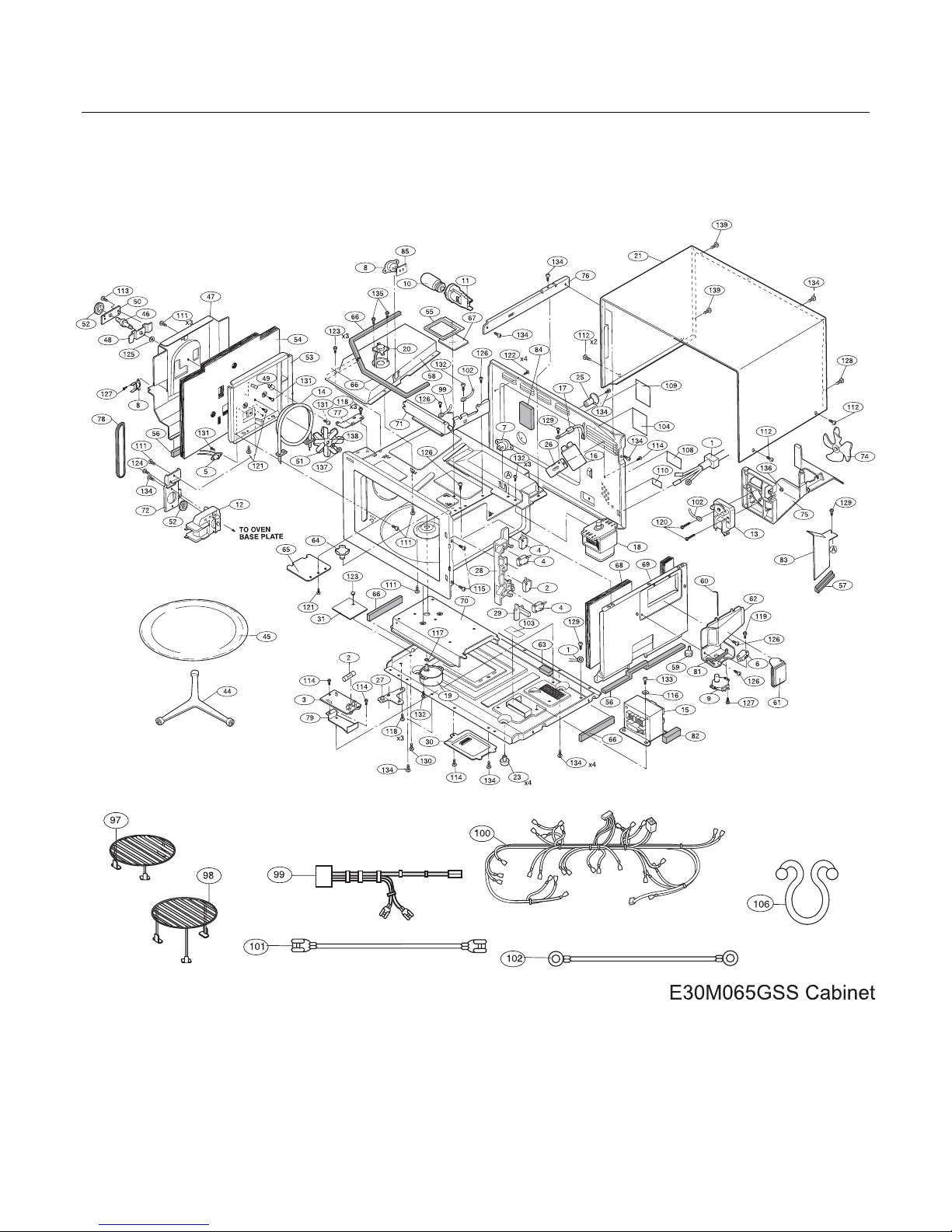

OVEN,CABINET

E30MO65GSSA Publication No: 5995489001

# Functional Parts 3 04/07

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

1 # 5304461108 Cord, power

2 # 5304461109 Assembly, fuse & switch, monitor

3 # 5304461110 Filter, noise

4 # 5304461111 Switch, micro, (3)

5 # 5304461112 Thermistor

6 # 5303319558 Switch, damper, (1)

7 # 5304461113 Thermal Cut-Out, magnetron

8 # 5304461114 Thermal Cut-Out, convection/oven, (2)

9 # 5304461115 Motor, damper

10 # 5304461116 BULB, oven lamp

11 # 5304461117 Socket, oven lamp

12 # 5304461118 Motor, convection fan

13 # 5304461119 Motor, fan

14 # 5304461120 Element, convection

15 # 5304461121 Transformer, power

16 # 5303319549 Capacitor, high voltage

17 # 5304461122 Rectifier, high voltage

18 # 5304461123 Magnetron

19 # 5304461124 Motor, turntable

20 # 5304461125 Sensor Assembly, AH

21 5304461126 Cabinet, outer

23 5304461127 Foot, cabinet, (4)

25 5304461128 Holder, power cord

26 5304461129 Holder, capacitor

27 5304461130 Hinge, door, lower

28 5304461131 Hook, latch

29 5304461132 Lever, switch

30 5304461133 Cover, turntable motor

31 5304461134 Barrier, CSA

44 5304461144 Support, turntable

45 5304461145 Tray, turntable

46 5304461146 Bearing Assembly

47 5304461147 Plate, thermal protect, LH

48 5304461148 Plate, bearing mtg

49 5304461149 Holder, element

50 5304461150 Plate, bearing holder

51 5304461151 Fan Blade, convection

52 5304461152 Pulley, (2)

53 5304461153 Duct Assembly, heater

54 5304461154 Sheet, thermal protect, LH

55 5304461155 Frame, light lens

56 5304461156 Cushion, (2)

57 5304461157 Cushion

58 5304461158 Duct Assembly, steam release

59 5304461159 Cam, damper

60 5304461160 Shaft, damper

61 5304461161 Door Assembly, damper

62 5304461162 Duct, damper

63 5304461163 Cushion

64 5304461164 Coupling, turntable

65 5304461165 Cover, waveguide

Publication No: 5995489001 E30MO65GSSA

04/07 4

OVEN,CABINET

E30MO65GSSA Publication No: 5995489001

# Functional Parts 5 04/07

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

66 5304461166 Cushion, (4)

67 5304461167 Lens, light

68 5304461168 Sheet, thermal protect, RH

69 5304461169 Plate, thermal protect, RH

70 5304461170 Guide, air, bottom

71 5304461171 Guide, air, RH

72 5304461172 Plate, motor mtg, convection

74 5304461173 Blade, fan

75 5304461174 Duct, cooling fan

76 5304461175 Support, chassis

77 5304461176 Hinge, door, upper

78 5304461177 Belt, convection fan

79 5304461178 Angle, noise filter

81 5304461179 Cushion, damper duct

82 5304461180 Cushion

83 5304461181 Guide, air, magnetron

84 5304461182 Sheet, thermal protect

85 5304461183 Cover, thermo

97 5304461194 Rack Assembly, broiling trivit, low

98 5304461195 Rack Assembly, baking, high

99 # 5304461196 Harness, thermistor

100# 5304461197 Harness, wiring, main

101# 5304461198 Wiring, high voltage, B

102 5304461199 Wiring, ground, cooling fan

103 5304461200 Label, monitor caution

104 5304451533 Label, NHW caution

106 5304451529 Clip, wire harness, plastic, LL

108 5304451535 Label, height caution

109 5304440333 Label, Caution-DHHS

110 5304453941 Label, caution, UL screw

111 5304461203 Screw, 4mm x 10mm, (14)

112 5304440340 Screw, 4mm x 12mm

113 5304461204 Screw, 4mm x 8mm, (2)

114 5304440872 Screw, 4mm x 8mm

115 5303319641 Screw

116 5304461205 Washer, 6mm x .7mm

117 5304461206 Washer

118 5304461207 Screw, special, (6)

119 5304461208 Screw, 3mm x 14mm

120 5304461209 Screw, 4mm x 25mm, (2)

121 5304461210 Screw, 4mm x 6mm, (7)

122 5304461211 Screw, 4mm x 8mm, (7)

123 5304461212 Nut, special

124 5304461213 Screw, 4mm x 6mm, (2)

125 5304461214 Washer

126 5304461215 Screw, 4mm x 8mm, (6)

127 5304461216 Screw, 3mm x 6mm, (3)

128 5303319639 Screw, wrapper, back

129 5304461217 Screw, 4mm x 8mm, (3)

130 5304461218 Screw, 4mm x 6mm

131 5304461219 Screw, 3mm x 6mm, (4)

132 5304461220 Screw, 4mm x 8mm, (6)

133 5304461221 Screw, 6mm x 14mm, (2)

134 5303318767 Screw, 4mm x 12mm

135 5304461222 Screw, 3mm x 8mm, (2)

136 5304461223 Nut, 4mm x 3.2mm, (2)

137 5304451547 Nut, element, 4 mm x 3.2 mm, (4)

138 5304461224 Washer, 4mm x 1mm

139 5304440873 Screw, torx head, tamper proof

* 5304461201 Owners Manual

Publication No: 5995489001 E30MO65GSSA

04/07 6

CONTROL PANEL,DOOR,MISC.

E30MO65GSSA Publication No: 5995489001

# Functional Parts 7 04/07

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

POS. NO PART NO. DESCRIPTION

32 # 5304461135 Control Board

33 # 5304461136 Frame, control panel, w/key unit

34 # 5304461137 Keying Unit

35 5304461138 Button, door

36 5304440831 Spring, door button

37 5304461139 Plate, control panel, back

38 5304461140 Lever, door button

39 5304461141 Shaft, door button

40 5303319584 Screw, control panel, 3 mm x 10 mm

41 5304461142 Screw, back plate mtg, (5)

42 5304461143 Screw, cntl panel mtg, (2)

86 5304461184 Frame Assembly, outer door

87 5304461185 Door Panel, inner

88 5304461186 Cover, choke

89 5304461187 Angle, latch

90 5304461188 Head, latch

91 5304461189 Spring, latch head

92 5304461190 Plate, thermal, upper

93 5304461191 Plate, thermal, RH

94 5304451561 Screw, 4 mm x 8 mm

95 5304461192 Screw, 3mm x 8mm, (12)

96 5304461193 Cushion

107 5304461202 Label, User Caution

114 5304440872 Screw, 4mm x 8mm

134 5303318767 Screw, 4mm x 12mm

Publication No: 5995489001 E30MO65GSSA

04/07 8

WIRING SCHEMATIC

TURNTABLE

MOTOR

GRY

BRN

ORG

GRN

PNKBLK

DAMPER

MOTOR

COOLING

FAN

MOTOR

PNK

RED

CONV.

THERMAL

CUT-OUT

MAGNETRON

THERMAL

CUT-OUT

BLK BLK

OVEN

THERMAL

CUT-OUT

RED

IC-1

RED

PNK

RED

GRN

WHT

PPL

ORG

RY1

RY2

RY3

CN-F

CN-E

CN-A

N.O.

COM

CN-E

ORG

BLK

BLK AH SENSOR

RED

WHT

CN-F

PRIMARY

INTERLOCK

SWITCH

CONTROL PANEL

HEATING

ELEMENT

MONITOR

SWITCH

CONVECTION MOTOR

POWER SUPPLY CORD

NOISE FILTER

AND FUSE

OVEN LAMP

& SOCKET

N.O.

PNK

THERMISTOR

RED

BLK

WHT

GRN

MAGNETRON

RED

HIGH VOLTAGE COMPONENTS

HIGH VOLTAGE

CAPACITOR

POWER TRANSFORMER

BRN

ORG

RY6

RY4

RY5

CN-G

RY1 (COM.)

RY1 (N.O.)

RY2 (COM.)

ORG

RY2 (N.O.)

RY3 (COM.)

RED

PNK

RY3 (N.O.)

BRN

RED

GRY

PNK

BLK

RED

GRY

GNOTE:

Hot (ORG) wire must be connected to the

power transformer terminal nearest to the

transformer mounting screw.

DOOR

SENSING

SWITCH

GRN

COM

N.C.

WHT

ORG

BRN

COM.

N.O.

COM.

N.O.

COM.

N.O.

WHT

PNK

DAMPER

SWITCH

COM

N.O.

THIRD

DOOR

SWITCH

COM

N.O. WHT

GRY

NOTE:

Hot (YLW & PNK) wire

must be connected to the

terminal with blue mark

on the oven light socket.

PNK

BLUE MARK

WHT

RED

GRY
