Electrolux EI24MO45IB-EI27MO45TS Manuale utente

MICROWAVE OVEN INSTALLATION INSTRUCTIONS

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

The electrical requirements for this oven are 115-120 volts AC, 15 amps or larger.

IMPORTANT - PLEASE READ AND FOLLOW

Before beginning, please read these instructions completely and carefully.

Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.

Remove the turntable from the oven cavity.

Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.

Do not remove permanently axed labels, warnings, or plates from the product. This may void the warranty.

Please observe all local and national codes and ordinances.

The installer should leave these instructions with the consumer who should retain for local inspector’s use and for•

future reference.

PARTS INCLUDED IN THE KITS

1 FRONT FRAME ASSEMBLY

QTY 1

2 BOTTOM DUCT ASSEMBLY

QTY 1

3 SCREW A 1 ⁄" LENGTH

QTY 2

4 SCREW B 1 ¾" LENGTH

QTY 4

MICROWAVE OVEN INSTALLATION INSTRUCTIONS

BASIC SPECIFICATIONS

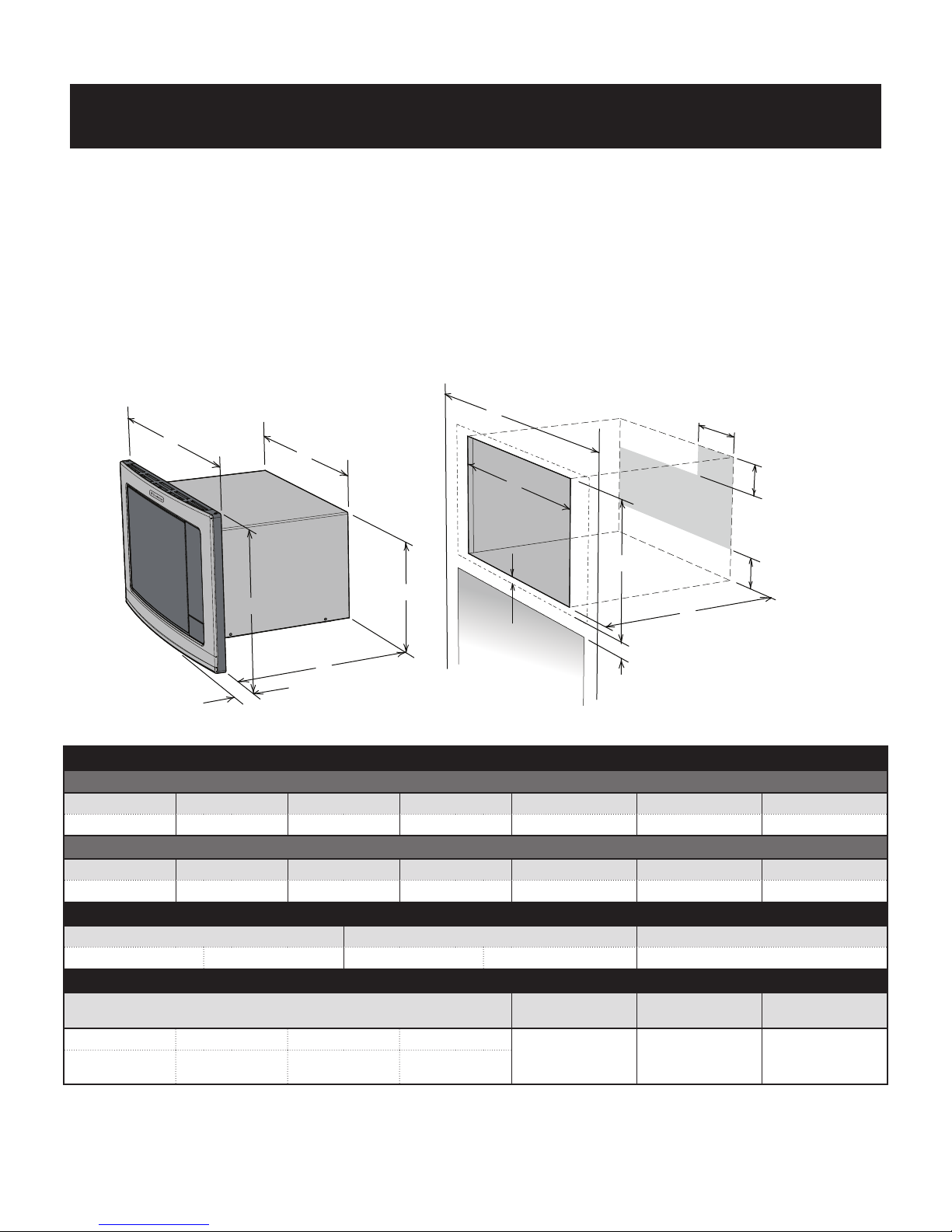

Refer to Illustration 1. All dimensions are in inches (cm).

Illustration 1

Provide an opening in the wall or cabinet as indicated1.

in Illustration 1. The depth should be a minimum of 20"

(50.8 cm). The oor of the opening should be constructed

of plywood strong enough to support the weight of the

microwave oven (about 100 lbs.) and should be level for

proper operation of the oven.

NOTE:While the proper functioning of the microwave

oven does not require that the opening be enclosed

(with sides, ceiling and rear partition), this may be

required by local code, and it is suggested that the local

code be checked for any such requirement.

Outlet should NOT be in the shaded area as indicated2.

on Illustration 1. At the rear of the opening, provide a

3-pronged, polarized, electrical outlet, 115-120 volt AC,

15 amp or larger.

Minimum required distance between the microwave3.

oven and the wall oven should be 2-inches of visible

cabinet showing after installation.

PRODUCT DIMENSIONS

EI30M045T TRIM KIT

A B C D E F G

30" (76.2 cm) 18 ⁄" (45.9 cm) 2 ⁄" (5.9 cm) 24" (60.96 cm) 13 ⁄" (33.9 cm) 17 ¾" (45.1 cm) min. 30" (76.2 cm)

EI27M045T TRIM KIT

A B C D E F G

27" (68.6 cm) 18 ⁄" (45.9 cm) 2 ⁄" (5.9 cm) 24" (60.96 cm) 13 ⁄" (33.9 cm) 17 ¾" (45.1 cm) min. 27" (68.6 cm)

CUTOUT DIMENSIONS

min. Hmax. min. Imax. J

25 ¼" (64.14 cm) 25 ⁄" (64.5 cm) 16 ¼" (41.3 cm) 16 ⁄" (41.6 cm) min. 20" (50.8 cm)

BASIC SPECIFICATIONS

OVEN INTERIOR ELECTRICAL

REQUIREMENTS

APPROXIMATE

SHIPPING WT. MAX AMP. USAGE

WIDTH HEIGHT DEPTH OVERALL 120VAC/60 Hz (UL)

120VAC/60 Hz (CSA) 46 lbs. (20.9 kg) 1.5 KW 13.0 amps (UL)

1.50 KW 13 (CSA)

17 ⁄" (44.1 cm) 10 ½" (26.6 cm) 18 ⁄" (47.3 cm) 2.0 cu. ft.

6" (15.2 cm)

4" (10.2 cm)

installation over an electric wall

oven 2" (5.1 cm) minimum gap

Product overlap

7/8" (2.2 cm)

Illustration 1

MICROWAVE OVEN INSTALLATION INSTRUCTIONS

BOTTOM DUCT ASSEMBLY

1. Place the bottom duct in the opening and center. When

the Bottom Duct Assembly is in the opening correctly, the

ange will be tight against the lower edge of the opening.

See Illustration 2.

Illustration 2 Illustration 3

Illustration 4 Illustration 5

SCREW A

2. Secure the Bottom Duct Assembly with the two (1 ⁄")

screws A. IMPORTANT: Secure screws to the inside

cabinet. See Illustration 3.

UNIT INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening.

Plug the power cord into the electrical outlet. Carefully

guide the oven into the prepared opening. Slide the oven

on the Bottom Duct Assembly. Avoid pinching the cord

between the oven and the wall. Adjust the position of the

oven so that it will rest on the Bottom Duct Assembly, but

not fully pushed in. See Illustration 4.

2. Locate tabs on the built in trim kit to the slots on control

panel. Snap the built in trim kit into the control panel to

lock in place. See Illustration 5.

SHAPE ON

BOTTOM

MICROWAVE OVEN INSTALLATION INSTRUCTIONS

3. Push the position of the oven into the cabinet so that the

feet of the oven are tted into the recesses of the Bottom

Duct Assembly. Make sure that the kit now rests ush with

the cabinet. See Illustration 6.

Illustration 6

Illustration 7

SCREW B

4. Adjust the frame so that the gap around the top of the

door and frame is even. Pre-drill 4 holes using an ¹⁄₈" bit,

using the kit to guide the holes. Attach the built-in trim kit

frame with four screws B to the cabinet. See Illustration 7.

IMPORTANT: Install top left mounting screw rst in order

to secure proper alignment of frame to oven face.

TINS-B003MRR1

DIRECTIVES D’INSTALLATION DU FOUR À MICRO-ONDES

UN INSTALLATEUR QUALIFIÉ DOIT PROCÉDER À L’INSTALLATION ET AUX RÉPARATIONS.

IMPORTANT : CONSERVER À L’USAGE D’UN INSPECTEUR EN ÉLECTRICITÉ LOCAL.

LIRE ET CONSERVER CES DIRECTIVES POUR RÉFÉRENCE FUTURE.

AVERTISSEMENT

L’alimentation électrique pour ce four est de 115-120 volts CA, 15 ampères et plus.

IMPORTANT - PRIÈRE DE LIRE ET DE SUIVRE

 

 



 

blessures.

 

garantie.

 

  L’installateur devra laisser ces directives au client qui devra les conserver pour l’usage d’un inspecteur local et pour

référence ultérieure.

PIÈCES FOURNIES AVEC LES KITS

1 ENSEMBLE DU CHÂSSIS AVANT







3 VIS A LONGUEUR 1 ³₁₆ po



4 VIS B LONGUEUR 1 ³₄ po



DIRECTIVES D’INSTALLATION DU FOUR À MICRO-ONDES

BASIC SPECIFICATIONS



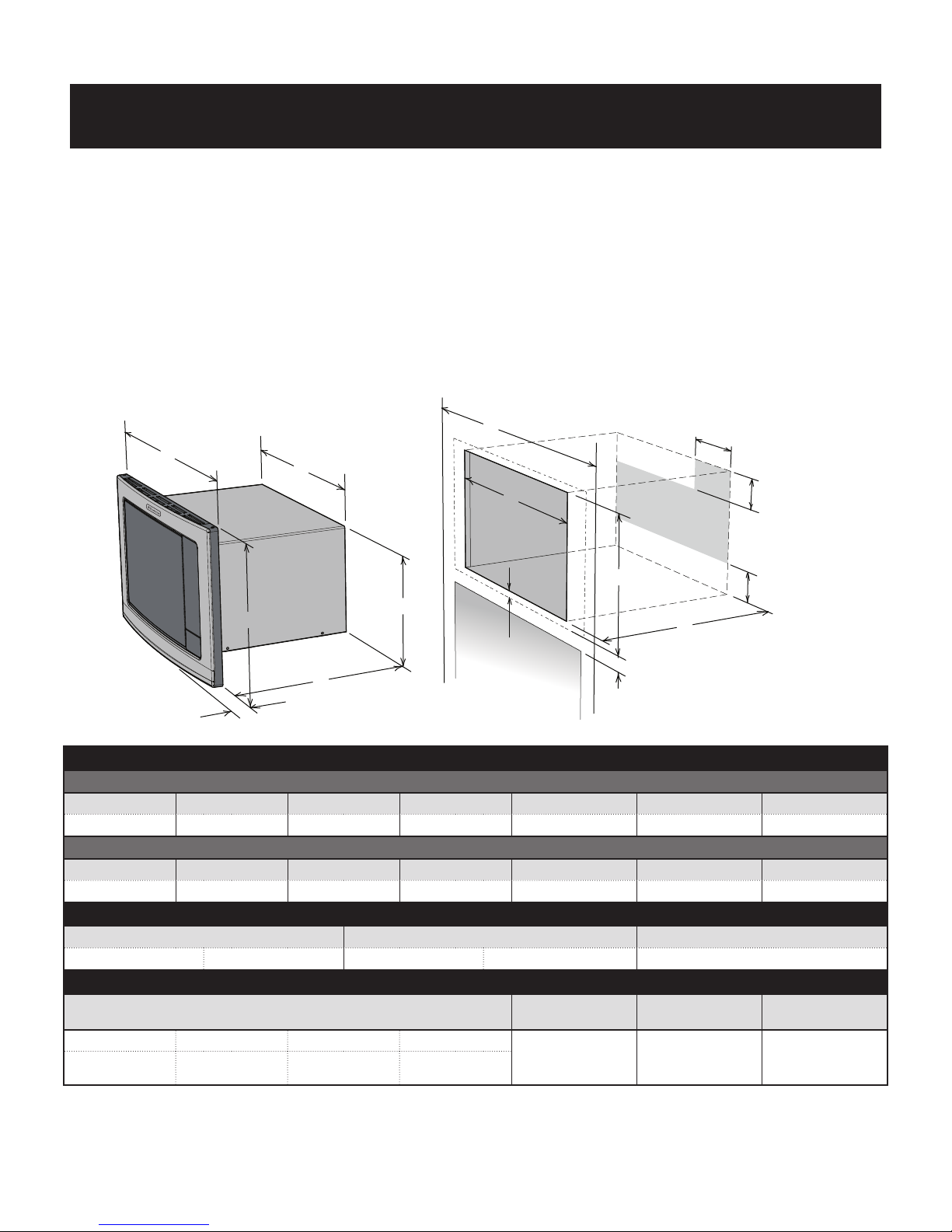

Illustration 1

 1.







poids du four et sa propre charge (environ 45,5 kg [100



du four.

REMARQUE: Bien que le bon fonctionnement du four ne







La prise NE2. DOIT 





broches, 115-120 volt CA, 15 A ou plus.

 3.





DIMENSIONS DU PRODUIT

KIT DE gARNITURE EI30M045T

A B C D E F G

76,2 cm (30 po) 45,9 cm (18 ¹₁₆ po) 5,9 cm (2 ⁵₁₆ po) 60,96 cm (24 po) 33,9 cm (13 ³₈ po) 45,1 cm (17 ¾ po) min. 76,2 cm (30 po)

KIT DE gARNITURE EI27M045T

A B C D E F G

68,6 cm (27 po) 45,9 cm (18 ¹₁₆ po) 5,9 cm (2 ⁵₁₆ po) 60,96 cm (24 po) 33,9 cm (13 ³₈ po) 45,1 cm (17 ¾ po) min. 68,6 cm (27 po)

DIMENSIONS DE LA DÉCOUPE

min. Hmax. min. Imax. J

64,14 cm (25 ¹₄ po) 64,5 cm (25 ³₈ po) 41,3 cm (16 ¹₄ po) 41,6 cm (16 ³₈ po) min. 50,8 cm (20 po)

SPÉCIFICATIONS DE BASE

 ALIMENTATION









USAGE

LARGEUR HAUTEUR PROFONDEUR HORS TOUT 120V CA/60 Hz (UL)

120V CA/60 Hz (CSA) 46 lb (20,9 kg) 1,5 KW 13,0 amps (UL)

1,50 KW 13 (CSA)

44,1 cm (17 ⁄ po) 26,6 cm (10 ½ po) 47,3 cm (18 ⁄ po) 0,04 m3(2 pi3)

15,2 cm (6 po)

10,2 cm (4 po)

Installation au dessus d'un four électrique,

espacement minimal 5,1 cm (2 po).

Chevauchement

du produit

2,2 cm (7/8 po)

Illustration 1

DIRECTIVES D’INSTALLATION DU FOUR À MICRO-ONDES







Illustration 2

Illustration 2 Illustration 3

Illustration 4 Illustration 5

VIS A

 

³₁₆ po). IMPORTANT:



INSTALLATION DE L’APPAREIL

 















 

face des fentes du panneau de commande. Enclencher le



pour le verrouiller en place. Voir Illustration 5.



BASE

ENSEMBLE DU CONDUIT INFÉRIEUR D’ÉVACUATION

DIRECTIVES D’INSTALLATION DU FOUR À MICRO-ONDES

 







Illustration 6

Illustration 7

VIS B

 



un foret de ¹⁄₈



Illustration 7.

IMPORTANT :





TINS-B003MRR1

INSTRUCCIONES DE INSTALACIÓN DEL HORNO MICROONDAS

LA INSTALACIÓN Y EL SERVICIO DEBEN SER REALIZADOS POR UN INSTALADOR CALIFICADO.

IMPORTANTE: GUARDE PARA USO DEL INSPECTOR ELÉCTRICO LOCAL.

LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA.

ADVERTENCIA

Los requisitos eléctricos de este horno son de 115-120 voltios de CA, 15 amperios o más.

IMPORTANTE - LEA Y SIGA LAS INSTRUCCIONES

Antes de comenzar, lea estas instrucciones completa y detalladamente.



empotrado. Retire el plato giratorio de la cavidad del horno.

El juego incluye partes de metal por lo que debe manipularlo e instalarlo con precaución para evitar el riesgo de lesiones.

No retire las etiquetas, advertencias o placas permanentes del producto. Esto puede anular la garantía.

Cumpla todos los códigos y normas locales y nacionales.

El instalador debe devolver estas instrucciones al cliente quien debe conservarlas para uso del inspector local y para•

referencias futuras.

PARTES INCLUÍDAS EN LOS JUEGOS

1 CONJUNTO DEL MARCO FRONTAL

CANT. 1

2 CONJUNTO DE DUCTO INFERIOR

CANT. 1

3 TORNILLO A 1 ³₁₆" DE LARGO

CANT. 2

4 TORNILLO B 1 ³₄ " LONGITUD

CANT. 4

INSTRUCCIONES DE INSTALACIÓN DEL HORNO MICROONDAS

BASIC SPECIFICATIONS

Consulte la ilustración 1. Todas las dimensiones están en pulgadas (cm).

Ilustración 1

Haga una abertura en la pared o en el gabinete como se1.

indica en la ilustración 1. La profundidad debe ser de un

mínimo de 20" (50.8 cm). La supercie de la abertura debe

ser construida de madera laminada lo sucientemente

resistente para soportar el peso del horno microondas

(aproximadamente 100 libras) y debe estar nivelada para

obtener un funcionamiento adecuado del horno.

NOTA: Aunque el correcto funcionamiento del horno



laterales, superiores y posteriores), el código local puede

exigirlo y se sugiere revisar en el código local alguna

indicación de ese tipo.

El tomacorriente NO debe estar en el área sombreada2.

como se indica en la ilustración 1. En la parte posterior



tres clavijas polarizado de 115-120 volt CA, 15 amperios o

mayor.

La distancia mínima necesaria entre el horno microondas3.

y el horno de pared debe ser de 2 pulgadas de gabinete



DIMENSIONES DEL PRODUCTO

JUEgO DE MOLDURAS EI30M045T

A B C D E F G

30" (76.2 cm) 18 ¹₁₆" (45.9 cm) 2 ⁵₁₆" (5.9 cm) 24" (60.96 cm) 13 ³₈" (33.9 cm) 17 ¾" (45.1 cm) min. 30" (76.2 cm)

JUEgO DE MOLDURAS EI27M045T

A B C D E F G

27" (68.6 cm) 18 ¹₁₆" (45.9 cm) 2 ⁵₁₆" (5.9 cm) 24" (60.96 cm) 13 ³₈" (33.9 cm) 17 ¾" (45.1 cm) min. 27" (68.6 cm)

DIMENSIONES DE RECORTE

min. Hmax. min. Imax. J

25 ¹₄" (64.14 cm) 25 ³₈" (64.5 cm) 16 ¹₄" (41.3 cm) 16 ³₈" (41.6 cm) min. 20" (50.8 cm)

ESPECIFICACIONES BÁSICAS

PARTE INTERNA DEL HORNO REQUISITOS



PESO APROXIMADO

DE EMBARQUE

CAP. MÁX. EN

AMPERIOS

ANCHO ALTURA PROFUNDIDAD TOTAL 120VAC/60 Hz (UL)

120VAC/60 Hz (CSA) 46 lbs. (20.9 kg) 1.5 KW 13.0 amps (UL)

1.50 KW 13 (CSA)

17 ³₈" (44.1 cm) 10 ¹⁄₂" (26.6 cm) 18 ⁵₈" (47.3 cm) 2.0 cu. ft.

6" (15.2 cm)

4" (10.2 cm)

Instalación sobre un horno eléctrico de

pared separación mínima de 2" (5.1 cm)

Colocación

del producto

7/8" (2.2 cm)

Altri manuali per EI24MO45IB-EI27MO45TS

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Electrolux Forno a microonde

Electrolux

Electrolux EMG25D89GGP Manuale di istruzioni

Electrolux

Electrolux EMS17175O Manuale utente

Electrolux

Electrolux EMS17256O Manuale utente

Electrolux

Electrolux TINSEB491MRR0 Manuale utente

Electrolux

Electrolux EI30SM55JWA Manuale utente

Electrolux

Electrolux EMM30D22BM Manuale di istruzioni

Electrolux

Electrolux GLMV169GSA Manuale utente

Electrolux

Electrolux EVM8E08V Manuale utente

Electrolux

Electrolux EW27MO55HS - 1.5 Cu Ft 900W Microwave Manuale utente

Electrolux

Electrolux EI30BM5CH Manuale utente

Electrolux

Electrolux MC2660E (EU) Manuale utente

Electrolux

Electrolux Modernist 4071 Manuale utente

Electrolux

Electrolux EMS 2485 Manuale utente

Electrolux

Electrolux FQM464CXE Manuale utente

Electrolux

Electrolux EMS2203MM Manuale utente

Electrolux

Electrolux KVLAE00WT Manuale utente

Electrolux

Electrolux GLMV169DQD Manuale utente

Electrolux

Electrolux FMV156DB Manuale utente

Electrolux

Electrolux EW27MO55HSA Manuale operativo

Electrolux

Electrolux KMFE172TE Manuale utente

Electrolux

Electrolux EMM21000W Manuale utente

Electrolux

Electrolux EMS20107 Manuale utente

Electrolux

Electrolux KVLAE00WT Manuale utente

Electrolux

Electrolux E30MO65GSSB Manuale operativo

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente

Impecca

Impecca CM07M2 Manuale utente
