Electrolux MC2660E (EU) Manuale utente

SOI 05.06 FV 599 36 78-44

SERVICE MANUAL

MICROWAVE OVENS

ELECTROLUX HOME PRODUCTS

Corso Lino Zanussi,30

Publication No.

I - 33080 PORCIA /PN (ITALY) 599 36 78-44

Tel +39 0434 394850

Fax +39 0434 394096

SOI

Edition: 05.2006

EN/SERVICE/FV

Microwave Oven

(Middle Solo)

MC2660E (EU)

MC2661E (EU)

MC2660E (CH)

MC2660E (UK)

ZM266ST (EU)

ZM266ST (UK)

QN4040

JMW2061 (A,D)

EM2612 (F)

SOI 05.06 FV 2/34 599 36 78-44

SOI 05.06 FV 3/34 599 36 78-44

TABLE OF CONTENTS

CAUTION, MICROWAVE RADIATION / GENERAL IMPORTANT INFORMATION .......................4

SERVICING / GENERAL INFORMATION .......................................................................................4

PRODUCT SPECIFICATIONS.........................................................................................................5

APPEARANCE VIEW.......................................................................................................................6

OPERATING SEQUENCE .............................................................................................................12

FUNCTION OF IMPORTANT COMPONENTS..............................................................................14

TROUBLESHOOTING CHART......................................................................................................15

TEST PROCEDURE ......................................................................................................................16

CONTROL PANEL ASSEMBLY.....................................................................................................23

SERVICING....................................................................................................................................24

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE..........................................25

MICROWAVE MEASUREMENT....................................................................................................31

TEST DATA A GLANCE / WIRING / RE-WIRING .........................................................................32

SCHEMATIC DIAGRAMS ..............................................................................................................33

PICTORIAL DIAGRAM...................................................................................................................34

SOI 05.06 FV 4/34 599 36 78-44

CAUTION

MICROWAVE RADIATION

Personnel should not be exposed to the microwave energy which may radiate from the

magnetron or other microwave generating devices if it is improperly used or connected. All input

and output microwave connections, waveguides, flanges and gaskets must be secured. Never

operate the device without a microwave energy absorbing load attached.

Never look into an open waveguide or antenna while the device is energized.

GENERAL IMPORTANT INFORMATIONS

This Manual has been prepared to provide Service Engineers with Operation and Service Information.

It is recommended that service engineers carefully study the entire text of this manual, so they will be

qualified to render satisfactory customer service.

WARNING

Note: The parts marked "*" are used at voltage

more than 250V. (Schematic Diagrams).

WARNING

Never operate the oven until the following points are ensured.

(A) The door is tightly closed.

(B) The door and oven hinges are not defective.

(D) The door is not deformed or warped.

(E) There is not any other visible damage with the oven.

Servicing and repair work must be carried out only by trained

Service Engineers.

All the parts marked ”*” on schematic diagrams are used at

voltages more than 250V.

Removal of the outer wrap gives access to potentials above

250V.

If the Magnetron are damaged may cause undue microwave

exposure.

SOI 05.06 FV 5/34 599 36 78-44

PRODUCT SPECIFICATIONS

SPECIFICATION

ITEM DESCRIPTION

Power Requirements 230 Volts(EU)/230-240 Volts(UK)

50 Hertz

Single phase, 3 wire earthed

Power Consumption 1.3 kW

Power Output

900W watts nominal of RF microwave energy

(measured by way of IEC 60705)

Operating frequency of 2450 MHz

Case Dimensions

Width 592 mm

Height 460 mm (including foot)

Depth 437 mm

Cooking Cavity

Dimensions

Width 342mm

Height 207mm

Depth 368mm

Turntable diameter 325 mm

Jog/Touch Control System

Clock (1.00-12.59 or 0.00-23.59) - 12HR or 24HR setting

Microwave Power for Variable Cooking

Repetition Rate;

HIGH ........................ Full power throughout the cooking time

MEDIUM HIGH ........ approx. 70% of Full Power

MEDIUM .................. approx. 50% of Full Power

MEDIUM LOW.......... approx. 30% of Full Power

LOW ......................... approx. 10% of Full Power

- Stir

- Turn over

- Weight

- Portion

- Microwave power level

- Cooking in progress

- Stir

- Turn over

- Portion

- Weight

- Microwave power

level

Control Complement

- Cooking in progress

TIME/WEIGHT/PORTION knob

AUTO COOK 1 button

AUTO COOK 2 button

COOK FROM FROZEN button

MICROWAVE POWER LEVEL button

START/QUICK button

STOP button

DOOR OPENING button

Net weight Approx, 20 Kg

SOI 05.06 FV 6/34 599 36 78-44

APPEARANCE VIEW

OVEN

1 Front trim

2 Oven lamp

3 Control panel

4 Door open button

5 Waveguide cover

6 Oven cavity

7 Seal packing

8 Door seals and sealing surfaces.

9 Fixing points (4 points)

10 Ventilation openings

11 Outer cover

12 Rear cabinet

13 Power supply cord support clip.

14 Power supply cord (EU)

15 Power supply cord (UK)

1. Place the turntable support in the centre of the

oven floor so that it can freely rotate around the

coupling.

2. Place the turntable onto the turntable support so

that it locates firmly into the coupling.

Turntable

Turntable support system

Turntable

support

Coupling

SOI 05.06 FV 7/34 599 36 78-44

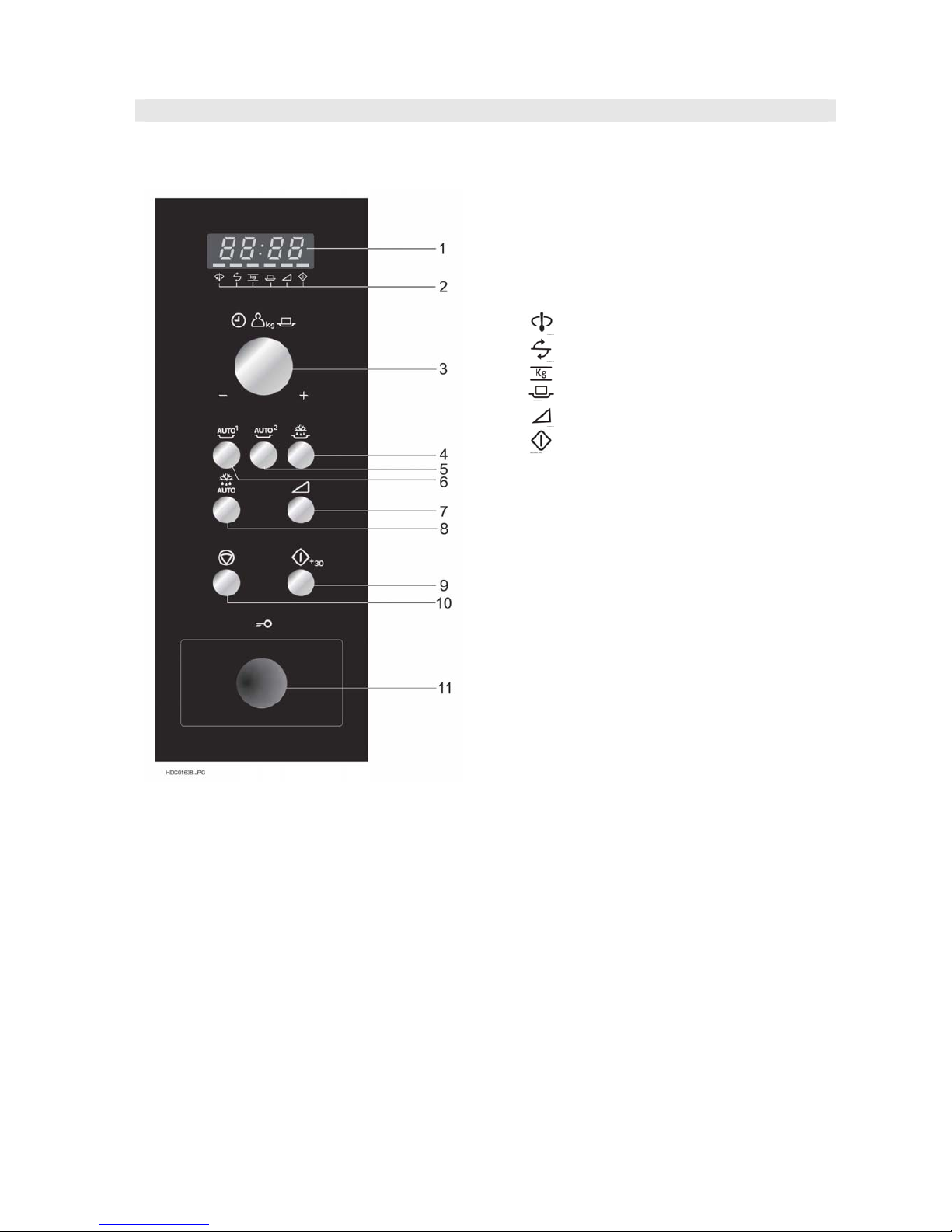

APPEARANCE VIEW

CONTROL PANEL

MC2660E / MC2661E

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just

above each symbol according to the instruction.

When an indicator is flashing, press the

appropriate button (having the same symbol)

or carry out the necessary operation.

Stir

Turn over

Weight

Portion

Microwave power level

Cooking in progress

3 TIMER/WEIGHT/POWER knob

4 COOK FROM FROZEN button

Press to select one of the 3 automatic programmes

5 AUTO COOK 2 button

Press to select one of the 2 automatic programmes

6 AUTO COOK 1 button

Press to select one of the 2 automatic programmes

7 MICROWAVE POWER LEVEL button

8 AUTO DEFROST button

Press to select one of the 5 automatic programmes

9 START/QUICK button

10 STOP button

11 DOOR OPENING button

SOI 05.06 FV 8/34 599 36 78-44

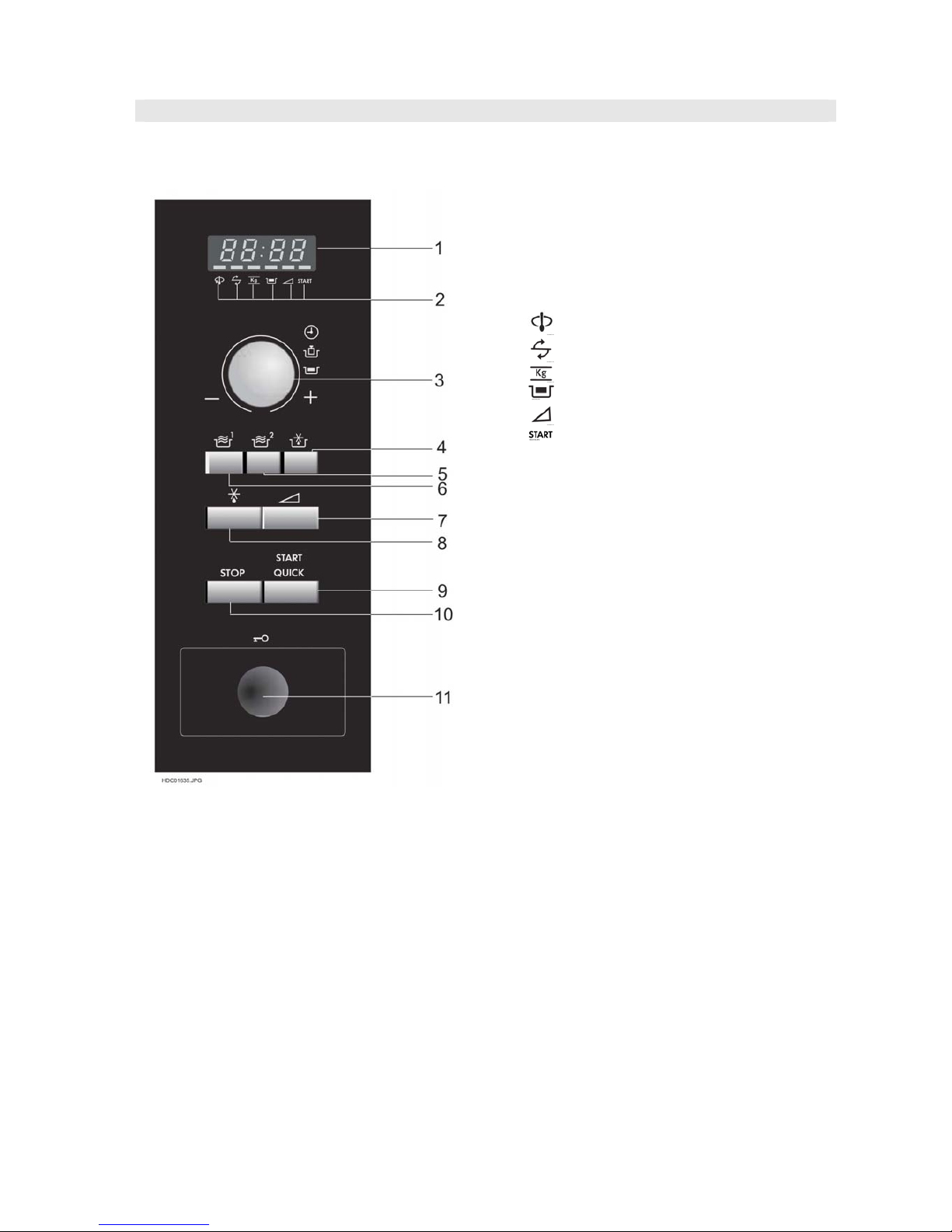

APPEARANCE VIEW

CONTROL PANEL

ZM266ST

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just

above each symbol according to the instruction.

When an indicator is flashing, press the

appropriate button (having the same symbol)

or carry out the necessary operation.

Stir

Turn over

Weight

Portion

Microwave power level

Cooking in progress

3 TIMER/WEIGHT/POWER knob

4 COOK FROM FROZEN button

Press to select one of the 3 automatic programmes

5 AUTO COOK 2 button

Press to select one of the 2 automatic programmes

6 AUTO COOK 1 button

Press to select one of the 2 automatic programmes

7 MICROWAVE POWER LEVEL button

8 AUTO DEFROST button

Press to select one of the 5 automatic programmes

9 START/QUICK button

10 STOP button

11 DOOR OPENING button

SOI 05.06 FV 9/34 599 36 78-44

APPEARANCE VIEW

CONTROL PANEL

QN4040

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just

above each symbol according to the instruction.

When an indicator is flashing, press the

appropriate button (having the same symbol)

or carry out the necessary operation.

Stir

Turn over

Weight

Portion

Microwave power level

Cooking in progress

3 TIMER/WEIGHT/POWER knob

4 COOK FROM FROZEN button

Press to select one of the 3 automatic programmes

5 AUTO COOK 2 button

Press to select one of the 2 automatic programmes

6 AUTO COOK 1 button

Press to select one of the 2 automatic programmes

7 MICROWAVE POWER LEVEL button

8 AUTO DEFROST button

Press to select one of the 5 automatic programmes

9 START/QUICK button

10 STOP button

11 DOOR OPENING button

SOI 05.06 FV 10/34 599 36 78-44

APPEARANCE VIEW

CONTROL PANEL

JMW2061

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just

above each symbol according to the instruction.

When an indicator is flashing, press the

appropriate button (having the same symbol)

or carry out the necessary operation.

Stir

Turn over

Weight

Portion

Microwave power level

Cooking in progress

3 TIMER/WEIGHT/POWER knob

4 COOK FROM FROZEN button

Press to select one of the 3 automatic programmes

5 AUTO COOK 2 button

Press to select one of the 2 automatic programmes

6 AUTO COOK 1 button

Press to select one of the 2 automatic programmes

7 MICROWAVE POWER LEVEL button

8 AUTO DEFROST button

Press to select one of the 5 automatic programmes

9 START/QUICK button

10 STOP button

11 DOOR OPENING button
