Electrolux E30GF74GPS - 30" Pro-Style Gas Range Manuale operativo

Publication #5995496584 August 2007 P/N 316439280

Technical Service Manual

30 And 36 Inch All Gas Range

Models

E30GF74GPS, E36GF75GPS, E36GF76GPS

ATTENTION!!!

This service manual is intended for use by persons having electrical and mechanical

trainingandalevelofknowledgeofthesesubjectsgenerallyconsideredacceptableinthe

appliance repair trade. Electrolux Major Appliances cannot be responsible, nor assume

any liability, for injury or damage of any kind arising from the use of this manual.

SAFE SERVICING PRACTICES - ALL APPLIANCES

To avoid personal injury and/or property damage, it is important that Safe Ser-

vicing Practices be observed. The following are some limited examples of safe

practices:

1. DO NOT attempt a product repair if you have any doubts as to your ability to

complete it in a safe and satisfactory manner.

2. Before servicing or moving an appliance:

 • Removethepowercordfromtheelectricaloutlet,tripthecircuitbreakerto

the OFF position, or remove the fuse.

 • Turnoffthegassupplyandallowanyresidualgastodissipatefor10to20

minutes.

3. Never interfere with the proper operation of any safety device.

4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE.

SUBSTITUTIONSMAYDEFEATCOMPLIANCEWITHSAFETYSTANDARDS

SET FOR HOME APPLIANCES.

5. GROUNDING: ThestandardcolorcodingforsafetygroundwiresisGREEN,or

GREEN with YELLOW STRIPES. Ground leads are not to be used as current

carrying conductors. It is EXTREMELY important that the service technician

reestablish all safety grounds prior to completion of service. Failure to do so

will create a hazard.

6. Prior to returning the product to service, ensure that:

 • Allelectricalconnectionsarecorrectandsecure

 • All electrical leads are properly dressed and secured away from sharp

edges, high-temperature components, and moving parts

 • All non-insulated electrical terminals, connectors, heaters, etc. are

adequately spaced away from all metal parts and panels

 • Allsafetygrounds(bothinternalandexternal)arecorrectlyandsecurely

connected

 • Allpanelsareproperlyandsecurelyreassembled

©2007ElectroluxMajorAppliances

SAFE SERVICING PRACTICES 2

QUICK REFERENCE SHEET 8

Serial nameplate location 8

Serial number breakdown 8

Gas electric requirement table 8

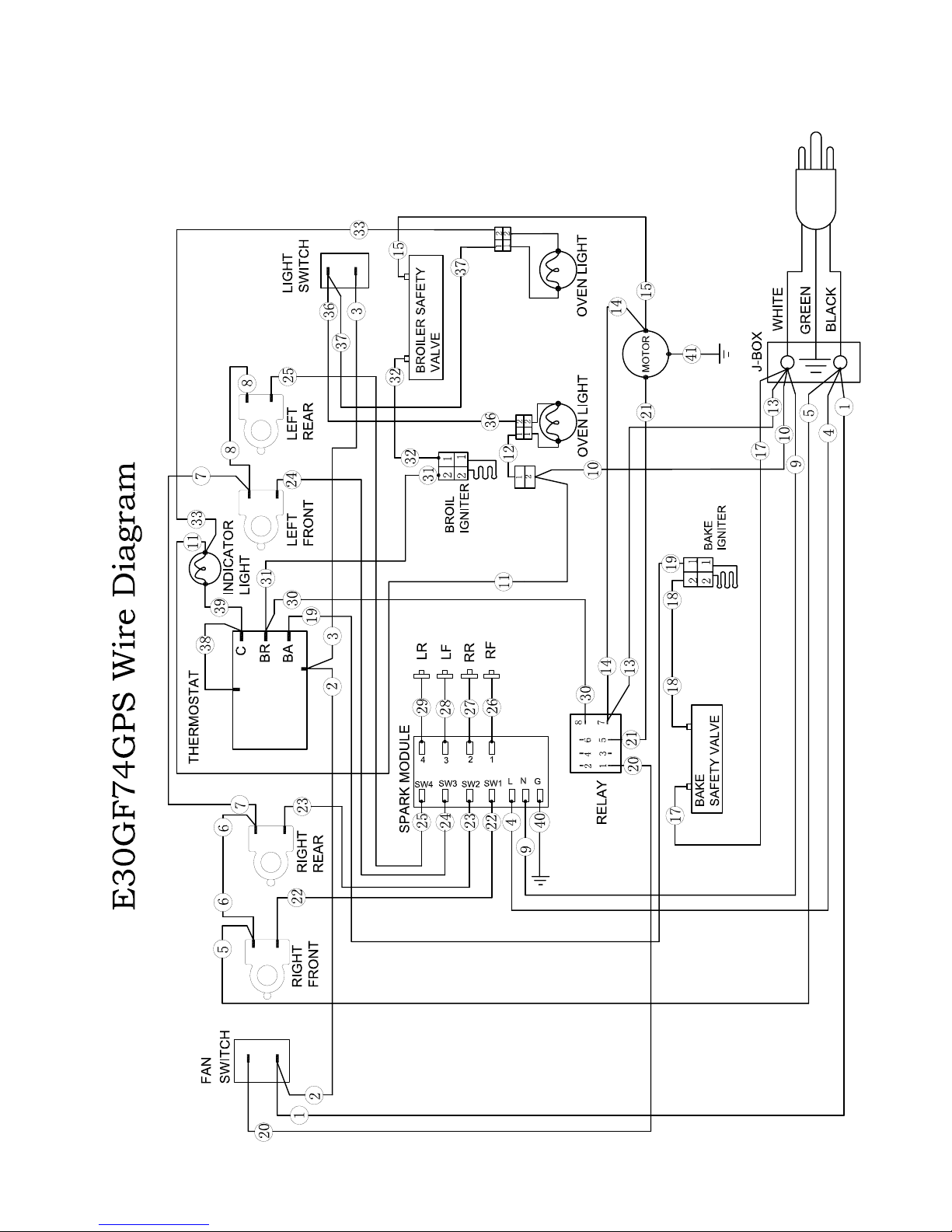

E30GF74GPS SAMPLE WIRING DIAGRAM 9

E36GF76GPS SAMPLE WIRING DIAGRAM 10

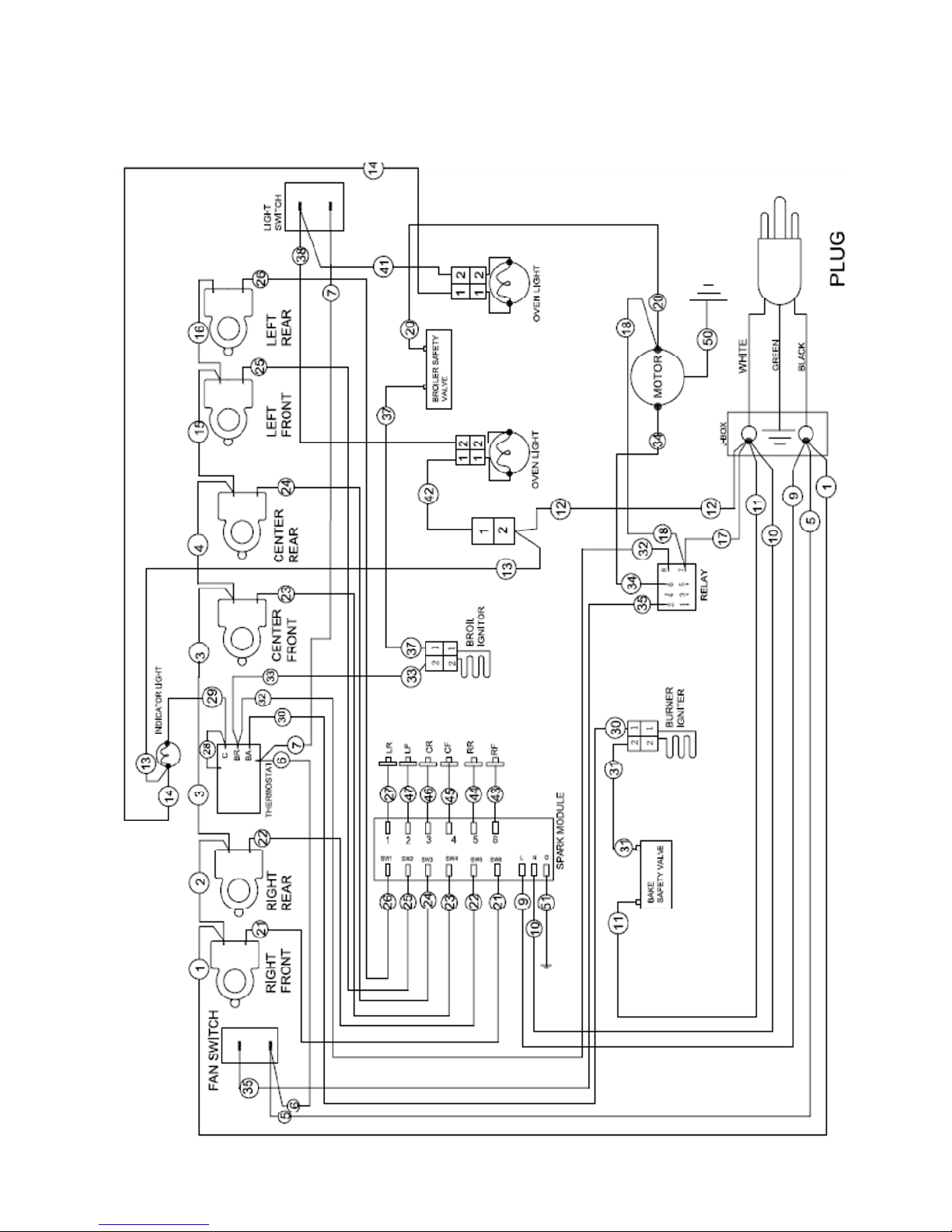

E36GF75GPS SAMPLE WIRING DIAGRAM 11

SECTION A - USE & CARE GUIDE 12

Finding information 12

Please read and save this guide 12

Important 12

Make a record for quick reference 12

Serial plate location 12

Product registration card 12

Questions 13

Important safety instructions 13

Safety precautions 13

  Denitions          13

General precautions 13

Feature overview 15

Proper burner adjustments 15

Burner locations 16

  Sealedburnerconguration        16

Burner base, head & cap 16

Burner igniters 16

Cooktop features/surface cooking 17

Control knobs 17

Placement of burner grates 17

Flame adjustment 17

For most cooking 17

For deep fat frying 17

Surface cooking utensils 18

Using the accessory griddle (some models) 18

Using the integrated griddle 19

To grill food 19

To clean 19

Using the wok stand 19

To properly position the wok stand 20

Flat-bottom woks 20

Round-bottom woks 20

Using the simmer plate 20

Operation 20

Before cooking 20

Setting surface controls 21

Operating the control valves 21

  Settingtheburnerameheight       22

Energy saving tips 22

Getting started 22

Before setting oven controls 22

Installing and removing oven rack supports 22

To remove the oven rack support 23

Removing and replacing oven racks 23

Arranging oven racks 23

To bake on a single rack 23

To bake on 2 racks 23

Baking layer cakes with 1 or 2 oven racks 24

Air circulation in the oven 24

Setting oven controls 24

Selector or knobs and functions 24

Ovan function 25

Standard bake 25

Convection cooking 25

Infrared broil 25

Baking 25

Oven vent 25

Baking problems 25

Baking problems, and solutions chart 26

Cooking instructions 27

Convection baking and roasting 27

General convection instructions for baking 27

To set oven for baking with the convection mode 27

To change the convection bake temperature 27

Baking problems 27

Convection baking and roasting 27

General convection instructions for roasting 27

To set oven for roasting with the convection mode 28

To change the convection mode temperature 28

Broiling 28

Preheating 28

To broil 28

Setting broil 29

To set the oven to broil 29

Broiling tips 29

Broiling times 29

Oven broiling recommendations 29

Broiling clean-up tips 30

Care and cleaning 30

Oven light 30

To replace the light bulb 30

Cleaning tips for range oven 30

Porcelain enamel oven 30

General cleaning 31

Cleaning the oven bottom 31

Cleaning tips for range cooktop 31

Cleaning stainless steel surfaces 32

Cleaning porcelain grates 32

Cleaning knobs and knob bezels 32

Cleaning burner bases 33

Cleaning burner heads or burner caps 33

Cleaning the burner igniters 33

General cleaning 33

Cleaning various parts of your appliance 33

Troubleshooting 35

Sample warranty 36

SECTION B - INSTALLATION INSTRUCTIONS 37

Read and save these instructions 37

Questions 37

Safety 37

Important safety instructions 37

Safety Precautions 37

For your safety 37

Preparing for installation 38

Verifying package contents 38

Gas and electric requirement table 38

Electrical power supply requirements 39

Gas and electrical rough-in 40

Locations 40

Cabinet and countertop preparation 41

General dimensions 42

Wood/composite overlay installation 44

Installing the anti-tip bracket 45

Installation steps 45

Installing the 36” range optional backguard 46

Installing the range optional backguard 46

Removing the oven door 46

Reinstalling the oven door 46

Grounding 47

Connecting range to gas supply 47

Installing the range 47

Make sure the anti-tip bracket is installed as directed 47

Installing the burner components 47

Operation 48

Verifying the operation 48

To ensure proper and safe operation 48

SECTION C - THEORY OF OPERATION 50

Gasow           50

Top burner ignition and reignition system 53

Gasowtotheovenandbroilburners       55

Gasow36”modelswithbuild-ingriddle       55

Electrical operation of the oven and griddle burner 55

Oven circuit 56

Griddle circuit 57

Electrical operation of the convection fan motor 58

SECTION D -TROUBLESHOOTING 59

Electrical components will not operate 60

 Burnerametoolargeandyellow        60

 Burnerametoosmall         60

Flame goes out when the valve is turned to the simmer position 60

Top burners, not burning properly 60

One top burner, not burning properly 61

 Topburnervalvedifculttoturn        61

Igniters do not spark when the burner knob is turned to the lite position 61

Igniters spark but burner does not ignite 61

Igniters continue to spark after burner is ignited 61

Oven does not operate in either bake or broil 62

The oven operates in broil, but not in bake 63

The oven operates in bake, but not in broil 63

Ovan calibration more than 20° off 63

One oven light does not work 63

Griddle is not operate (36 “model ranges) 64

Convection fan motor does not run when the switch is turned on 64

Ovan lights does not operate 64

SECTION E - TEARDOWN 65

Removing the top grates 65

Removing the simmer burner cap 65

Removing the simmer burner base 65

Removing the main burner head 65

Removing the main burner base 66

Removing the griddle cover (36” models with built-in griddle) 66

Removing the griddle grease tray 66

Removing the backguard 66

Removing the griddle (36 inch models with built-in griddle) 67

Removing the knob 67

Removing the knobs bezel 67

 Removingthetopburnerorice        68

 Removingthesimmerburnerorice        68

Releasing the control panel 68

Removing the control panel 68

Removing the oven light switch 69

Removing the convection fan switch 69

Removing the oven or griddle indicator lights 70

Removing the top burner valve switch 70

 Removingthetopbypassorice        70

 Removingthetopsimmerburnerorice       70

Removing the control panel trim 71

Removing the top burner valve 71

Removing the oven door 72

Removing the oven door seal 72

Removing oven door handle 73

Removing outer door panel assembly 73

Removing door handle studs 73

Removing the door hinges 74

Removing insulation cover plate 74

Removing door glass package 74

Removing door insulation 74

Removing oven rack glides 75

Removing oven bottom 75

Removing oven lights 75

 Removingbakeburnerbafe         75

Removing the convection fan cover 75

Removing the convection fan blade 76

Removing the convection fan insulation cover 76

Removing the convection fan motor and mounting bracket 76

Removing the convection fan motor from the mounting bracket 77

Removing the rear panel 77

Removing the pressure regulator 77

Removing the top burner igniter module 78

Removing the convection fan relay 78

Removing the convection fan relay mounting bracket 78

 Removingthebroileroriceshield        78

Removing the broiler burner seal 78

 Removingthebroileroriceassembly       79

Removing the oven vent 79

 Removingtheexibletubingbetweenthebroilervalveinthebroilerorice   79

Removing the broiler safety valve 79

Removing the broiler safety valve mounting bracket 80

Removing the broiler burner igniter 80

Removing the broiler igniter mounting bracket 81

Removing the broiler burner 81

Removing the oven vent covers 81

Removing the kick panel 82

Removing the bake burner safety valve 82

Removing the bake burner safety valve mounting bracket 83

 Removingthebakeburneroriceassemblyandmountingbracket    83

 Removingthebakeburnerorice        83

Removing the bake burner igniter 84

Removing the bake burner 84

Removing the bake burner igniter ceramic wire guide 84

Removing the bake burner mounting bracket 85

 Removingthebakeburnersidebafes       85

Removing the side panel front trims 85

Removing the body side front trim bottom bracket 86

Removing the body side 86

Removing the insulation side panels 86

Removing the door hinge guides 87

 Removingthegriddleoriceassembly(36inchmodelswithbuilt-ingriddle) 87

 Removingthegriddleorice(36inchmodelswithbuilt-ingriddle)   88

Removing the griddle igniter 88

Removing the griddle igniter bracket 89

Removing the griddle burner 89

Removing the center divider (30 inch models) 89

Removing the drip pans 90

Removing the oven thermostat 90

 Removingthesimmerburneroriceassembly      91

 Removingthetopburneroriceassembly       91

 Releasingthetopburneroricemountingplateassembly     92

Removing the top burner igniter 92

 Removingthetopburneroricemountingplateassembly     93

Removing the main base 93

Removing the main base insulation shield 94

Removing the leveling legs 94

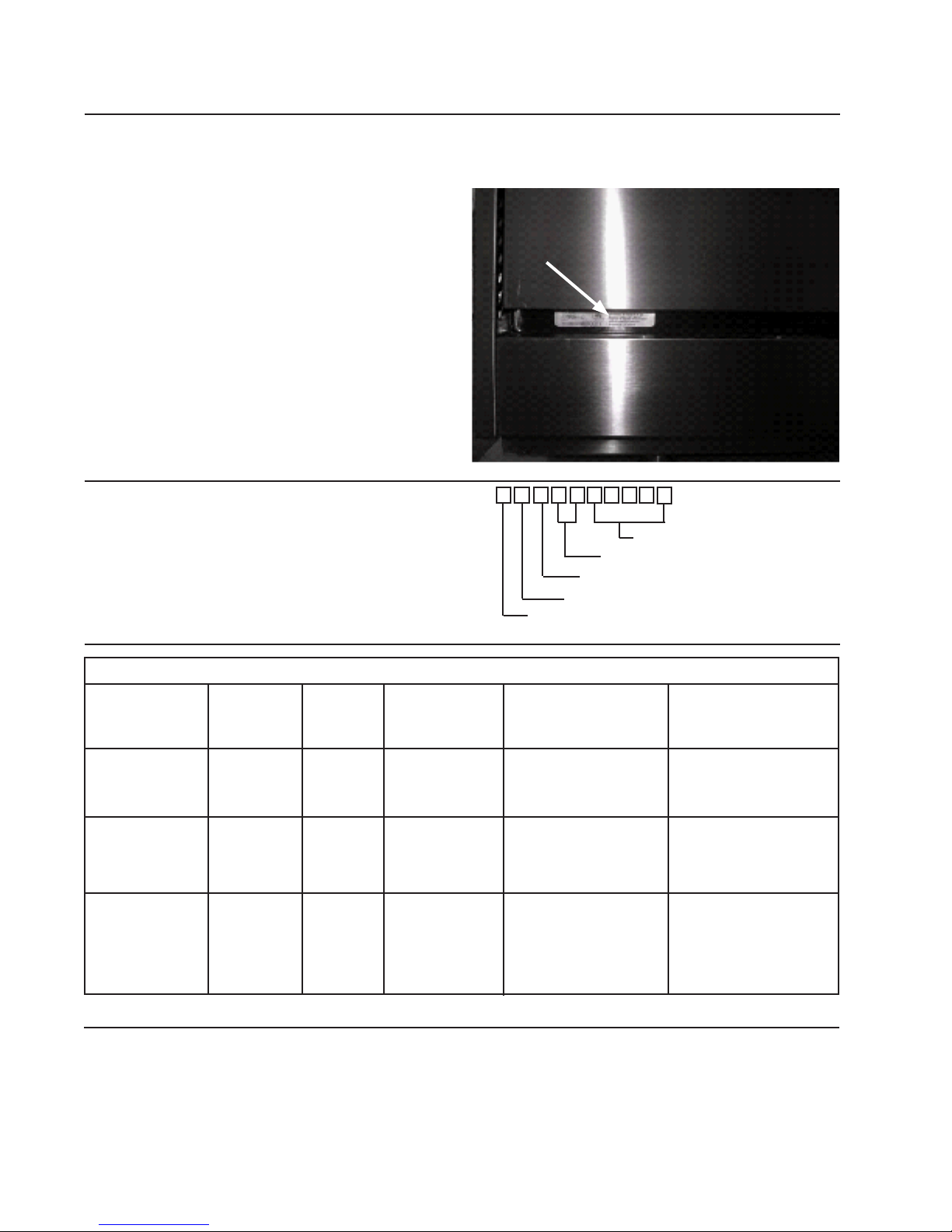

QUICK REFERENCE SHEET

1. Serial nameplate location:

2. Serialnumberbreakdown. XC70815693

Incremented unit number

Productionweek

Last digit of production year

Productidentication

Manufacturingfacility

On the frond framed between the oven door

andkickplate.

4. Burner btu rating refer to serial name plate

ModelNo.

E30GF74GPS

E36GF75GPS

E36GF76GPS

3. GAS AND ELECTRIC REQUIREMENT TABLE

Electrical

Circuit

120VAC

60Hz

120VAC

60Hz

120VAC

60Hz

Total

Connected

Gas Type

Natural

ManifoldPressure

Water Column Inches

5”

MinimunGas

Supply

Water Column Inches

6”

SAMPLE WIRING DIAGRAM ALWAYS REFER TO

THE WIRING DIAGRAM WITH THE PRODUCT

WIRING DIAGRAM MODEL E36GF76GPS

SAMPLE WIRING DIAGRAM ALWAYS REFER TO

THE WIRING DIAGRAM WITH THE PRODUCT

Altri manuali per E30GF74GPS - 30" Pro-Style Gas Range

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Allineare

Electrolux

Electrolux 30" Gas Range Manuale utente

Electrolux

Electrolux 7GRGDGC0P Manuale utente

Electrolux

Electrolux Wave-Touch EW3LGF65GBD Manuale utente

Electrolux

Electrolux 30" Gas Range Manuale utente

Electrolux

Electrolux Electric Slide-In Range Manuale utente

Electrolux

Electrolux EW30DS65G S Manuale utente

Electrolux

Electrolux FFEF3011LW Manuale utente

Electrolux

Electrolux E30GF74HPS - Icon - 30" Professional Series Gas... Guida rapida

Electrolux

Electrolux E48DF76EPS - 48" Pro-Style Dual-Fuel Range Manuale utente

Electrolux

Electrolux ICON Professional E36DF76GPS Manuale utente

Electrolux

Electrolux EI30GF45QS Manuale utente

Electrolux

Electrolux CEI30IF4LS Manuale utente

Electrolux

Electrolux Frigidaire Manuale utente

Electrolux

Electrolux EI30EF55GS - 30 Electric Range Manuale utente

Electrolux

Electrolux 316520001 Manuale utente

Electrolux

Electrolux EI30GF55GS - 30 Inch Gas Range Manuale di servizio

Electrolux

Electrolux 30166673P70S1 Manuale utente

Electrolux

Electrolux ECFD3668AS Manuale utente

Electrolux

Electrolux EW30ES65GS - 30" Slide-In Electric Range Manuale utente

Electrolux

Electrolux EW30GS65G S Manuale utente

Electrolux

Electrolux PLES389ECG Istruzioni per il montaggio

Electrolux

Electrolux E36EC75ESS Manuale utente

Electrolux

Electrolux EW30DS6CGS2 Manuale utente

Electrolux

Electrolux CEW30IF6ISB Guida rapida

Manuali Allineare popolari di altre marche

Samsung

Samsung FCQ321HTUW Manuale utente

Kenmore

Kenmore 790.45712 Manuale utente

Wolf

Wolf CHR CHSSR Manuale utente

Smeg

Smeg Built-in Microwave Oven Manuale di istruzioni

Zanussi

Zanussi ZCG054G Manuale utente

Whirlpool

Whirlpool 8575985-W Manuale elenco delle parti

Frigidaire

Frigidaire 316000635 Manuale utente

GE JCSS630 Manuale utente

Samsung

Samsung NX58M9960P series Manuale utente

Hotpoint

Hotpoint RB524R Guida all'installazione

Whirlpool

Whirlpool Roper FGP305KW3 Manuale utente

Amana

Amana ART6610 SERIES Manuale utente

Maytag

Maytag MERH770WB Manuale utente

Fulgor Milano

Fulgor Milano SOFIA Manuale utente

Premier

Premier EF-4358GH Manuale utente

Kenmore

Kenmore 790.9010 Series Manuale utente

KitchenAid

KitchenAid KESC300 Manuale utente

Frigidaire

Frigidaire FFEF3012LS Guida utente
