Electrolux Frigidaire FES355E Manuale di istruzioni

FES355E.eps CFED355ESD.eps BFES355ESD.eps LA20CT0045.eps D79046592501.eps

318271906.eps

Product No. FES355EBD FES355ESD

37954335E5064 37954335E5014

Series 30" slide-in 30" slide-in

Color black white

Market North America North America

Wiring Diagram 318271906 318271906

Owner's Guide 318203821 318203821

Installation Instructions 318201611 318201611

Timer Guide 318200184 318200184

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995534442

09/03/03

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES355E

Publication No: 5995534442 FES355E

03/09 2

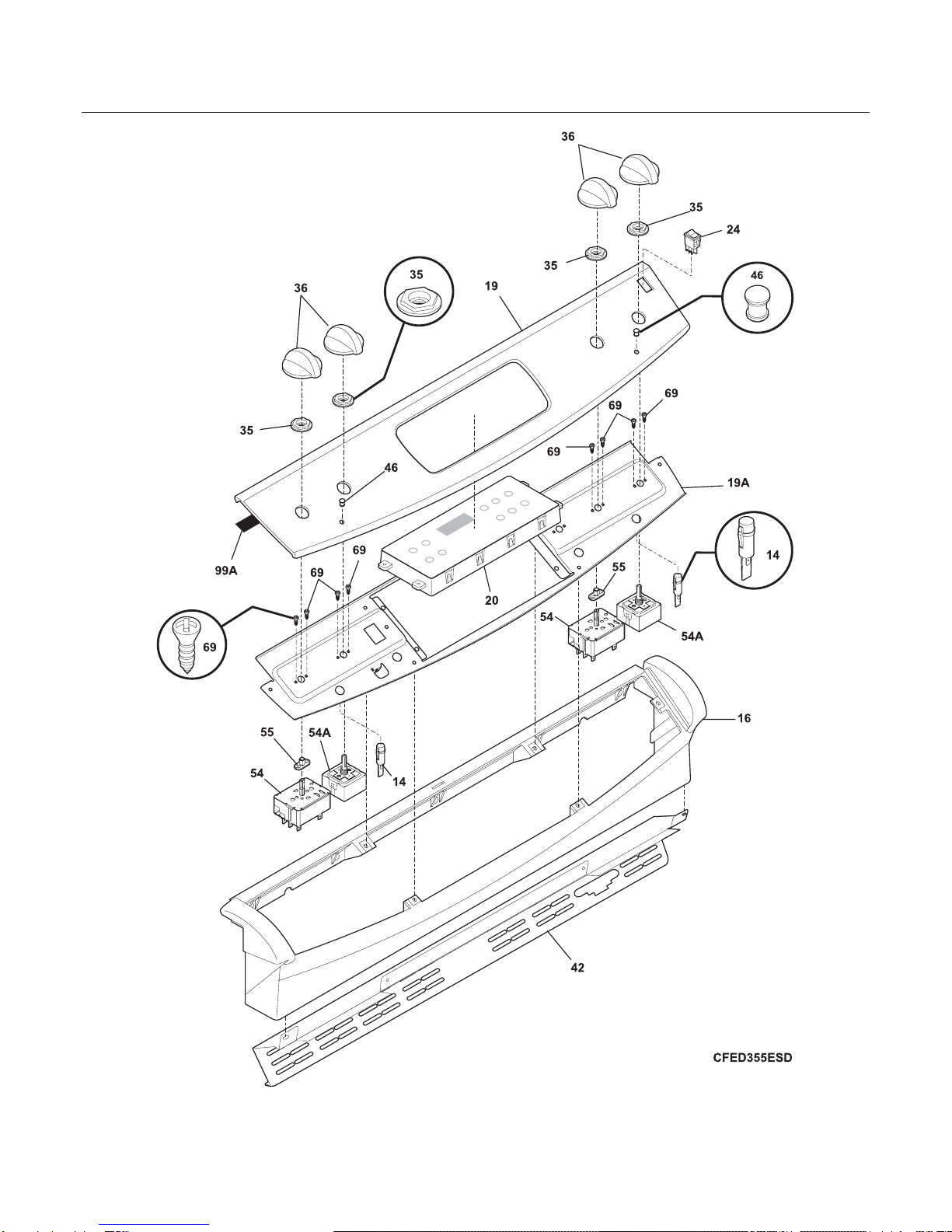

BACKGUARD

FES355E Publication No: 5995534442

# Functional Parts 3 03/09

* Non-Illustrated Parts

BACKGUARD

Model Index: AFES355E (FES355ESD)

BFES355E (FES355EBD)

POS. NO PART NO. DESCRIPTION

14 # 318293901 A B Light, indicator, 125v, (2)

16 318299100 A - Console, assy., white

16 318299102 - B Console, assy., black

16* 5304447071 A B Clip, console, (2)

19 318235187 A - Panel, control, white

19 318235188 - B Panel, control, black

19A 318224401 A B Panel, control mtg.

20 # 318185452 A - Clock/Timer, electronic, white, ES300

20 # 318185454 - B Clock/Timer, electronic, black, ES300

20* 316419104 A - Overlay, clock, white, ES300

20* 316419103 - B Overlay, clock, black, ES300

20* 5304453707 A B Screw, 8-18 X 1/2

24 # 316005607 A - Switch, rocker, white

24 # 316005602 - B Switch, rocker, black

35 318183100 A B Support, glass, black

36 316223028 A - Knob, control, white

36 316223027 - B Knob, control, black

42 318298011 A B Trim, vent, black, upper

46 318228301 A B Lens, indicator light

54 # 318293830 A B Switch, infinite, (2)

54A# 318120521 A B Switch, surface unit

55 318402901 A B Bushing, switch

69 5303323134 A B Screw, 8-32 x 3/16, (4)

99A 318223900 A B Gasket, dark grey

* # 318228866 A B Harness, wiring, main, backguard

* # 318224812 A B Harness, wiring, timer

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303300265 A B Screw, 8-18 X 1/2, (4)

Publication No: 5995534442 FES355E

03/09 4

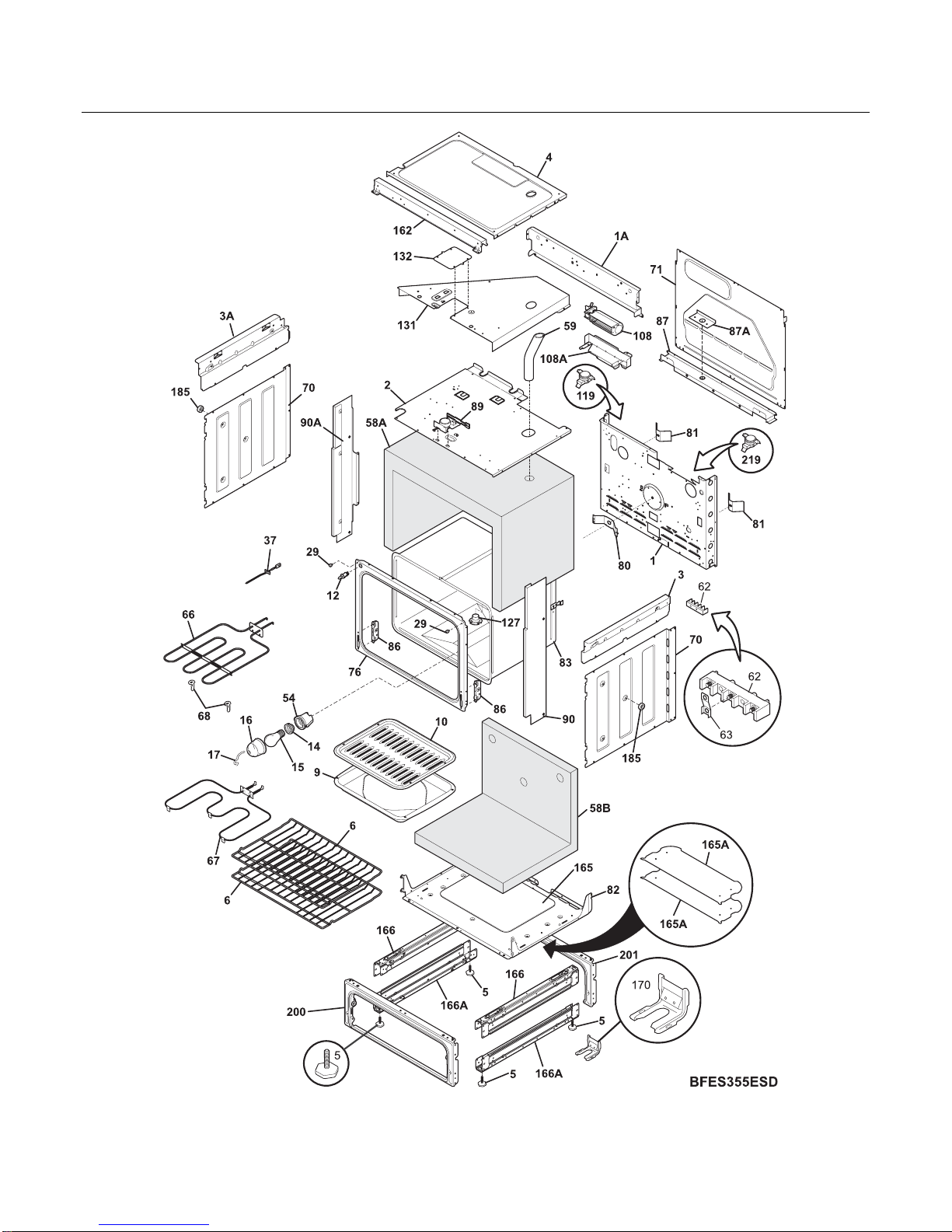

BODY

FES355E Publication No: 5995534442

# Functional Parts 5 03/09

* Non-Illustrated Parts

BODY

Model Index: AFES355E (FES355ESD)

BFES355E (FES355EBD)

POS. NO PART NO. DESCRIPTION

1 318259220 A B Back, main

1A 318225110 A B Panel, main back, upper

2 318258902 A B Shield, insulation, upper

3 318225210 A B Panel, bodyside, upper RH

3A 318225211 A B Panel, bodyside, upper LH

4 318073906 A B Panel, subtop

5 318175508 A B Screw, leveling

6 318345207 A B Rack, oven

9 316081900 A B Pan, broilerOPTIONAL ACCESS0RY

10 316082000 A B Insert, broiler panOPTIONAL ACCESS0RY

12 # 318394801 A B Switch, light, door

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 318406100 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 316517600 A B Spacer, oven door

37 # 316217002 A B Probe, oven temp

54 318222400 A B Housing, oven light

58A 318386100 A B Insulation, oven wrapper

58B 318133791 A B Insulation, oven back, back/bottom

59 318072572 A B Tube, vent, oven

62 5303935061 A B Terminal Block Kit

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

63 318264200 A B Plate, grounding strap

66 # 318255600 A B Element, broil, 2750W

67 # 318255401 A B Element, bake, 3400W

68 5304403015 A B Support, hanger, (4), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260007 A B Panel, rear box

76 318056292 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

* 5303323129 A B Screw, 8 X 0.750

82 318258707 A B Shield, insulation, lower

83 318261403 A B Liner, oven assy

86 318561100 A B Receptacle, hinge, (2)

86* 5304461333 A B Screw, 10-32 x 17/32

87 318260608 A B Bracket, cable mtg.

87A 318111806 A B Plate, cord set mtg

89 # 318261205 A B Motor, latch assy

90 318296902 A - Panel, filler, white, RH

90 318296904 - B Panel, filler, black, RH

90A 318296903 A - Panel, filler, white, LH

90A 318296905 - B Panel, filler, black, LH

108# 318073028 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318005202 A B Switch, thermal cutout

Publication No: 5995534442 FES355E

03/09 6

BODY

FES355E Publication No: 5995534442

# Functional Parts 7 03/09

* Non-Illustrated Parts

BODY

Model Index: AFES355E (FES355ESD)

BFES355E (FES355EBD)

POS. NO PART NO. DESCRIPTION

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272901 A B Box, vent

132 318003000 A B Plate, shield

162 318225810 A B Box, extension

165 318322600 A B Plate, shield

165A 318326501 A B Shield, heat

166 318298410 A B Bracket, base support, (2)

166A 318298403 A B Bracket, base support, lower, (2)

170 318335500 A B Anti-tip & accessories

185 318165800 A B Spacer

200 318335600 A B Frame & Wheel Assembly, black

201 318298210 A B Frame, drawer

219# 318003606 A B Thermostat, safety, .945" mtg., 140/170

* # 318224925 A B Harness, wiring, main

* 318235300 A B Connector assy., w/3 lugs, & instructions

* 3051050 A B Screw, shoulder

* 3201861 A B Screw, 6 x 0.375, (4)

* 5303211311 A B Screw, 8 x 0.500

* 5304415832 A B Screw, 8-18 x 0.406

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995534442 FES355E

03/09 8

TOP/DRAWER

FES355E Publication No: 5995534442

# Functional Parts 9 03/09

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFES355E (FES355ESD)

BFES355E (FES355EBD)

POS. NO PART NO. DESCRIPTION

1 318107105 A B Drawer

4 318298906 A - Panel, drawer, white, front

4 318298908 - B Panel, drawer, black, front

7 318332200 A B Roller, nylon

11 318298601 A B Bracket, drawer support, (2)

13 318018100 A B Channel, drawer, RH

13A 318018101 A B Channel, drawer, LH

15 # 316442301 A B Element, surface, 8"/large, 2100W

15A# 316439801 A B Element-surface, small/6 inch, 1500w

16 318225602 A - Main Top, white

16 318225601 - B Main Top, black

17 3051554 A B Rod, support, main top panel

18 318227710 A B Hinge, maintop, (2)

19 318067018 A B Pan, surface element, large, chrome

19A 318067017 A B Pan, surface element, small, chrome

27 # 5303912666 A B Terminal Block Kit, surface element

28 5303017715 A B Medallion, 1 1/2"dia, black, surface element

93 318366410 A B Support, terminal block, (4)

* # 318301001 A B Wiring Harness, surface units

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 X 1/2, (4)

* 5303311333 A B Screw, 8-32 x 3/8

Publication No: 5995534442 FES355E

03/09 10

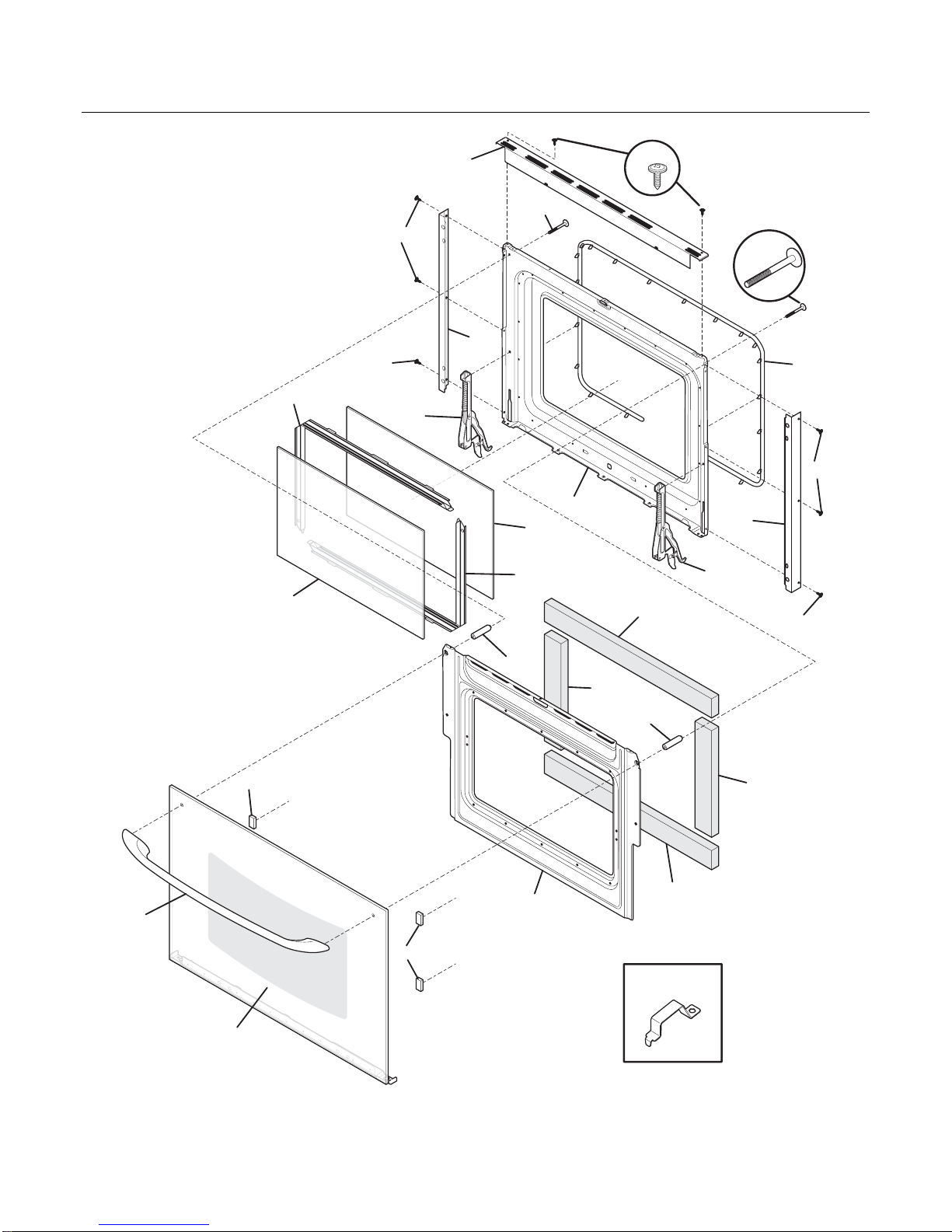

DOOR

D79046592501
