Electrolux ECF9214X Manuale utente

ECF9214X

ECF9214K

ECF6214X

ECF6214K

ECF9214B ECF6214B

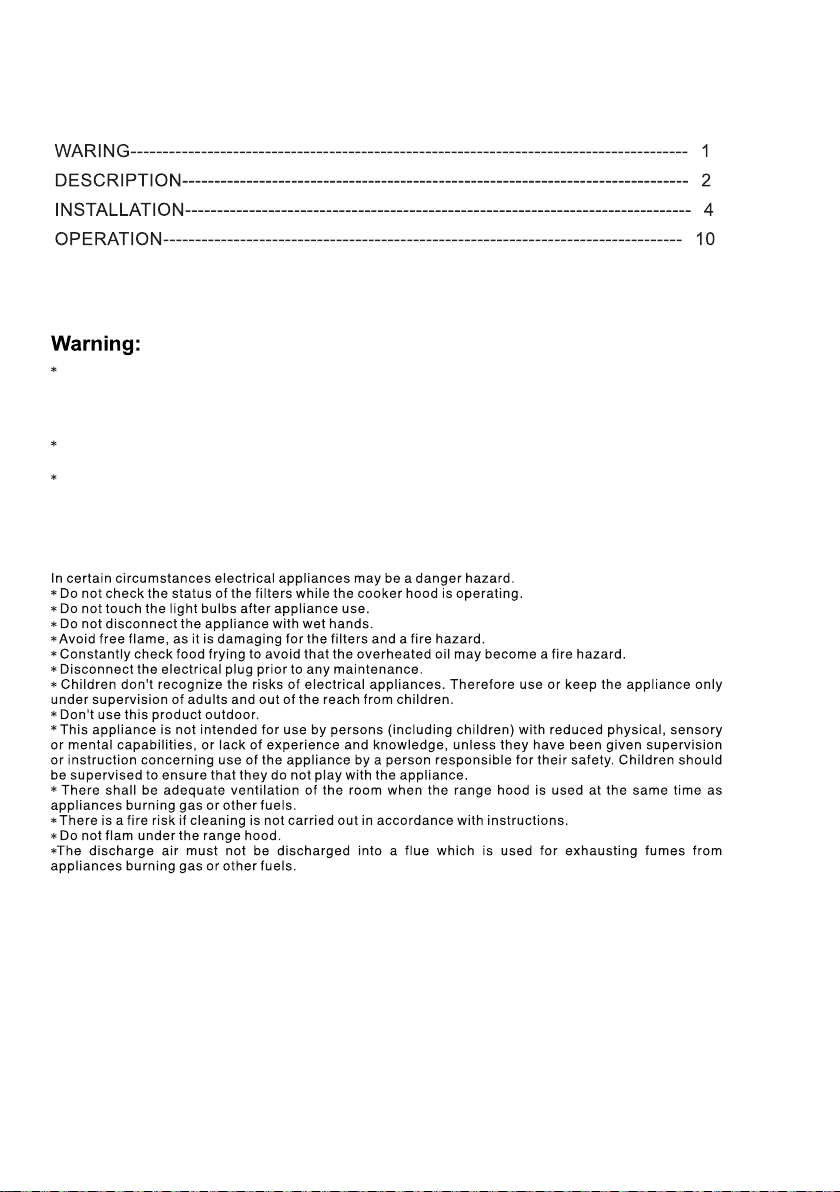

Table of Contents

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

There is a fire risk if cleaning is not carried out in accordance with the instructions;

CAUTION: Accessible parts may become hot when used with cooking appliances.

the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels

regulations concerning the discharge of air have to be fulfilled.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

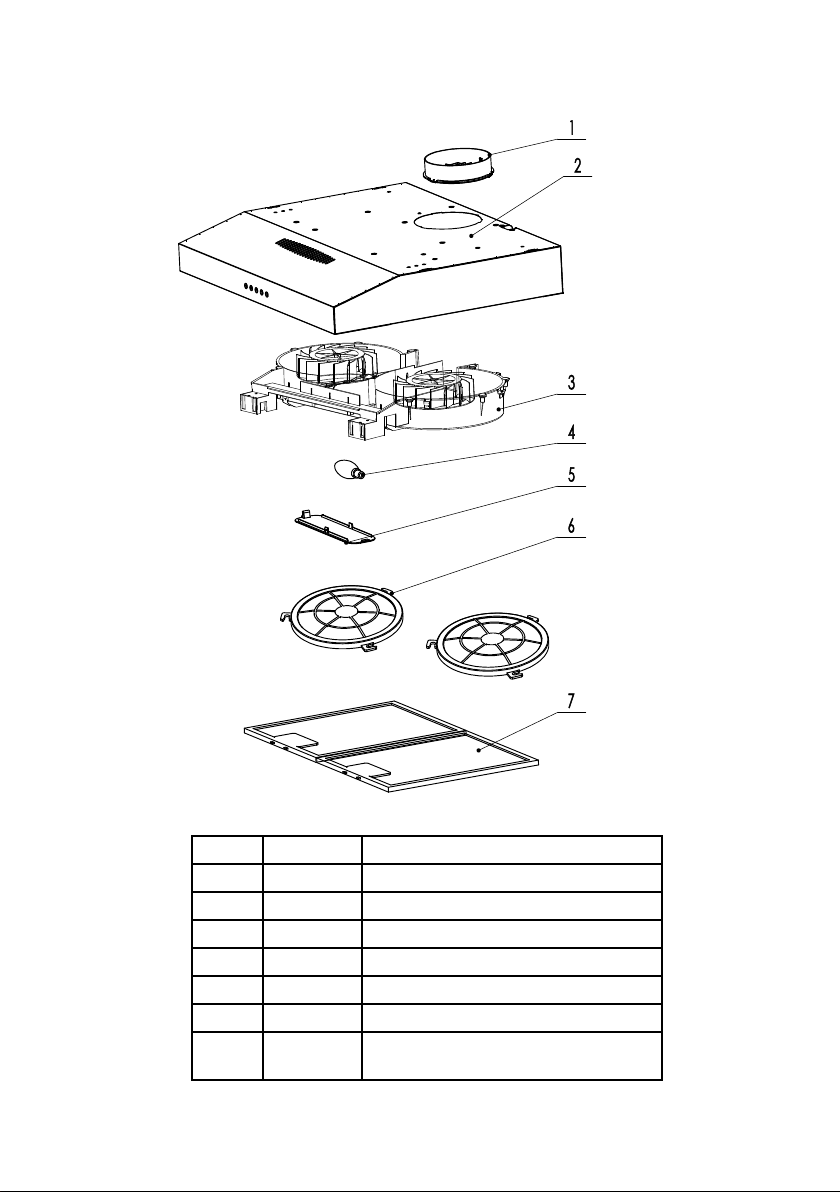

DESCRIPTION

Ref Q'ty Components

1 1 Air outlet base Ass

2 1 Hood body Ass

3 1 Wind housing Ass

4 1 LED lamp

5 1 Transparent lamp board

6 2 Charcoal filter

7 2 or 3 2 Alu filters for 60cm model

3 Alu filters for 90cm model

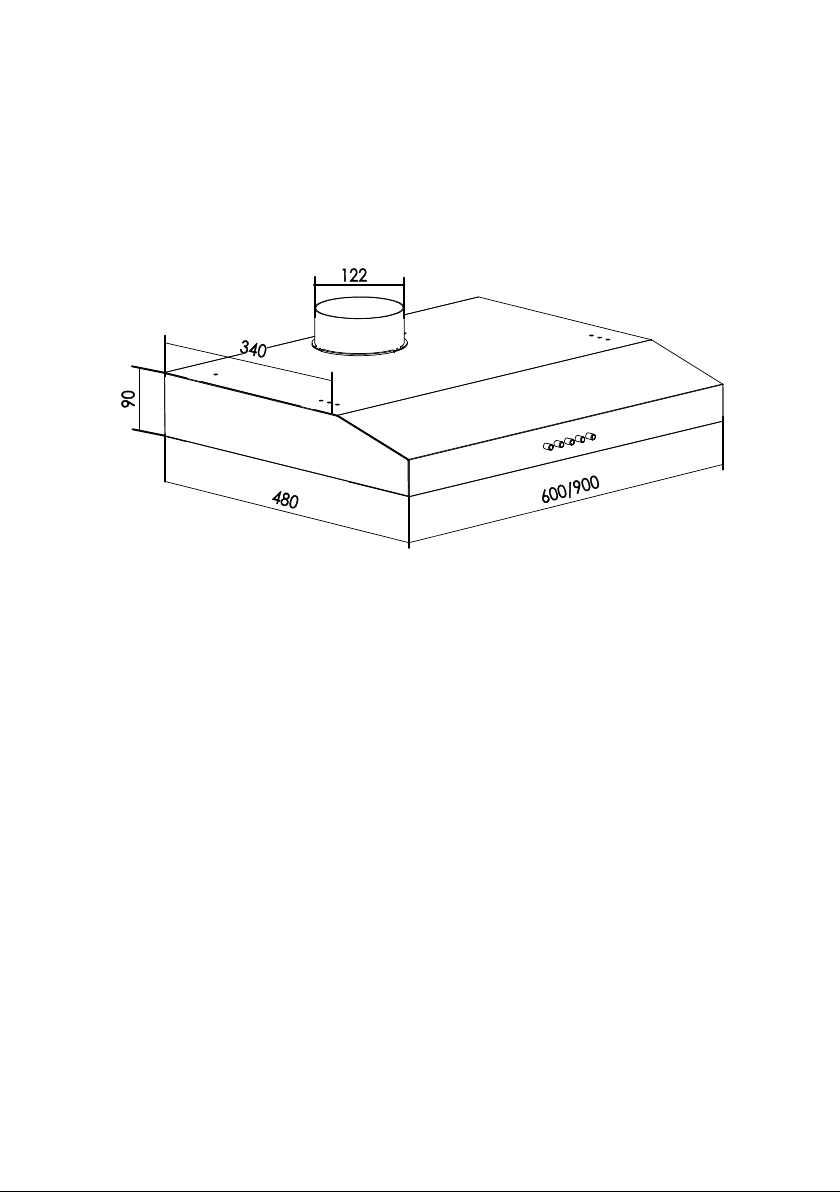

Dimension(mm)

DESCRIPTION

The hood may be installed in the filtering or the ducting version.

Filtering version (Fig.1): The hood aspirates the kitchen air saturated with fumes and

odour. Purifies it through the grease filters and charcoal filters and returns clean air into the

room. For constant efficiency, the carbon filters must be replaced periodically.

Ducting version (Fig.2): The hood aspirates the kitchen air saturated with fumes and

odour, passes it through the grease filters and expels it to the outside through an outlet

pipe. With this version the carbon filters are not required.

Decide from the outset on the type of installation (filtering or ducting). For greater

efficiency, we recommend you install the hood in the ducting version (if possible).

1 2

INSTALLATION

Before beginning installation, to remove the metal filter/s (Fig.3), in line with the handle,

push the stop inwards and pull the filter down.

Electrical wiring must be done by a qualified person(s) in accordance with all

applicable codes and standards. Turn off electrical power at service entrance

before wiring.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

Do not use the plug and an extension cord other than the ones initially supplied

with the hood.

The earthing of this hood is compulsory. Do not remove ground prong of the plug.

Make the electrical connection

512 for 60cm

812 for 90cm

136

125

207

920

133

512 for 60cm model

812 for 90cm model

12.5

52.5

LED LAMPS

This range hood require LED lamps

*Max wattage： 2W

Voltage range: 220-240V

Dimensions: diameter 98mm

This LED lamp should be replaced with qualified person.

Controls as

AA BCDE

LED lamp.

hands.

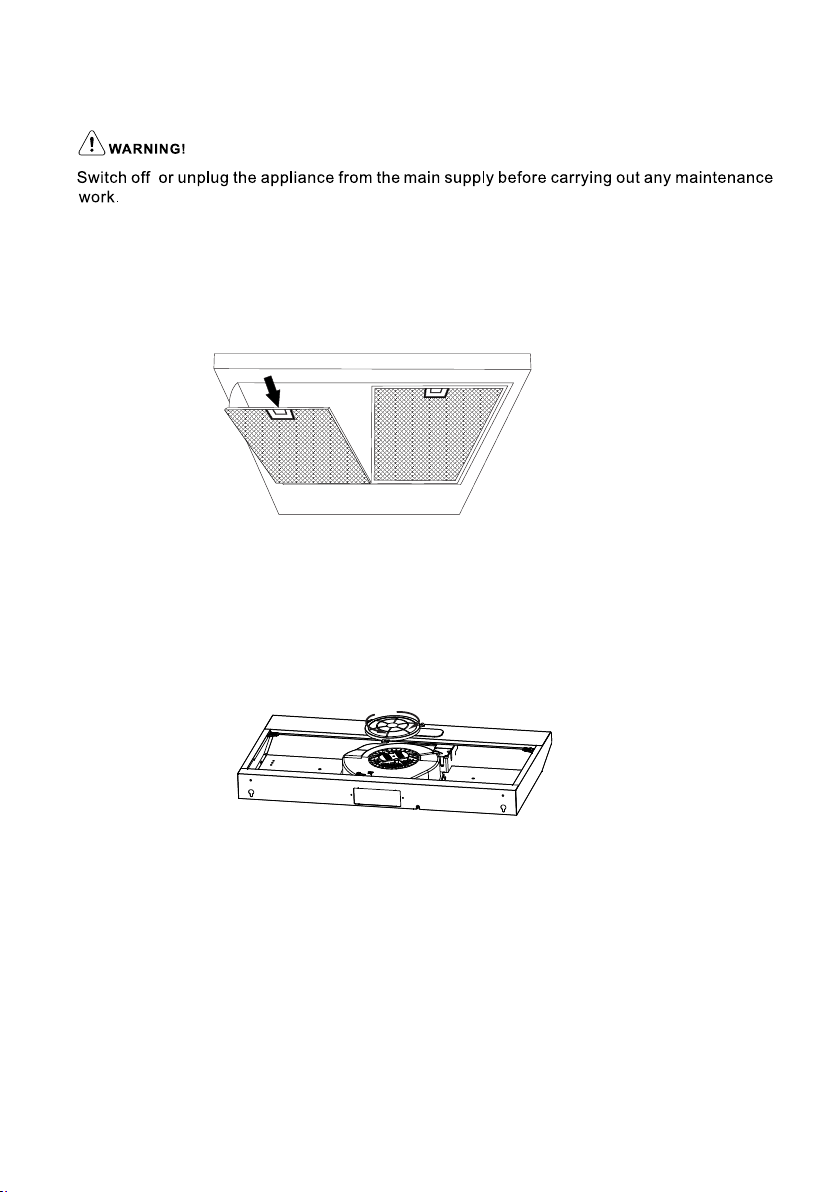

MAINTENANCE AND CLEANING

They are metal grid filters (as shown in Fig.3): the filters must be periodically cleaned,

depending on extent of operation ( at least every four weeks).

Wash the filter with neutral detergent.

To remove the filters, first of all push down the filters.

Aluminum type metal filter

The carbon filters must be periodically replaced depending on extent

of operation-on average every 6 months. To remove the carbon filters,

proceed as follows.

Charcoal filter

Close Loosen
