18" WALL-MOUNT CANOPY VENT HOOD

FEATURES

Nominal Width

Installation Type

Air Discharge

Air Delivery (CFM)

Blower Type

Controls

Infinite-Speed Blower

Dual Halogen Lights

Dishwasher Safe Stainless Steel Filters

Exhaust Duct

Duct Required

ACCESSORIES

18"-High Vent Duct Cover – PN# ACCVC18-36

12"-High Vent Duct Cover – PN# ACCVC12-36

6"-High Vent Duct Cover – PN# ACCVC06-36

SPECIFICATIONS

Overall Exterior Dimensions –

Height

Width

Depth

Power Supply Location

Voltage Rating

Connected Load (kW Rating) @120 Volts‡

Shipping Weight (Approx.)

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and/or national electric codes. Refer to Product Installation

Guide for detailed installation instructions on the web at electroluxicon.com.

Specifications subject to change.

36"

Wall Mount

Vertical or Horizontal

600

Centrifugal

Dial

Yes

External

8" Round

or 3-1/4" X 10"

Optional

18"

35-7/8"

26-7/8"

Right Rear Top

120V/60Hz/15 or 20A

1.4

67 Lbs.

electroluxicon.com

Infinite-Speed Blower Control

The ultraquiet blower allows you to dial in the

precise airflow needed.

Dual Halogen Lighting

with Dimmer Control

Two overhead halogen bulbs evenly illuminate

the cooking surface and provide abundant

light to enhance the cooking experience.

Dishwasher Safe Filters

Saturated filters can be rinsed and cycled

through the dishwasher. The stainless steel

filter provides strength and durability not

found in foam filters.

Wall-Mount Installation

This wall-mount hood provides power,

illumination and 18 inches of height. It also

offers the flexibility of both vertical and

horizontal ducting.

Designed for the well-lived home.

Wall-Mount Canopy Vent Hood

E368WV60ES

18" Wall-Mount 36" Canopy Vent Hood Specifications

•

Product Weight –64 Lbs.

•

Wall-Mount Installation – can be ducted vertically or horizontally.

•

Voltage Rating –120V/ 60Hz/15 or 20 Amps

•

Connected Load (kW Rating) @120 Volts =1.4kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•

Amps @120 Volts =12 Amps

•

Always consult local and/or national electric codes. Check local

building codes for installation requirements, as they may vary per locale.

•

Vent unit outside of building only.

•

Vertical Exhaust Duct Required – 8" round

•

Horizontal Exhaust Duct Required – 3-1/4"x10"

•

Thermal breaks such as short section of nonmetallic duct,

should be used in areas of extreme cold.

•

For most efficient airflow exhaust, use a straight run or as

few elbows as possible.

•

Use metallic flex ducting only to connect rigid duct directly to

transitions (if allowed by code).

•

Cold weather installations should have additional backdraft

damper installed.

•

For most efficient operation, position hood low to cooktop.

Recommended installation is 30"-36" above countertop.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxicon.com for detailed instructions.

Optional Accessories

•

18"-High Vent Duct Cover – (PN# ACCVC18-36).

•

12"-High Vent Duct Cover – (PN# ACCVC12-36).

•

6"-High Vent Duct Cover – (PN# ACCVC06-36).

Wall-Mount Canopy Vent Hood

E368WV60ES

High standards of quality at Electrolux Home Products, Inc. mean we are

constantly working to improve our products. We reserve the right to change

specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •

electroluxicon.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxicon.ca

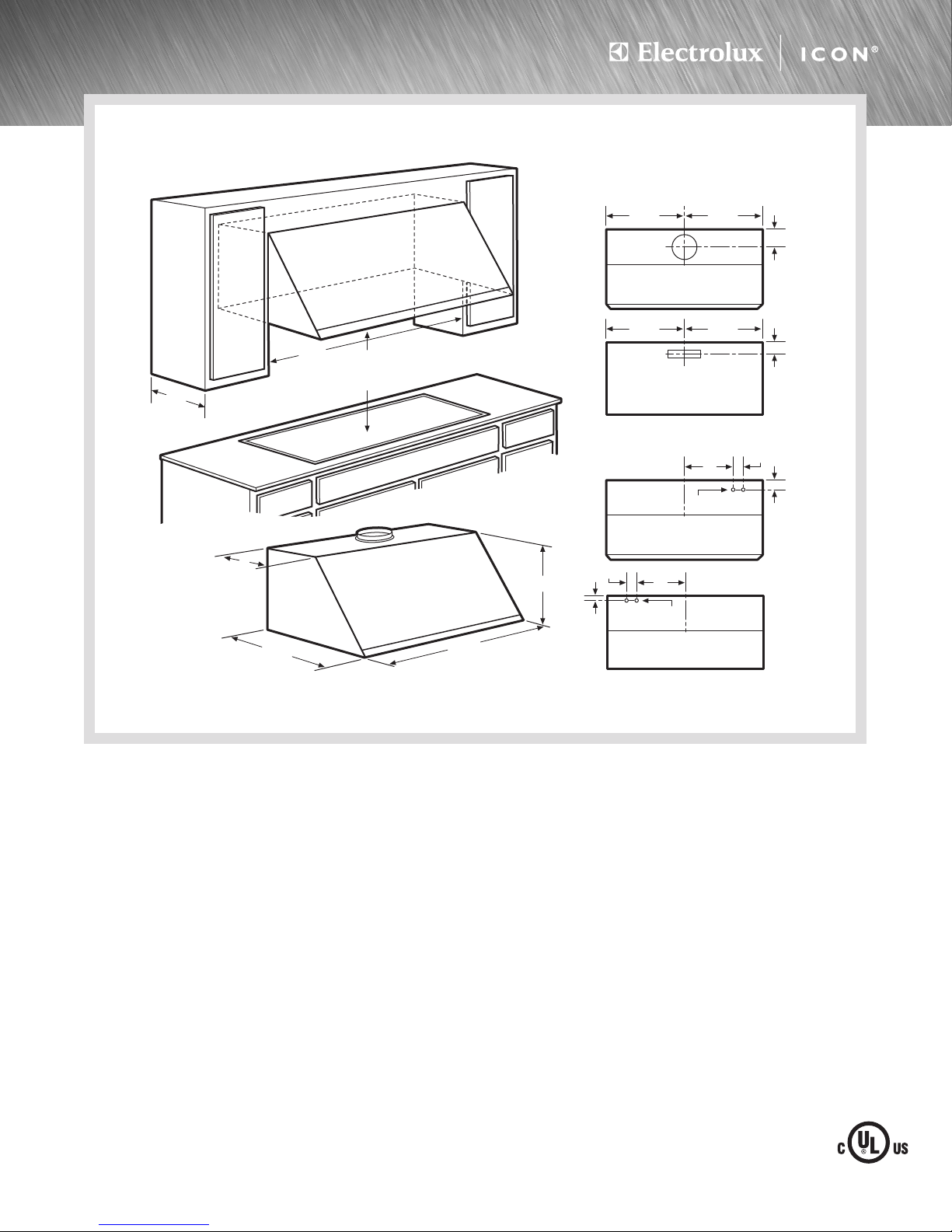

Rear

3/4"2 - 7/8" holes

11/2"

Top 61/8"

Equal Equal

1 - 8" Round Duct Collar

Electrical Locations

Top

11/2"

2 - 7/8" holes

11/2"

Vertical

1 - 31/4"x 10" Duct 4"

Rear

Equal Equal

Horizontal

Optional

Vertical & Horizontal

Exhaust Duct Location

18"

117/8"

26 7/8"35 7/8"

36" 30"min. from

cooktop surface to

bottom of hood

13"

max.

cabinet

depth

Vertical & Horizontal

Exhaust Duct Location
