EN WASHING MACHINE INSTRUCTION MANUAL

2 www.electrolux.com

CONTENTS

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great

results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning/Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION ............................................................................................... 3

2. PRODUCT DESCRIPTION ............................................................................................ 4

3. CONTROL PANEL ........................................................................................................ 6

4. INSTALLATION ............................................................................................................. 8

5. TROUBLESHOOTING................................................................................................. 23

6. TECHNICAL INFORMATION ....................................................................................... 26

7. ENVIRONMENT CONCERNS ..................................................................................... 27

ENGLISH 3

1. SAFETY INFORMATION

Warning!

The installation, repair, maintenance

or improper use of this item may

cause serious damage to people

and/or property. This item must

be installed and serviced by an

Service Agent Authorized by the

manufacturer or by a qualiﬁed ﬁtter.

Read the entire instruction manual

supplied with this product to ensure it

is used properly.

Prior check

1. Packaging

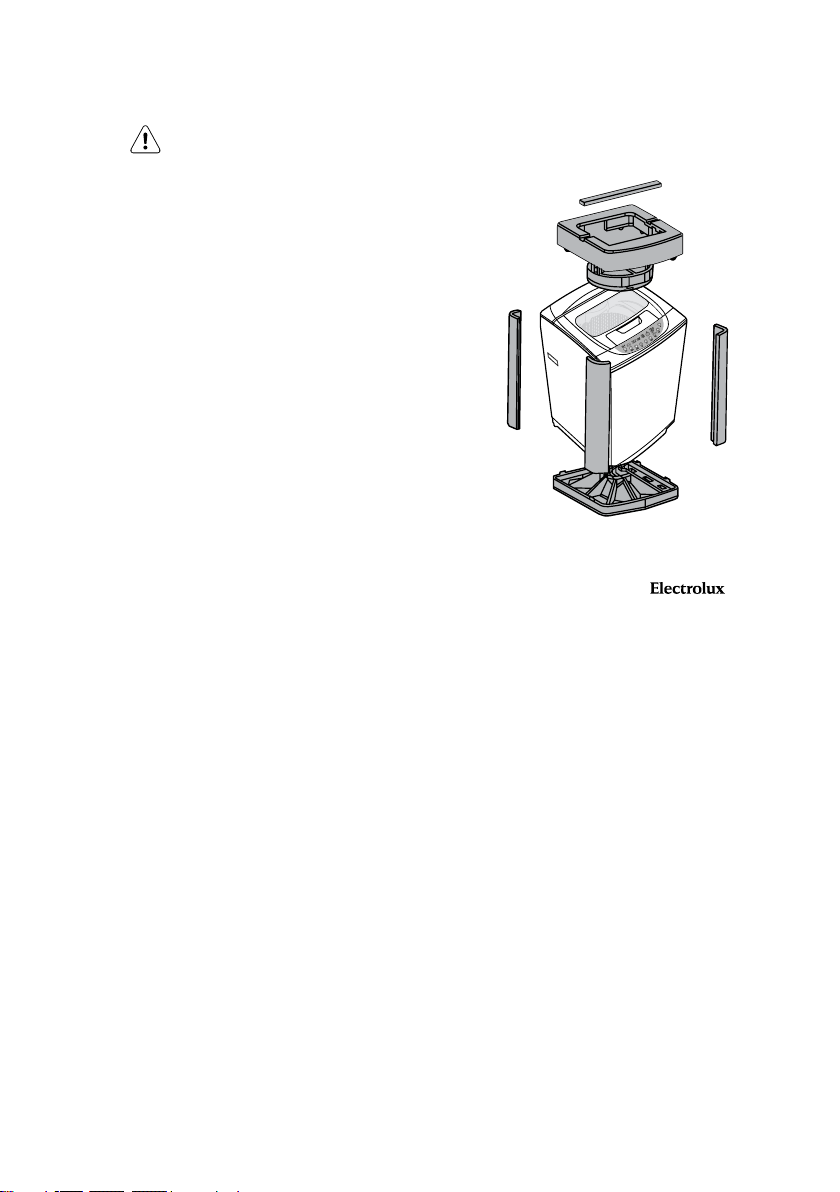

Before using your washing machine remove

all the packaging: plastic bag, expanded

polystyrene keeping the drum steady and

especially the expanded polystyrene “Base”

under your washing machine, shown in grey

on the diagram. If you do not remove these

items then the washing machine will not

work properly. Thank you for buying an product.

You are the owner of a WASHING

MACHINE that will give you guaranteed

safety and quality, as well as a long life. By

choosing this product you will be bringing

into your home an item whose design is

modern, offers state-of-the-art technology

and the backing of the best AUTHORIZED

SERVICE AGENT.

4 www.electrolux.com

Important note:

Make sure that the end of the

drainage hose coincides with the

end of the hose support. We advise

you to turn off the hot and cold

water taps after using your washing

machine and disconnect the

electricity mains or plug.

2. PRODUCT DESCRIPTION

HOT

COLD 20

ENGLISH 5

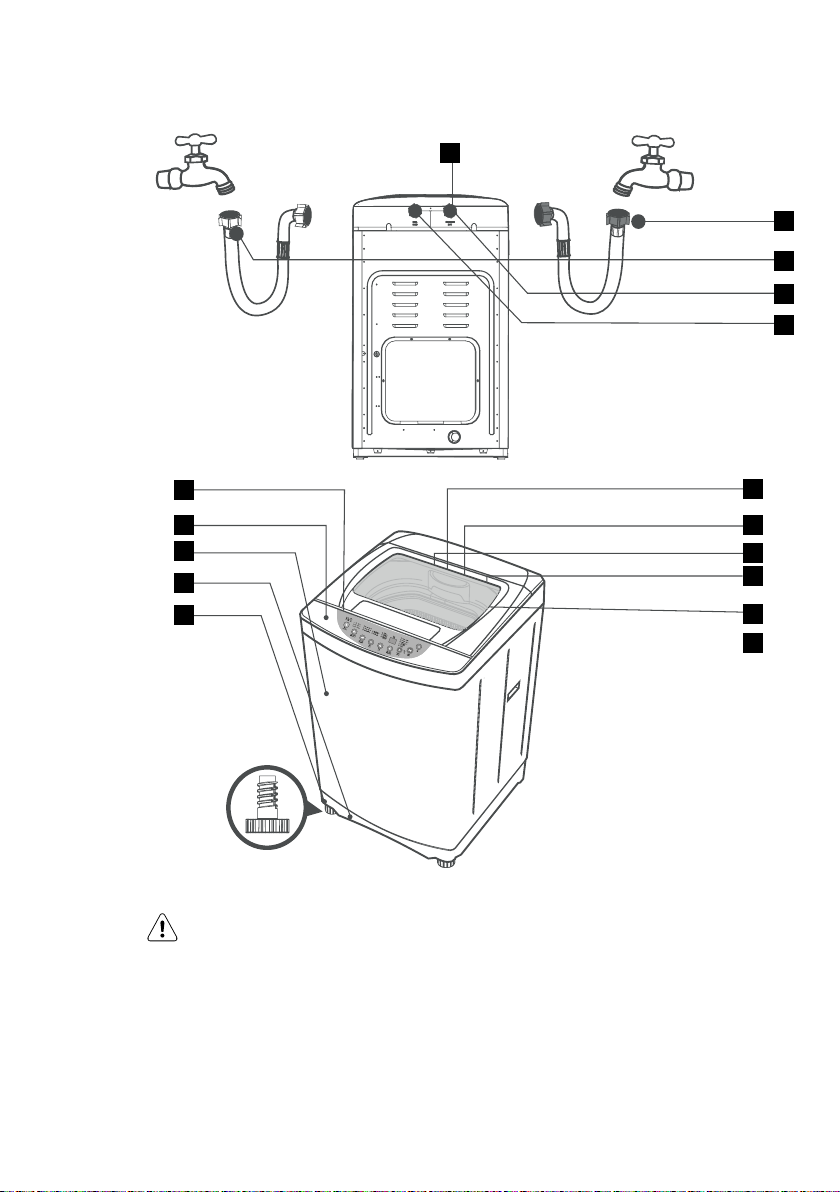

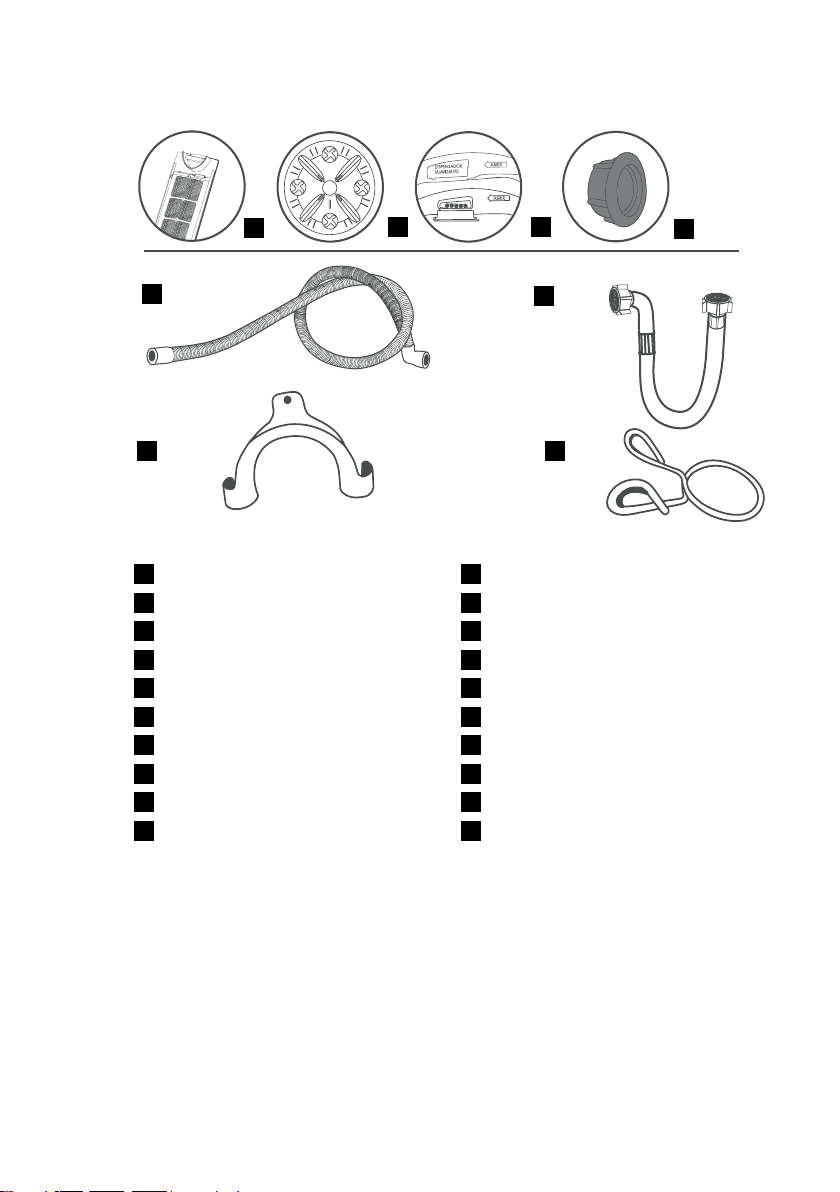

1Hot water inlet 11 Bleach dispenser

2Cold water inlet 12 Control panel

3Hot water intake 13 Cabinet

4Cold water intake 14 Base

5Spinning drum 15 Height-adjustable feet

6Fluff ﬁlter 16 Drainage hose

7Impellar 17 Supply hose

8Washing machine lid 18 Hose support

9Detergent dispenser 19 Drainage hose clip

10 Softener dispenser 20 Hot water stopper

16 17

1918

6 www.electrolux.com

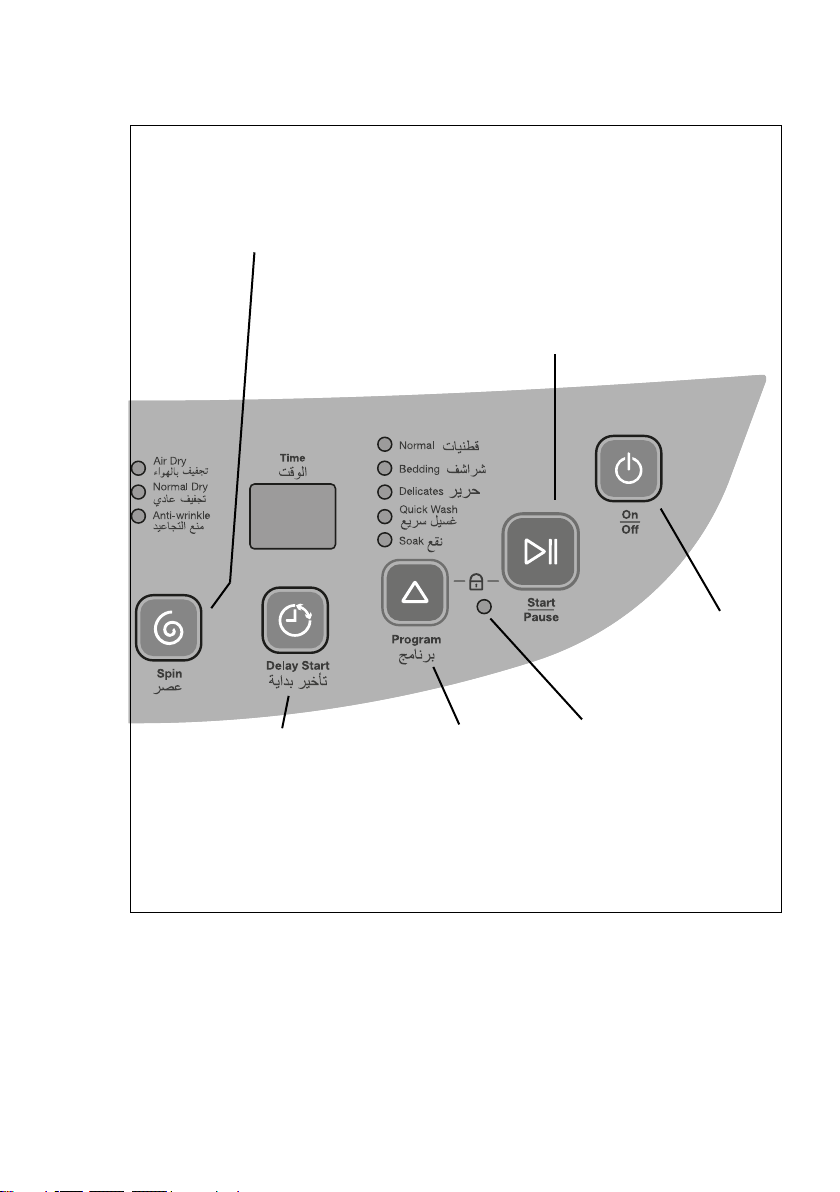

TEMPERATURE

You can select 3 different types

of wash temperature: Hot,

Warm and Cold.

RINSING LEVEL

Select the type of rinse you want

for your clothes: Normal and

hypoallergenic rinsing to remove any

traces of detergent from your clothes.

WATER LEVEL

Select the appropriate water

level according to the weight

of the load and the type of

fabric to be washed. There

are 6 levels (the fuzzy system

automatically selects the water

level according to the quantity

of clothes detected in your

washing machine).

WASH LEVEL

Select the wash type:

15 min for average dirt, 25 min

ideal for more concentrated dirt

and 10 min for low level dirt.

3. CONTROL PANEL

ENGLISH 7

SPIN

Select the spin type your clothes

need: 7 min. Anti-wrinkle, 14 min

Normal Dry an Air Dry cycle for

a max. of 60 min.

DELAYED START

You can

programme the

time you want

your wash to

ﬁnish.

Min. time 2 h

Max. time 24 h

FUZZY PROGRAMME

Select your wash cycle,

choosing between Normal,

Bedding, Delicate, Quick

Wash and Soak which differ

according to the type of

wash your clothes require,

the type of fabric and the

degree of dirtiness.

CHILD LOCK

You can lock your washing

machine to ensure that no

one changes your wash cycle.

To do thtis you must press

PROGRAMME + START/PAUSE

simultaneously for 5 sec. Use

the same procedure to unlock

the washing machine.

ON AND OFF

to turn on your

washing machine.

ess this button

START/PAUSE

Select START/PAUSE to start the

wash function, if you want to use

the Normal programme press this

button and the washing machine will

automatically start the programme

using the FUZZY System. This button

can also stop your washing machine.

If you want to change anything do

this before pressing the START/

PAUSE button.

8 www.electrolux.com

Washing machine location

Check the place where the washing

machine is to be installed. Make sure that

you have everything you need to install

the washing machine correctly. Choose a

dry place to install your washing machine,

preventing plastic parts from direct

exposure to sunlight.

Position

For your washing machine to function

correctly, your appliance must be level:

the ﬂoor must be ﬁrm and even, free from

depressions or holes, and must not move

or collapse. Ideally the ﬂoor should be

made of concrete, wood or tiles.

Important note:

Do not install your washing

machine on a carpeted ﬂoor, since

the carpet pile may obstruct motor

ventilation or make it heat up. Do

not install under the water heater.

How to make sure your

appliance is level

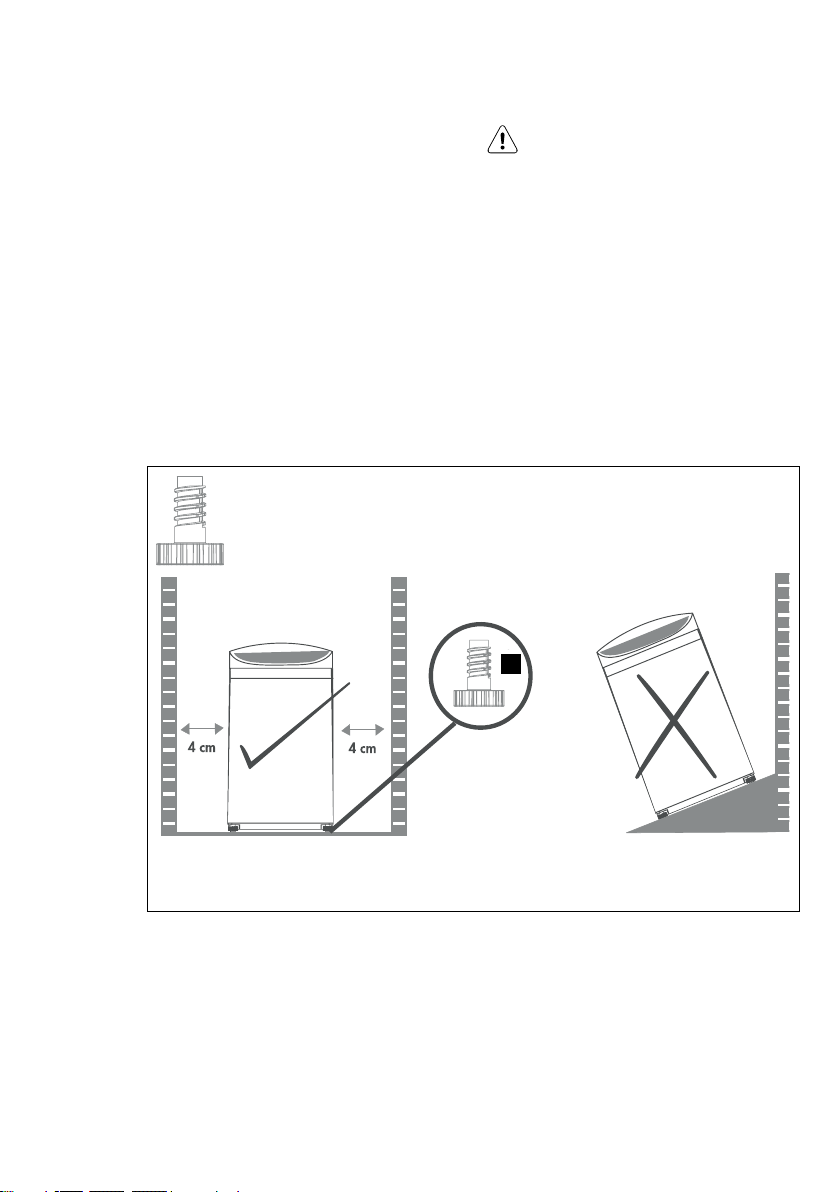

Regulate the height of your washing

machine by turning the feet indicated on

Fig. 1 depending on the ﬂoor where the

washing machine is to be installed,

making sure that all four feet of the

appliance are ﬁrmly supported on the ﬂoor.

4. INSTALLATION

There must be a space of 4 cm

minimum on each side of the

washing machine.

If your washing machine is not

level, it will NOT work properly.

Fig.1 Plastic adjustable roller with rubber base

ENGLISH 9

Drainage connection

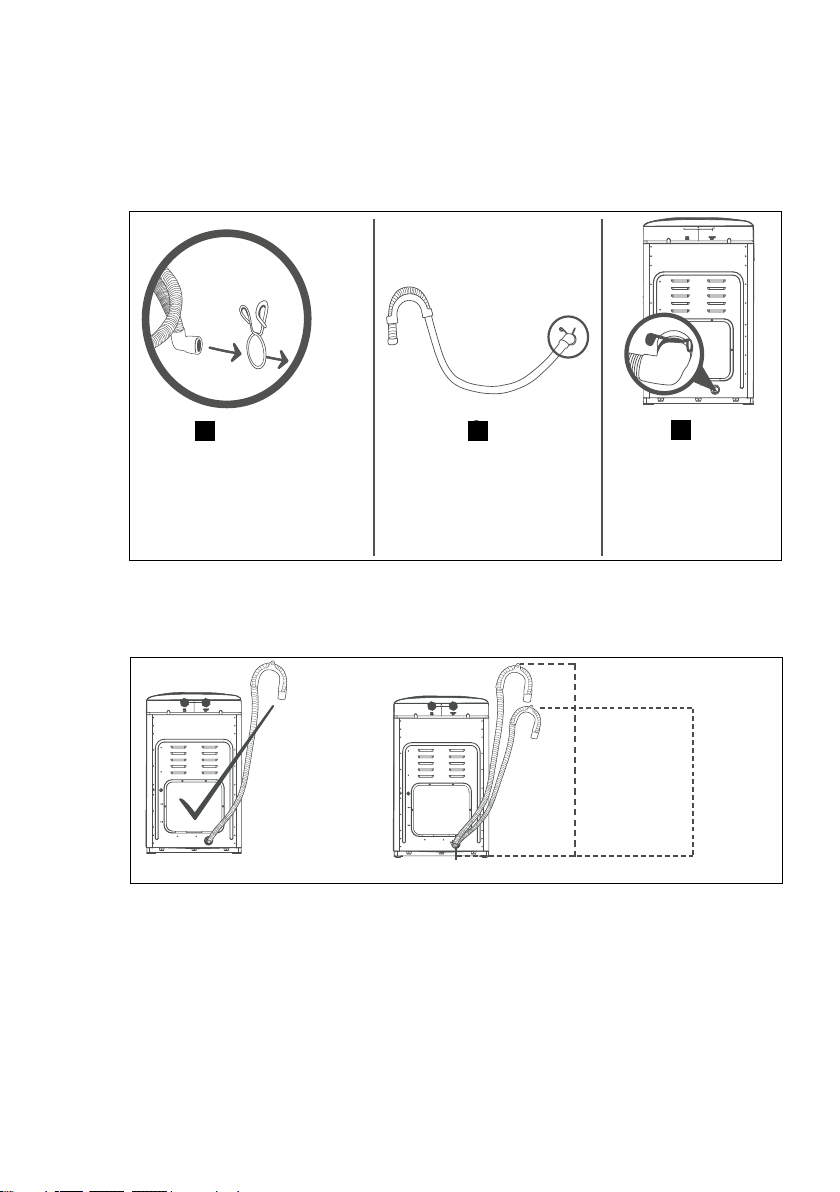

It is important for the drainage hose not to

be bent or be in the wrong position for the

water outlet. To avoid this problem look

carefully at the drawings showing how to

install it correctly.

Your washing machine is designed to

discharge water up to a maximum height

of 1.2 metres, so this height must not be

exceeded. You must also take care not to

install the outlet of your drainage hose at a

height of under 90 centimetres.

The drainage pump is

found at the back of

the washing machine.

Connect the hose clip to

the hose to stop any water

escaping.

Then connect the hose

elbow to the outlet

section of the pump as

shown in the diagram.

1 2 3

Min. height:

90 cm

1 m

Max. height:

1.2 m

Installing the hot and cold water

supply hose

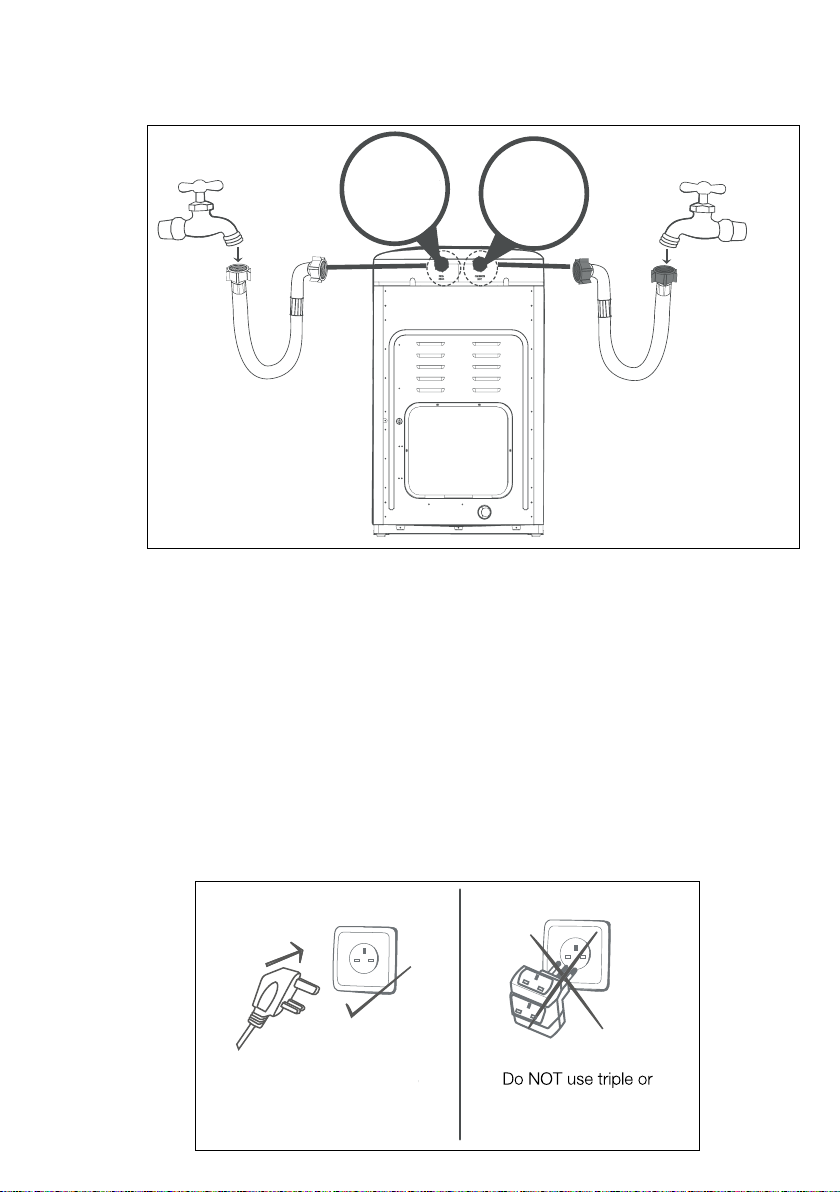

Connect the end of the water supply

hoses with an elbow to each water intake

point on the washing machine and the

straight side to the supply taps.

10 www.electrolux.com

Precautions when connecting

the water supply hoses

If there is only one water tap in the place

where you want to install your washing

machine, make sure that this is a cold

water supply and connect it to the intake

marked COLD, otherwise your washing

machine will indicate that there is a fault

and will not work, since your washing

machine only uses cold water for rinsing.

NOTE 1: “With regard to equipment

connected to the water supply using

removable hoses, the new hoses supplied

with the equipment must be used.

Used hoses must not be used”.

NOTE 2: Your washing machine has a red

stopper indicating the hot water intake.

This stopper must be removed when you

connect the hot water hose and if this

option is not being used then the stopper

should be left in place.

Preparations

Electrical connection

The washing machine must be earthed, so

make sure that the plug has three prongs

because otherwise you might experience

an electric shock if there is no insulation.

For the same reason DO NOT USE

extension leads with 2 conductors.

Cold

water tap

Hot water tap

Hot

water

inlet

Cold

water

inlet

Only one plug

must be used for

the connection.

multiple connections

with your washing

machine.
