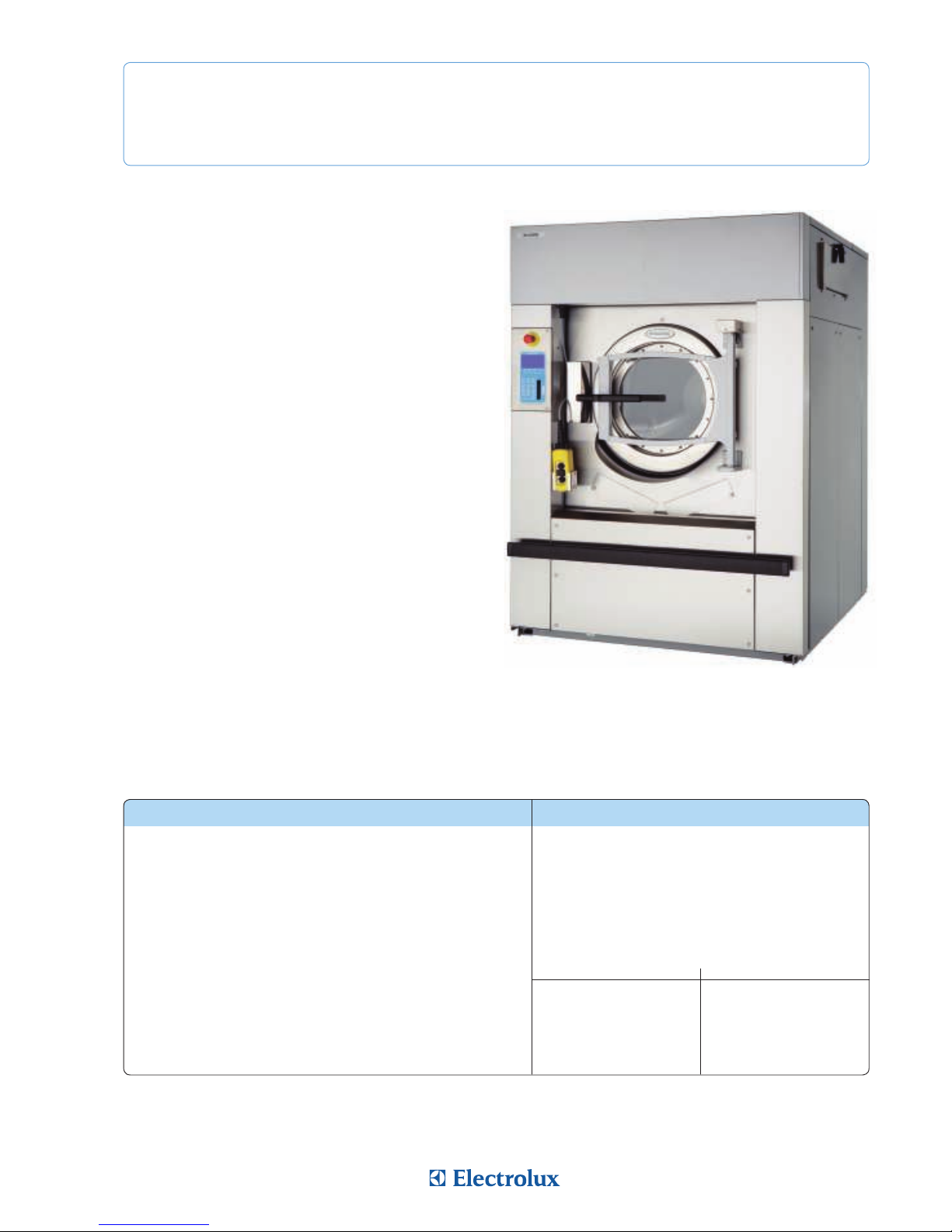

Washer extractor

W4400H

Features and beneﬁts

• High extraction force for efﬁcient dewatering

• Clarus Control fully programmable, microprocessor

with up to 192 programs

• Large door opening for easy loading/unloading

• Low noise level, for pleasant working environment

• One frequency controlled motor

• Prepared for 9 liquid detergent signals

• Eight liquid supply connections

• Stainless and galvanized steel in all vital parts for high

degree of rust protection

• Stainless steel front panels and powder painted side

panels

• Electrical or direct steam heating

• SuperBalanceTM guarantees the correct extraction force

Main options

• Front-mounted loading hopper (manual)

• Forward tilting

• Backward and forward tilting

• Noise/heat insulation, <70 dB(A)

• Test tap with level tube

• Dual drain valves for water/solvent recovery

• Five-compartment supply injector

• Third water valve

• Integrated Weighing SystemTM (IWS)

• Oil lubrication of bearing gaskets

* Water temperature 15°C cold water and 65°C hot water.

Certiﬁed in accordance with ISO 9001 and ISO 14001 and approved IP 24D.

Main speciﬁcations

Max. capacity kg/lb

Drum, volume litre

diameter ø mm

Extraction rpm

G-factor

Heating alternatives electricity kW

steam

hot water

Consumption data ”Normal 60°C” *

Total time min

Water consumption (cold/hot) litre

Energy consumption (motor/heating) kWh

Steam consumption kg

Electric heated Steam heated

W4400H

36(63)

5.5(10)

150-400

50-1000

150

110

400

300-600

50-800

200-400

13.8

13.0±0.75

<70

1200

1300

1450

5.33

Electrical connections*

Heating Voltage

El. 400-415V 3N AC 50 Hz kW(A)

Steam or 400-415V 3N AC 50 Hz kW(A)

non-heated

Water, steam and air connection

Water valves DN

Rec. water pressure kPa

Functioning limits for water valve kPa

Capacity at 300 kPa l/min

Drain valve Ømm

Draining capacity l/min

Steam valve DN

Rec. steam pressure kPa

Functioning limits for steam valve kPa

Compressed air DN

Air pressure kPa

Air consumption l/h

Liquid detergent DN

Floor requirements

Frequency of the dynamic force Hz

Max ﬂoor load at extraction kN

Sound levels

Sound level dB(A)

Sound level with insulation dB(A)

Heat emission

% of installed power, max

Shipping data

net, kg

crated, kg

boxed, kg

Shipping volume m3

* Other voltages available, see installation manual.

1325

1450

2015

1890

910

300

1865

270

820

420

435

425

525

660

2235

950

830

370

2205

1140

345

12 9

11,5°

6470

610

11,5°

6469

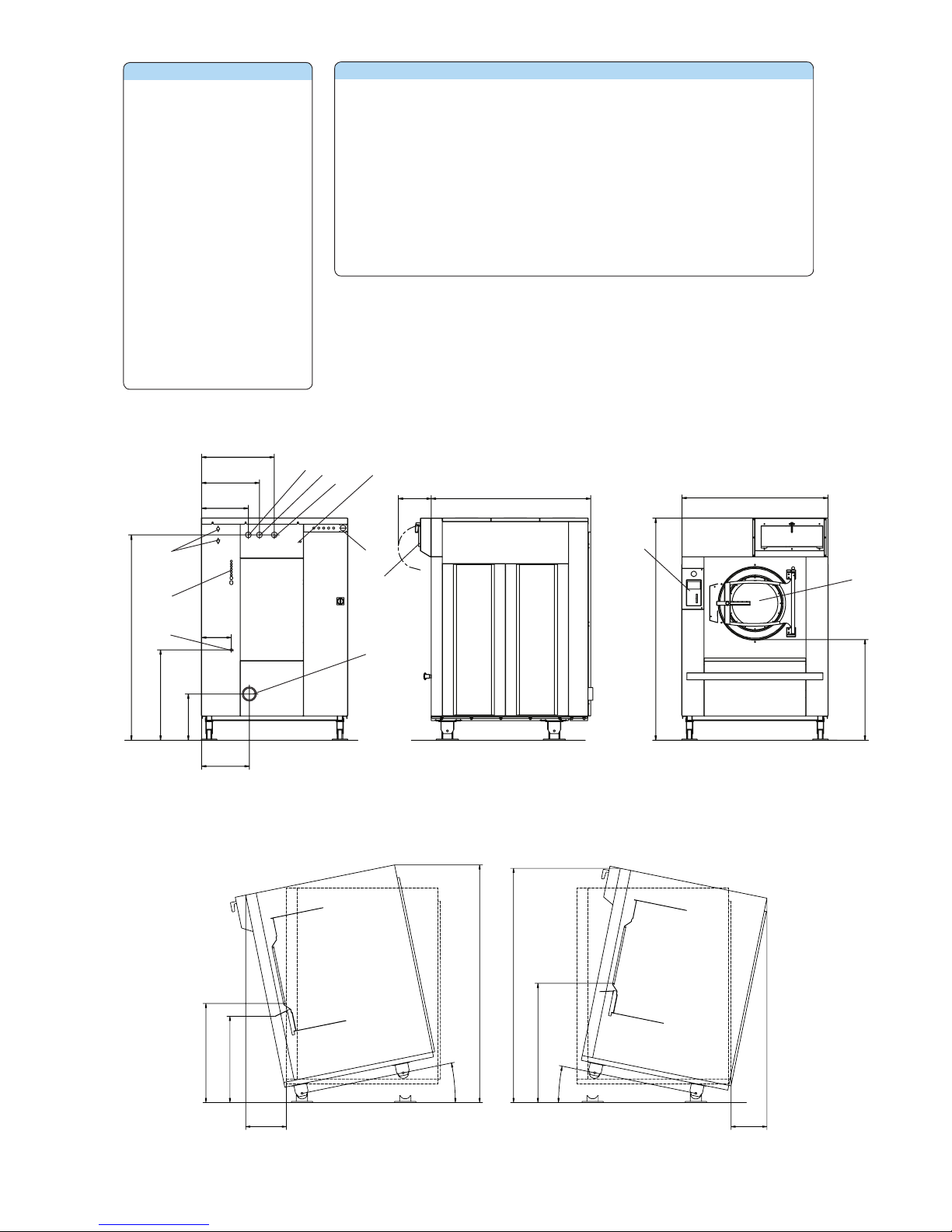

Dimensions in mm

A Width

B Depth

C Height std feet

C Height low feet

1 Control panel

2 Door opening ø 535

3 Soap supply injector,powder (optional)

4 Cold water

5 Hot water

6 Water connection (optional)

7 Steam connection

8 Drain

9 Electrical power

10 Compressed air connection

11 External liquid supply 6 pcs ø 10, 1 pc ø 16 and 1 pc ø 20

12 Water connector, soap supply injector

(optional)

Front

Right side

Rear side

Tilt forward Tilt backward

Share more of our thinking at www.electrolux.com

Options

• Front-mounted hopper - for easy loading from e.g sling-bag system (manual).

•Backward and forward tilting device - backward tilting can be used together with hopper or another type of loading

system.

•Forward tilting device - for easy unloading with reversing drum into trolley.

•Noise/heat insulation - gives less airborne sound than 70 dB(A).

•Test tap with level tube - gives possibilities to take samples from the wash liquid.

•Water/solvent recovery drain- two drain valves to be able to recover water from the rinses and reuse it in the wash.

•Five-compartment supply injector, ﬁve-compartments for powder detergent which can be programmed.

•Water inlet via pump-extra water inlet for water supply controlled by a pump from a recovery system.

•Third water valve-electrically controlled water valve for e.g hard water.

•Connection details for steam.

•Connection details for 2 water.

•Connection details for 3 water.

•Connection details pump inlet.

•Integrated Weighing System (IWS) – shows the weight of the load on the program display.

•Combined steam and electrical heated - gives possibilities to choose between electrical or steam heating by using

a switch.

• Oil lubrication of bearing gaskets with warning for empty container

Art. No. 438906821/02 07.04

We reserve the right to alter speciﬁcations without notice.

www.electrolux.com/professional

CMIS can be ﬁtted to washer extractors with Clarus Control, tumble dryers

with Selecta Control and ironers with electronic control system.

All you need to access and view the statistical feedback is a normal PC.

Accessory

• Kit for connection to CMIS (Certus Management Information Systems) network. CMIS provides vital statistics,

error codes, maintenance intervals, process receipt, etc.
