Electrolux E24WC48EPS Manuale utente

Installation

INSTALLING THE WINE COOLER

Your Electrolux wine cooler has been designed for either free-standing or built-in

installation(refer to the Built-in Installation section of this manual for instructions).

In either case, the front grille must NOT be obstructed.

SITE PREPERATION

1Position the unit on a flat, level surface, capable of supporting the entire

weight of the unit. Remember the unit will be significantly heavier once it is

fully loaded.

2This unit requires a grounded and polarized 115 VAC, 60Hz, 15A circuit

(normal household current).

3Avoid connecting the unit to a Ground Fault Interruptor (GFI). GFIs are prone

to nuisance tripping which will cause the unit to shut down. GFIs are generally

not used on circuits which power equipment that must run unattended for

long periods of time.

4The unit must be installed according to your local codes and ordinances.

DANGERANGER

ANGERANGER

ANGER

ELECTROCUTION HAZARD!

Electrical Grounding Required. This appliance is equipped with a three prong

(grounding) polarized plug for your protection against possible shock hazards.

• NEVER remove the round grounding prong from the plug.

• NEVER use a two-prong grounding adapter.

• NEVER use an extension cord to connect power to the unit.

Where a two-prong wall receptacle is encountered or a longer power cord is required,

contact a qualified electrician to have it replaced in accordance with applicable

electrical codes.

Site Preparation

5Position the unit to allow free air flow

through the front grille (see Figure 3).

6Wipe out inside of unit with a damp cloth.

7Final finish of the wooden wine rack trim

must be applied at least 24 hours before re-

installing the wooden rack trim into the

cabinet.

8Be sure to install the Anti-Tip brackets.

Follow the instructions provided with the

Anti-Tip bracket kit.

UL124A

DOOR

SWING

CABINET

OR WALL

CLEARANCE

NEEDED

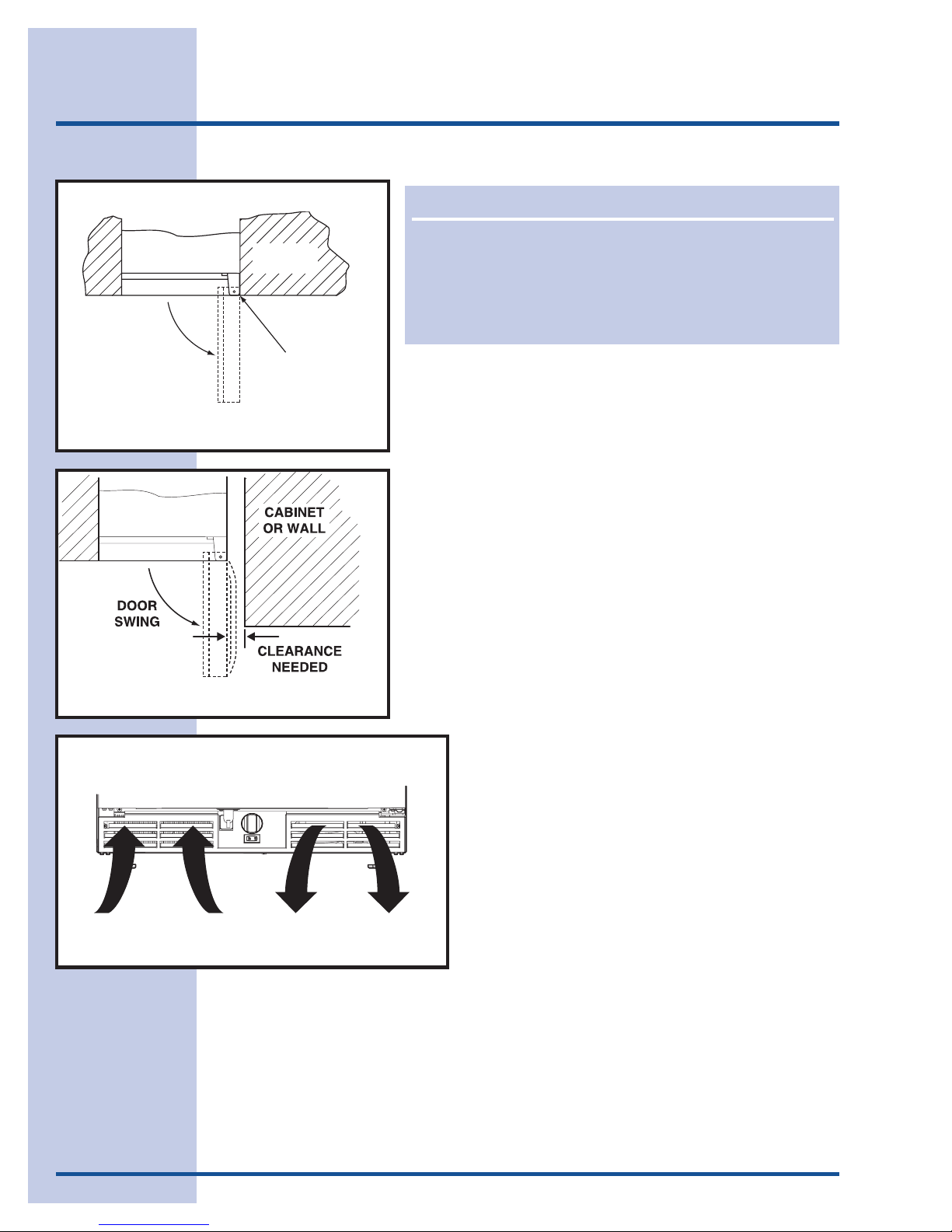

Figure 1

Figure 3

NONO

NOTETE

TETE

All units require zero clearance when installed flush with a

cabinet or wall (see Figure 1). Electrolux stainless steel

models require a minimum 2-3/4 inch handle clearance

when installed against a wall or cabinet that extends

beyond the front edge of the unit (see Figure 2).

2 - 3/4”

Figure 2

INTAKE EXHAUST

Wood Trim

WINE RACKS WITH WOOD TRIM

Your Electrolux wine cooler is equipped with a natural wood trim on the wine racks

for appearance and durability. The wood trim has been coated at the factory with a

clear vinyl sealer, which will adequately protect the wood in normal usage.

You have 3 options regarding the wood trim on the wine racks.

(1) You can leave as is, (2) add a final finish coat or (3) you may stain the wood

trim. The final finish coat was not applied at the factory so that the wood trim could

be stained. YOU CANNOT STAIN THE WOOD TRIM ONCE YOU APPLY THE

FINAL FINISH. Review the following guidelines when staining and or sealing the

wood to ensure proper adhesion and durability of the finish.

To add a final finish coat:

1Remove five racks with wood trim from unit, see RACK REMOVAL/

INSTALLATION.

2Remove screws securing wood trim to racks.

3Lightly scruff sand the molding with 280 grit 3M Tri-M-Ite® sand-paper.

4Remove sanding dust with a clean, dry cloth.

5Apply a thin coat of a clear protective finish; the factory-applied seal is

compatible with virtually all finishes. A low odor, water clean up, quick drying

finish such as Minwax Polycrylic® is recommended. Follow container label

for directions.

6Lightly sand and reapply if desired.

CACA

CAUTIONUTION

UTIONUTION

UTION

To prevent permanent damage to the inner liner of your wine cooler , the wine rack

wood trim MUST be removed from the unit for staining and/or finishing. Allow stain/

finish to dry thoroughly (at least 24 hours per coat) in accordance with the stain/finish

manufacturer’s instructions prior to re-installing the wood trim inside the cabinet of the

wine cooler . Failure to do so may cause the inner liner of the unit to have a permanent

odor, which is not covered by the warranty.

Wood Trim

To stain for a different wood color:

1Remove five racks with wood trim from unit, see Rack Removal/

Installation.

2Remove screws securing wood trim to racks.

3Apply Minwax Water-Based Wood Stain® to wood with a synthetic foam

brush. Stain must penetrate approximately 3 minutes. After this period, while

stain is still wet, take a stain dampened rag and remove all excess stain.

Wipe in the direction of the grain with medium pressure to achieve the

desired stain color.

4After 2 hours, repeat step three. This will even out the color of the wood.

5Allow stain to dry for a minimum of 3 hours before finishing.

6If desired sand the wood with very fine sandpaper to smooth the surface from

the staining process.

7Remove all dust from the wood. Apply one coat of Minwax Ultra Fast-Drying

Polycrylic Protective Finish® with a synthetic foam brush to the wood. This

finish should be applied in a thin coat following the direction of the grain. First

apply the finish to the back and sides of the wood. Allow this to dry for two

hours. Next apply the finish to the front side of the wood and allow to dry for

two hours. Sand with very fine sandpaper (220 grit). Reapply in the same

manner 3 times total. After the third coat do not sand the surface.

8Allow the final coat to dry for 24 hours before installing the wood to the wine

cooler racks.

Leveling

LEVELING THE UNIT

Position the unit on a flat, level surface, capable of supporting the entire weight of

the unit when full.

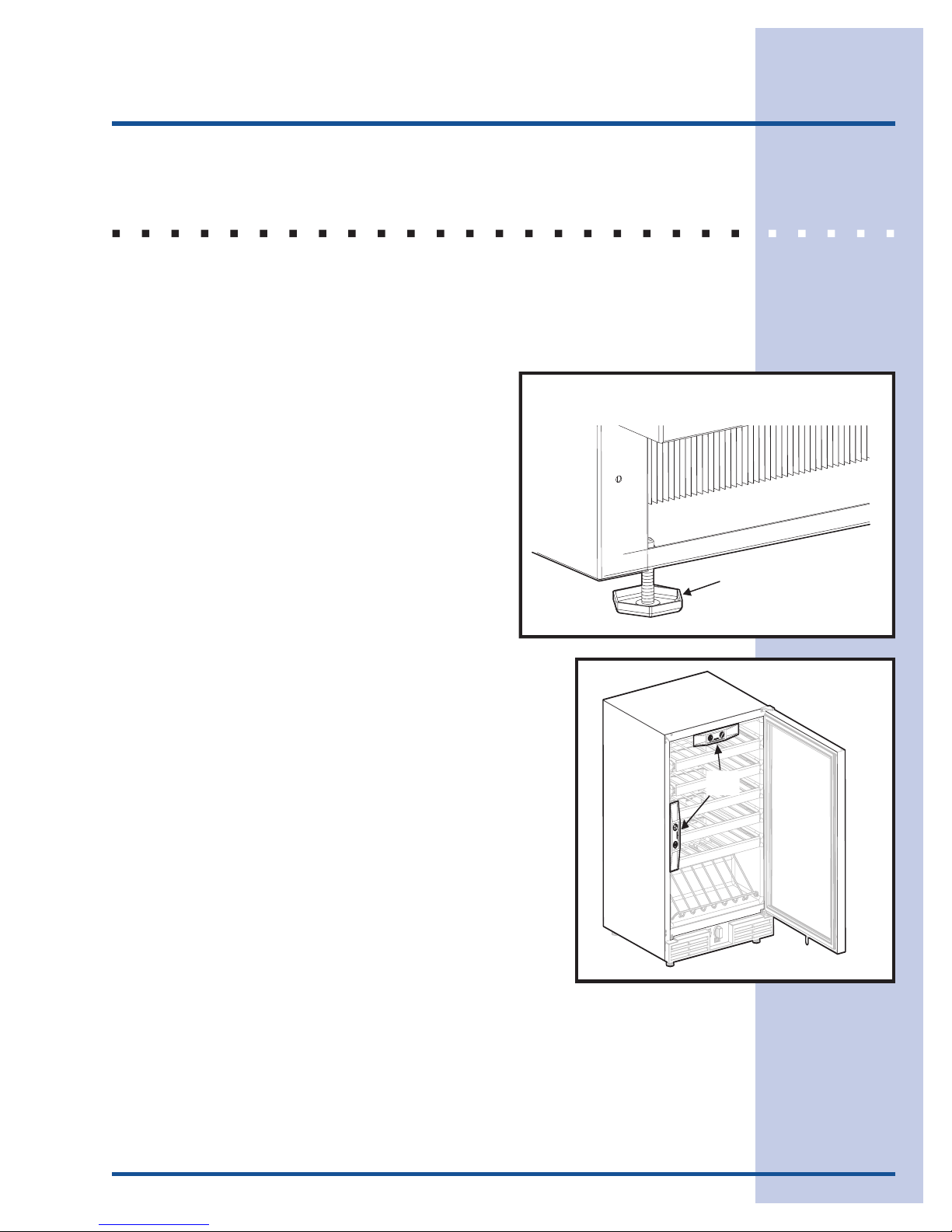

This unit contains four adjustable leveling legs. Turn the legs clockwise to raise and

counterclockwise to lower (see Figures 4 and 5).

CHECK

LEVEL

Figure 5

TURN FOOT TO ADJUST

Figure 4

UL308

PLASTIC

PLUGS

Figure 6

Figure 7

Figure 8

Door Reversal

REVERSING THE DOOR

All Electrolux wine cooler models are field reversible for left or

right hand opening. The door opening is easily reversed by

moving the hinge hardware to the opposite side (see Figure 6).

To reverse the door:

1Remove top hinge screw pin (7/64" Allen wrench)

from cabinet (see Figure 7).

Remove door by tilting forward and lifting off bottom

hinge pin.

2Remove plastic screw plugs (3 top and 3 bottom)

from new hinge location (see Figure 8), and remove

hinge pin hole plug in top of door (see Figure 9). Do

not discard.

Figure 9

Hole

Plug

Door Reversal

3Remove top hinge (3 screws), reinstall hinge screw pin, and

remount on opposite side BOTTOM (see Figure 10).

4Remove the two door closer plastic inserts from the existing

bottom hinge and install as shown on the new bottom hinge

(see Figure 11).

5Remove existing bottom hinge (3 screws) and remount on

opposite side TOP. Remove top hinge screw pin.

6With bottom of door facing up, remove pivot plate (2 screws),

flip over, and remount on opposite side of door (see Figure 12).

7Holding door upright with top of door tilted forward, place hole of

door pivot plate on bottom hinge screw pin (see Figure 13). Be

sure that the bosses on the closers align with holes in hinge

and hinge plate.

8Tilt top of door into position in top hinge and install top hinge

screw pin.

9In empty hinge holes, install plastic screw plugs (3 top and 3

bottom) and door hole plug (1,door top) removed in step 2.

UL313

HINGE

SCREW

UL312

DOOR

CLOSER

INSERTS

BOSS

Figure 10

Figure 11

BOSS

CLRCO008

UL319

Figure 12

Figure 13
