1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

• This appliance is intended to be used in household

and similar applications such as:

- Farmhouses;sta󻉒kitchenareasinshops,ofﬁces

and other working environments

- By clients in hotels, motels, bed and breakfast and

other residential type environments

• Use this appliance for storage of wine only.

• Keep ventilation openings, in the appliance enclosure

or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food stor-

age compartments of the appliance, unless they are of

the type recommended by the manufacturer.

4 www.electrolux.com

• Do not use water spray and steam to clean the appli-

ance.

• Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

• Do not store explosive substances such as aerosol

canswitha󻉔ammablepropellantinthisappliance.

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly quali-

ﬁedpersonsinordertoavoidahazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

Warning! Onlyaqualiﬁedperson

must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli-

ance.

• Obey the installation instruction sup-

plied with the appliance.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure the air can circulate around

the appliance.

• Wait at least 4 hours before connec

ting the appliance to the power supply.

Thisistoallowtheoilto󻉔owbackin

the compressor.

• Do not install the appliance close to

radiators or cookers, oven or hobs.

The rear of the appliance must

stand against the wall.

• Do not install the appliance where

there is direct sunlight.

• Do not install this appliance in areas

that are too humid or too colds, such

as the construction appendices, ga-

rages or wine cellars.

• When you move the appliance, lift it

by the front edge to avoid scratching

the󻉔oor.

2.2 Electrical connection

Warning! Riskofﬁreandelectrical

shock.

• The appliance must be earthed.

• All electrical connections should be

madebyaqualiﬁedelectrician.

• Make sure that the electrical informa-

tion on the rating plate agrees with

the power supply. If not contact an

electrician.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the electrical components (e.g. mains

plug, mains cable, compressor). Con-

tact the Service or an elect rician to

change the electrical components.

• The mains cable must stay below the

level of the mains plug.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

5ENGLISH

2.3 Use

Warning! Riskofﬁreandelectrical

shockorﬁre.

• Donotchangethespeciﬁcationofthis

appliance.

• Do not put electrical appliances (e.g.

ice cream makers) in the appliance

unless they are stated applicable by

the manufacturer.

• Be careful not to cause damage to the

refrigerant circuit. It contains isobutane

(R600a), a natural gas with a high level

of environmental compatibility. This gas

is󻉔ammable.

• If damage occurs to the refrigerant

circuit, make sure that there are no

󻉔amesandsourcesofignitioninthe

room. Ventilate the room.

• Do not let hot items to touch the plastic

parts of the appliance.

• Donotstore󻉔ammablegasandliquid

in the appliance.

• Donotput󻉔ammableproductsor

itemsthatarewetwith󻉔ammable

products in, near or on the appliance.

• Do not touch the compressor or the

condenser. They are hot.

2.4 Care and cleaning

Warning! RRisk of injury or damage

to the appliance.

• Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

• This appliance contains hydrocarbons

inthecoolingunit.Onlyaqualiﬁed

person must do the maintenance and

the recharging of the unit.

• Regularly examine the drain of the

appliance and if necessary, clean it. If

the drain is blocked, defrosted water

collects in the bottom of the appliance.

2.5 Disposal

Warning! Riskofinjuryorsu󻉒oca-

tion.

• Disconnect the appliance from the

mains supply.

• Cuto󻉒themainscableanddiscardit.

• Remove the door to prevent children

and pets to be closed inside of the

appliance.

• The refrigerant circuit and the insula

tion materials of this appliance are

ozone-friendly.

• Theinsulationfoamcontains󻉔amm

able gas. Contact your municipal

authority for information on how to dis-

card the appliance correctly.

• Do not cause damage to the part of

the cooling unit that is near the heat

exchanger.

3. ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol

Put the packaging in applicable

containe to recycle it. Help protect the

environment and human health and to

recycle waste of electrical and electronic

appliances. Do not dispose appliances

marked with the symbol with the

household waste. Return the product

to your local recycling facility or contact

yourmunicipalo󻌗ce.

6 www.electrolux.com

4. PRODUCT DESCRIPTION

2345

5. CONTROL PANEL

1 Handle

2 Gasket

3 Door

4 Fastening bar

5 Shelves

6 Telescopic runners

7 Control panel

8 Rating plate

1 3 4 5

1 ON/OFF button

2 Light button

3 Display

4 Temperature warmer button

5 Temperature colder buton

7ENGLISH

5.1 Switching on

To switch on the appliance follow these

steps:

1. Connect the mains plug to the power

socket.

2. Press the ON/OFF button if the dis-

playiso󻉒.

3. The display shows the set default

temperature (5°C).

Toselectadi󻉒erentsettemperature

refer to “temperature regulation”.

5.2 Switchingo󻉒

Toswitcho󻉒theappliancefollowthese

steps:

1. Press the ON/OFF button for 3 sec-

onds.

2. Thedisplayswitcheso󻉒.

3. To disconnect the appliance from the

power disconnect the mains plug from

the power socket.

5.3 Temperature regulation

The set temperature of the wine cellar

may be adjusted by pressing the

temperature regulators.

Each press once the or button, the

temperature setting will increase or lower

1ºC, When the temperature setting reach

the upper limit 20ºC and lower limit 5ºC,

the temperature setting will not increase

or lower.

5.4 Light Button

When the door is opened,the LED light is

on,whenclosediso󻉒.Ifyouwanttokeep

the light on with the door closed, open the

door,pressthelightbuttontoturno󻉒the

light, then press the light button again to

turn onthe light.

If you want to restore the standard

conditions, press the light button to turn

o󻉒thelight.

LED Light is equipped with a

smoothshuto󻉒systemlasting3

sec onds.

5.5 Door open alarm

An acoustic alarm will sound if the door is

not completely close d after 5 minutes.

When the door is closed the alarm will

stop.

5.6 Temperature Alarm

• If the inner temperature is higher than

23°C,“HI” is shown in display panel,

and the buzzer rings for one hour

continuously.

• If the inner temperature is lower than

0°C, “LO” is shown in display panel

and blinks. The buzzer rings at the

same time.

5.7 Temperature Recollection

Function

In the event of a power interruption, the

wine cellar can remember the previous

temperature settings, and when power is

recovered, the temperature will go back

to the original.

6. DAILY USE

6.1 Cleaning

Before using the appliance for the

ﬁrsttime,washtheinteriorandall

internal accessories with lukewarm

water andsome neutral soap in order to

remove thetypical smell of a brand-new

product,then dry thoroughly.

Do not use detergents or abrasive

powders, as these will damage the

ﬁnish.

8 www.electrolux.com

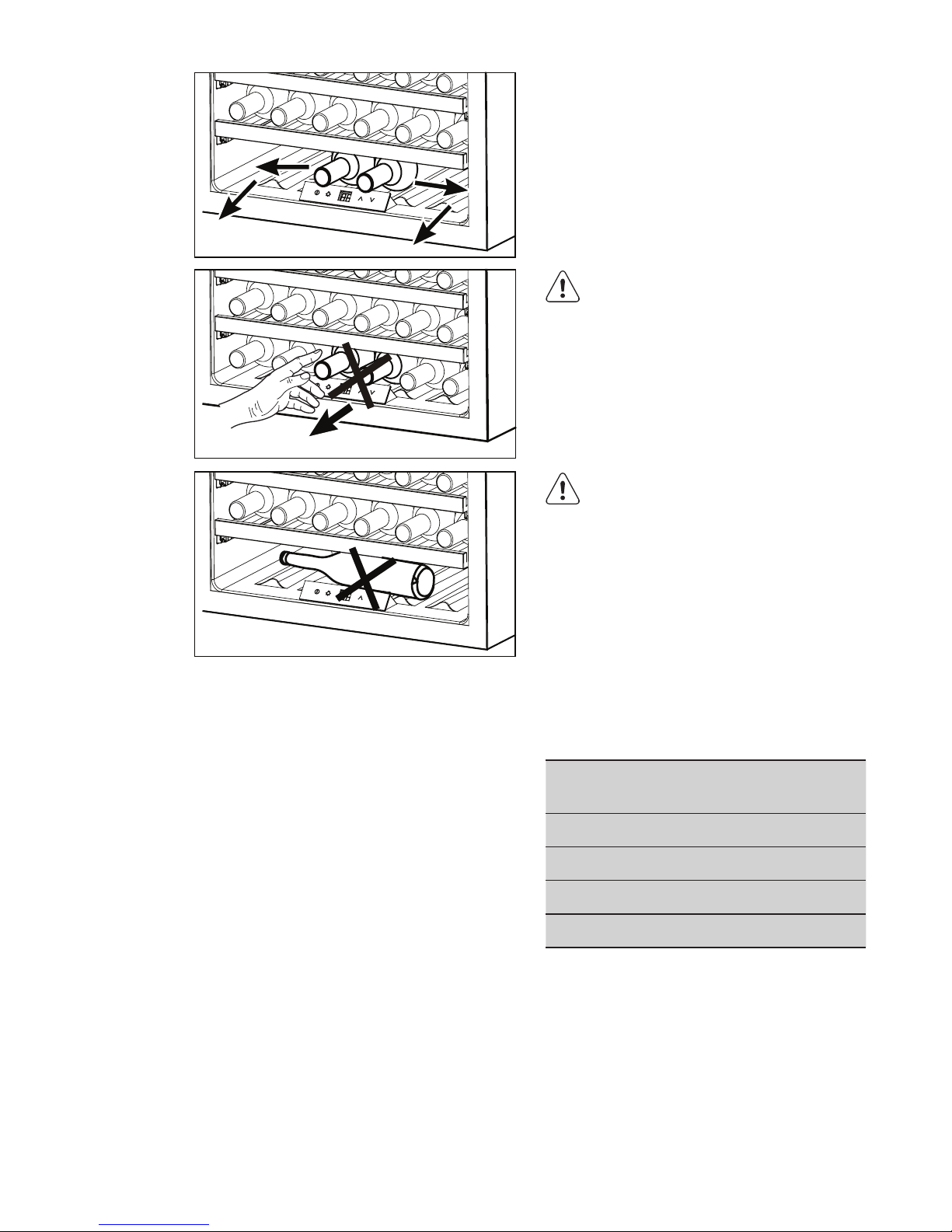

6.2 Wine Storage

(for 750 ml Bordeaux bottles)

Total: 24 bottles

The temperature can be adjusted between

+5 and + 20°C. That is ideal for wines.

The storage time for wine depends

onageing, the type of grapes,

alcoholiccontent and level of fructose

and tannin contained in it. At the time

of purchase,check if the wine is already

aged or if it will improve over time.

Preservation temperature suggested:

- Champagne/Prosecco and Sparkling

wines +6 to +8°C

- White Wines +10 to +12°C

- Rosé wines +12 to +16°C

- Red Wines +14 to +18°C

6.3 Wine Shelves

• For easy access to the contents, pull

the shelves approximately 1/2 out

of the rail compartment.This unit is

designed with the telescopic runners

for easy sliding the shelves.

To prevent damaging the door

gasket, make sure that the door is

fully opened when pulling shelves

out.

• Toremoveorﬁtthewoodenshelves

lift the shelf upward as per the dia-

gram and simply pull out or push in

the shelf till it sits on the telescopic

runner securely.

9ENGLISH

6.4 Possibleconﬁgurations

• Standard

To store up to 24 bordeaux bottles

(0.75cl) placing 6 bottles each level.

Theﬁrstlevelhasbeendesignedto

accomodate larger and longer bottles.

By removing shelves 2/3/4 is possible

to increase the capacity as shown in the

pictures below.

Warning! Please ensure in

this case that the bottles do

not come in contact with the

backwall of the cavity.

• Horizontal

Suitable for large bottles like

Prosecco and Champagne taller

than 310mm.

To store tall/large bottles, remove shelves

3 or 4 and place bottles on lower level.

10 www.electrolux.com

The space behind control panel can

store 2 bottles of wine, but please pay

attention that put bottles in/out have to

move around the control panel.

Do not pull out the bottles directly

behind the control panel as it may

damage it.

Do not store bottles crossways on

level 1! As, bottles may fall out when

the appliance door is opened and

this may cause injury or material

damage.

7. INSTALLATION

7.1 Positioning

Adequate air circulation should be around

the appliance, to prevent overheating. To

achievesu󻌗cientventilationfollowthe

instructions relevant to installation.

Install this appliance at a location where

the ambient temperature corresponds to

the climate class indicated on the rating

plate of the appliance:

Climate class Ambient

temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

Indice

Lingue:

Altri manuali Electrolux Refrigeratore per vino

Electrolux

Electrolux Wine Cooler / Beverage Center Manuale utente

Electrolux

Electrolux ERC38800WS Manuale utente

Electrolux

Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuale utente

Electrolux

Electrolux ERW3313AOX Manuale utente

Electrolux

Electrolux E24WC160ES - Icon Wine Coolers Manuale utente

Electrolux

Electrolux EI24BC65GS - 24 Inch Beverage Center Guida utente

Electrolux

Electrolux E24WC48EPS Manuale utente

Electrolux

Electrolux WK4PL10CN Manuale utente

Electrolux

Electrolux EWUS052B5B Manuale utente

Electrolux

Electrolux E24WC160ES1 Manuale utente

Electrolux

Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuale utente

Electrolux

Electrolux CS 110 Manuale utente

Electrolux

Electrolux ERW3313BOX Manuale utente

Electrolux

Electrolux E24WC75HSS Manuale utente

Electrolux

Electrolux EI24WC65GS0 Manuale utente

Electrolux

Electrolux CS 200 Manuale

Electrolux

Electrolux EWUS040B8B Manuale utente

Electrolux

Electrolux ICON Manuale utente

Electrolux

Electrolux ENC74800 Manuale utente

Electrolux

Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuale utente

Electrolux

Electrolux EI24BC65GS - 24 Inch Beverage Center Manuale di servizio

Electrolux

Electrolux ERW3313AOX Manuale utente

Electrolux

Electrolux ERW0673AOA Manuale utente

Electrolux

Electrolux EI24WC75HS0 Manuale utente

Manuali Refrigeratore per vino popolari di altre marche

U-Line

U-Line Echelon Wine Captain 2075WC Manuale del proprietario

Haier

Haier WS50GA Manuale utente

Cavist

Cavist 62 Manuale utente

Kenmore

Kenmore 461.99130 Manuale utente

Miele

Miele KWT 6422 iG Manuale utente

Danby

Danby DWC113BLSDB Manuale utente

Caple

Caple Wi6128 Manuale utente

Avanti

Avanti WC1001 Manuale utente

Frigidaire

Frigidaire FFWC38F6LS Manuale utente

Titan

Titan TT-W2454SZ Manuale di installazione

Klarstein

Klarstein Botella 166 Uno Manuale utente

Costway

Costway FP10130WL Manuale utente

Lemair

Lemair LWC59 Manuale utente

Haier

Haier JC-125GEA Manuale utente

Caple

Caple WCi46B Manuale utente

Climadiff

Climadiff CLI24 Guida rapida

Viking

Viking VCWB301LSS Manuale utente

Caple

Caple WC6511 Manuale utente
