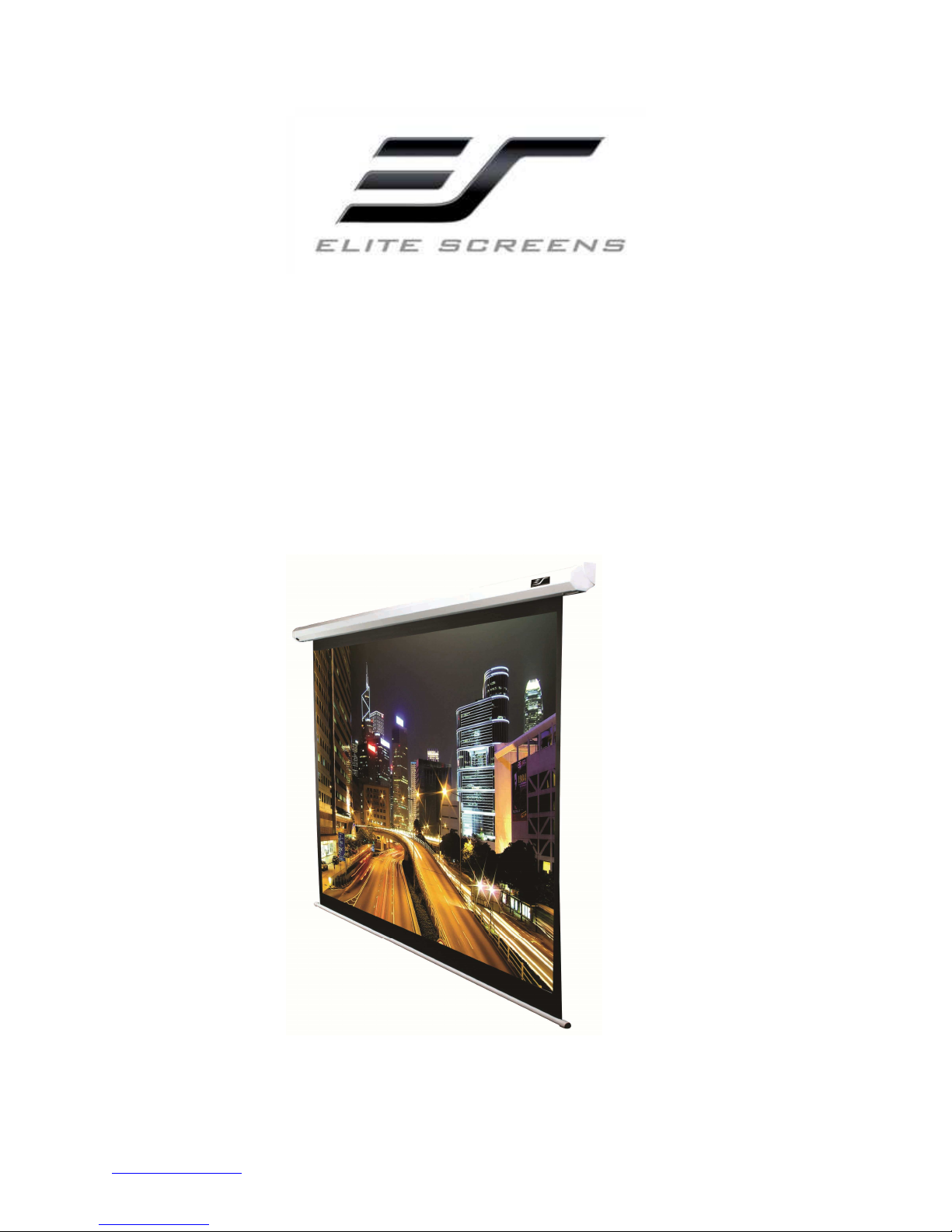

Electric Motorized Projection Screen

Spectrum Series

User’s Guide

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

Make sure to read this user’s guide and follow the procedure below.

Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black

Top Drop in the roller. Please be aware o this as it will void your warranty with Elite Screens. Unapproved

changes or modi ications (except or cutting the power cord or hardwire installations) to this unit are

prohibited and will void your warranty. For more in ormation, please contact our Technical Support

Department at (877) 511-1211 Ext. 604.

•Please retain this user’s guide for future reference.

•To avoid damaging the unit, do not use with any unauthorized accessories not

recommended by the manufacturer.

•Handle the unit carefully during transportation to avoid any damages.

•To ensure safe and reliable operation, direct connection to a properly grounded power

source is advised.

•The power outlet supplying power to the unit should be close to the unit and easily

accessible.

•Do not install the unit on uneven or inclined surfaces.

•Do not put heavy objects on the power cord and position it properly to avoid creating a

trip obstacle.

•ever overload the power cord to prevent an electric shock or fire due to a loose

contact or a short circuit.

•There are not user serviceable parts in this unit. Do not attempt to disassemble this unit

by yourself. o one except authorized technicians can open and make repairs to this

unit.

•Make sure the power source this unit is connected to has a continuous power flow.

•If there is need to use an extension cord, make sure the cord has an equal rating as the

appliance to avoid overheat.

•Do not handle the power plug when your hands are wet or your feet are in contact with

water.

Do not use this unit under the following circumstances.

•Disconnect the power cord under the conditions of heavy rain, wind, thunder or

lightning.

•Avoid direct Sunshine, rain shower and moisture.

•Keep away from fire sources and high temperature to prevent this device from

overheating.

•Cut off the power supply first before transportation or maintenance.

•Fully disconnect from the power supply when the unit is not in use for a long period of

time, as should be done with any other electric household appliance.

•To avoid possible injury and/or an electric shock, do not attempt to use the screen if

there is obvious damage or if there are any evident broken parts.

Important Safety & Warning Precautions

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

Due to various installation environments, the instructions provided in this user’s guide are for

reference only. Please consult a professional installation company for further installation and

safety advice. The installer must insure that proper mounting hardware is used to provide

adequate strength suitable for the installation. lite Screens is not liable for any faulty

installations.

The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black

drop in the roller. Please be aware of this as it will void the limitation of your warranty.

Individual modifications to this product are prohibited and will void the warranty with the

manufacturer. Please contact Elite Screens Customer Service for any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

owever, there is no guarantee that the interference will not occur on a particular installation. If this

equipment causes harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures.

Reorient or relocate the receiving antenna of the device which may be casing the interference.

Increase the separation between the screen and the device’s receiver.

onnect the equipment into a different power outlet other than the device.

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

3. In order to protect the screen from exposure to stains, keep the screen out of contact with

foreign particles such as dust, sawdust, and/or liquids.

Regardless of the mounting method, the screen should be securely supported so that the vibration or

pulling on the viewing surface will not cause the casing to become loose or fall. The installer must insure

that the fasteners used are of adequate strength and suitable for the installation location.

Installation Warning

Pre

Installation

NOTE

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

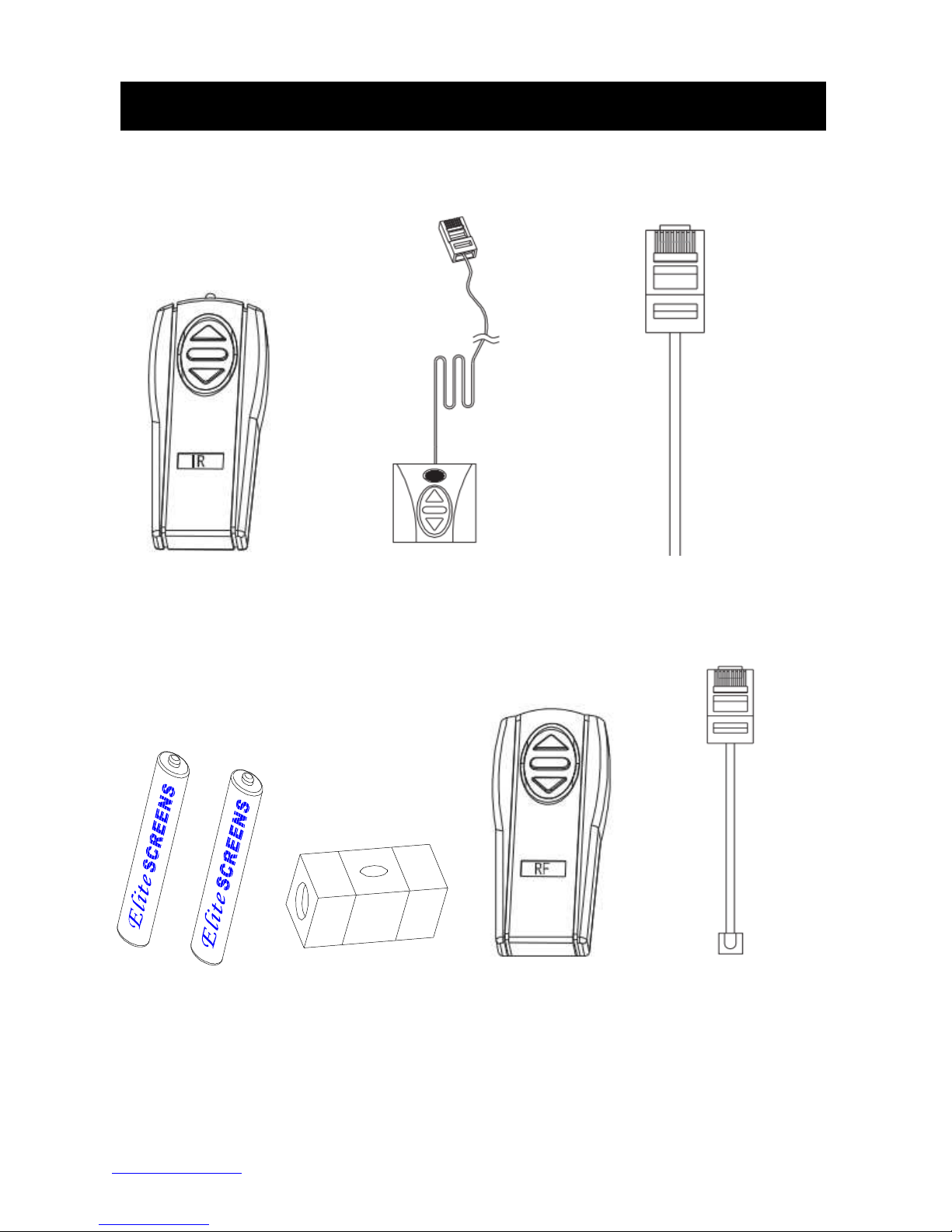

Please make sure all accessories below are included before proceeding.

Red+ Green-

A. B. C.

Infrared Remote 3 Way Wall Switch 12 Volt Trigger

D. E. F. G.

AAA Batteries Bubble Level Radio Frequency Remote Infrared Eye Receiver

(Not Included) (Not Included)

Accessories for Spectrum Series

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

way Wall switch

Stop

5-12 Volt Trigger Cable

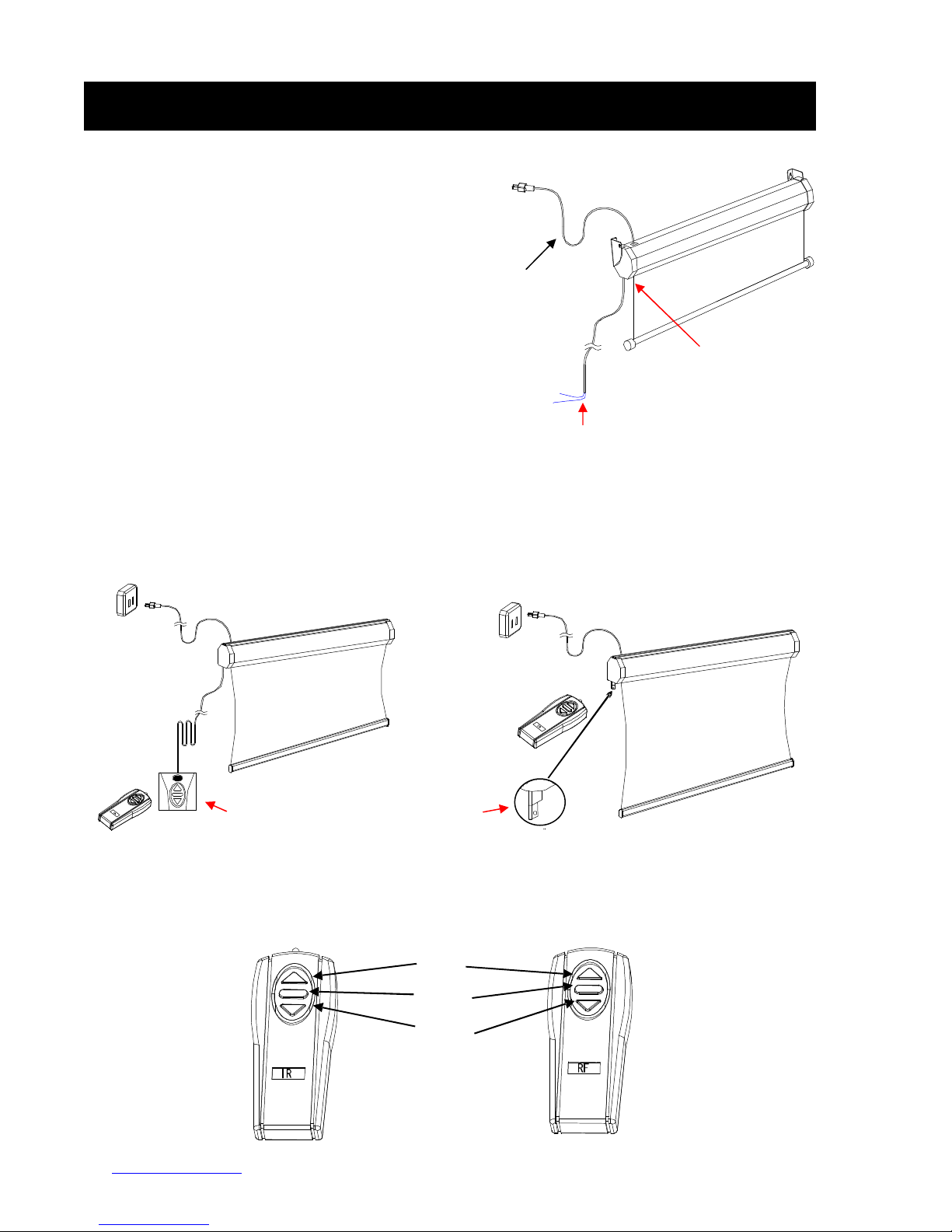

Control System for Spectrum Series

1. 5-12V Trigger: The built-in 5-12V trigger input

allows your screen to synchronize its drop & rise

with the projector’s power cycle. The screen

deploys when the projector powers up and will

retract when the projector powers down. The 5-12

volt adaptor connects to your projector’s trigger

output via a separate cable that may or may not

be provided by the manufacturer of the projector.

The trigger feature will not work without an

output cable from the projector, but it can be

tested by connecting the Red (+) and Green (-)

cable to a 9-volt battery.

prong power cable

45 input for 5

12V Trigger

Red: DC 12 +

Green: 0 V -

Way Wal

l Switch:

The 3

way wall

switch is a wall mount control box with

an up/stop/down button and plugs

directly into the screen’s RJ-45 input.

3. IR “Eye” Receiver:

(Not Included)

The IR “Eye”

Receiver plugs directly into the screen’s RJ-45 input to

present a low profile line-of-sight control option for your

IR remote control even in a recessed ceiling installation.

IR “Eye” Receiver

4. IR Remote ontrol:

The Infrared

functions by direct line of sight contact

with a beam range of 30 feet.

5. RF Remote ontrol:

(Not Included)

The radio waves eliminate the need for a

direct line of sight with a range of 150 feet.

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

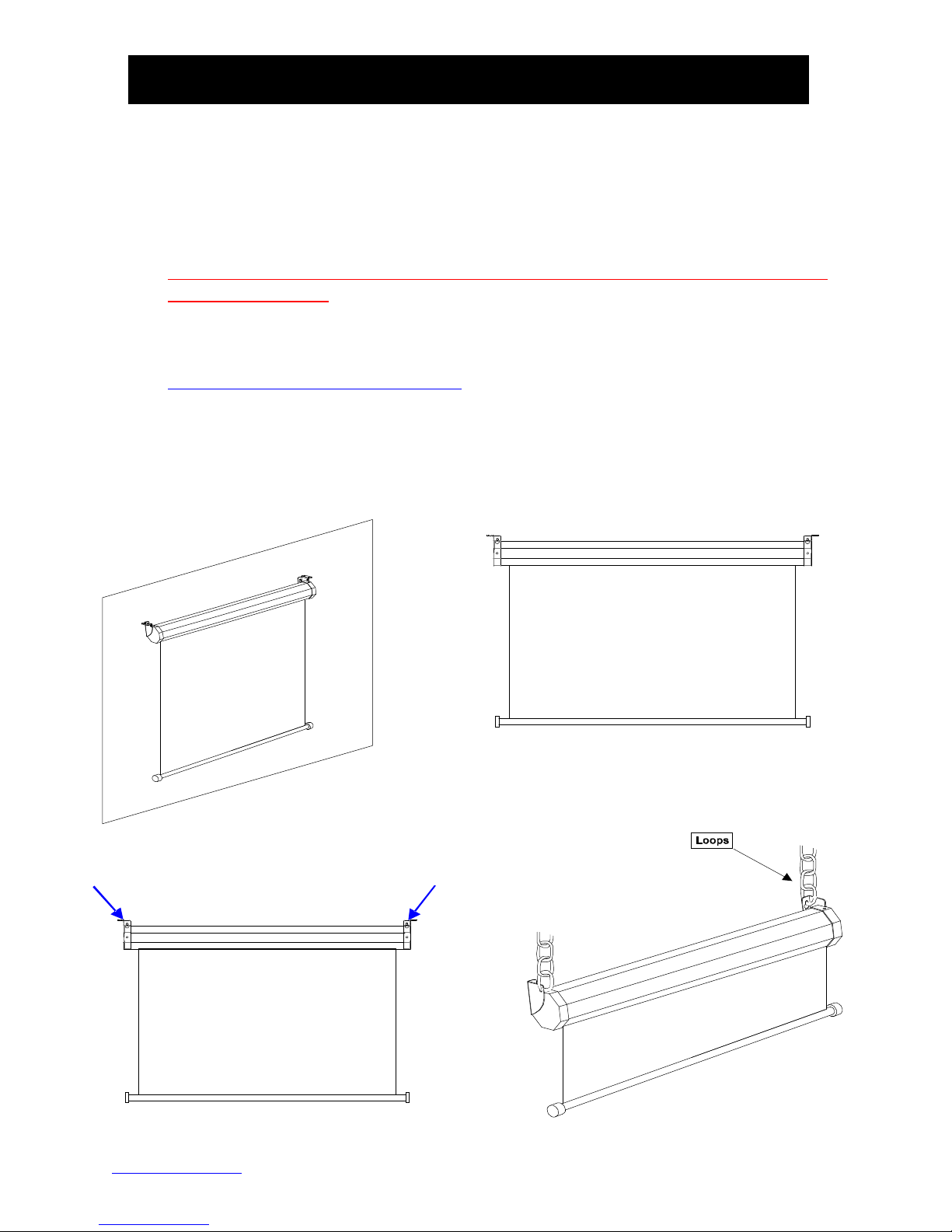

Optional installation method using a chain to h

ang the screen from the ceiling

Please consult a professional installer. Elite Screens is not liable for any faulty installations.

1. Select the installation location for your screen. Ensure that it is within reasona le proximity from your

power source.

2. For est support of your screen, it is ideal to secure your screen into the studs of your house’s internal

framework. If studs are not availa le, use hollow anchors for mounting your wall screws into drywall. If

you’re installing in a concrete structure, use concrete olts to secure your screen.

Always consult a professional installer or hardware professional to ensure that the proper screws and/or

hardware are eing used.

3. Ensure that oth rackets are in perfect level alignment with one another. Use wall/ceiling wood screws

to secure to the wood studs. Use hollow anchors if mounting in drywall.

4. The screen casing is designed to accept the wall screws directly. If not using the Optional L-Brackets

http://shop.elitescreens.com/accessories.aspx, e sure to position the washer etween the head of the

wall-screw and the anchor slots on the screen’s casing.

5. Using a tape measure, mark the keyholes that are located at the ack of the screen’s casing end cap.

6. After marking the area and predrilled hole, insert the screw and have at least 1/8” from the wall to mount

the screen. (See example in Figure 1.)

7. Figure 2 will show you an optional installation using chains (not included).

Installation Instructions

Fig. 1

Fig. 2

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

For additional information, please contact Elite Screens at techsupport@elitescreens.com

1. If your screen does not move, please check the power supply. The screen will understandably

not move without power.

2. Make sure the power cord is firmly plugged to the power outlet.

3. Make sure that all cable connections are secure.

4. If the screen works well with the line switch but not with the remote control, please make sure

the remote controls have fresh batteries. Change the batteries every 6 months to ensure proper

operation of the remotes.

1. Q: Why does my screen no longer function?

A: Make sure your wall plug has power and that the screen is properly plugged. The fuse on the

screen will also need to be checked. Please contact techsupport@elitescreens.com for the

location. The tubular motor in this screen is equipped with a thermal relay. This feature will

automatically shut off the screen in the event of the motor becoming too hot. This will prevent

the motor from overheating. If you should experience this, please let the screen’s temperature

decrease for 10-15 min. before usage.

2. Q: ow is the screen material cleaned?

A: The screen material can be cleaned with mild soap and water.

3. Q: What type of batteries do the remote controls require?

A: The IR and RF remote controls use AAA alkaline batteries.

4. Q: Can you manually pull down the screen?

A: No, manually pulling down the screen will damage the electronic motor rolling system and

void your warranty.

5. Q: How could I setup my Screens IR receiver to work with my learning remote control system

Do you have any IR codes I can use to achieve this?

A: Our IR remote controls have been evaluated and entered in to the databases of some

Universal remote control manufacturers. Please contact the manufacturer of your remote to

inquire about your remotes ability to function with ours. If they have not evaluated our remote

control then the following list of Binary codes will be used for most remote setups.

For Spectrum, VMAX2 (Plus), ome2 and CineTension 2 Series

Up: 1111 0000 0001

Stop: 1111 0000 0010

Down: 1111 0000 0100

Troubleshooting & FAQ’S

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

*Me surement dimensions re intended s reference only nd subject to ch nge without notice. Note: D t Error m y be ±1"

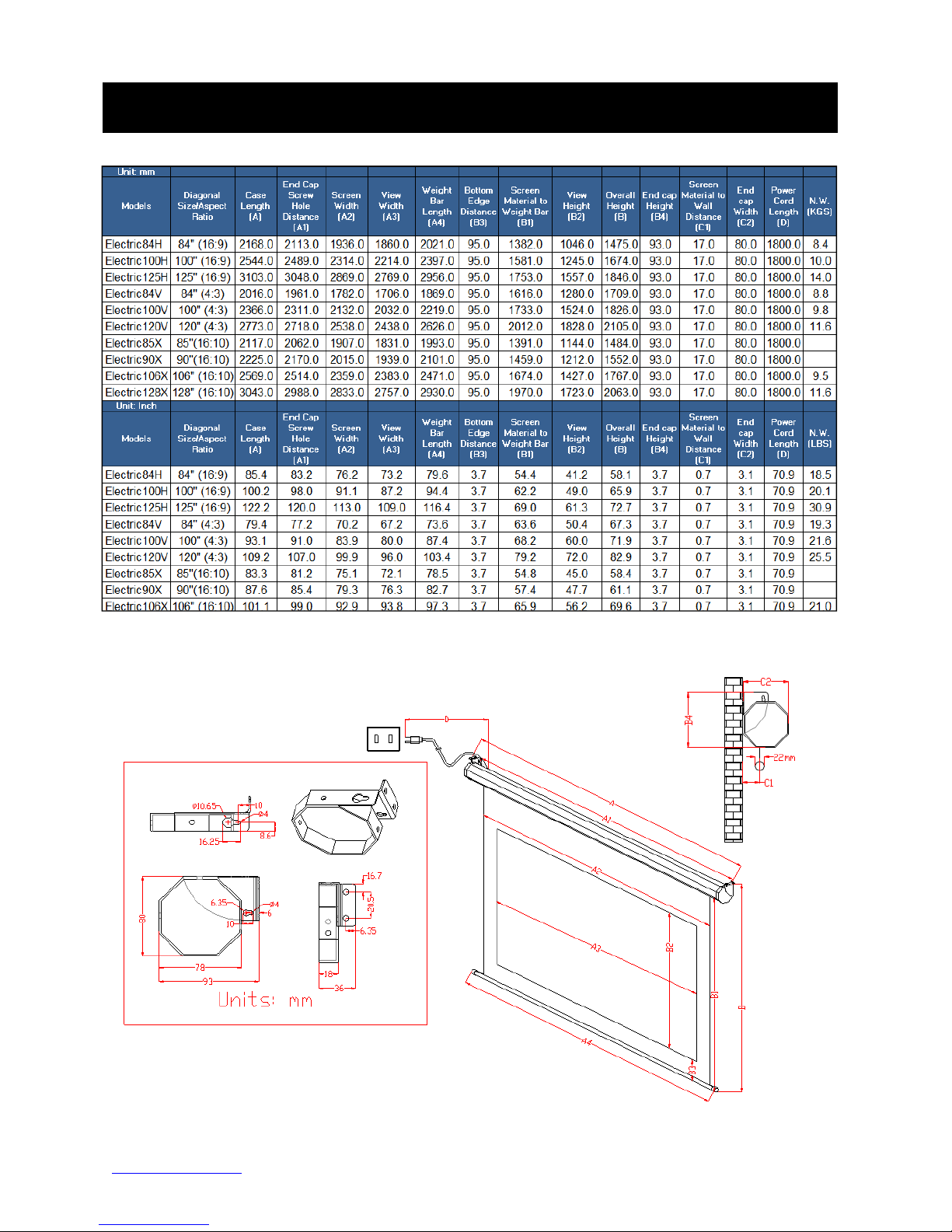

Spectrum Series Dimension Table

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

•Two (2) Year parts and labor warranty from defects in workmanship from purchase date as

follows (except for refurbished units as specified below).

•Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,

Educational, Military, & Religious) purchases of new product only.

•Refurbished Units carry a 90-DAY parts and labor warranty.

•Each party will be responsible for one way shipping during the warranty period.

•A RMA (Return Merchandise Authorization) number must be issued in order to process a

replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option

replace or repair the defective unit with a replacement *(see exceptions below) after the

defective unit or parts have been received. Once the product is received, Elite Screens will send

out a replacement *unit to the customer by ground service (subject to inventory availability).

•Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned

at your expense. The RMA Number must be included on the outside label of your shipping

box. Our warehouse is not authorized to accept returns without an RMA number on the

shipping label.

•RMA Numbers are valid for 45 days from the date issued.

•Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer

will be responsible for shipping and handling fees. If reported after 30 days of receipt, the

customer will be responsible for cost of parts and shipping & handling fees.

*A New or refurbished replacement will be send out to the customer depending on the type of

purchase (new or refurbished) and based on stock availability.

North America only U.S. and anada

For Warranty and Service requests, please submit an RMA/Service Form at:

www.elitescreens.com/warrantysupportform

Please visit this link for full Warranty information:

www.elitescreens.com/warranty

For Customer Service and Technical questions, please contact Elite Screens at:

Telephone: (877) 511-1211 service@elitescreens.com

Fax: (562) 926-8433 techsupport@elitescreens.com

REMEMBER TO REGISTER YOUR PRODUCT AT:

WWW.ELITESCREENS.COM

Warranty Policy

Rev.010312-AS

www.elitescreens.com info@elitescreens.com

US & Canada Tech Support & Warranty Claim

Please contact us at ser[email protected]om or call +1 877-511-1211 #3 or fax +1-562-926-8433

Europe Tech Support & Warranty Claim

Please contact us at ser[email protected] or call +49-(0) 40-30392958

Asia Tech Support & Warranty Claim

Please contact us at ser[email protected]om.cn or call +86-(0) 755-8461-7989

Taiwan Tech Support & Warranty Claim

Please contact us at ser[email protected]om.tw or call +866+2+8990-1999

America: Europe:

Elite Screens Inc Elite Screens Europe

16410 Manning Way

Lübecker Straße 1

Cerritos, CA 90703 USA 22087 amburg, Germany

Tel: +1-877-511-1211 Tel: +49-4030392494

Fax: +1-562-926-8433 Fax: +49-40-49219200

[email protected] [email protected]

www.elitescreens.com www.elitescreens.eu

Asia:

Elite Screens France S.A.S

Elite

Screens

China

Corp.

11, Allée William Penn

Longxi

Duimianling

Industry

Zone 92150 Surenes, rance

Longcheng

Longgang

District, Tel: +33-1-45064735

ShenZhen

GuangDong,

China ax: +33-1-45064735

Tel:

+86-(0)755-8461-7989 info.fr@elitescreens.com

ax:

+86-(0)755-8461-7669 www.elitescreens.com/fr

info@elitescreens.com.cn

www.elitescreens.com.cn

Japan:

Taiwan:

Elite Screens Japan Corp.

Elite

Screens

Taiwan

Corp.

467-2-606 Tsuruma, Machida-shi,

4 ., No. 42-1 Wuguan Rd. Wugu Township Taipei Tokyo, 194-0004 Japan

County 248, Taiwan (Wugu Industrial Park) Tel: 0120-07-0008

Taiwan (R.O.C) ax: + 81(0)42-706-9130

Tel:

+886+2+8990-1999 info@elitescreens.jp

ax:

+886+2+8990+1366 www.elitescreens.jp

info@elitescreens.com.tw

www.elitscreens.com.tw

Latin America ontact:

[email protected]

East Asia ontact:

[email protected]

India ontact:

[email protected]

Contact Information

Altri manuali per Spectrum Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Elite Screens Schermo di proiezione

Elite Screens

Elite Screens Yard Master Electric Guida

Elite Screens

Elite Screens Spectrum Series Manuale utente

Elite Screens

Elite Screens IWB85SW2a Manuale utente

Elite Screens

Elite Screens AR2 Series Manuale utente

Elite Screens

Elite Screens Elite Vmax Series Manuale utente

Elite Screens

Elite Screens Saker Tab-Tension Series Manuale utente

Elite Screens

Elite Screens AEON series Manuale utente

Elite Screens

Elite Screens Edge Frame Manuale utente

Elite Screens

Elite Screens Elite Home 2 Series Manuale utente

Elite Screens

Elite Screens Home100IWH2-A Manuale utente

Elite Screens

Elite Screens VMAX113XWS Manuale utente

Elite Screens

Elite Screens ezFrame Plus Series Manuale utente

Elite Screens

Elite Screens Starling Series Manuale utente

Elite Screens

Elite Screens Starling Tab-Tension 2 Series Manuale utente

Elite Screens

Elite Screens Insta-DE 2 Series Manuale utente

Elite Screens

Elite Screens EDGE FREE Aeon AcousticPro UHD Series Manuale utente

Elite Screens

Elite Screens Evanesce B Series Manuale utente

Elite Screens

Elite Screens TE100HC2 Manuale utente

Elite Screens

Elite Screens B SERIES Manuale di istruzioni

Elite Screens

Elite Screens Insta-RP Screen Series Manuale utente

Elite Screens

Elite Screens Evanesce B Series Manuale utente

Elite Screens

Elite Screens Saker Series Manuale utente

Elite Screens

Elite Screens YARD MASTER MANUAL SERIES Manuale utente

Elite Screens

Elite Screens TE100HC2 Manuale

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale

SI Dynamic 2 XL Manuale utente

Draper

Draper Nocturne+ E Istruzioni per l'installazione
