Kestrel Stage Series

Section 1: Screen Design .

1.1 What is it?

The Kestrel Stage Series is a large venue portable, free standing electric projector screen. It is ideal for Rental &

Staging or other commercial (Pro AV) applications where a mobile projection screen would be required.

1.2 How does it work?

It is integrated into a sturdy wheeled stage case that has handles for easy transport and set-up. As an added

value, a matching roadie flight-case with detachable velvet skirt is included to complete the arrangement. The

flight-case combines with the cased-screen and skirt to create a professional-grade mobile projection display.

Models also available without the ATA Stage Travel Case.

Section 2: Product Features .

2.1 Characteristics

Screen Material

•GREENGUARD® Certified MaxWhite® Fiberglass (FG) with 1.1 Gain

•180° wide viewing angle

•Active 3D, 4K Ultra HD, and HDR ready

•Not compatible with Ultra/Short-throw Projectors

•Border masking frames the projection surface

•Material has black-backing

•Available in the following diagonal sizes:

•110" and 131" in 4:3 format

•100", 120" and 150" in 16:9 format

•125" and 154" in 16:10 format

Design and Installation

•Rises and lowers by our motorized precision "scissor-backed" cross spring risers

•Integrated stage case

•Wheeled-design includes handles on each side for easy transport and handling

•Black drape (skirt) included for enhanced aesthetics

•Detachable wheeled flight-case with internal storage shelves

•Screen assembly attaches to the flight-case halves when set up for video mode

•Wheel locking mechanisms

Control System

•In-line UP/STOP/DOWN control switch

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

•Includes IR and RF remotes for long distance control

•Standard three prong power connection

Quality and Reliability

•Tubular motor allows swift operation with a superior weight tolerance and operational lifespan

•Flame Resistant: Complies with NFPA 701 Standards

•GREENGUARD® and GREENGUARD® Gold Certified

•5-year manufacturer's warranty

2.2 Certifications

2.3 Model Numbers

Model Number Nominal

Diagonal

Aspect

Ratio

Viewing

Height

(in)

Viewing

Width

(in)

Screen

Material Gain Case

Color

N.W.

(lbs)

G.W.

(lbs)

Packaging

Dimensions

(LxWxH)

FE110V-TC 110" 4:3 65.3 87.2 MaxWhite® FG 1.1 Black/Silver 141.8 178.8 97.2"11.0"x7.9"

FE131V-TC 131" 4:3 78.5 104.6 MaxWhite® FG 1.1 Black/Silver 174.7 209.3 164.1"x12.6"x5.9"

FE100H-TC 100" 16:9 49.0 87.1 MaxWhite® FG 1.1 Black/Silver 152.8 181.5 97.6"11.0"x7.9"

FE120H-TC 120" 16:9 58.8 104.6 MaxWhite® FG 1.1 Black/Silver 166.9 207.7 118.5"x12.6"x5.9"

FE150H-TC 150" 16:9 73.5 130.7 MaxWhite® FG 1.1 Black/Silver 188.1 230.5 142.5"11.0"x7.9"

FE125X-TC 125" 16:10 66.0 106.0 MaxWhite® FG 1.1 Black/Silver 163.8 202.6 118.1"11.0"x7.9"

FE154X-TC 154" 16:10 81.6 130.6 MaxWhite® FG 1.1 Black/Silver 190.3 231.6 142.5"11.0"x7.9"

Section 3: Screen Material Specifications .

3.1 Characteristics

MaxWhite® Fiberglass (FG) is fiberglass backed for added

stiffness which provides the flattest possible non-tensioned

screen surface with universal applications. This material

provides wide viewing uniform diffusion while giving precise

definition, color reproduction and black & white contrast. The

screen surface has a black-backing to eliminate light

penetration, is mildew resistant and washable with mild soap

and water.

* Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable for

commercial and residential presentations.

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

Features& Benefits

•Multi-layer weave with textured surface

•Fiberglass backing with black backing

•Gain: 1.1

•View Angle: 180° (90° ± LR)

•Not compatible with Ultra/Short-throw Projectors

•Mildew Resistant

•Active 3D, 4K Ultra HD, and HDR ready

•Surface can be cleaned with mild soap and water

•Flame Retardant: Complies with NFPA 701 Standards

•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

Specifications

Thickness

0.36 mm (0.014")

Weight 350 g/m²

Maximum Height 3.2 M (10 ft)

On-axis Gain 1.0

Half-Gain Angle Does not reach half gain

3.2 Gain and Viewing Angle

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

Section 4: Execution .

4.1 Product Description

The Kestrel Stage Series is a portable electric floor rising front projection screen that is ideal for event

applications used in Churches, hotels, schools, or other like venues. It includes two travel cases (one for the

screen and one split-two-sided storage cart). Complete the set up by attaching the complimentary drape kit

to give your presentation the finishing touch.

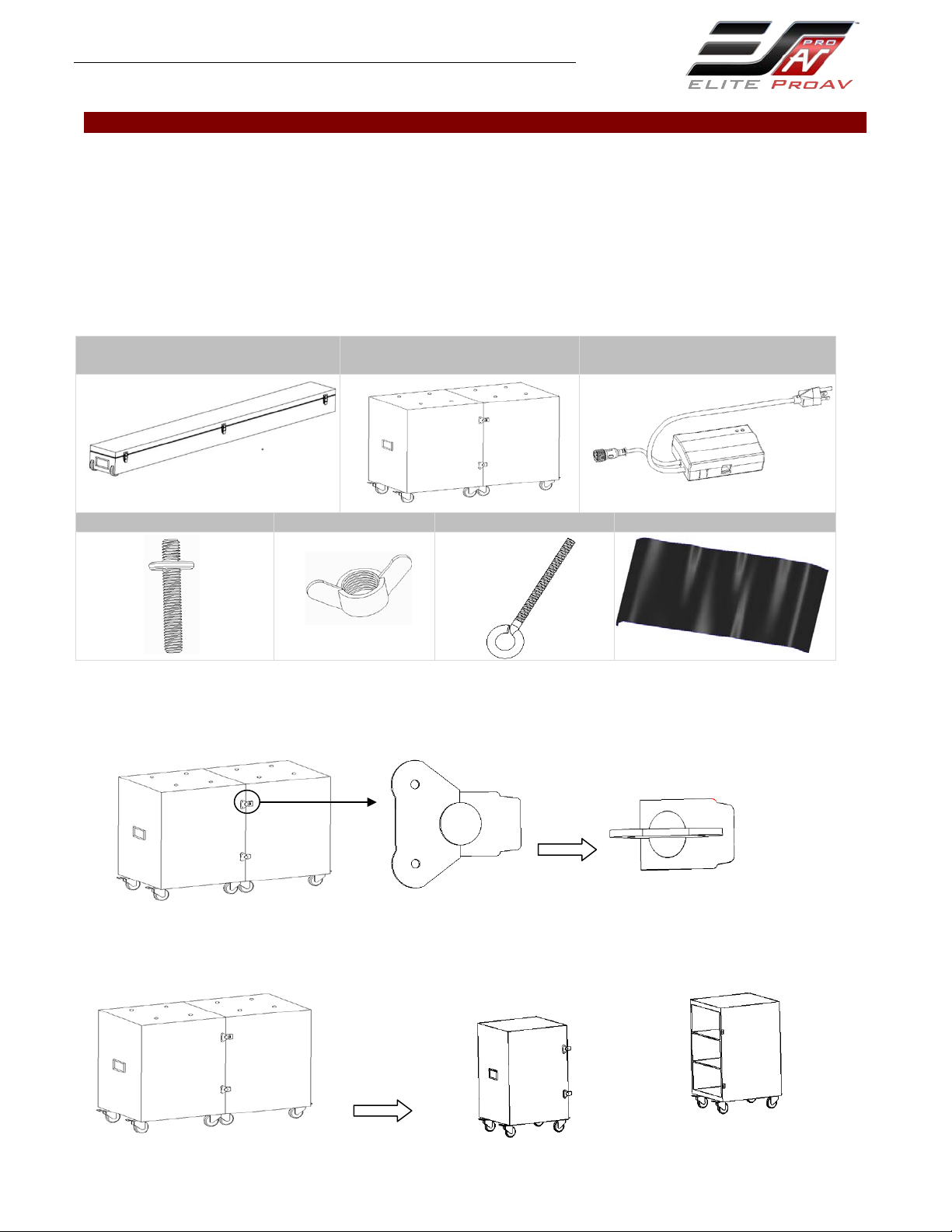

4.2 Product Parts and Hardware

1. Kestrel Stage Motorized screen

w/ travel case (main) X 1

2. Storage Cart X 1

3. Remote Control Wall Box X 1

4. Double sided bolt X 4

5. Butterfly Nut X 4

6. Ring-bolt X 1

7. Curtain fabric X 1

4.3 Product Assembly and Operation

1. Unlatch: Lift the butterfly locks and rotate them 90 degrees. Then, split the case open by pulling both sides

apart.

Note: Distance the two parts of the storage-box (item 2) to the corresponding length of the Kestrel’s case. Then

proceed to step 2.

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

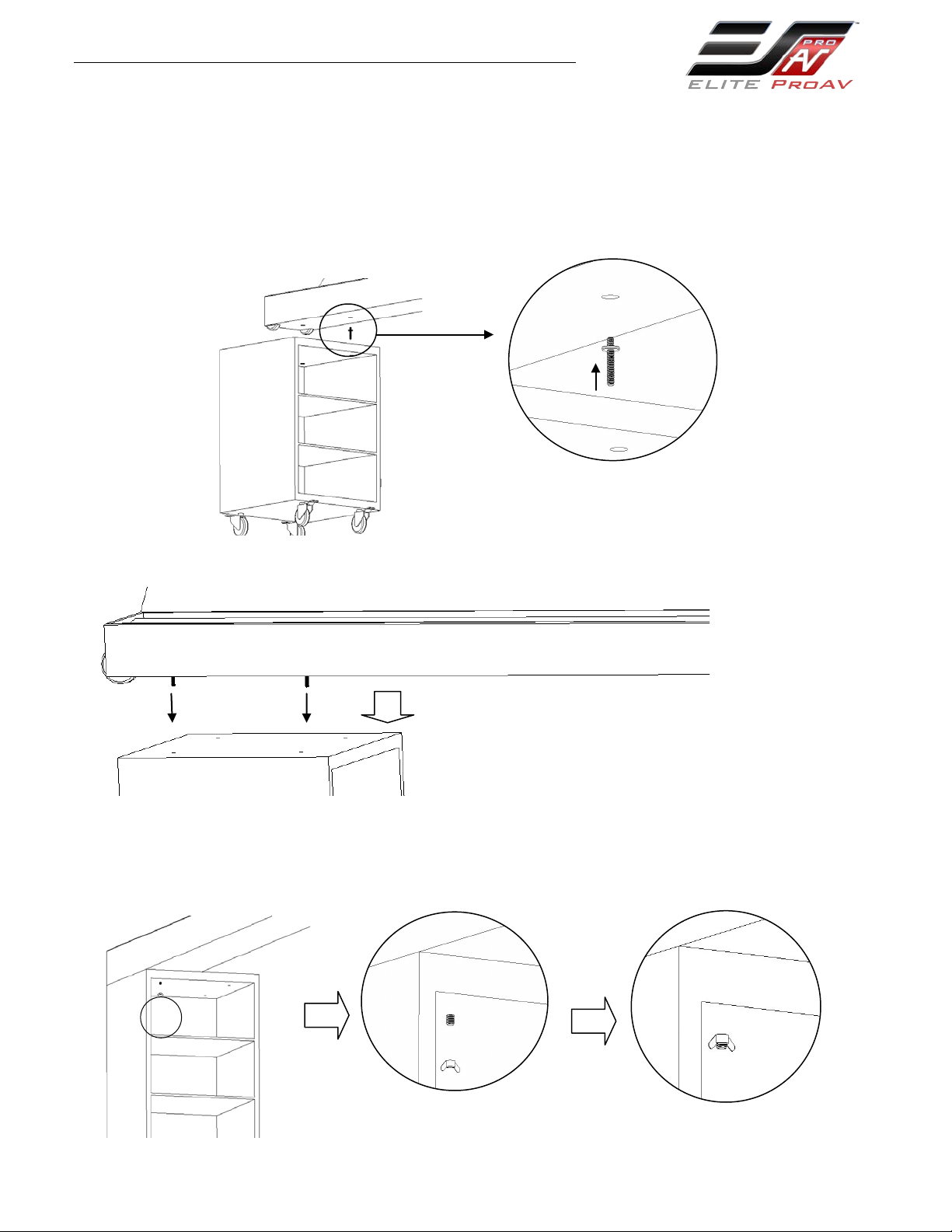

2. Insert the shorter side of the double sided bolts (Item 4) into the bottom of the motorized screen’s carry

case as shown in the figure below. There should be two bolts (item 4) inserted into each bottom side of the

travel case of the motorized screen’s main case. Be careful to not over-tighten the bolt to avoid damaging

the threading in the screen’s carry case.

Safety precaution: We recommend that two people lift and mount the screen onto the cart.

3. Carefully place the main screen’s carry case on top ( facing the front) of the two separate carts by inserting

the longer side of the bolts in to the top front holes of the storage carts (item 2) as shown below.

4. Using the provided butterfly nuts, tighten the bolts to secure the screen’s carry case to the carts as shown in

the figures below. Be careful to not over-tighten the butterfly nuts to avoid damage to the threading in the

screen’s carry case.

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

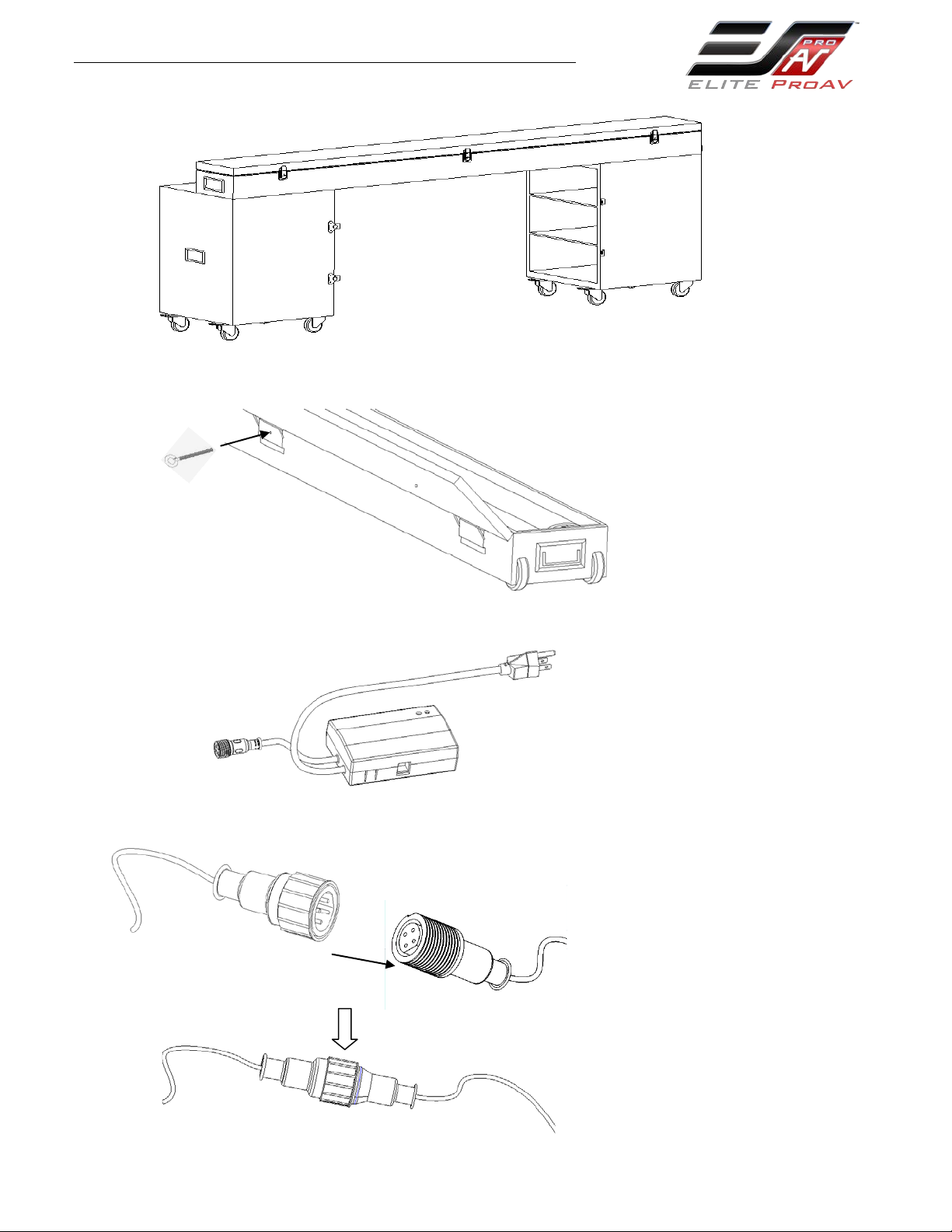

5. Insert the ring bolt into the indicated hole on the back of the main travel case to help avoid damage to the

cover hinges.

6. Connect the power cable and control box (item3)

Connect together

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

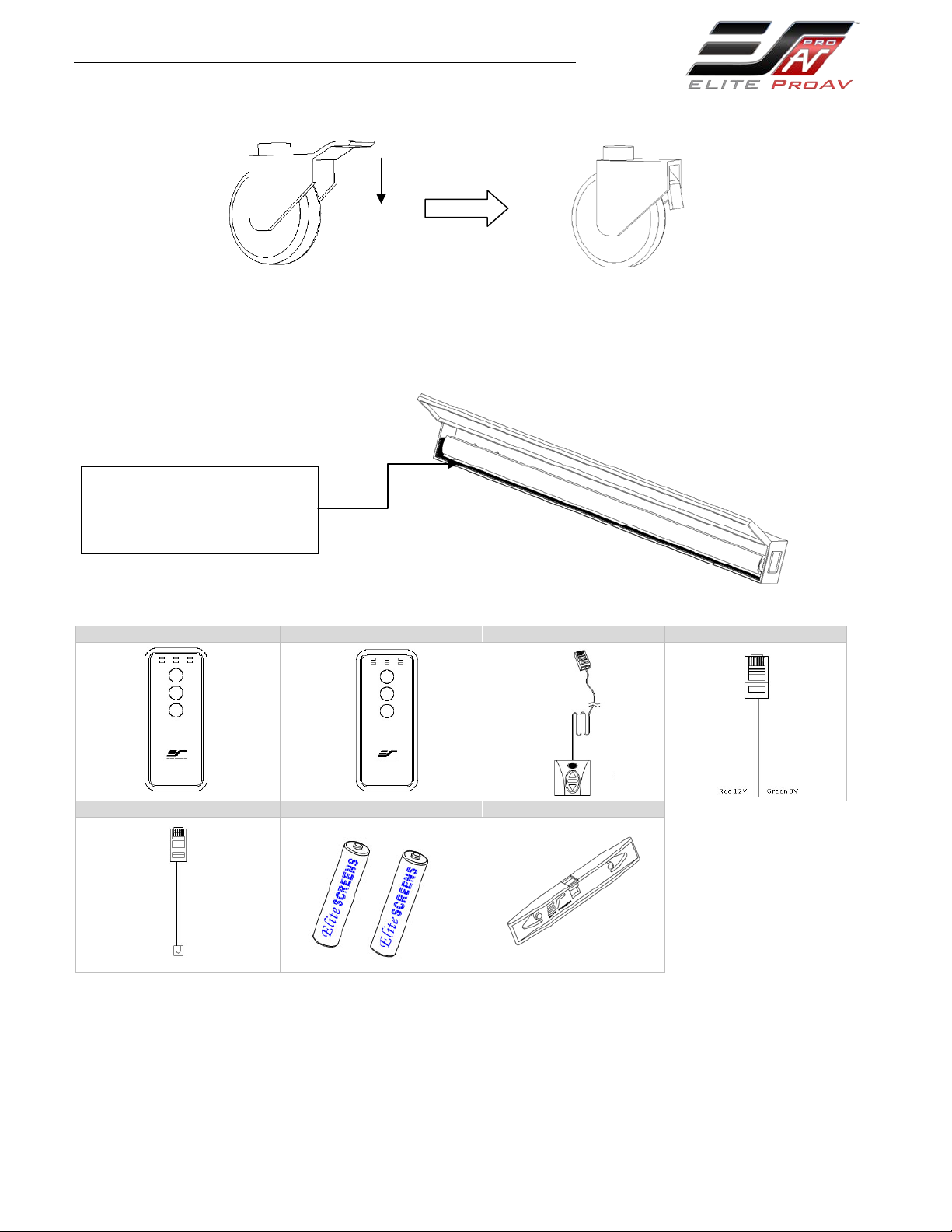

7. Lock / unlock the wheel:

Push latch down to lock

8. Affix the top edge (Velcro) of the curtain to the inner edges (front, left and right side edges) of the storage

case.

Note: The curtain will stick to the Velcro inside of the case.

4.4 Accessories

A. IR Remote

B. RF Remote

C. 3-way Wall Switch

D. 5-12 volt trigger cable

E. IR extended “eye” receiver

F. AAA batteries

G. Bubble leveler

4.5 Screen Control System

Electric Current information: The screen operates on AC110V @ 60 Hz

1. Plug the screen’s power cord into a power outlet.

2. Once the screen has power, you’ll be able to control it using any of the 4 methods described below.

The shaded area in this figure

indicates the location of the

Velcro inside of the box.

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

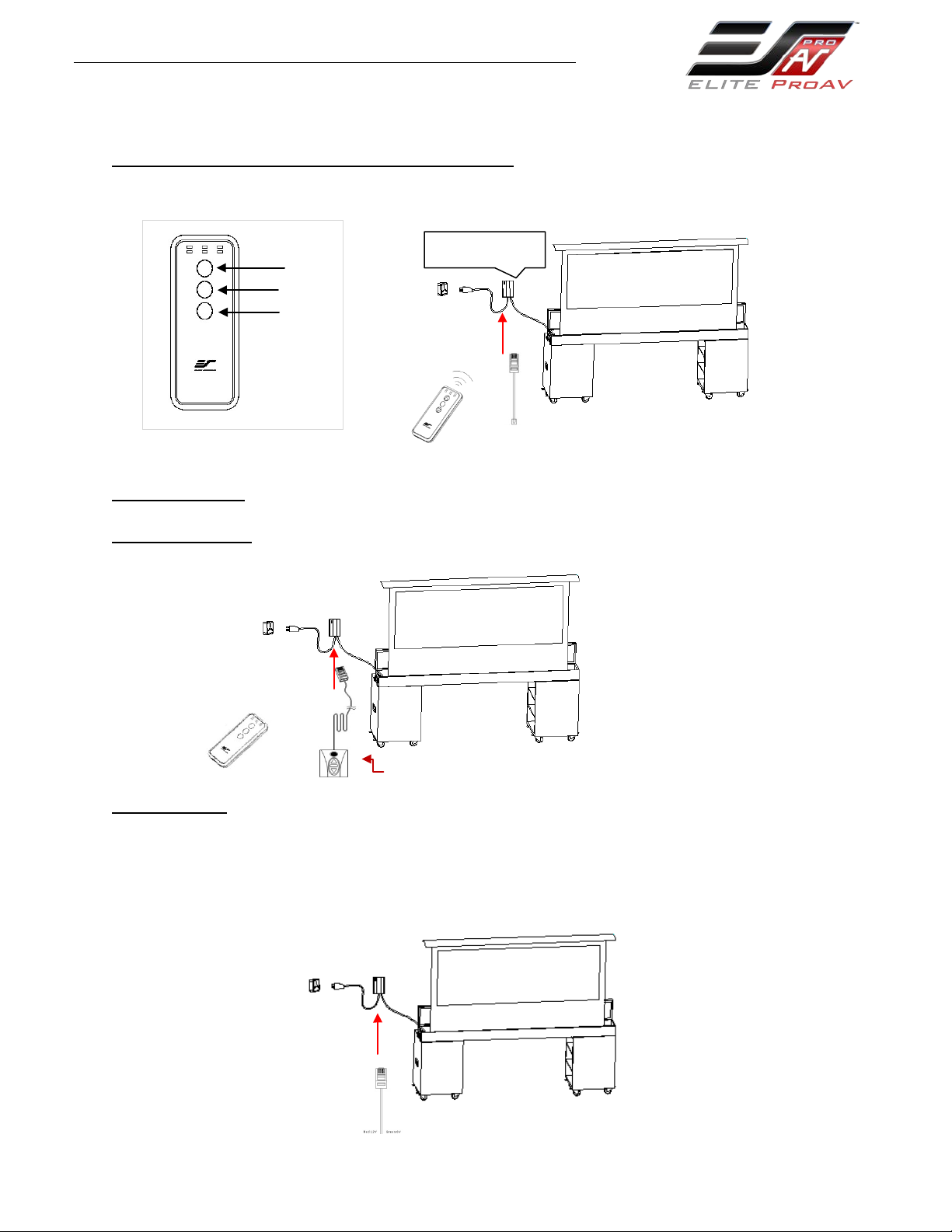

4 Ways to Control your Kestrel Stage Series

1. IR remote control (Item A) and IR “Eye” Receiver (Item E): The IR remote control (fig.1) requires line-of-sight

to the IR sensor. The IR “eye” receiver must be connected to the Remote Control Wall box in order for the IR

remote control to function. The IR “Eye” Receiver plugs directly into the screen’s RJ-45 input (fig.2).

2. RF Remote Control (Item B): The radio waves eliminate the need for a direct line of sight with a range of 100

feet.

3. 3-Way Wall Switch (Item C, Fig 3): The 3-way wall switch manually controls the screens up/stop/down

button by connecting directly into the screen’s RJ-45 port.

4. 5-12 volt trigger (Item D, Fig 4): The built-in 5-12V trigger input allows your screen to synchronize its drop &

rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract

when the projector powers down. The 5-12 volt RJ45 cable connects to your projector’s trigger output via a

separate cable that may or may not be provided by the manufacturer of the projector. The trigger feature

will not work without an output cable from the projector, but it can be tested by connecting the Red (+) and

Green (-) cable to a 9-volt battery.

STOP

DOWN

Fig.1

IR/RF remote

Fig.2

Control box

3 Way Wall Switch (does not have IR sensor)

Fig.3

Fig.4

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

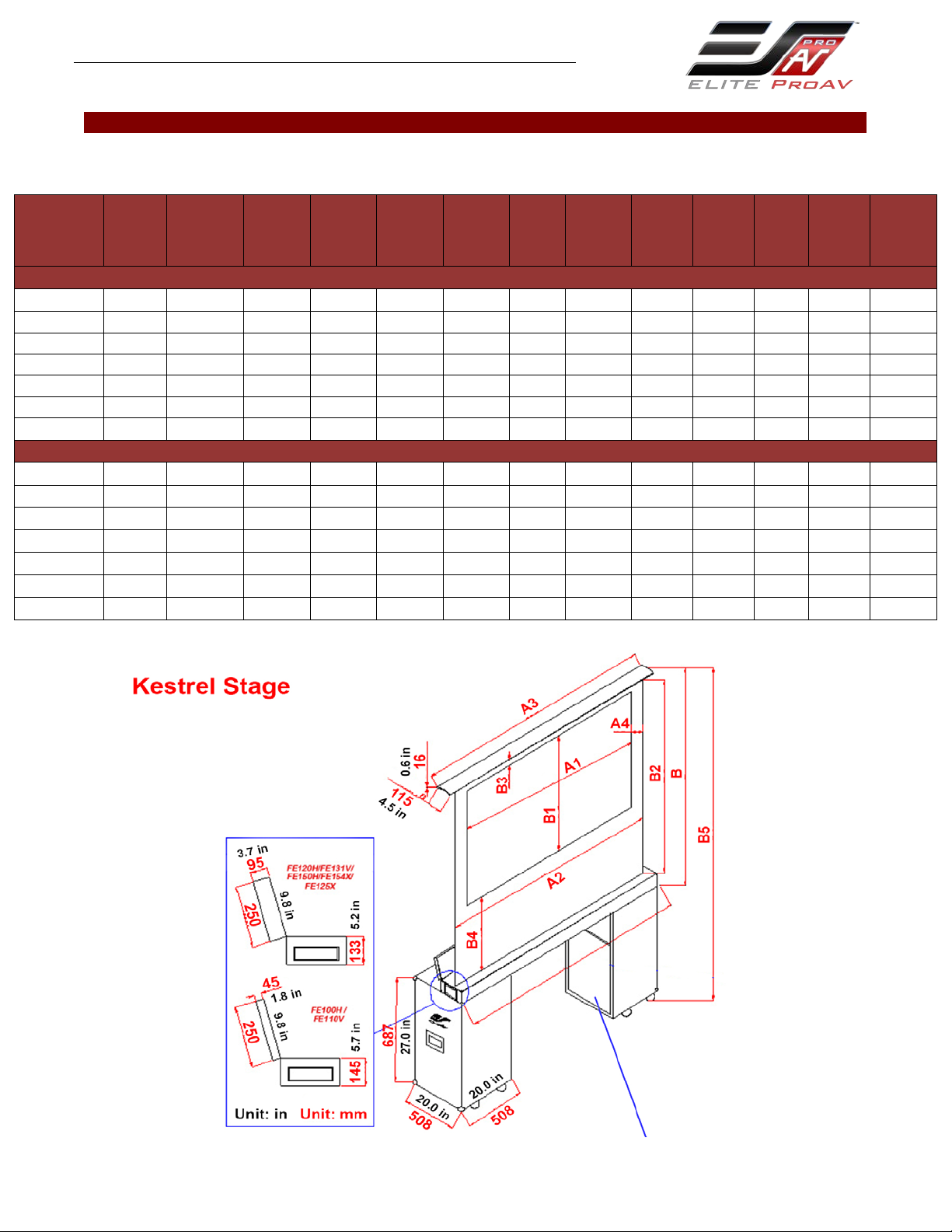

Section 5: Product Specifications .

5.1 Dimensions

Model

Number

Diag.

Size

Aspect

Ratio (A) (A1) (A2) (A3) (A4) (B) (B1) (B2) (B3) (B4) (B5)

Unit: Inches

FE110V-TC

110"

4:3

94.7

87.2

91.1

92.5

2.0

91.3

65.3

86.9

2.4

19.3

122.9

FE131V-TC

131"

4:3

113.6

104.6

108.5

110.5

2.0

90.5

78.5

85.5

2.4

4.7

122.1

FE100H-TC

100"

16:9

94.9

87.1

91.1

92.0

2.0

86.6

49.0

80.3

2.4

28.9

118.2

FE120H-TC 120" 16:9 113.5 104.6 108.5 111.2 2.0 86.6 58.8 80.7 2.4 19.5 118.1

FE150H-TC

150"

16:9

139.8

130.7

134.7

137.2

2.0

101.0

73.5

95.1

2.4

19.2

132.5

FE125X-TC

125"

16:10

115.0

106.0

109.9

111.2

2.0

92.7

66.0

87.8

2.4

19.4

124.3

FE154X-TC

154"

16:10

139.8

130.6

134.5

137.2

2.0

103.1

81.6

98.8

2.4

14.8

135.5

Unit: mm

FE110V-TC

110"

4:3

3352

3087

3225

3275

3232

2312

3076

683

4351

FE131V-TC

131"

4:3

4021

3703

3841

3912

3204

2779

3027

166

4322

FE100H-TC

100"

16:9

3359

3083

3225

3257

3066

1735

2843

1023

4184

FE120H-TC

120"

16:9

4018

3703

3841

3936

3066

2082

2857

690

4181

FE150H-TC 150" 16:9 4948 4628 4768 4857 70 3575 2603 3366 84 679 4691

FE125X-TC

125"

16:10

4071

3752

3890

3936

3282

2336

3108

687

4400

FE154X-TC 154" 16:10 4948 4623 4762 4857 70 3651 2889 3498 84 525 4797

5.2 Drawings

PRODUCT WHITE PAPER

http://www.eliteproav.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

5.3 Pictures

Kestrel Stage Series Angled Front View

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali EliteProAV Schermo di proiezione

EliteProAV

EliteProAV Yard Master Pro 2 Series Manuale utente

EliteProAV

EliteProAV ITE139XW2-E8 Manuale utente

EliteProAV

EliteProAV EDGE FREE Aeon ALR Series Manuale utente

EliteProAV

EliteProAV T153UWS1-D Manuale utente

EliteProAV

EliteProAV Pro Frame Acoustic Series Manuale utente

EliteProAV

EliteProAV Pro Frame Series Manuale utente

EliteProAV

EliteProAV WhiteBoardScreen TE Series Manuale utente

EliteProAV

EliteProAV AV Manual B Series Manuale di istruzioni

EliteProAV

EliteProAV Tab-Tension Pro Series Manuale utente

EliteProAV

EliteProAV Pro Frame Thin Series Manuale utente

EliteProAV

EliteProAV CineGrey 5D Manuale utente

EliteProAV

EliteProAV Presenter Pro CLR 2 Manuale utente

EliteProAV

EliteProAV Spectrum2 Series Manuale utente

EliteProAV

EliteProAV Planate Tab-Tension Series Manuale utente

EliteProAV

EliteProAV Presenter Pro DarkUST 2 Series Manuale utente

EliteProAV

EliteProAV EDGE FREE Pro Frame Thin UST Series Manuale utente

EliteProAV

EliteProAV Saker Tab-Tension CineGrey 5D Series Manuale utente

EliteProAV

EliteProAV CLR Series Manuale utente

EliteProAV

EliteProAV Manual Grande 2 Series Manuale utente

EliteProAV

EliteProAV TensionPro TP200 XHW2 Manuale utente

EliteProAV

EliteProAV Planate Tab-Tension Series Manuale utente

EliteProAV

EliteProAV Saker Series Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente
