Elmo TT-12 Guida all'installazione

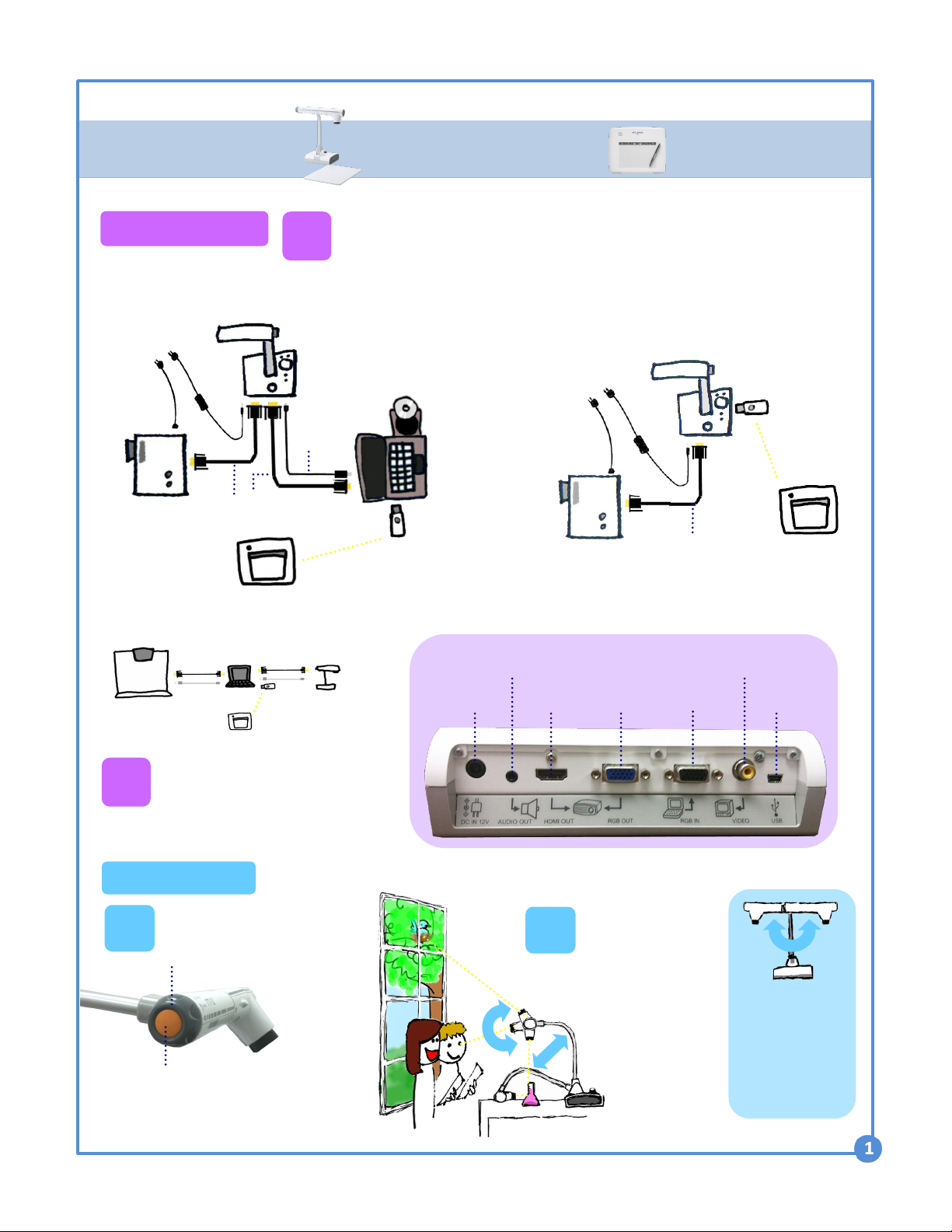

QUICK TRAINING GUIDE:

TT-12 + CRA-1 Wireless Tablet

Setting up 1 Configure your classroom. See configurations below.

2 Insert batteries into

CRA-1 and pen. Charge

CRA-1 via USB cable.

Wireless

adapter

Interactive Document Camera

Configuration

AC plugs

RGB/HDMI cable

USB

RGB/HDMI cables

Wireless adapter

Standard Configuration

Image Mate

Accent software

AC plugs

Interactive Whiteboard Configuration

RGB OUT

To projector

RGB IN

To computer

USB

To computer

Plug-in for

AC adaptor

VIDEO OUT

To TV monitor

Rear panel

HDMI OUT

To projector

To speaker

Rotate

Rotate the camera

column close to a

small object or turn

the camera head

horizontally to view

students giving a

presentation,

speech, etc.

Rotate the arm

180° and posi-

tion camera head

downward for left

-handed users.

Zoom

Press the Auto-focus button to

focus after zooming.

Twist the zoom knob

to zoom in/out

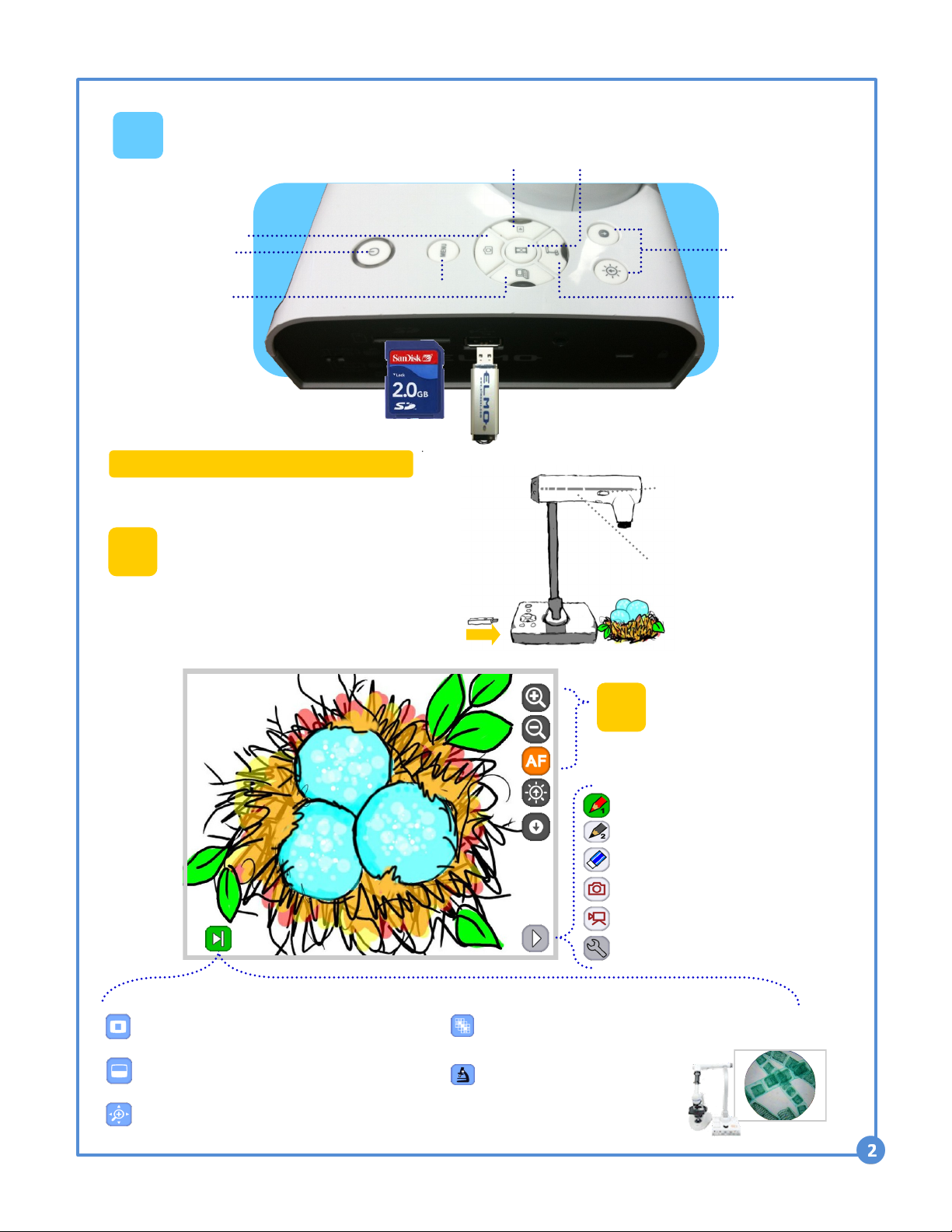

TT-12 Basics

Power on TT-12 and

CRA-1 Wireless Tablet.

Insert CRA-1 Wireless

Adapter into TT-12.

LED light

Mic records audio when

creating video. (See step 3)

2 Zoom & Focus

Use the Pen and Tablet to

tap on icons to zoom in/out

and focus the image.

Use the Zoom and Scroll to instantly zoom in

then drag the pen to pan around the image.

Enhance your presentation

Drag the Mask to reveal certain areas.

Drag the Highlight box to focus attention on key

areas (hover over border to resize highlight area).

Capture students’ curiosity by applying the Mosaic

feature, letting them predict the displayed object.

Use Microscope mode with the

Optional Microscope Attach-

ment to display slide images for

the entire class to see at once.

Refer to Instruction Manual CD for more functions.

Annotate

Tap Next menu to select

Pen1/Pen2. Draw on the

Tablet to see annotation

on displayed image.

Power

Pause the camera image. Press again to unfreeze.

Adjust

brightness

View computer

desktop

Capture an image

and save to SD card/

USB flash drive

View images/videos from SD card/USB flash drive

View document

camera image

Capture an image and save to SD card/USB flash drive

Add the CRA-1 to control the TT-12 remotely and annotate

Interactive Document Camera

Take pictures of handouts, worksheets, student work, etc. and save them on

the SD card to show quickly and easily during class. With an SD card, you

can save images without being connected to a computer.

Document Camera Mode

View live image

Whiteboard Mode

Use with computer and Image Mate

Accent Software. (See back page)

W r i t i n g

a r e a

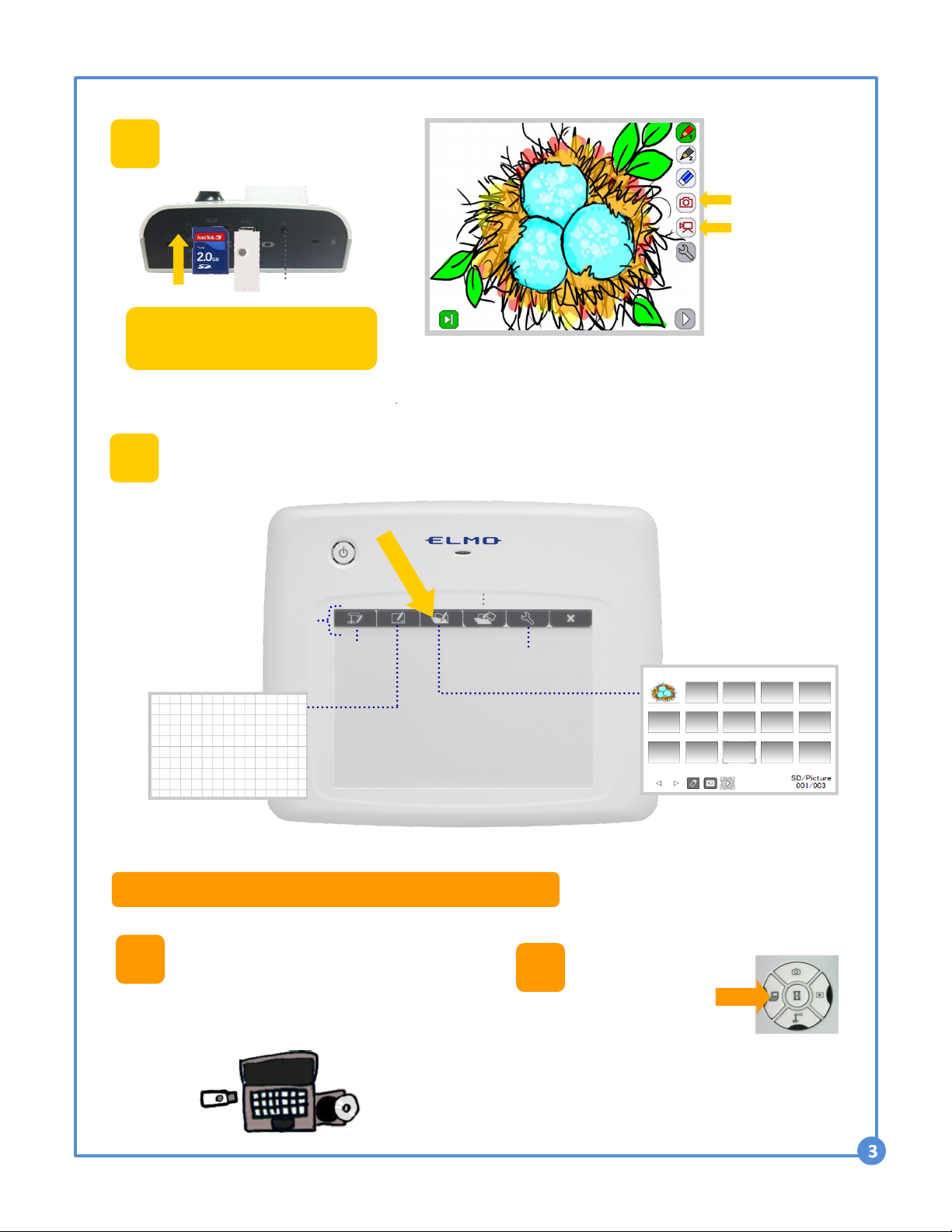

Recall and Review

Settings

Recall saved

images and videos

Insert SD Card, Capture

and Image, Record video

Tap on Picture

icon to capture

image.

Tap to start video

recording. Tap

again to end

recording.

Output Image switch

If the display appears black, check if

the switch is at the proper setting.

Resolution

Quick keys

Tap with pen

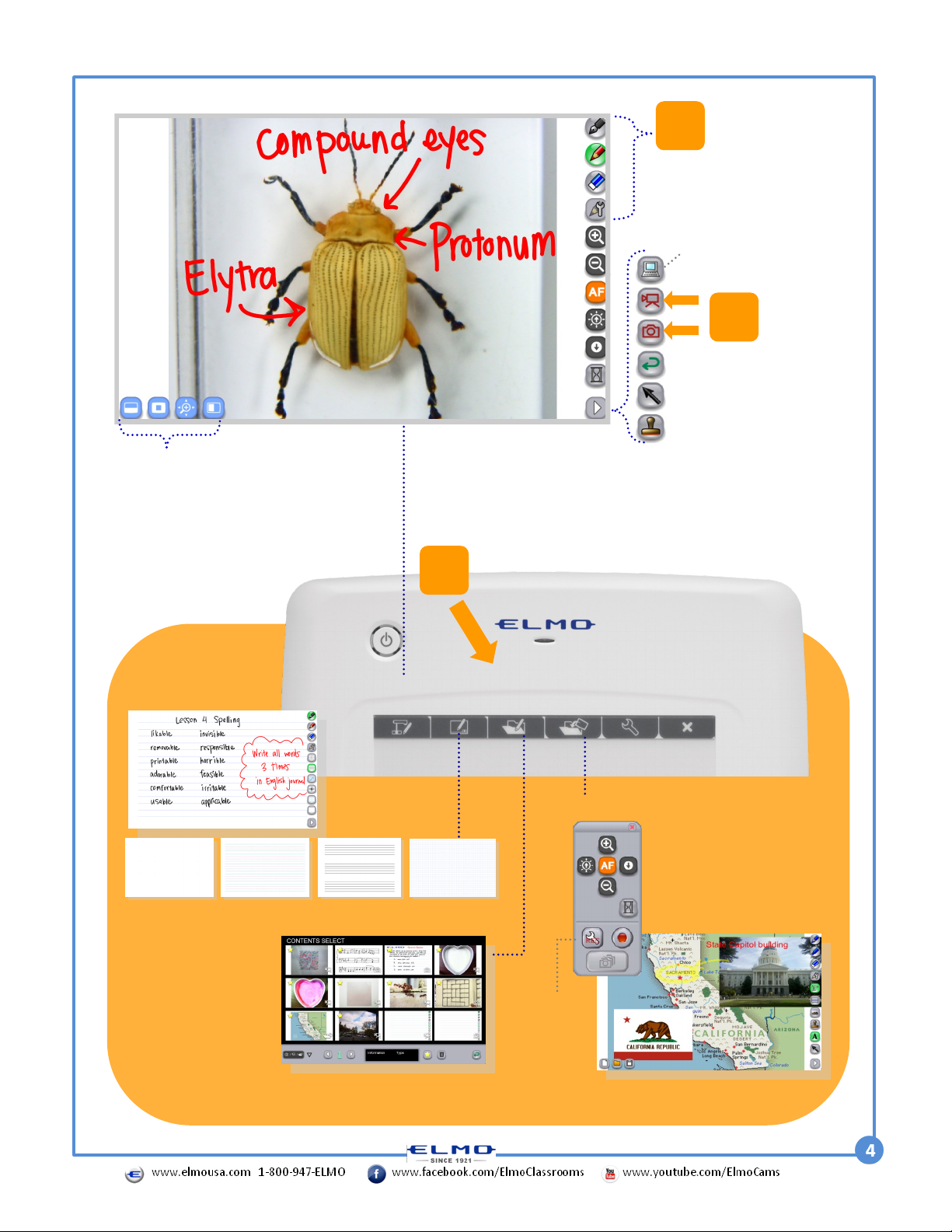

CRA-1 Wireless Tablet + Image Mate Accent

1 Power on TT-12 and CRA-1

Wireless Tablet. Insert Wireless

Adapter into computer.

Ensure Image Mate Accent has been installed.

2 On the TT-12,

switch to

Computer

Mode.

Open Image

Mate Accent

software.

Presentation Tools. Use the Mask,

Highlight, Scroll and Split Screen

features to enhance your lesson.

Double tap to view

pictures, play videos

and manipulate

teaching materials.

Use the Star/Favorite

icon to keep frequently

used files on page 1.

Recall and Review

Create your own teaching materials

Import images from your

computer to create lesson

backgrounds. Add text

and stamps then save for

future use.

Document

Camera Mode

Teaching

Material

Contents Settings

Close Image

Mate Accent

Whiteboard

Mode

3 Annotate

and Erase

Erase a single

annotation by

pressing pen button.

Desktop mode allows your

Tablet to control the desktop

as a wireless mouse.

Next Menu

Create

Time-lapse

videos and

Animations

Whiteboard Writing paper

Recall saved images and videos

GridMusic Staff

Lined paper

Teaching

Material

Creation

Capture an

image and

record video
