USER MANUAL

Elo Touch Solutions

1537L Touchmonitors

SW600877 Rev D

User Manual: 1537L

SW600877 Rev D, Page 2 of 29

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, including, but not limited to, electronic,

magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afffiliates

(collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically

disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of Elo to

notify any person of such revisions or changes.

Trademark Acknowledgments

AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch,

SecureTouch, TouchTools and VuPoint are trademarks of Elo and itsAffiliates. Windows is a trademark of

Microsoft Corporation.

User Manual: 1537L

SW600877 Rev D, Page 3 of 29

Table of Contents

Chapter 1: Introduction..............................................................................4

Chapter 2: Installation................................................................................5

Chapter 3: Operation................................................................................11

Chapter 4: Technical Support .................................................................19

Chapter 5: Safety & Maintenance ...........................................................21

Chapter 6: Regulatory Information.........................................................23

Chapter 7: Warranty Information............................................................28

User Manual: 1537L

SW600877 Rev D, Page 4 of 29

Chapter 1: Introduction

Product Description

Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch

products with the latest developments in touchscreen technology and display design. This

combination of features ensures a product with stable, drift-free operation, consistent reliability

and durability, backed by a 3-year standard warranty.

This LED monitor incorporates a 15” color active matrix thin-film-transistor (TFT) to provide

superior display performance. A maximum resolution of XGA 1024 x 768 is ideal for displaying

graphics and images. Other outstanding features that enhance this LED monitor’s performance

are Plug & Play compatibility, and OSD (On Screen Display) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit and prevent risks to user safety. See the Safety & Maintenance

chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

User Manual: 1537L

SW600877 Rev D, Page 5 of 29

Chapter 2: Installation

Unpacking the Touchmonitor

Open the carton and verify that the following items are present:

Touchmonitor

User Manuals CD

Quick Install Guide

VGA cable

USB cable

Serial cable

Mounting brackets

Connector Panel & Interfaces

Note: Before connecting the cables to your touchmonitor and computer, be sure that the

computer and touchmonitor are turned off.

User Manual: 1537L

SW600877 Rev D, Page 6 of 29

Touchmonitor Connections

1. Connect one end of the power adapter to the monitor and the other end to the connector of

the power cord.

2. Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB

cable (but not both) to the rear side of the computer and the other end to the LCD monitor.

Tighten by turning the two thumb screws clockwise to ensure proper grounding (USB cable

does not have thumb screws).

3. Connect one end of the video cable to the rear side of computer and the other to the LCD

monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4. Press the power button on the rear panel to turn the monitor power on.

5. Connect one end of OSD remote control key (optional) to the monitor.

Installing the Touch Technology Software Drivers

Some software installation is required for your touchmonitor to work with your computer.

The drivers are available on the Elo Touch Solutions website.

Visit www.elotouch.com for:

The most up-to-date touch driver versions

Additional touch driver information

Detailed touch driver installation guides

Touch drivers for other operating systems

User Manual: 1537L

SW600877 Rev D, Page 7 of 29

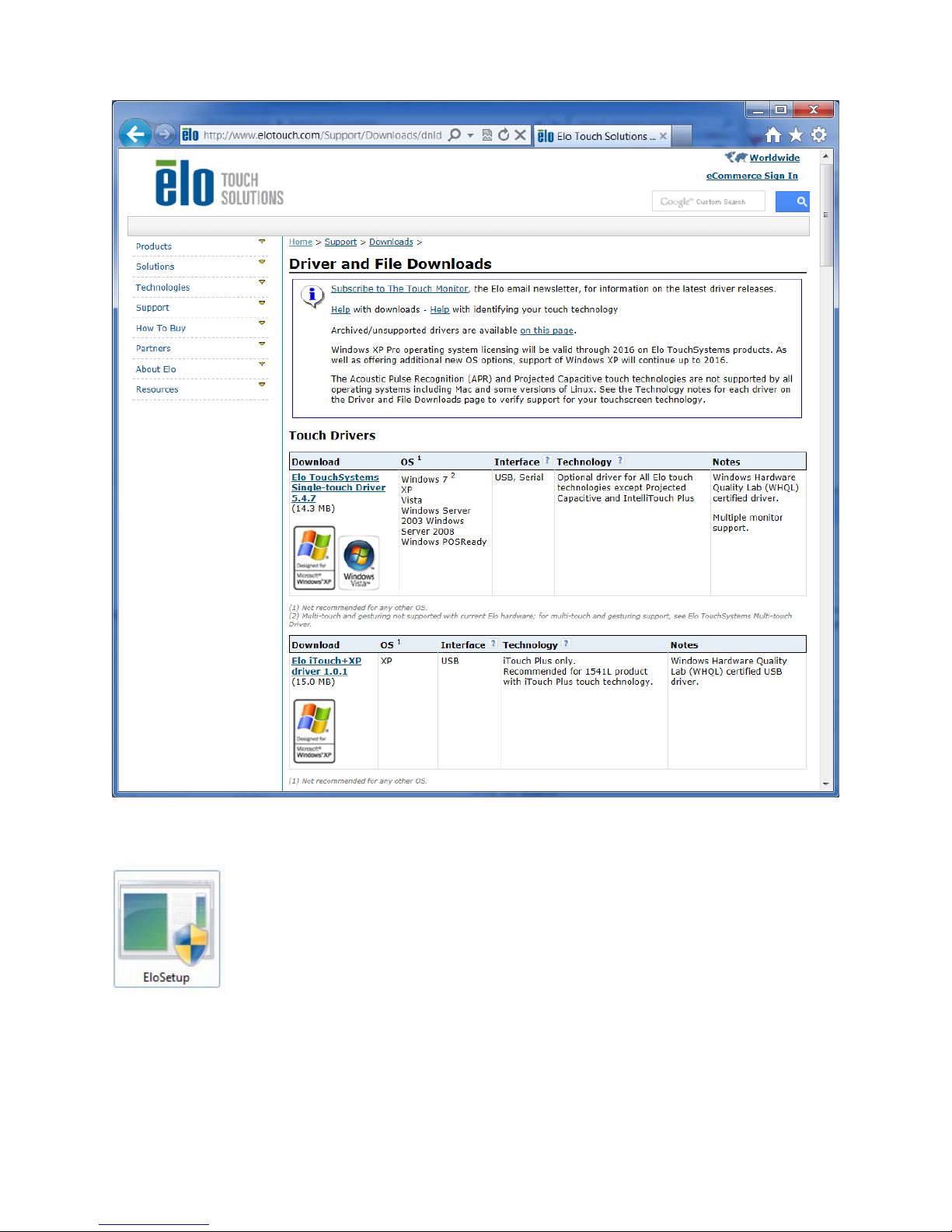

Select the applicable driver from the Elo Touch Solutions website and download:

For Windows 7 installations, double-click on EloSetup Installer

User Manual: 1537L

SW600877 Rev D, Page 8 of 29

After accepting the end-user license agreement, the system will initialize to setup installation of

drivers.

To complete setup, reboot system by clicking on “Reboot Now” button. Click on “One More

Minute” if more time is needed with increments of 1 minute.

Note: System will automatically reboot when “Time left” counter reaches “0”.

User Manual: 1537L

SW600877 Rev D, Page 9 of 29

For Windows XP installations, double-click on the icon from the desktop

Click on “Unzip” button to unzip files.

User Manual: 1537L

SW600877 Rev D, Page 10 of 29

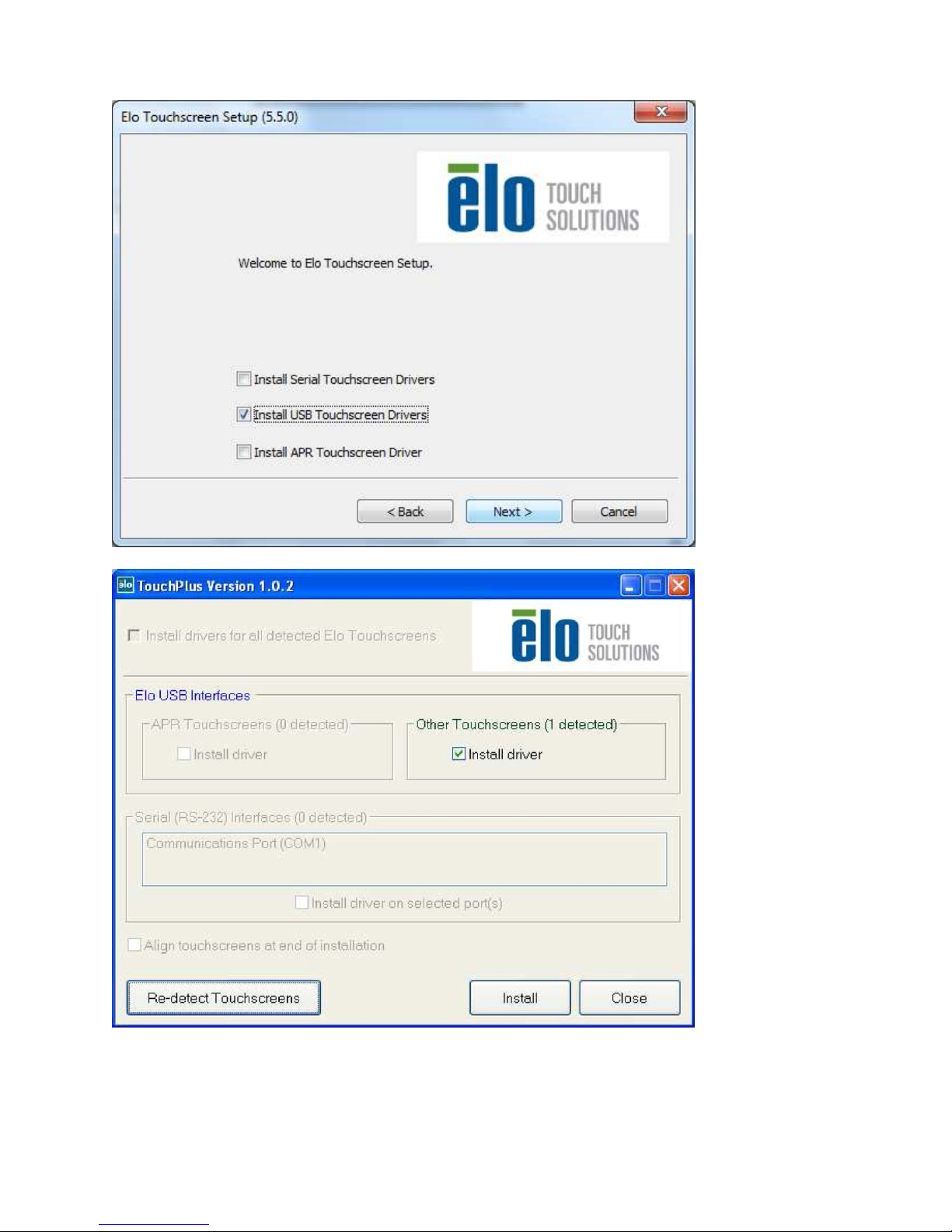

Select one or more of the drivers to install. Click on “Next”

After accepting the end-user license agreement, the drivers will finish installing.

Reboot your computer after the installation is complete.
