2240L 22-inch LCD Touchmonitor
User Guide
Revision B
P/N E901936
Elo TouchSystems
1-800-ELOTOUCH
www.elotouch.com
Elo TouchSystems 2240L User Guide 3
Copyright © 2008 Tyco Electronics. All Rights Reserved.
No part of this publication may be reproduced, transmitted, tran-
scribed, stored in a retrieval system, or translated into any language
or computer language, in any form or by any means, including, but not
limited to, electronic, magnetic, optical, chemical, manual, or other-
wise without prior written permission of Elo TouchSystems.
Disclaimer
The information in this document is subject to change without no-
tice. Elo TouchSystems makes no representations or warranties with
respect to the contents hereof, and specifically disclaims any implied
warranties of merchantability or fitness for a particular purpose. Elo
TouchSystems reserves the right to revise this publication and to
make changes from time to time in the content hereof without obliga-
tion of Elo TouchSystems to notify any person of such revisions or
changes.
Trademark Acknowledgments
IntelliTouch, APR (Acoustic Pulse Recognition), Elo TouchSystems,
TE Logo, and Tyco Electronics are trademarks. Other product names
mentioned herein may be trademarks or registered trademarks of their
respective companies. Elo TouchSystems claims no interest in trade-
marks other than its own.
Elo TouchSystems 2240L User Guide 4
Table of Contents
Chapter 1: Introduction....................................................................5
About the Product .............................................................................................................5
Precautions......................................................................................................................... 5
Chapter 2: Installation And Setup...................................................6
Unpacking Your Touchmonitor .........................................................................................7
Connecting the Cables to the Touchmonitor and Computer..............................................8
Installing the Touch Driver ................................................................................................ 9
Monitor Overview and Dimensions.................................................................................10
Monitor Mounting and Orientation..................................................................................12
Chapter 3: Operation......................................................................17
About Touchmonitor Adjustments .................................................................................. 17
Rear Panel Control Buttons for On-Screen Display (OSD) ............................................18
On-Screen Display (OSD) Remote Control Box Accessory (optional)...........................20
Preset Display Modes ...................................................................................................... 24
Chapter 4: Troubleshooting...........................................................25
Solutions to Common Problems ......................................................................................25
Technical Support ............................................................................................................ 26
Appendix A: Touchmonitor Safety................................................27
Care and Handling of Your Touchmonitor.......................................................................28
Warning............................................................................................................................29
Waste Electrical and Electronic Equipment (WEEE) Directive......................................29
Appendix B: Technical Specifications..........................................30
2240L Specifications........................................................................................................31
Regulatory Information....................................................................................................33
Warranty...........................................................................................................................37
Elo TouchSystems 2240L User Guide 5
C H A P T E R
1
INTRODUCTION
About the Product
Your new Elo TouchSystems 2240L open-frame touchmonitor com-
bines the reliable performance of touch technology with the latest
advances in Liquid Crystal Display (LCD) design. The monitor comes
with the following features:
• 22” color active matrix thin-film-transistor (TFT) with a
native resolution of 1680 X 1050.
• Available inAcoustic Pulse Recognition (APR),
IntelliTouch, SecureTouch, and Surface Capacitive touch
technologies.
• All monitors have VGA video data inputs and some
models also include DVI-D video data inputs.
• All touch technologies come with USB and serial
interfaces.
For more detailed information, please visit our website:
www.elotouch.com.
Precautions
Follow all warnings, installation, and maintenance recommendations
in this manual to ensure operator safety and maximize the life of the
monitor. See Appendix A (page 27) for information on touchmoni-
tor safety. Before setting up and turning on your touchmonitor, read
through this manual, especially Chapter 2 (Installation and Setup), and
Chapter 3 (Operation).
C H A P T E R
2
INSTALLATIONAND SETUP
This chapter discusses how to install and set up the LCD touchmonitor
and how to install Elo TouchSystems driver software.
Elo TouchSystems 2240L User Guide 6
Elo TouchSystems 2240L User Guide 7
USB Cable
Unpacking Your Touchmonitor

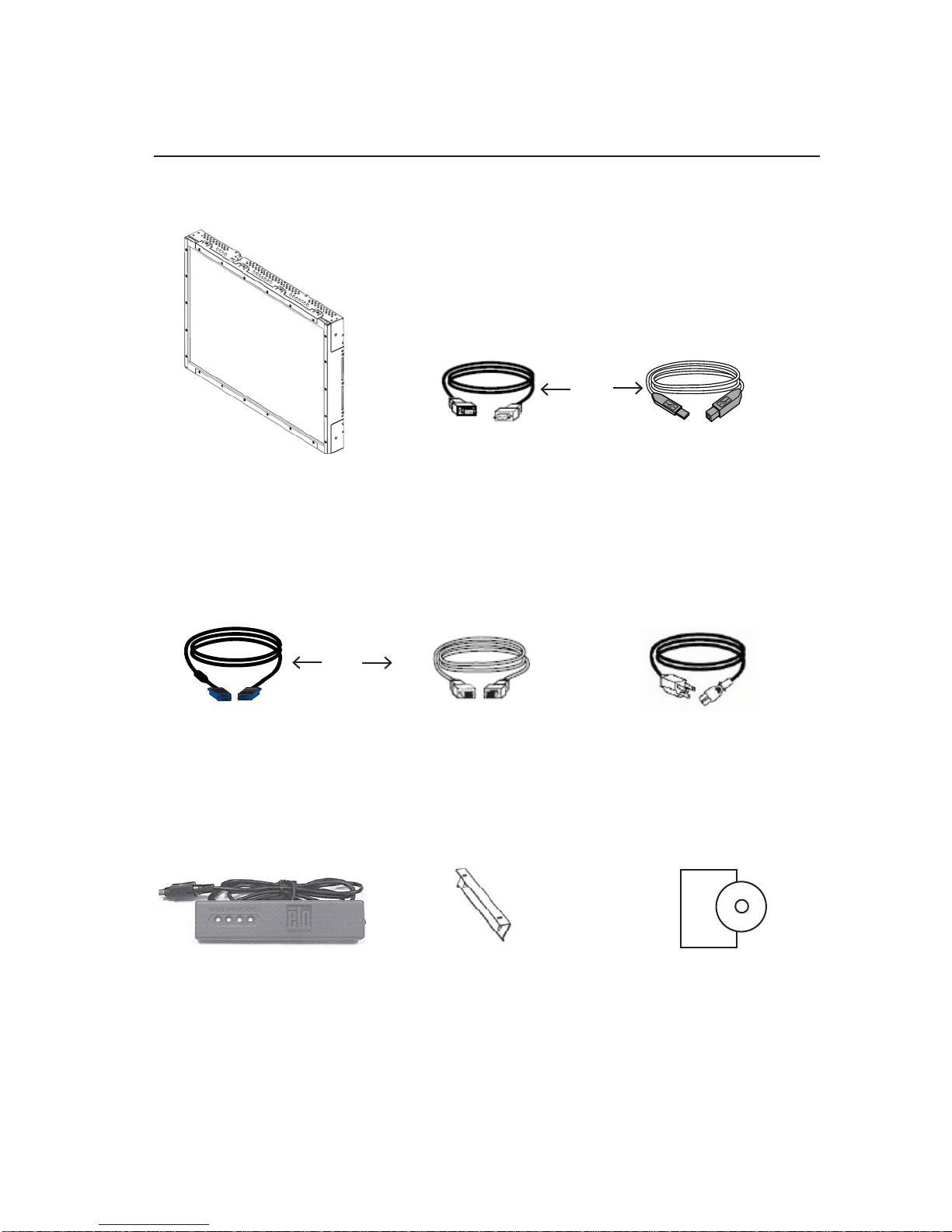

Check that the following items are present:
VGA Video Cable
Serial Cable
DVI-D Cable
(not included with
some European or
Asian models)
AND/
OR
AND/
OR
TouchTools CD and Quick
Install Guide
OSD Remote Control Box
Accessory (optional) Mounting Brackets
(quantity: four)
Power Cable
(appearance of cable
differs according to
region)
Touchmonitor
(including integrated
OSD control)
Elo TouchSystems 2240L User Guide 8
Connecting the Cables to the Touchmonitor and Computer
To connect your touchmonitor to your computer and power
source:
1Connect one end of the power cable to the connector panel and
the other end to the power outlet.
2Connect either the USB cable OR the serial cable to the rear
panel of the monitor. Note: Do not use both. Connect the other
end to your computer.
3Connectthe videocableand/or the DVI-Dcable tothe rear panel
ofthe monitor.Tightenbyturning thetwo thumbscrewsclockwise
to ensure proper grounding. Connect the other end to your
computer.
4Connect one end of the OSD remote control box connector to
the rear panel of the monitor and the other end to your computer.
5Press the power button to turn the monitor on.
Connector Panel on Rear Side of Monitor
Analog Video
Cable
OSD
Remote
Control
Box
Connector
(Optional)
Power Cable USB
Cable DVI-D Cable
(not included
with some
European
models)
Serial Cable
Power
Button
LED
Status
Elo TouchSystems 2240L User Guide 9
Installing the Touch Driver
Your Elo touchmonitor is Plug-and-Play compliant. Information on
the video capabilities of the touchmonitor is sent to the video display
adapter when the computer’s operating system starts. If the comput-
er’s operating system detects the touchmonitor, follow the instructions
on the screen to install a generic Plug-and-Play monitor.
Elo TouchSystems touchscreen driver software that allows your touch-
monitor to work with your computer is located on the enclosed CD.
The latest versions of drivers and driver information for all operating
systems, including those that are not included with the CD, are avail-
able on the Elo TouchSystems website at www.elotouch.com/sup-
port/downloads/.
To install the Touch Driver, follow the steps below:
1Insert the TouchTools orAPR CD in your computer’s CD-ROM
drive.
2Click on Install Driver for This Computer.
3 Follow the on-screen instructions to complete the installation.
If there are no on-screen instructions when you install the
TouchTools or APR CD:
1Click Start > Run.
2Click the Browse button to locate the EloCd.exe program
on the CD-ROM.
3Click Open, then OK to run EloCd.exe.
4Follow the directions on the screen to complete the driver
installation.
Elo TouchSystems 2240L User Guide 10
Monitor Overview and Dimensions (IntelliTouch Model)
Note:

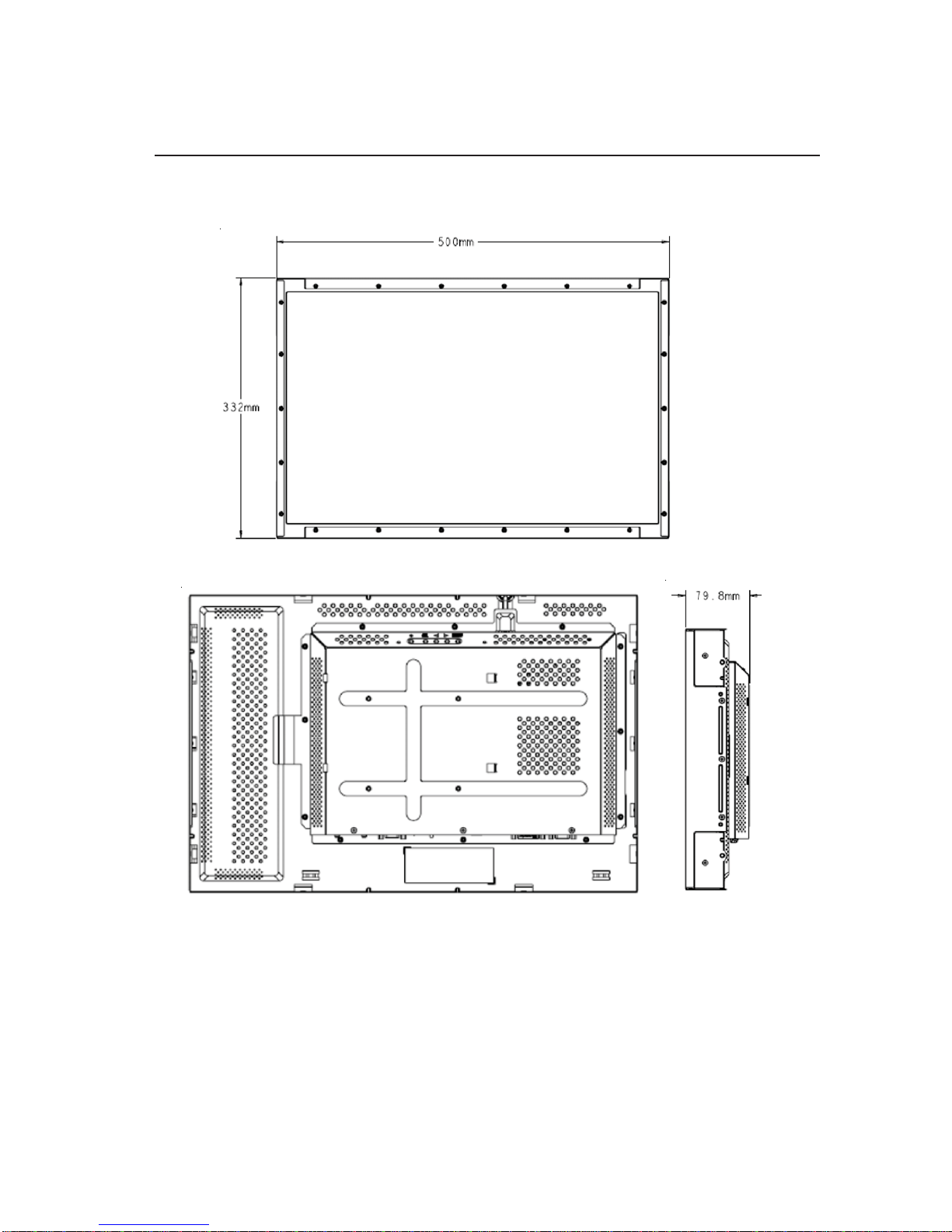

Detailed mechanical illustrations can be found at: www.elotouch.com
