Elo TouchSystems Entuitive 1847L Series Manuale utente

Elo Entuitive Touchmonitor

User Guide

For 18.1" LCD Modular Kiosk Touchmonitors

1847L Series

Revision A

Elo Entuitive Touchmonitor

User Guide

18.1"LCD Modular Kiosk Touchmonitor

1847L Series

Revision A

P/N 008566

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

iii

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, iTouch,SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystem s Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Table of Contents

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 1

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Product Overview . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . 6

Touch Interference Connection . . . . . . . . . 11

STEP 1-Connecting the Video Cable . . . . 12

STEP 2-Connecting the Serial or USB

Touchscreen cable . . . . . . . . . . . . . 13

STEP 3-Connecting the OSD Remote

Cable . . . . . . . . . . . . . . . . . . . . . 14

Chapter 3

Operation 23

About Touchmonitor Adjustments . . . . . . . . 23

Using the On-Screen Display (OSD) Menus . . 23

Remote OSD Buttons . . . . . . . . . . . . . 24

OSD Menu Function . . . . . . . . . . . . . . 25

Chapter 4

Trouble shooting 27

Solutions to Common Problems . . . . . . . . 27

Appendix A

Native Resolution 29

Appendix B

Touchmonitor Safety 31

Care and Handling of your Touchmonitor . . . . 32

Appendix C

Technical Specifications 33

Compatible Video Modes . . . . . . . . . . . . 33

Touchmonitor Specifications . . . . . . . . . . 34

18" LCD Touchmonitor (ET 18X7L-XXWB-X)

Dimensions . . . . . . . . . . . . . . . . . . 38

Regulatory Information 39

Warranty 43

Index

STEP 4-Connecting the Power Cable

. . . . . 15

Optimizing the LCD Display . . . . . . . . . . . . . 16

VESA Mount on Your Touchmonitor . . . . . . . . 16

VESA Mounting Interface 17

Installing the Drive Software . . . . . . . . . . . . 18

Installing the Serial Touch Driver. . . . . . . 19

Installing the Serial Touch Driver for Windows

XP, 2000, Me, 95/98 and NT 4.0 . . . . . 19

Installing the Serial Touch Driver for MS-DOS

and Windows 3.1 . . . . . . . . . . . . . 20

Installing the USB Touch Driver . . . . . . . 21

Installing the USB Touch Driver for Windows

XP, 2000, Me and 98 . . . . . . . . . . . 21

. . . . . . . . . . . . . . . . . . 5

Panel Cut Out . . . . . . . . . . . . . . . . . 6

1847L Option 1

1847L Option 2

1847L Option 3

1867L Option 1

1867L Option 2

. . . . . . . . . . . . . . . .6

. . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . . 9

. . . . . . . . . . . . . . .10

. . . . . . . . . . . . . . . 7

. . . . . . . . . .

Main Unit

Rear View

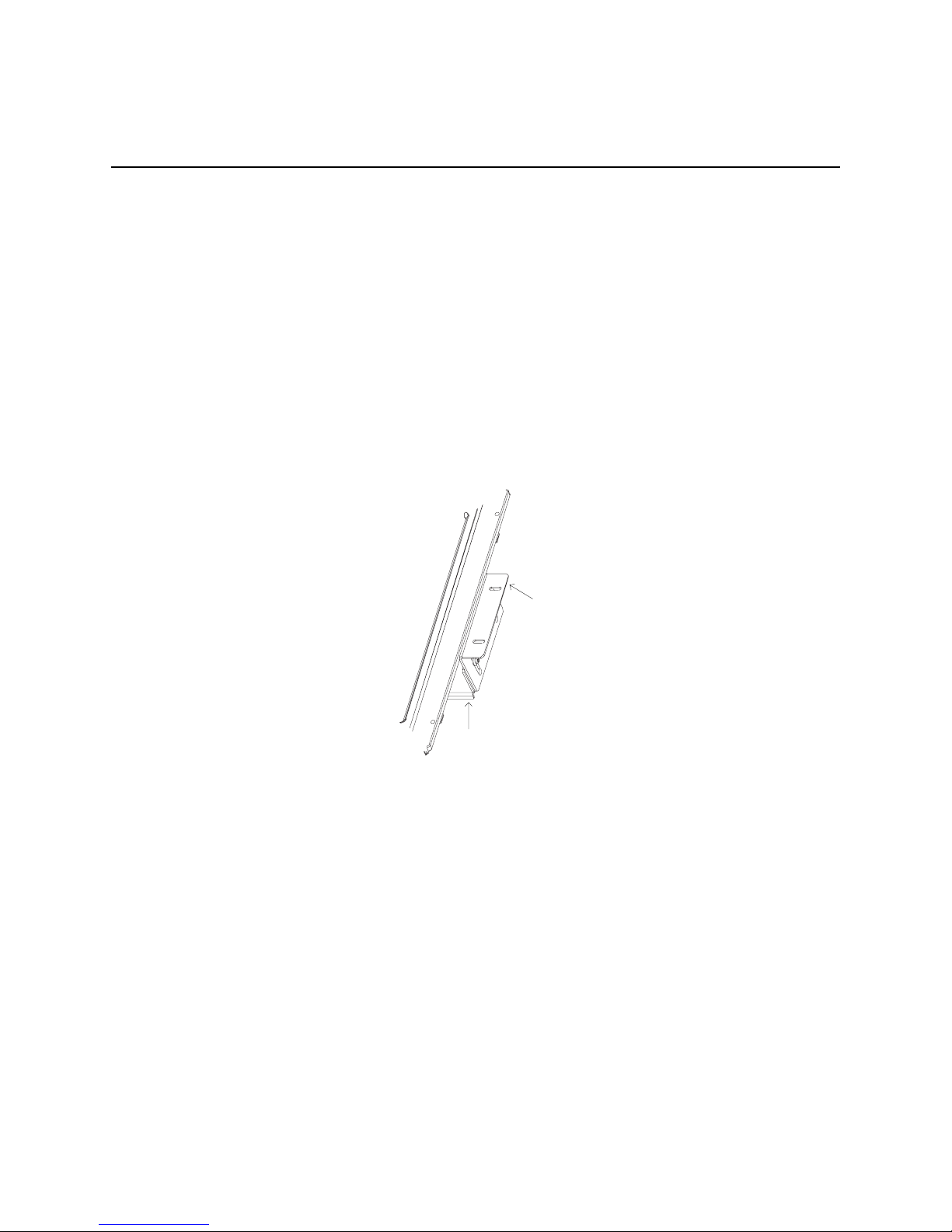

Side View

Top View

Attaching the L-Brackets

1-1

CHAPTER

HAPTER

NTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new touchmonitor combines the reliable performance of

Elo’s touch technology with the latest advances in LCD display design. This

combination of features creates a natural flow of information between a user

and your touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

About the Product

Your LCD Kiosk Touchmonitor is a 18.1” SXGA TFT color display with the

following features:

• Direct analog RGB orDigitalRGB input

• 18.1” diagonal screen size

• 16.7 million displayable colors

• 1280 x 1024 resolution

• SXGA/XGA/SVGA/VGA/VESA/Mac compatible

• 30kHz~80kHz horizontal scan

• 56~75Hz refresh rate

1-2 Elo Entuitive Touchmonitor User Guide

• Auto adjustment capability

• High quality full screen re-scaling

• Multilingual OSD menus in six languages: English, French, German,

Spanish, Italian and Japanese

• Serial or USB touch interface (USB requires Windows 98, 2000, Me and

XP.)

• Patented touch technology of Elo TouchSystems

• Power saving mode

• Cable management device

• VESA flat panel monitor physical mounting interface (Both of 75 & 100mm)

• Remote OSD and Power button lockouts

• Cable stain reliefs for all cables

For full Product Specifications refer to Appendix C.

2-3

CHAPTER

HAPTER

NSTALLATION AND

ETUP

This chapter discusses how to install your LCD touchmonitor and how to install

Elo TouchSystems driver software.

Unpacking Your Touchmonitor

Check that the following 10 items are present and in good condition:

LCD Display

European monitor

power cable

Monitor power cable

(US/Canada)

Serial touchscreen cable

Video cable

Adapter

USB Cable

User Guide-on CD,

Quick Install Guide and software CD

Software

Quick Install Guide

OSD Remote DVI-D Video cable

Product Overview

Main Unit

1847L with optional bezel for front mounting 1847L Rear-Mount

Rear View

1847L with front mount 1847L

Bottom View (1847L shown)

2-4 Elo Entuitive Touchmonitor User Guide

Attaching the L-Brackets

Depending on your mounting scheme, use the L-brackets or the VESA 75/100mm

standard holes located on the back of the kiosk monitor or the 5.5 diameter holes

(only on rear mount). See page 15 for VESA mounting information.

OTE

You will need a screwdriver to attach the L-brackets.

Your kiosk touchmonitor comes with a mounting bracket (C-bracket) attached

at the back. Included are two L-brackets (and four screws) that attach to both

ends of the C-bracket for additional mounting options.

To attach the L-brackets:

1Lay the monitor face down.

2Place the long end of the L-bracket against the end of the mounting

C-bracket. Line up the two holes of the L-bracket with the two holes of the

C-bracket. See the illustration below.

3Place two screws in the holes and with the screwdriver, screw them in to

secure the bracket.

4Repeat steps 2 and 3 to attach the other L-bracket to the other side of the

mounting bracket.

C bracket

L bracket

2-5
