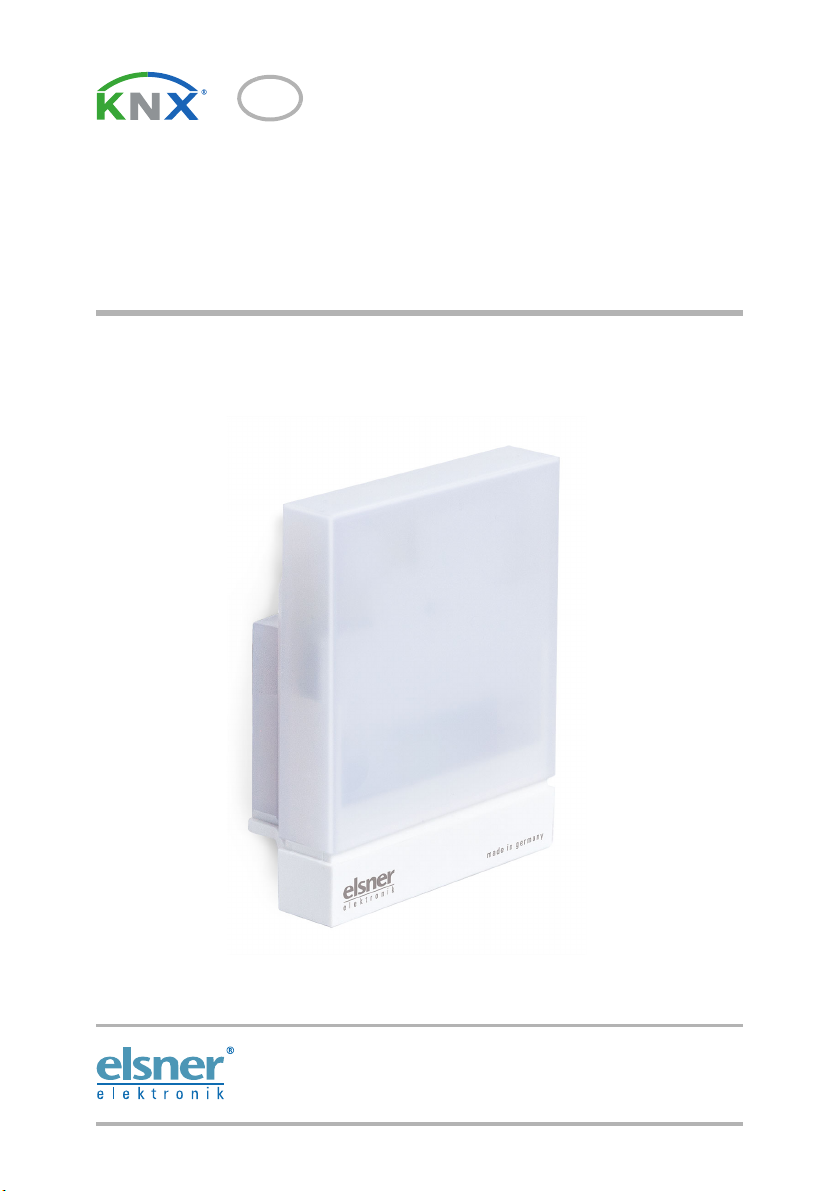

Elsner Vari KNX 3L Guida

Vari KNX 3L, Vari KNX 3L-T,

Vari KNX 3L-TH, Vari KNX 3L-TH-D,

Vari KNX 3L-TH-D GPS

Combined brightness sensors

Item numbers

70382 Vari KNX 3L

70383 Vari KNX 3L-T

70384 Vari KNX 3L-TH

70389 Vari KNX 3L-TH-D

70390 Vari KNX 3L-TH-D GPS

Installation and Adjustment

1 Contents

Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany

Sensors Vari KNX 3L • from ETS programme version 1.0

Status: 18.06.2019 • Errors excepted. Subject to technical changes.

1. Description ........................................................................................... 5

1.0.1. Scope of delivery .......................................................................................... 6

1.1. Technical specification ............................................................................................. 6

2. Installation and start-up ....................................................................... 9

2.1. Installation notes ...................................................................................................... 9

2.2. Installation location .................................................................................................. 9

2.3. Device design ......................................................................................................... 11

2.4. Installing the device ............................................................................................... 12

2.4.1. Preparation for installation ........................................................................ 12

2.4.2. Fitting the lower part of the housing with mounting ............................... 12

2.4.3. Connection .................................................................................................. 14

2.4.4. Completing the installation ........................................................................ 15

3. Addressing the device ........................................................................ 15

4. Maintenance ....................................................................................... 16

5. Transfer protocol ............................................................................... 17

5.1. List of all communication objects ......................................................................... 17

6. Parameter setting .............................................................................. 43

6.1. Behaviour on power failure/ restoration of power .............................................. 43

6.1.1. Storage of threshold values ....................................................................... 43

6.1.2. Malfunction objects .................................................................................... 43

6.1.3. General settings .......................................................................................... 43

6.2. GPS .......................................................................................................................... 44

6.3. Location ................................................................................................................... 45

6.4. Temperature Measurement ................................................................................... 47

6.5. Temperature threshold values .............................................................................. 48

6.5.1. Threshold values 1-4 .................................................................................. 48

6.6. Brightness measurement value ............................................................................ 51

6.7. Brightness threshold values sensor 1-3 and total brightness threshold values 51

6.7.1. Threshold values 1-4 .................................................................................. 52

6.8. Twilight brightness threshold values ................................................................... 54

6.8.1. Threshold values 1-4 .................................................................................. 54

6.9. Night ........................................................................................................................ 56

6.10.Sun position ........................................................................................................... 57

6.11.Humidity Measurement ......................................................................................... 57

6.12.Humidity threshold values .................................................................................... 58

6.12.1. Threshold values 1-4 .................................................................................. 58

6.13.Dewpoint measurement ........................................................................................ 61

6.13.1. Cooling medium temperature monitoring ............................................... 61

6.14.Absolute humidity ................................................................................................. 63

6.15.Comfort field .......................................................................................................... 64

6.16.Air pressure measurement ................................................................................... 65

6.17.Wind threshold values ........................................................................................... 66

2 Contents

Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany

Sensors Vari KNX 3L • from ETS programme version 1.0

Status: 18.06.2019 • Errors excepted. Subject to technical changes.

6.17.1. Wind threshold values 1-4 ......................................................................... 66

6.18.Temperature PI control .......................................................................................... 68

6.18.1. Heating control level 1/2 ............................................................................. 74

6.18.2. Cooling control level 1/2 ............................................................................. 76

6.19.Summer Compensation ........................................................................................ 78

6.20.Humidity PI control ................................................................................................ 79

6.21.Variable comparator .............................................................................................. 82

6.21.1. Control variable comparator 1/2/3/4 .......................................................... 82

6.22.Computer ................................................................................................................ 83

6.22.1. Computers 1-8 ............................................................................................. 83

6.23.Weekly timer .......................................................................................................... 87

6.23.1. Weekly timer period 1-24 ........................................................................... 87

6.24.Calendar timer ........................................................................................................ 88

6.24.1. Calendar clock Period 1-4 ........................................................................... 89

6.25.Logic ........................................................................................................................ 90

6.25.1. AND logic 1-8 and OR logic outputs 1-8 ................................................... 90

6.25.2. AND logic connection inputs ..................................................................... 92

6.25.3. Connection inputs of the OR logic ............................................................. 97

3 Clarification of signs

This manual is amended periodically and will be brought into line with new software

releases. The change status (software version and date) can be found in the contents footer.

If you have a device with a later software version, please check

www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to-

date version of the manual is available.

Clarification of signs used in this manual

Installation, inspection, commissioning and troubleshooting of the device

must only be carried out by a competent electrician.

Safety advice.

Safety advice for working on electrical connections, components,

etc.

DANGER! ... indicates an immediately hazardous situation which will lead to

death or severe injuries if it is not avoided.

WARNING! ... indicates a potentially hazardous situation which may lead to

death or severe injuries if it is not avoided.

CAUTION! ... indicates a potentially hazardous situation which may lead to

trivial or minor injuries if it is not avoided.

ATTENTION! ... indicates a situation which may lead to damage to property if it is

not avoided.

ETS In the ETS tables, the parameter default settings are marked by

underlining.

4 Clarification of signs

5 Description

Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

1. Description

The Sensors Vari KNX 3L for the KNX building bus system record brightness (sun)

and additionally temperature, air humidity and air pressure outside, depending on the

model. The model Vari KNX 3L-TH-D GPS also receives the GPS signal for time and lo-

cation and uses it to compute the position of the sun (azimuth and elevation).

The measurement values can be used for the control of limit-dependent switching out-

puts. States can be linked via AND logic gates and OR logic gates. Multi-function mod-

ules change input data as required by means of calculations, querying a condition, or

converting the data point type.

Models with a temperature sensor have an integrated PI controller for heating/cooling.

Models with humidity sensor have a PI controller for ventilation.

The compact housing of the Vari KNX 3L accommodates the sensors, evaluation cir-

cuits and bus-coupling electronics.

Functions 70382 Vari KNX 3L:

•Brightness measurement: The current light intensity is measured by three

sensors. Of the three measurement values, the maximum value or a calculated

mixed value can be output optionally.

•Switching outputs for all measured and computed values. Threshold values

can be adjusted per parameter or via communication objects

•8 AND and 8 OR logic gates, each with 4 inputs. All switching events as well

as 16 logic inputs (in the form of communications objects) can be used as

inputs for the logic gates. The output of each gate can be configured optionally

as 1-bit or 2 x 8-bit

•8 multi-function modules (computers) for changing the input data by

calculations, by querying a condition or by converting the data point type

Additional functions of the models with temperature sensor:

(70383 Vari KNX 3L-T, 70384 Vari KNX 3L-TH,

70389 Vari KNX 3L-TH-D, 70390 Vari KNX 3L-TH-D GPS)

•Temperature measurement with mixed value calculation. The share of

internal measurement value and external value can be set as a percentage

•PI-controller for heating (one or two-stage) and cooling (one or two-stage)

according to temperature. Regulation according to separate setpoints or basic

setpoint temperature

•Summer compensation for cooling systems. A characteristic curve matches

the target temperature in the room to the external temperature and sets the

minimum and maximum target temperature values

Additional functions of the models with humidity sensor:

(70384 Vari KNX 3L-TH, 70389 Vari KNX 3L-TH-D, 70390 Vari KNX 3L-TH-D GPS)

•Humidity measurement (relative, absolute), with Mixed value calculation.

The share of internal measurement value and external value can be set as a

percentage.

6 Description

Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

In addition the bus output will indicate whether the values are inside the

comfort field (DIN 1946). The dewpoint will be calculated

•PI controller for humidity according to humidity: Ventilate/Air (one-stage) or

Ventilate (one or two-stage)

•4 control variable comparators to output minimum, maximum or average

values. 5 inputs each for values received via communication objects

Additional functions of the models with air pressure sensor:

(70389 Vari KNX 3L-TH-D, 70390 Vari KNX 3L-TH-D GPS)

• Air pressure measurement: Output of the value as normal pressure and

optionally as barometric pressure

Additional functions 70390 Vari KNX 3L-TH-D GPS:

•GPS receiver, outputting the current time and location coordinates. The

Sensor Vari KNX 3L-TH-D GPS also computes the position of the sun

(azimuth and elevation)

Configuration is made using the KNX software ETS. The product file can be down-

loaded from the Elsner Elektronik website on www.elsner-elektronik.de in the “Ser-

vice” menu.

1.0.1. Scope of delivery

•Sensor

• Stainless steel installation band for pole installation

• 4×50 mm stainless steel Roundhead screws and 6×30 mm dowels for wall

mounting. Use fixing materials that are suitable for the base!

1.1. Technical specification

Housing Plastic

Colour White / Translucent

Assembly Surface mount

Protection category IP 44

Dimensions approx. 65 × 80 × 30 (W × H × D, mm)

Weight approx. 60 g

Operating voltage KNX bus voltage

Bus current max. 20 mA

Data output KNX +/- bus connector terminal

BCU type Integrated micro controller

PEI type 0

Group addresses max. 2000

Assignments max. 2000

Brightness sensor:

Measurement range 0 lux … 150,000 lux

7 Description

Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

Vari KNX 3L-TH-D GPS:

Vari KNX 3L-TH-D:

Resolution 1 lux up to 300 lux

2 lux up to 1,000 lux

25 lux up to 150,000 lux

Accuracy ±15% of the measurement value at 30 lux … 30,000 lux

Ambient temperature Operation -25…+80°C, Storage -40…+85°C,

avoid condensation

Communication objects: 603

Temperature sensor:

Measurement range -25°C … +80°C

Resolution 0.1°C

Accuracy ±0,8°C at -25...-10°C

±0,5°C at -10...+65°C

±0,6°C at +65...+80°C

Humidity sensor:

Measurement range 0% RH … 100% RH

Resolution 0.1% RH

Accuracy ±7,5% RH at 0...10% RH

±4,5% RH at 10...90% RH

±7,5% RH at 90...100% RH

Pressure sensor:

Measurement range 300 mbar … 1100 mbar

Resolution 0.1 mbar

Accuracy ±4 mbar

Ambient temperature Operation -25…+80°C, Storage -40…+85°C,

avoid condensation

Communication objects: 455

Temperature sensor:

Measurement range -25°C … +80°C

Resolution 0.1°C

Accuracy ±0,8°C at -25...-10°C

±0,5°C at -10...+65°C

±0,6°C at +65...+80°C

Humidity sensor:

Measurement range 0% RH … 100% RH

Resolution 0.1% RH

Accuracy ±7,5% RH at 0...10% RH

±4,5% RH at 10...90% RH

±7,5% RH at 90...100% RH

Pressure sensor:

8 Description

Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

Vari KNX 3L-TH:

Vari KNX 3L-T:

Vari KNX 3L:

The product conforms with the provisions of EU directives.

Measurement range 300 mbar … 1100 mbar

Resolution 0.1 mbar

Accuracy ±4 mbar

Ambient temperature Operation -25…+80°C, Storage -40…+85°C,

avoid condensation

Communication objects: 421

Temperature sensor:

Measurement range -25°C … +80°C

Resolution 0.1°C

Accuracy ±0,8°C at -25...-10°C

±0,5°C at -10...+65°C

±0,6°C at +65...+80°C

Humidity sensor:

Measurement range 0% RH … 100% RH

Resolution 0.1% RH

Accuracy ±7,5% RH at 0...10% RH

±4,5% RH at 10...90% RH

±7,5% RH at 90...100% RH

Ambient temperature Operation -30…+50°C, Storage -30…+70°C

Communication objects: 339

Temperature sensor:

Measurement range -30°C … +50°C

Resolution 0.1°C

Accuracy ±0,5°C at -30...+25°C

±1,5°C at -30...+45°C

Ambient temperature Operation -30…+50°C, Storage -30…+70°C

Communication objects: 274

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Elsner Accessori

Elsner

Elsner Cala KNX AQS/TH Guida

Elsner

Elsner KNX R Guida

Elsner

Elsner KNX T-UP gl Guida

Elsner

Elsner KNX AQS/TH Guida

Elsner

Elsner Leak Manuale utente

Elsner

Elsner KNX AQS/TH-B-UP Series Guida

Elsner

Elsner KNX VOC-UP basic Guida

Elsner

Elsner KNX RW Guida

Elsner

Elsner Vari KNX 3L-TH-D Guida

Elsner

Elsner KNX LW Series Manuale utente

Elsner

Elsner KNX L Manuale utente

Elsner

Elsner 71300 Guida

Elsner

Elsner Sewi KNX TH-L-Pr Guida

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
