EMBRON HATTELAND TECHNOLOGY SeaHawk HT FBVF A-X1... Manuale utente

Please visit www.hattelandtechnology.com for the latest electronic version of this manual.

USER MANUAL

HT FBVF yA-X1 (SeaHawk FixedBullet Varifocal)

HT ZB2X yA-X1 (SeaHawk ZoomBullet 20x)

HT FDFL yA-X3 (SeaHawk FixedDome Fixed Lense

where “Y” is housing Material

HATTELAND®SeaHawk IP Camera

User Manual SeaHawk IP Camera

Updated: 04 Feb 2021 Doc Id: INB101611-1 (Rev 01)

Created: 8370 Approved: 8370

Eikeskogvegen 52, N-5570 Aksdal, Norway.

All rights are reserved by Hatteland Technology AS. This information may not, in whole or in part, be

copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-

readable form without the prior written consent of Hatteland Technology AS. Review also:

www.hattelandtechnology.com/hubfs/pdf/misc/doc100703-1_permission_to_create_user_manuals.pdf

The products described, or referenced, herein are copyrighted to the respective owners.

The products may not be copied or duplicated in any way. This documentation contains proprietary

information that is not to be disclosed to persons outside the user’s company without prior written consent

of Hatteland Technology AS.

The copyright notice appearing above is included to provide statutory protection in the event of

unauthorized or unintentional public disclosure.

All other product names or trademarks are properties of their respective owners !

WARNING: This is a class A product. In a domestic environment this product may cause radio interference

in which case the user may be required to take adequate measures.

Statement above last revised 31 Jul. 2019

IND100206-31

Contents

Contents.................................................................................... 3

General ...................................................................................... 5

About Hatteland Technology .......................................................................5

www.hattelandtechnology.com ....................................................................5

Contact Information .....................................................................................5

1. Introduction........................................................................... 7

1.1 About this manual..................................................................................7

1.2 Features ................................................................................................7

1.3 Product and Accessories.......................................................................8

1.4 Contents of package .............................................................................9

1.5 System Connections ...........................................................................10

2. Installation........................................................................... 12

2.1 Connecting Network ............................................................................12

3. System Operation............................................................... 14

3.1 Remote Video Monitoring....................................................................14

3.2 Live View Overview .............................................................................15

4. Remote Conguration........................................................ 17

4.1 Using Web Browser.............................................................................17

4.2 Video & Audio ......................................................................................18

4.3 Image ..................................................................................................22

4.4 Network ...............................................................................................29

4.5 Event ...................................................................................................43

4.6 Record.................................................................................................49

4.7 User.....................................................................................................51

4.8 System ................................................................................................54

Contents

IND100206-31

5. Technical Drawings ............................................................ 61

5.1 Technical Drawing: HT FBVF xx-X1 / HT ZB2X xx-X1 ..........................................62

5.2 Technical Drawing HT FDFL-xx-X3 .......................................................................63

5.3 Technical Drawing HT CB1x-AA ............................................................................64

5.4 Technical Drawing HT WB1x-AA ...........................................................................65

5.6 Technical Drawing HT MB1x-AA............................................................................66

5.7 Technical Drawing LD-001.....................................................................................69

Appendixes ............................................................................. 70

Return Of Goods Information ....................................................................70

General Terms and Conditions..................................................................71

Revision History ........................................................................................72

Hatteland Technology AS

IND100077-1

General

About this manual

The manual contains electrical, mechanical and input/output signal specications. All specications in this manual,

due to manufacturing, new revisions and approvals, are subject to change without notice. However, the last updated

and revision date of this manual are shown both on the frontpage and also in the “Revision History” chapter. This

user manual is a standard/general manual that applies to all variations of its product family, i.e. deviation from actual

conguration may exist.

About Hatteland Technology

Hatteland Technology is the leading technology provider of specialized display and computer products, delivering high

quality, unique and customized solutions to the international maritime, naval and industrial markets.

The company represents innovation and quality to the system integrators worldwide. Effective quality assurance and

investment in sophisticated in-house manufacturing methods and facilities enable us to deliver Type Approved and Mil

tested products. Our customer-oriented approach, technical knowledge and dedication to R&D, makes us a trusted

and preferred supplier of approved solutions, which are backed up by a strong service network.

www.hattelandtechnology.com

You will nd our website full of useful information to help you make an informed choice as to the right product for your

needs. You will nd detailed product descriptions and specications for the entire range on Displays, Computers and

Panel Computers, Military solutions as well as the range of supporting accessories. The site carries a wealth of

information regarding our product testing and approvals in addition to company contact information for our various

o󰀩ces around the world, the global service locations and the technical help desk, all ensuring the best possible

support wherever you, or your vessel, may be in the world.

Contact Information

Head oce, Aksdal / Norway:

Hatteland Technology AS

Eikeskogvegen 52

N-5570 Aksdal, Norway

Switchboard:

Tel: +47 4814 2200

mail@hattelandtechnology.com

Sales oce, Frankfurt / Germany:

Hatteland Technology GmbH

Werner Heisenberg Strasse 12,

D-63263 Neu-Isenburg, Germany

Uwe Scheumann:

Tel: +45 2463 9565

Elke Freisens:

Tel: +49 173 6174753

Sales oce, Oslo / Norway:

Hatteland Technology AS

Strandveien 35

N-1366 Lysaker

Norway

Switchboard:

Tel: +47 4814 2200

mail@hattelandtechnology.com

Sales oce, Aix-en-Provence / France:

Hatteland Technology SAS

Actimart- 1140, rue Ampère, CS 80544

13594 Aix-en-Provence, Cedex 3

France

Mehdi Bounoua (Sales Director Europe, Middle East & Africa):

Tel : +33 6 88 33 64 93

Sales oce, Vista / USA:

Hatteland Technology Inc

450 South Melrose Drive,

Suite #107

Vista, CA 92081

USA

Donna Pallonetti:

Tel: +1 858-282-0659

Fax: +1 858-408-1834

For an up-2-date list, please visit https://www.hattelandtechnology.com/contact

This page left intentionally blank

IND101057-27

3 Feb. 2021 Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146 Page 7 of 66

1. Introduction

1.1 About this manual

This User Manual provides information on operating and managing the Seahawk IP camera.

The Manual includes instructions of installation, operation and configuration of Seahawk IP

camera as well as how to troubleshoot.

1.2 Features

Video

⚫Highly efficient compression algorithm, H.264, H.265 & MJPEG support

⚫1920x1080@30FPS

⚫Wide range of encoding and decoding options : CIF(352c240) ~ FULL HD (1920x1080)

⚫Wide range of transmission rates: 32kbps ~ 16mbps

⚫Various transmission modes: CBR, VBR, Hybrid

⚫Motion detection

⚫Quad Streaming

Network

⚫Fixed IP & Dynamic IP (DHCP) support

⚫1:1, 1:N support

⚫Multicasting

⚫Various types of Protocol support: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP,

RTP, RTSP

⚫OnVIF, PSIA compliant

Sensor and Alarm

⚫Support direct connections of external sensor and alarm devices

⚫Event Alarm notification.

⚫If an external sensor is activated, camera can be set to move to the corresponding Preset

position.

User Interface

⚫Diagnose and upgrade through dedicated program called True Manager

⚫System configuration using Internet Explorer

High Reliability

⚫Reliable embedded system

IND101057-27

3 Feb. 2021 Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146 Page 8 of 66

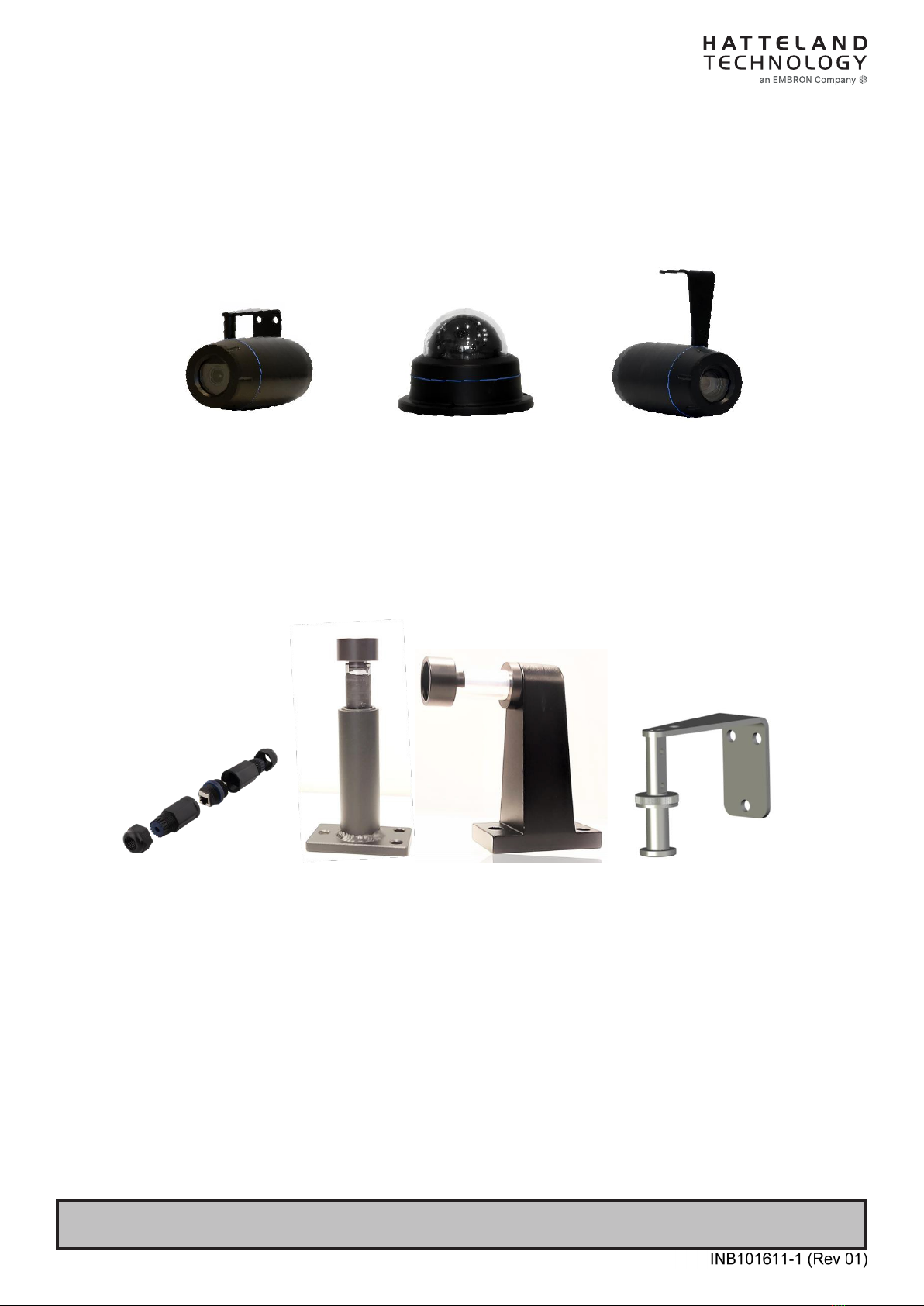

1.3 Product and Accessories

HT FBVF xx-X1 HT FDFL xx-X3 HT ZB2X xx-X1

LD-001 HT CB1x-AA HT WB1x-AA HT MB1x-AA

IND101057-27

3 Feb. 2021 Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146 Page 9 of 66

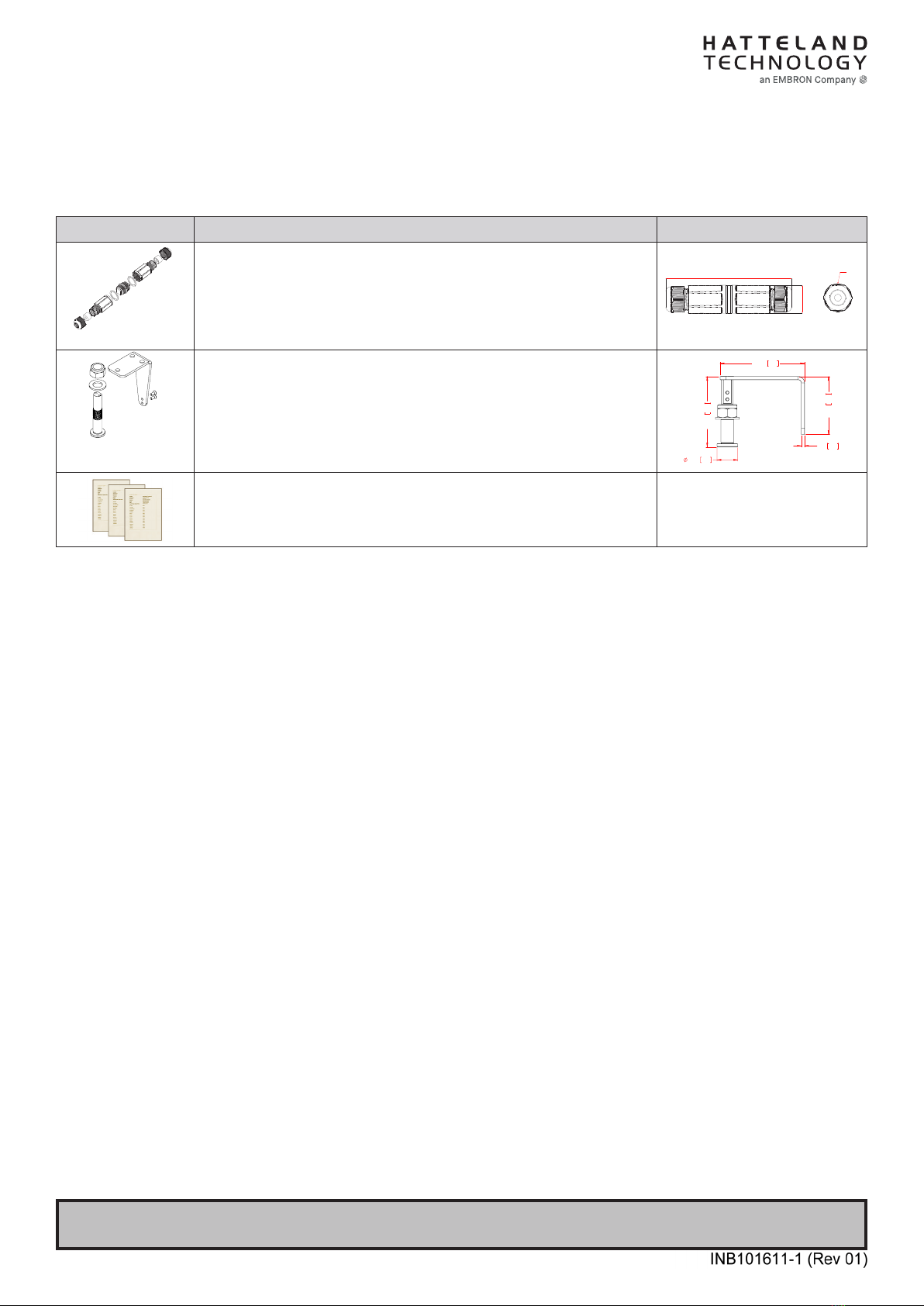

1.4 Contents of package

Item Description Illustration

LD-001

RJ45 Waterproof Coupler shielded

HT MB1x-AA

SeaHawk Bullet Ceiling/Wall Bracket (not included with HT FDFL YA-X3)

includes:

1 x PO25745 - Bullet Camera Bracket Black RAL9005

1 x SeaHawk Bullet Ceiling/Wall Bracket White RAL9010

1 x Quick Start Guide

Note: Entries listed below are for Standard factory shipments. Customized factory shipments may deviate from this list.

ø30

30.00 [1.18]

134.50 [5.29]

ø30

30.00 [1.18]

134.50 [5.29]

90.00

3.54

131.00

5.16

30.00

1.18

60.00

2.36

3 x

10.50

0.41

THRU

50.00

1.97

199.00

7.83

32.00

1.26

ItemNo

Quantity

Description

ID.

Revision

Material

1 1

Bullet Camera Bracket Black

P025745

AISI Type 316L stainless steel

2 1

Bullet Camera Bolt M20 Black

P025743

AISI Type 316L stainless steel

3 2

DIN 7991 - M5 x 14

4 1

DIN 985 - M20x1.5

5 1

Washer M20

Plastic

6 1

Plastic Cap Ø28.55mm (Black)

Plastic

7 1

3mm allen/hex key

131.00

5.16

109.50

4.31

5.00 0.20

90.00

3.54

32.00

1.26

50.00

1.97

30.00

1.18

60.00

2.36

3 x

10.50

0.41

THRU

Wall Mount Setup

Ceiling Mount Setup

Sales Drawing

HT MB11-AA (SeaHawk Bullet Ceiling/Wall Bracket Black)

Stainless steel (A4)

(Black)

Units: mm [inches]

Stainless steel

(Black)

Hatteland Technology AS

Eikeskogvegen 52

N-5570 Aksdal

A012065

Projection

Revision:

This document is the property of Hatteland Technology AS.

This document and any authorized reproduction thereof, must not be used in

any way against the interest of Hatteland Technology AS.

Any authorized reproduction, in whole or in part, must include this legend.

Approved by:

Drawing number:

1:2

Colour code:

Scale:

Surface treatment:

Sheet

1 3

Tolerance

Welding

specification

NS-EN-288-4

ISO 2768-mK

Last rev. date / by: /

Creation date / by: /

8744

21.10.19

For dimensions not shown, see DWG or 3D model.

IND101057-27

3 Feb. 2021 Hatteland Technology AS | www.hattelandtechnology.com | Enterprise no: NO974533146 Page 10 of 66

1.5 System Connections

The Seahawk IP Cameras can be connected in either 1 to 1 connection where one SeaHawk

Camera is connected to one PC client or a decoder system or 1 to many connections where one

TN-B220xT.can be connected to several PCs and decoder systems. (TCS-2000 video server can

work as a video decoder which takes the data from a video server or IP camera, decodes and

outputs analog video.)

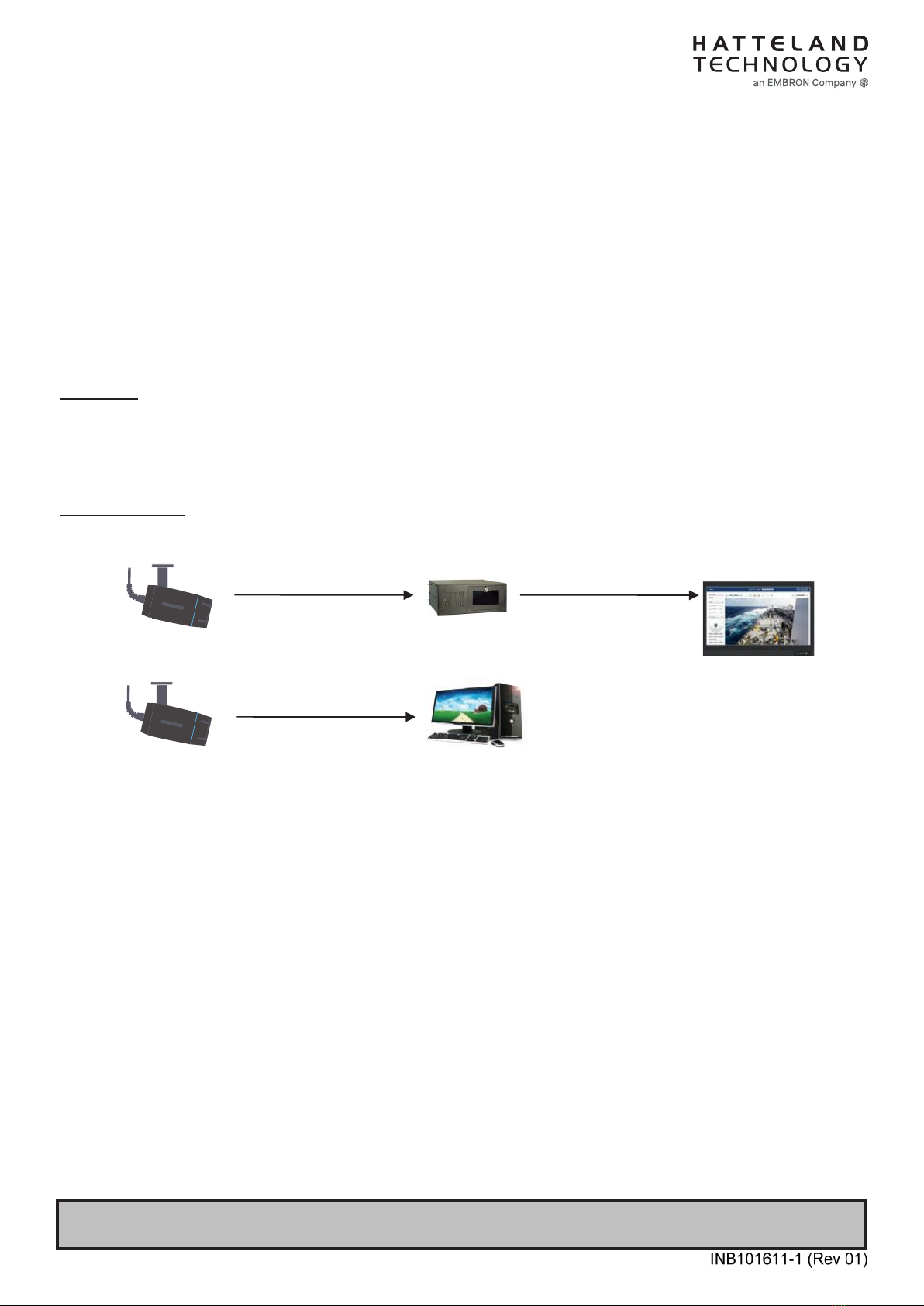

Topology

Generally, a Seahawk Camera and PC or a decoder is connected in 1-to-1 mode or 1-to many

configuration.

1:1 Connection

One Seahawk camera is installed at a site where video images are transmitted. A PC or a

decoder is installed at a central location to receive and view the video images on an analog

monitor. Audio and serial data are transferred in either direction.

1:N Connection

In this configuration, a site can be monitored from many remote central locations. Although up to

64 PCs or decoders can be connected to one SeaHawk IP Camera in the real network

environment, network bandwidth can limit the maximum connections. Functionally of the video

Management system (VMS) software provided can replace the decoder.

Site

Remote Center (Decoder) Remote Center

Site

Remote Center (PC SW)

Site

Remote Center

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali EMBRON Telecamera di sicurezza

EMBRON

EMBRON Hatteland Technology HT FBVF Series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
