Bettis RTS Relay Board (RP3E)

Electric Actuator

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

June 2021

Revision Details

June 2021

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

Revision Details

No. Date Version Type of Change

1 June 2021 0 General update

(Migration to new template)

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

Table of Contents

June 2021

Table of Contents

Section 1: Tools

Tools.........................................................................................................................1

Section 2: Material

Material.....................................................................................................................2

Section 3: Installation

Installation................................................................................................................3

Section 4: Programming

Programming............................................................................................................8

Notes

June 2021

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

This page is intentionally left blank

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0 June 2021

Tools 1

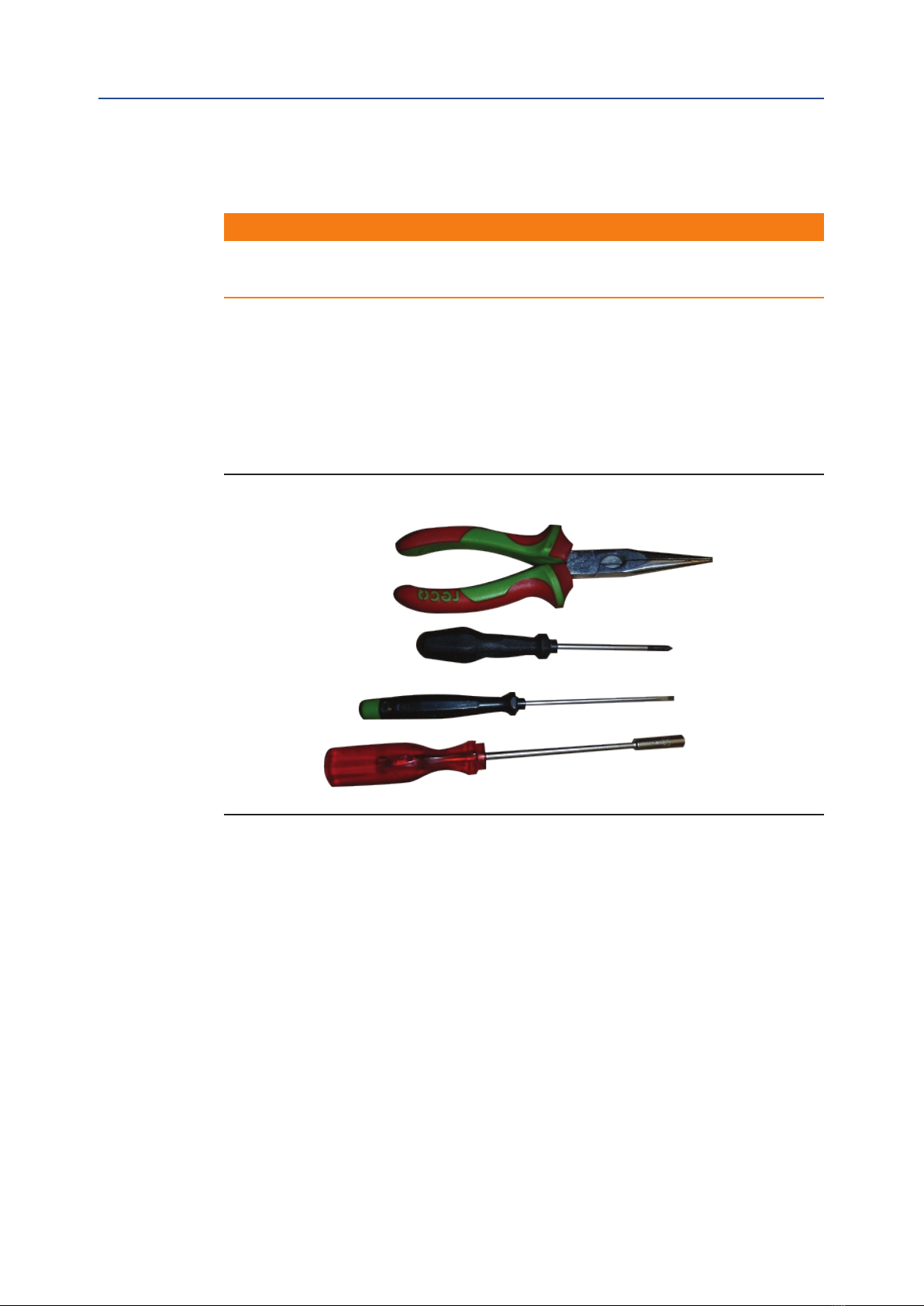

Section 1: Tools

! WARNING

Remove all power supplies before doing the exchange. Act always with caution during

the exchange!

• Needle nose pliers

• Screw driver phillips

• Screw driver at

• Allen key 5

• Socket wrench 5

Figure 1

June 2021

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

Material

Section 2: Material

• 1x relay board RP3E6A (ID:13009)

• 1x adapter cable (ID:16504)

• 2x steel screw M3x16 (ID:952)

• 3x plastic distance 8 mm (ID:9896)

• 1x plastic screw M3x15 (ID:9895)

• 1x plastic nut M3 (ID:7084)

• 2x lock plates M3 red (ID:13674)

Figure 2

Figure 3

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0 June 2021

Installation 3

Section 3: Installation

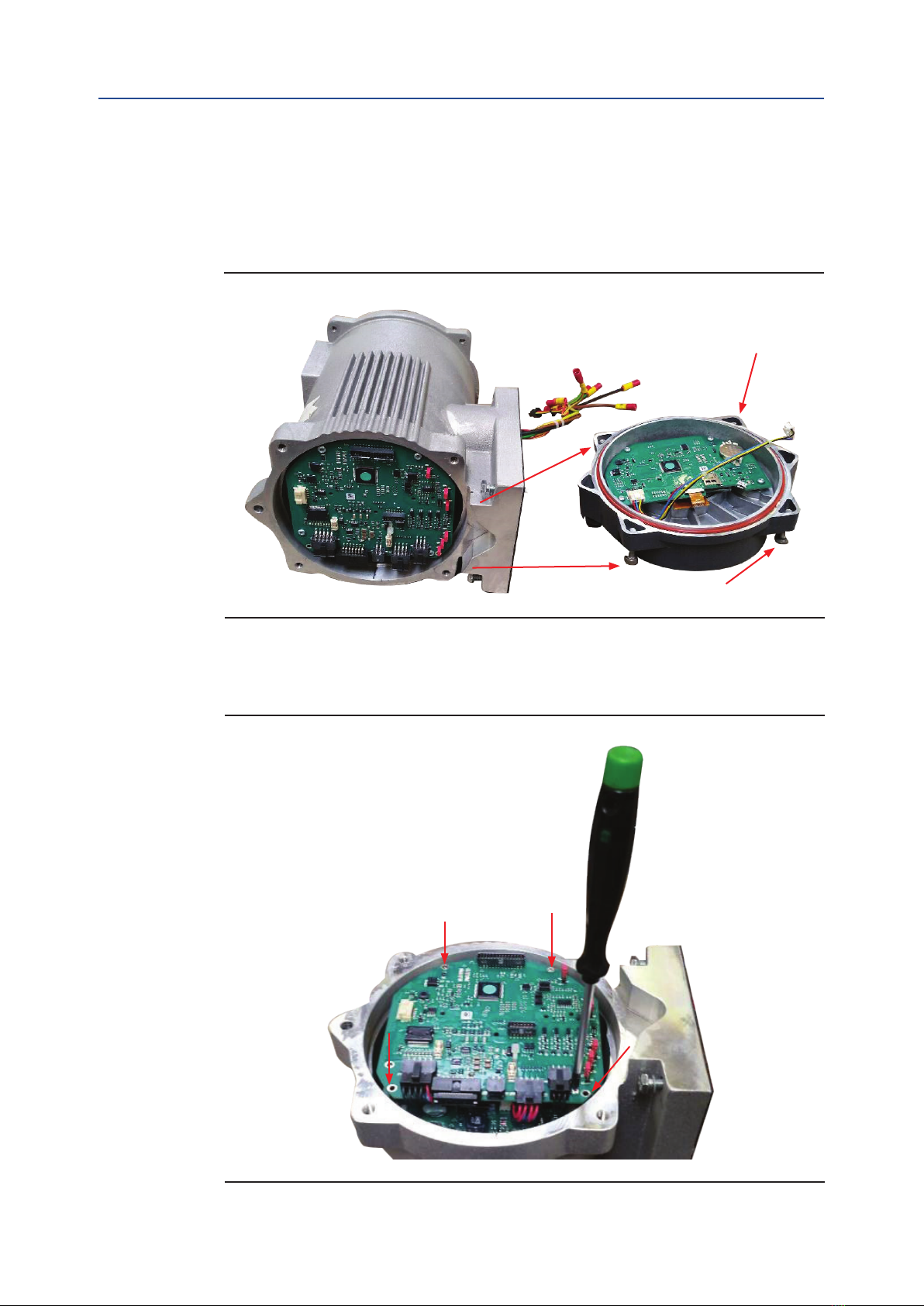

Unscrew the 4 hexagon socket screws from the cover and remove it carefully. Mind the

connection cable between display and logic board.

Figure 4

Unscrew the 4 cross recessed screws from the existing logic board and afterwards tilt it

carefully to you.

Figure 5

June 2021

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

Installation4

Section 3: Installation

Remove carefully the connected cables: ribbon cable, 6-8-10-poles plugs. Afterwards you

can remove the logic board from the control unit and disconnect the 2nd ribbon cable on

the back.

Figure 6

Remove the two, marked with the red arrows, steel distances in the housing.

Figure 7

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0 June 2021

Installation 5

Section 3: Installation

Put the plastic distances 8 mm between logic and relay board, insert the M3x16 steel

screws through the estimated holes next to multi pin connector in logic board, plastic

distances and relay board and secure the screws with the red lock plates. For the 3rd hole

use the plastic screw M3x15 and secure it with plastic nut.

Figure 8

Connect the relay board with the multi-pin connector from the logic board.

NOTE

4 pins must stay free see FIgure 9.

Orientation brings the mounting holes of both boards – they must be in line.

Figure 9

June 2021

Installation, Operation and Maintenance Manual

VCIOM-15746-EN Rev. 0

Installation6

Section 3: Installation

Connect the adapter cable with the 10 and 6-pole connector, after connect blue

connectors with related one on the relay board.

Figure 10
