Rosemount™ pH/ORP Sensors
Models 3900, 3900VP, 396P, 396PVP,
396R, 396RVP, 3300HT, 3300HTVP,
3400HT, 3400HTVP, 3500P, and 3500VP
Contents
Essential instructions...................................................................................................................3
Installation.................................................................................................................................... 5
Wiring.......................................................................................................................................... 18
Calibration and maintenance................................................................................................... 22
Rosemount pH/ORP sensor(s) product certifications............................................................27
Quick Start Guide May2023
2 Emerson.com
1 Essential instructions
Read this page before proceeding!
Emerson designs, manufactures, and tests its products to meet many
national and international standards. Because these instruments
are sophisticated technical products, you must properly install, use,
and maintain them to ensure they continue to operate within their
normal specifications. You must adhere to the following instructions
and integrate them into your safety program when installing, using,
and maintaining Emerson's Rosemount products.
WARNING
Failure to follow the proper instructions may cause any one of the
following situations to occur: loss of life, personal injury, property
damage, damage to this instrument, and warranty invalidation.
Read all instructions prior to installing, operating, and servicing
the product.
Follow all warnings, cautions, and instructions marked on and
supplied with the product.
If this Quick Start Guide is not the correct one, call 1-800-854-8257
or 949-757-8500 to request the correct Quick Start Guide. Save
this Quick Start Guide for future reference.
Inform and educate your personnel in the proper installation,
operation, and maintenance of the product.
Use only qualified personnel to install, operate, program, and
maintain the product.
Install equipment as specified in the installation instructions of
the appropriate Quick Start Guide and per applicable local and
national codes. Connect all products to the proper electrical and
pressure sources.
When replacement parts are required, ensure that qualified
people use replacement parts specified by Emerson.
Ensure that all equipment doors are closed and protective covers
are in place, except when maintenance is being performed by
qualified people, to prevent electrical shock and personal injury.
NOTICE
The information contained in this document is subject to change
without notice.
May2023 Quick Start Guide
Quick Start Guide 3
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users' assets. This is true for
all systems used within the facility.
CAUTION
Special conditions for safe use
All pH/ORP sensors have a plastic enclosure which must be cleaned
with a damp cloth to avoid the danger due to a buildup of
electrostatic discharge.
NOTICE
Sensor/process application compatibility
The wetted sensor material may not be compatible with process
composition and operating conditions.
Application compatibility is entirely the owner's responsibility.
Quick Start Guide May2023
4 Emerson.com
2 Installation
2.1 Storing the sensor
•Emerson recommends storing pH/ORP sensors in their original
shipping containers until needed.
•Store sensors in a temperature-controlled environment.
•If the sensor must be stored after it has been removed from
its shipping container, store the sensor tip downward with the
protective cap in place and containing KCL solution (PN 9210342).
•For overnight storage, immerse the sensor in tap water or a 4 pH
buffer solution.
•pH glass electrodes slowly deteriorate in storage. There is no
specific expiration date. Follow the calibration procedures in
Calibration and maintenance to determine if the sensor calibrates
properly.
2.2 Prepare sensor
Procedure
1. Remove sensor from shipping container
2. Remove the protective cap covering the electrode bulb.
3. Rinse away salt film with clean water; then shake the electrode
so that the internal solution fills the bulb, removing any air
trapped there.
2.3 Installing sensors
2.3.1 Installation accessories
See the Liquid Analysis Sensor Mounting, Wiring, and Calibration
Product Data Sheet for a full list of accessories available from
Emerson to enable convenient and reliable sensor installation for
your application.
May2023 Quick Start Guide
Quick Start Guide 5
2.3.2 Sensor orientation
Install all Rosemount pH/ORP sensors within 80 degrees of vertical,
as shown in Figure 2-1. This ensures that the air bubble within the
sensor does not stay at the sensor tip and disrupt the measurement.
Figure 2-1: Sensor orientation
Install the sensor tip down within 80 degrees of vertical.
2.3.3 Install insertion style sensors
Emerson offers two primary mounting styles for pH/ORP sensors:
insertion and retractable.
Insertion style sensors have NPT pipe threads that you can connect
directly into the process or into a mounting adapter.
Figure 2-2: Example of a Rosemount insertion style sensor
A. Forward facing ¾-in. NPT are present on some Rosemount pH/ORP
sensor models.
B. Forward facing 1-in. NPT
C. Wrench flats
D. Rear facing 1-in. NPT
You can connect insertion style sensors to the process using the
forward facing NPT threads or you can use the rear facing NPT
threads for immersion mounting in a pond or basin.
Quick Start Guide May2023
6 Emerson.com
For immersion mounting, connect the sensor to a pipe using the rear
facing threads to keep the cable connection on the back of the sensor
dry.
Procedure
1. When using the sensor's NPT threads to connect to your
process, wrap the sensor threads with six or seven turns of
PTFE tape to prevent leakage.
2. Hand tighten the sensor and then tighten one or two turns
with a wrench.
Do not over tighten.
2.3.4 Installing retractable style sensors
Emerson offers two primary mounting style designs for pH/ORP
sensors: insertion and retractable.
Retractable style sensors have 1-in. (25 mm) outer diameter metal
bodies that you must connect to the process using an Emerson
provided insertion adapter or a ball valve retraction mounting
assembly.
Figure 2-3: Example of Rosemount retractable style sensor
A. 1-in. (25 mm) outer diameter retractable sensor body
Retractable sensors are available in several different lengths.
Retractable sensors with a length of less than 15 in. (381 mm) require
the use of an insertion adapter (PN 23166-00, PN 23166-01, or PN
9510066).
You can install retractable sensors with lengths greater than 15 in.
(381 mm) with an insertion adapter or with a Rosemount ball valve
assembly (PN 23240-00 or PN 23765-00). Ball valve assemblies allow
the sensor to be isolated from the process, so that you can remove
the sensor for cleaning, service, or replacement while the process
remains on-line.
May2023 Quick Start Guide
Quick Start Guide 7
Install retractable sensor with an insertion adapter
Figure 2-4: Insertion adapter (PN 23166-00 or PN 23166-01) with
Rosemount retractable sensor
A. 1-in. NPT
B. Ferrule fitting process connector assembly: PN 23166-00 or PN
23166-01
C. Sensor body
Procedure
1. Slide the fitting onto the sensor from the back of the sensor.
Install the threads facing forward for insertion installations.
Install the threads facing backward for connection to a
submersion pipe.
2. Connect the NPT threads on the adapter to the process piping
or submersion pipe.
3. Adjust the position of the fitting on the sensor to achieve the
desired sensor insertion length.
4. While holding the sensor in position, tighten the hex nut of the
male connector to firmly secure the sensor in place.
NOTICE
Over-tightening the hex nut may damage the ferrule.
When you tighten the hex nut, the PTFE ferrule inside the
compression fitting clamps the sensor tube.
Quick Start Guide May2023
8 Emerson.com
Install retractable sensor with ball valve assembly PN
23240-00
Figure 2-5: PN 23240-00 ball valve assembly and PN 23166-00 or
PN 23166-01 adapter with Rosemount retractable sensor
Dimension in drawing shows millimeters above and inches below.
A. Dimension (see Table 2-1)
B. Dimension (see Table 2-1)
C. Process connector (PN 23166-00 or PN 23166-01). Not included
with ball valve kit.
D. 1.5-in. (38.1 mm) by 1-in. (25.4 mm) reducer (PN 9310104)
E. Ball valve (PN 934065)
F. Ball valve kit (PN 23240-00)
G. 1.5-in. (38.1 mm) close nipple (PN 931012)
Table 2-1: Insertion lengths for retraction assembly PN 23240-00
Sensor tube length A B (maximum)
21 in. (533 mm) 23.1 in. (587 mm) 12.9 in. (328 mm)
36 in. (914 mm) 37.58 in. (955 mm) 27.4 in. (696 mm)
May2023 Quick Start Guide
Quick Start Guide 9

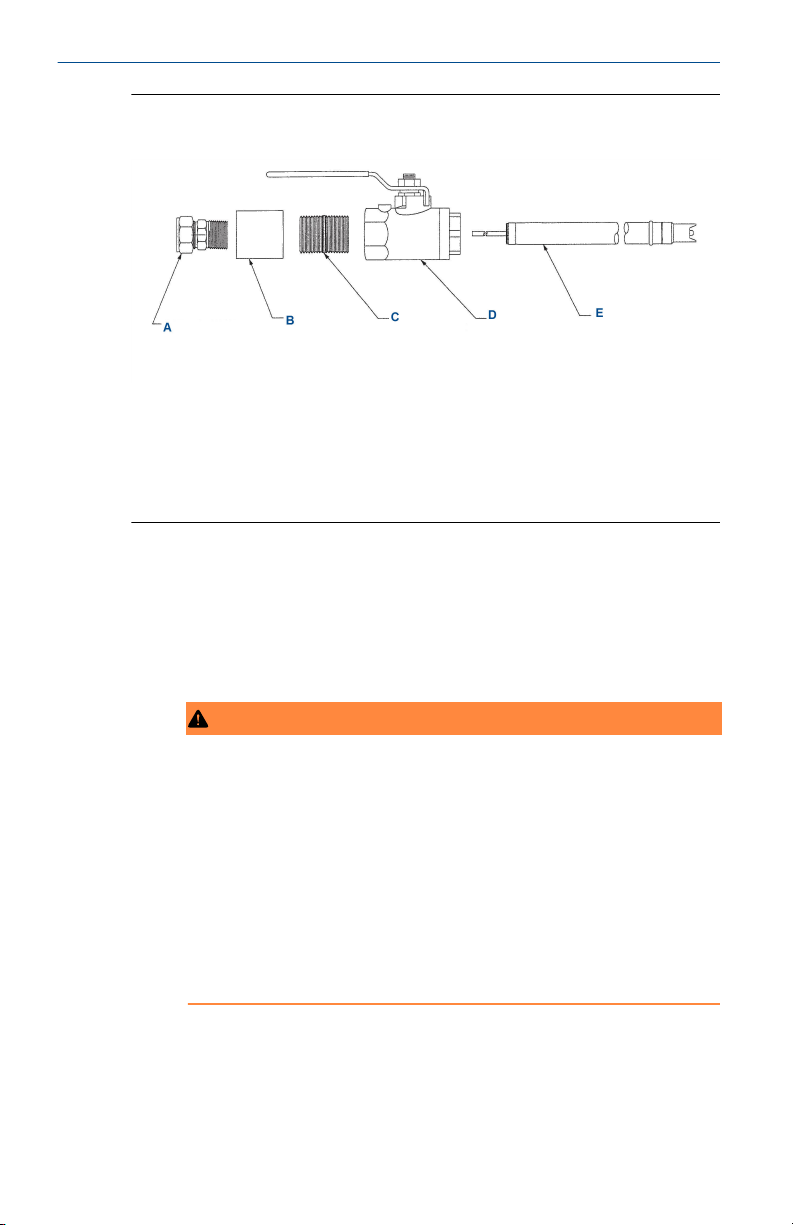

Figure 2-6: Exploded view ball valve assembly (PN 23240-00) used
with process connector (PN 23166-00 or PN 23166-01)
A. Kit, 1-in. (25.4 mm) ferrule fitting (PN 23166-00)
B. 1.5-in. (38.1 mm) by 1-in. (25.4 mm) reducer (PN 9310104)
C. 1.5-in. (38.1 mm) close nipple, 316 stainless steel (PN 9310103)
D. 1.5-in. (38.1 mm) ball valve, 316 stainless steel (PN 9340065)
E. Sensor
Procedure
1. Securely connect the ball valve assembly (ball valve, nipple,
and reducer) to the process.
2. Make sure the ball valve is closed and the system pressure is
at or below the maximum rated retraction pressure for the
sensor length you are using before proceeding.
WARNING
Before removing the sensor, be absolutely certain that the
process pressure is reduced to 0 psig (0 barg) and the
process temperature is lowered to a safe level.
Do not insert or retract retractable sensors when process
pressure is above the specified retraction pressure limit for
the length of sensor being used.
For 21-in. (533 mm) length sensors the maximum allowed
retraction pressure is 64 psig (5.4 barg).
For 36-in. (914 mm) length sensors the maximum allowed
retraction pressure is 35 psig (3.4 barg).
3. Slide the ferrule fitting (PN 23166-00 or 23166-01) onto the
sensor from the back of the sensor.
4. With the ferrule fitting on the sensor's body, insert the sensor
into the ball valve until it gently touches the closed valve.
Quick Start Guide May2023
10 Emerson.com
Altri manuali per Rosemount 3900
2
Questo manuale è adatto per i seguenti modelli
11
Indice
Altri manuali Emerson Sensore di sicurezza
Emerson
Emerson Rosemount 975MR Manuale utente
Emerson
Emerson CT2211 Manuale utente
Emerson
Emerson Rosemount 975 Manuale utente
Emerson
Emerson Machinery Health AMS EZ 1000 Manuale utente
Emerson
Emerson White-Rodgers 902 Manuale utente
Emerson
Emerson Rosemount 975 Series Manuale utente
Emerson
Emerson Rosemount CT4215 Manuale utente
Emerson
Emerson Rosemount 2160 Manuale utente
Emerson
Emerson Machinery Health PR 9268 Series Manuale utente
Emerson
Emerson Rosemount 2140 Manuale utente
Emerson
Emerson Rosemount 2140 Manuale utente
Emerson
Emerson Net Safety JB Series Manuale utente
Emerson
Emerson F145RF-1600 Manuale utente
Emerson
Emerson Rosemount 389 Manuale utente
Emerson
Emerson Rosemount 975HR Manuale utente
Emerson
Emerson Rosemount 2160 Manuale utente
Emerson
Emerson CHD200G Manuale utente
Emerson
Emerson Dixell GDS41M Schema elettrico
Emerson
Emerson Rosemount 975 Series Manuale utente
Emerson
Emerson Rosemount 975 Manuale utente
