Empava EMPV-BR01S Manuale utente
COMPRESSOR BEVERAGE COOLER
User Manual
EMPV-BR04D
Please read this user manual before using this product
EMPV-BR01S EMPV-BR02S EMPV-BR03D
EMPAVA APPLIANCES INC
15253 DON JULIAN RD CITY OF INDUSTRY.CA 91745
TEL:888-682-882
WWW.EMPAVA.COM
CONTENT
1. Before First Use....................................................................................4
2. Important Safety Measures and Instructions...................................4
3. Warning and Cautions......................................................................... 5
4. Specifications........................................................................................ 7
5. Device Overview...................................................................................8
6. Before Initial Operation.......................................................................
12
7. Temperature Setting.......................................................................... 13
8. Operation............................................................................................. 14
9. Energy Saving....
.................................................................................14
10. Cleaning and Maintenance.............................................................14
11. How to Move the Appliance............................................................15
12. Installation......................................................................................... 15
13. Trouble Shooting...................
........................................................... 19
14. Decommission.................................................................................. 20
15. Electrical Circuit Diagram............................................................... 21
4
Thank you for choosing our product. If operated and taken care of properly in
accordance with these instructions, this appliance will be useful for many years.
1. Before First Use
Before first use, remove any stickers or similar from the appliance except for the
rating label.
Dispose of any plastic bags as they pose a risk of suffocation to young children.
Please read this manual before operating the appliance and keep it in a safe place for
future reference. If this appliance is transferred to a new owner, the manual should
also be provided to the new owner. If you ignore the safety instructions, you will
endanger your health and life.
2. Important Safety Measures and Instructions
Before operating the appliance, check if the voltage indicated on the appliance’s
technical plate corresponds to the voltage of the electricity supplied to your home.
Check the technical periphery of the appliance. Do all wires and connections to the
appliance work properly? Or are they time-worn and do not match the technical
requirements of the appliance? A check-up of existing and newly made connections
must be done by an authorized professional. All connections and energy-leading
components (incl. wires inside a wall) must be checked by a qualified professional.
All modifications to the electrical mains to enable the installation of the appliance
must be performed by a qualified professional.
This appliance is intended for private use only.
This appliance is intended for cooling wine in a private household only.
This appliance is for indoor use only.
This appliance is not intended to be operated for commercial purposes,during
camping or in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the
appliance.
This appliance may be operated by children aged from 8 years and above as well as
by persons with reduced physical, sensory and mental capabilities or lack of
experience and knowledge if they are supervised or have been instructed concerning
the safe use of the appliance and do comprehend the hazards involved. Children
must not play with the appliance. Cleaning and user maintenance must not be carried
out by children unless they are supervised.
Ambient temperature below 10°C or above 32°C will hinder the performance of the
appliance.
5
EXPLOSION HAZARD
Do not store any explosive materials or sprays that contain flammable propellants in your appliance.
3. Warning and Cautions
Do not connect the appliance to the mains if the appliance itself or the power cord or
the plug are visibly damaged.
Never try to repair the appliance yourself. If the appliance does not operate properly,
please contact the shop you purchased the appliance at. Original spare parts should
be used only.
When the power cord is damaged, it must be replaced by the manufacturer or an
authorized after sales service or a qualified professional only.
If any part of the cooling circuit is damaged, the appliance must not stand near a fire,
naked light or spark-generating devices. Contact the shop you purchased the
appliance at immediately.
Keep all components of the appliance away from fire and other sources of ignition
when you dispose of or decommission the appliance.
Do not install the appliance near volatile or combustible materials (e.g. gas, fuel,
alcohol, paints) or in rooms which may have poor air circulation (e.g. garage).
Do not connect the appliance to the electric supply unless all packaging and transit
protectors have been removed.
Operate the appliance with 110–120V AC 60Hz only. All connections and
energy-leading components must be replaced by an authorized professional.
Do not use a socket board or a multi socket when connecting the appliance to the
mains.
A dedicated and properly grounded socket meeting the data of the plug is required to
minimize any kind of hazard. The appliance must be grounded properly.
Check that the power cord is not placed under the appliance or damaged when
moving the appliance.
The technical data of your energy supplier must meet the data on the model plate of
the appliance.
Your domestic circuit must be equipped with an automatic circuit breaker.
Do not modify the appliance.
RISK OF ELECTRIC SHOCK
Turn off the power before you install the appliance and before you connect it to the mains. Do not
use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the
electrical parts and cause an electrical short. Never use mechanical devices, knives or other sharp-
edged items to remove encrusted ice inside the appliance.
6
Disconnect the appliance from the mains before you clean or maintain it.
Do not use any electric appliances inside the food storage compartments of your
appliance unless they are recommended by the manufacturer of your refrigerator.
Do not put any heat-radiating appliances onto your appliance.
Do not install the appliance in a place where it may come in contact with
water/rain, otherwise the insulation of the electrical system will be damaged.
Do not put a water-boiler or vases onto your appliance. The electrical components
of your appliance can be seriously damaged by water over- boiling or spilled
water.
Children must never play with the appliance.
If you decommission your appliance (even temporarily), ensure that children
cannot get into the appliance.
Do not touch the extremely cooled surfaces with wet or damp hands, because
your skin may stick on these surfaces.
When you move the appliance, hold it at its base and lift it carefully. Keep the
appliance in an upright position.
Never use the door for moving the appliance as you will damage the hinges.
Do not operate the appliance unless all components are installed properly.
Do not stand or lean on the base,the drawers,the doors etc of the appliance.
Do not put hot liquids or hot foodstuff into the appliance.
4. Specifications
MODEL
VOLUME 84L 147 L 123L
VOLTAGE AC 110-120V
FREQUENCY 60Hz 60Hz 60Hz
PROTECTION TYPE I I I
CLIMATE CLASS SN.N SN.N SN.N
INPUT POWER 90 Watt 90 Watt 110Watt
ENERGY CONSUMPTION 0.257 Kw.h/24h 0.402 Kw.h/24h Kw.h/24h
TEMPERATURE RANGE 38-50℉(3-10℃)
NET WEIGHT lbs lbs 107.5 lbs
PRODUCT DIMENSION W x H x D inches W x H x D inches W x H x D inches
1 L
I
.
0.371 .h/
x x
60Hz
I
SN.N
Watt
Kw.h/24h
lbs
W xH x D inches
I
.
0.492 .h/ h
x x
EMPV-BR01S EMPV-BR02S EMPV-BR03D EMPV-BR04D
134.5
99.2
71.7
14.8 33.9 22.4 23.4
22.4
33
23.4 29.8
33.9 33.9
22.4 22.4
7
177L1 L
110
38-50℉(3-10℃)zone:40- ℉(5-1 ℃)
zone: - ℉3 -1 ℃)
n : 0- ℉( - ℃)
:50
-℉(-℃
Left
Right
66 8
0
38
zone:40- ℉(5-1℃)
zone: - ℉3 -1 ℃)
: - ℉( - ℃)
:50
-℉(-℃
Left
Right
668
0
38
AC 110-120V AC 110-120V AC 110-120V
8
EMPV-BR01S
9
Model No.: EMPV-BR02S
1. 2. 3. 4.
5. 6. 7. 8.
9. 10. 11. 12.
13. 14. 15. 16.
17.
℉/℃Switch
NTC point Light switch Temperature display Light
Temperature switch Exhuaust window
Shelf Foot
Exhuaust window
Body
Glass Door seal Door frame Lower hinge
Lock
Fan
10

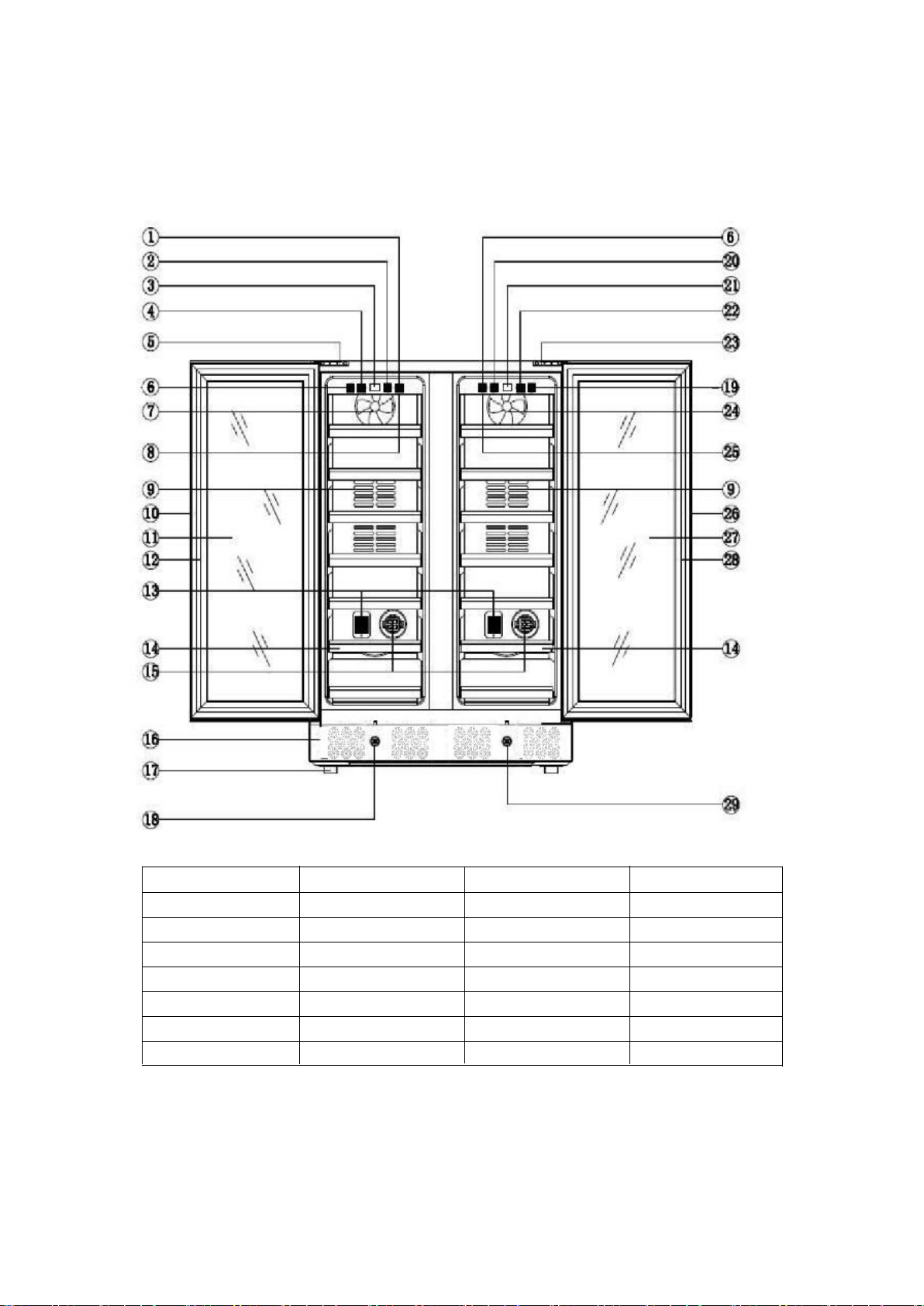

Model No.: EMPV-BR03D
1. 2. 3. 4.
5. 6. 7. 8.
9. 10. 11. 12.
13. 14. 15. 16.
17.
Left light switch Left temperature setting left temperature display Left temperature setting
Left upper hinge Power switch Left fan Left light
Exhaust window Door frame Left glass
18. 19. 20.
Left door seal
NTC point Shelf Carbon filter
Foot
Right temperature display
. . . .
.
.
21. 22. 23 24
25 26 27 28
29
Right temperature setting
Right upper hinge Right fan
Door frame Right glass Right door seal
Right light
Lock
Exhaust window
Right light switch
Right temperature setting
Lock
