Induction Cooktop
Instruction Manual / Installation Manual
MODEL:
EMPV-IDC12
EMPV-IDC24
EMPV-IDC30

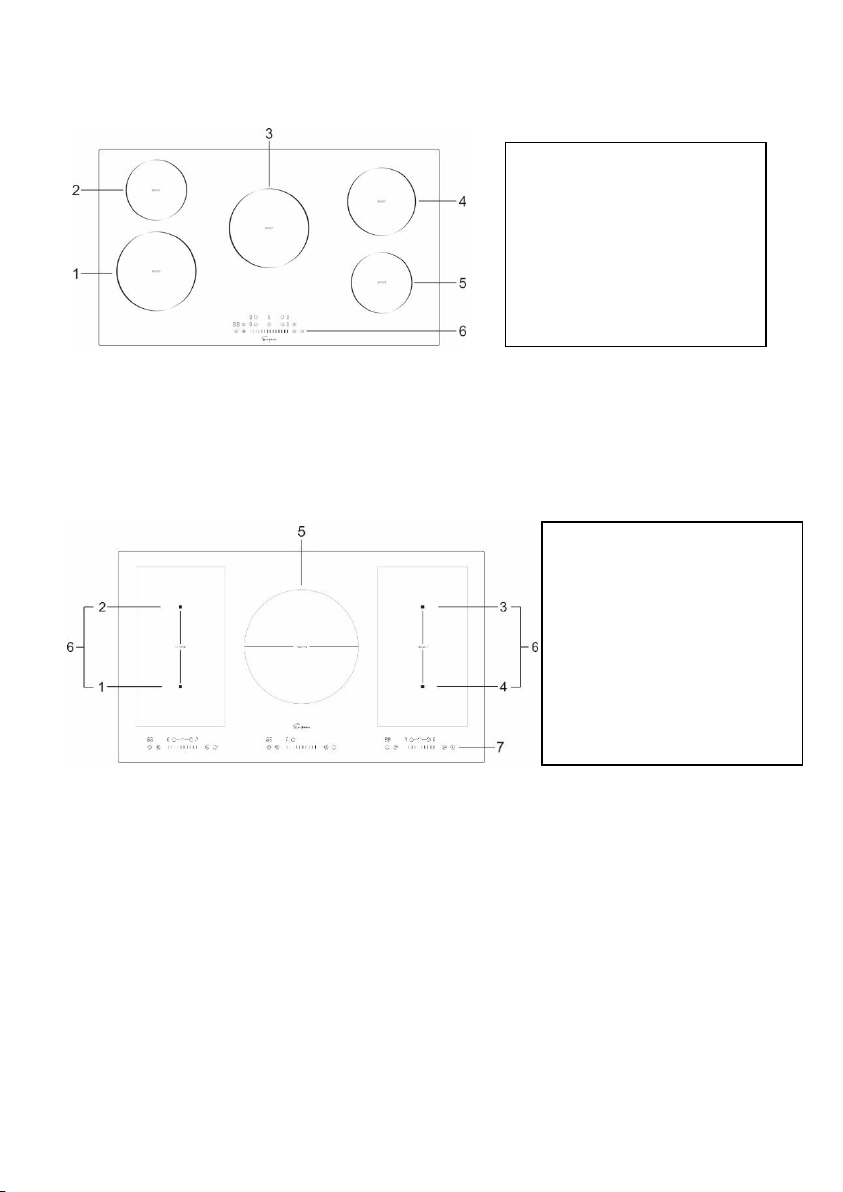

EMPV-IDC36
EMPV-IDCF9
2
SAFETY WARNINGS
PLEASE READ THE FOLLOWING INSTRUCTIONS
CAREFULLY BEFORE USING THE APPLIANCE.
Installation
Electrical Shock Hazard
•Disconnect the appliance from the mains electricity supply
before carrying out any work or maintenance on it.
•Connection to a good earth wiring system is essential and
mandatory.
•Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
•Alterations to the domestic wiring system must only be
made by a qualified electrician.
•Failure to follow this advice may result in electrical shock
or death.
Cut Hazard
•Take care - panel edges are sharp.
•Failure to use caution could result in injury or cuts.
Important safety instructions
•Read these instructions carefully before installing or using
this appliance.
•No combustible material or products should be placed on
this appliance at any time.
•Please make this information available to the person
responsible for installing the appliance as it could reduce
your installation costs.
•In order to avoid a hazard, this appliance must be installed
according to these instructions for installation.
3
•This appliance is to be properly installed and earthed only
by a suitably qualified person.
•This appliance should be connected to a circuit which
incorporates an isolating switch providing full
disconnection from the power supply.
•WARNING: Use only cooktop guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or cooktop guards incorporated in the appliance.
The use of inappropriate guards can cause accidents.
•Failure to install the appliance correctly could invalidate
any warranty or liability claims.
•Regarding the details of installation, thanks to refer to the
section <Installation>.
Operation and maintenance
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If the cooktop
surface is break or crack, switch the appliance off
immediately at the mains power supply (wall switch) and
contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or
maintenance.
•Failure to follow this advice may result in electrical shock
or death.
Health Hazard
•This appliance complies with electromagnetic safety
standards.
Hot Surface Hazard
4
•During use, accessible parts of this appliance will become
hot enough to cause burns.
•Do not let your body, clothing or any item other than
suitable cookware contact the ceramic glass until the
surface is cool.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the cooktop surface since they can
get hot
•Children less than 8 years of age shall be kept away unless
continuously supervised.
•Handles of saucepans may be hot to touch. Check saucepan
handles do not overhang other cooking zones that are on.
Keep handles out of reach of children.
•Failure to follow this advice could result in burns and
scalds.
Cut Hazard
•The razor-sharp blade of a cooktop scraper is exposed when
the safety cover is retracted. Use with extreme care and
always store safely and out of reach of children.
•Failure to use caution could result in injury or cuts.
Important safety instructions
•Never leave the appliance unattended when in use. Boilover
causes smoking and greasy spillovers that may ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Never use your appliance for warming or heating the room.
•After use, always turn off the cooking zones and the
cooktop as described in this manual (i.e. by using the touch
controls).
•Do not allow children to play with the appliance or sit,
stand, or climb on it.
5
•Do not store items of interest to children in cabinets above
the appliance. Children climbing on the cooktop could be
seriously injured.
•Do not leave children alone or unattended in the area where
the appliance is in use.
•Children or persons with a disability which limits their
ability to use the appliance should have a responsible and
competent person to instruct them in its use. The instructor
should be satisfied that they can use the appliance without
danger to themselves or their surroundings.
•Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other
servicing should be done by a qualified technician.
•Do not use a steam cleaner to clean your cooktop.
•Do not place or drop heavy objects on your cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans across the
glass surface as this can scratch the glass.
•Do not use scourers or any other harsh abrasive cleaning
agents to clean your cooktop, as these can scratch the
ceramic glass.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•This appliance is intended to be used in a domestic
household environment only! Commercial use of any kind
is not covered under the manufacturer's warranty!
•WARNING: The appliance and its accessible parts become
hot during use.
6
•Care should be taken to avoid touching heating elements.
•Children less than 8 years of age shall be kept away unless
continuously supervised.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
•WARNING: Unattended cooking on a cooktop with fat or
oil can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire blanket.
•WARNING: Danger of fire: do not store items on the
cooking surfaces.
•WARNING: If the surface is cracked, switch off the
appliance to avoid the possibility of electric shock, for
cooktop surfaces of glass-ceramic or similar material which
protect live parts.
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Congratulations on the purchase of your new cooktop. We recommend that
you spend some time to read this Instruction / Installation Manual in order to
fully understand how to install correctly and operate it.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.
7
Connecting the cooktop to the main power supply
The power supply should be connected in compliance with the relevant standard, or a
single-pole circuit breaker. The method of connection is shown as below.

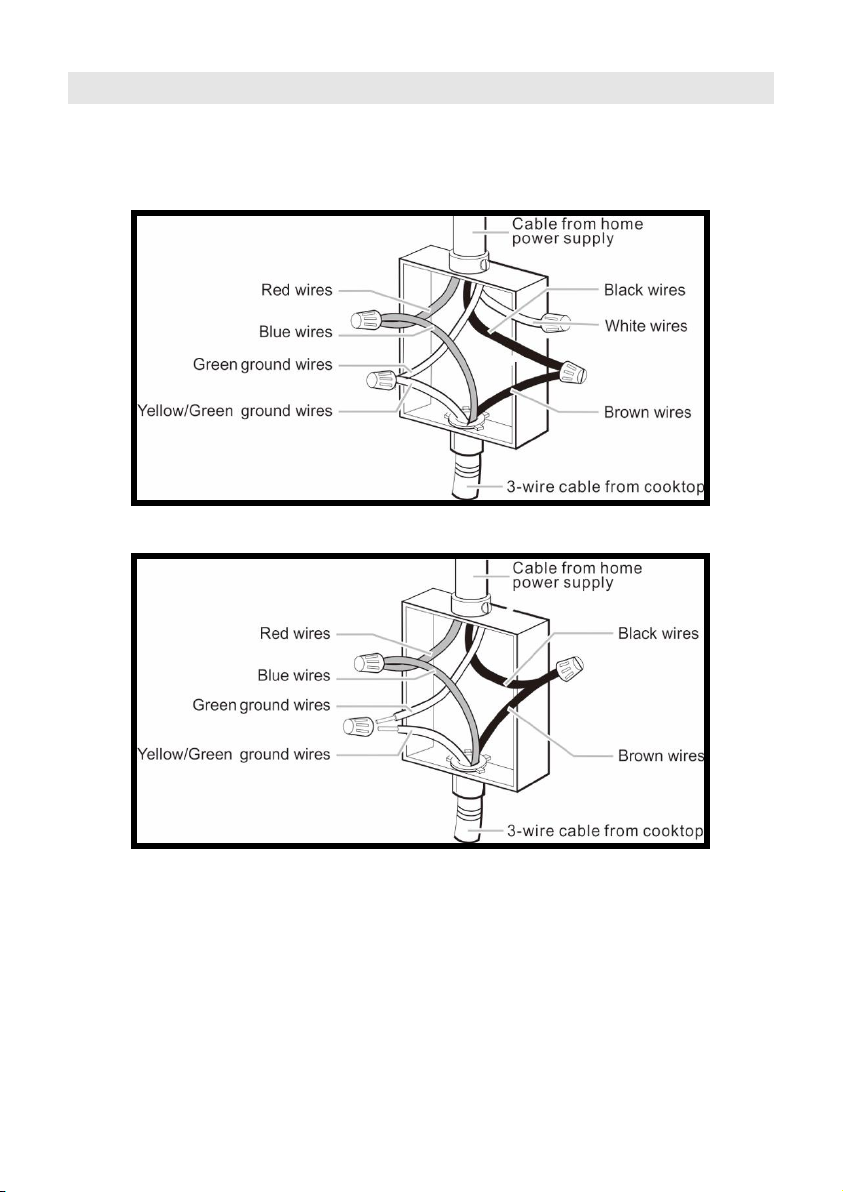

For 4-wire cable from home power supply
For 3-wire cable from home power supply
If the cable is damaged or needs replacing, this should be done by an after-sales
technician using the proper tools, so as to avoid any accidents.
•If the appliance is being connected directly to the mains supply, an omnipolar circuit
breaker must be installed with a minimum gap of 0.12in between the contacts.
•The installer must ensure that the correct electrical connection has been made and
that it complies with safety regulations.
•The cable must not be bent or compressed.
•The cable must be checked regularly and only replaced by a proper qualified person.
8
Product Overview

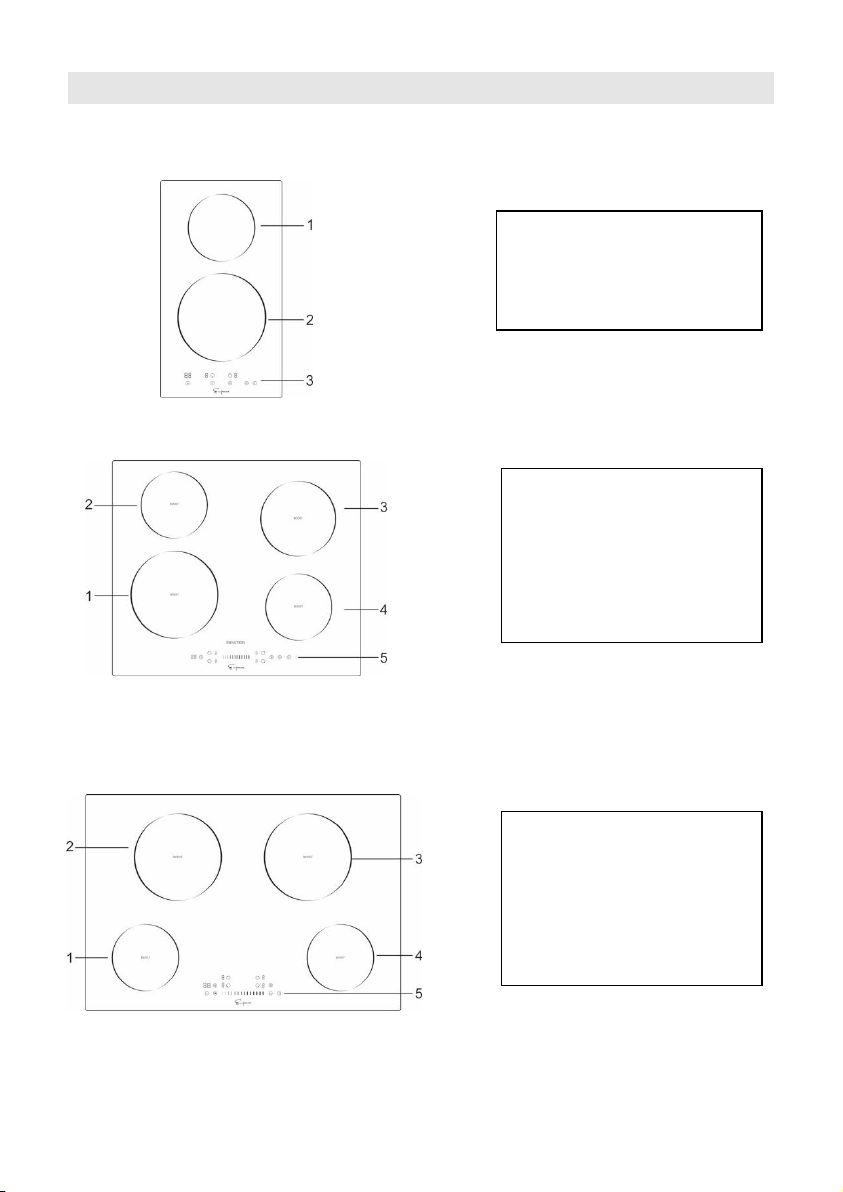

Top View
EMPV-IDC12
EMPV-IDC24
EMPV-IDC30
1. max. 1.71/1.99 Btu/s
2. max. 1.14/1.42 Btu/s
3. max. 1.71/1.99 Btu/s
4. max. 1.14/1.42 Btu/s
5. Control panel
1. max. 1.14 Btu/s
2. max. 1.71 Btu/s
3. Control panel
1. max. 1.14/1.42 Btu/s
2. max. 2.18/2.84 Btu/s
3. max. 1.71/1.99 Btu/s
4. max. 1.14/1.42 Btu/s
5. Control panel
9
EMPV-IDC36
EMPV-IDCF9
1. max. 1.71/1.99 Btu/s
2. max. 1.71/1.99 Btu/s
3. max. 1.71/1.99 Btu/s
4. max. 1.71/1.99 Btu/s
5. max. 2.37/2.84 Btu/s
6. max. 2.84/3.41 Btu/s
7. Control panel
1. max. 1.71/1.99 Btu/s
2. max. 1.14/1.42 Btu/s
3. max. 2.18/2.84 Btu/s
4. max. 1.71/1.99 Btu/s
5. max. 1.14/1.42 Btu/s
6. Control panel
10

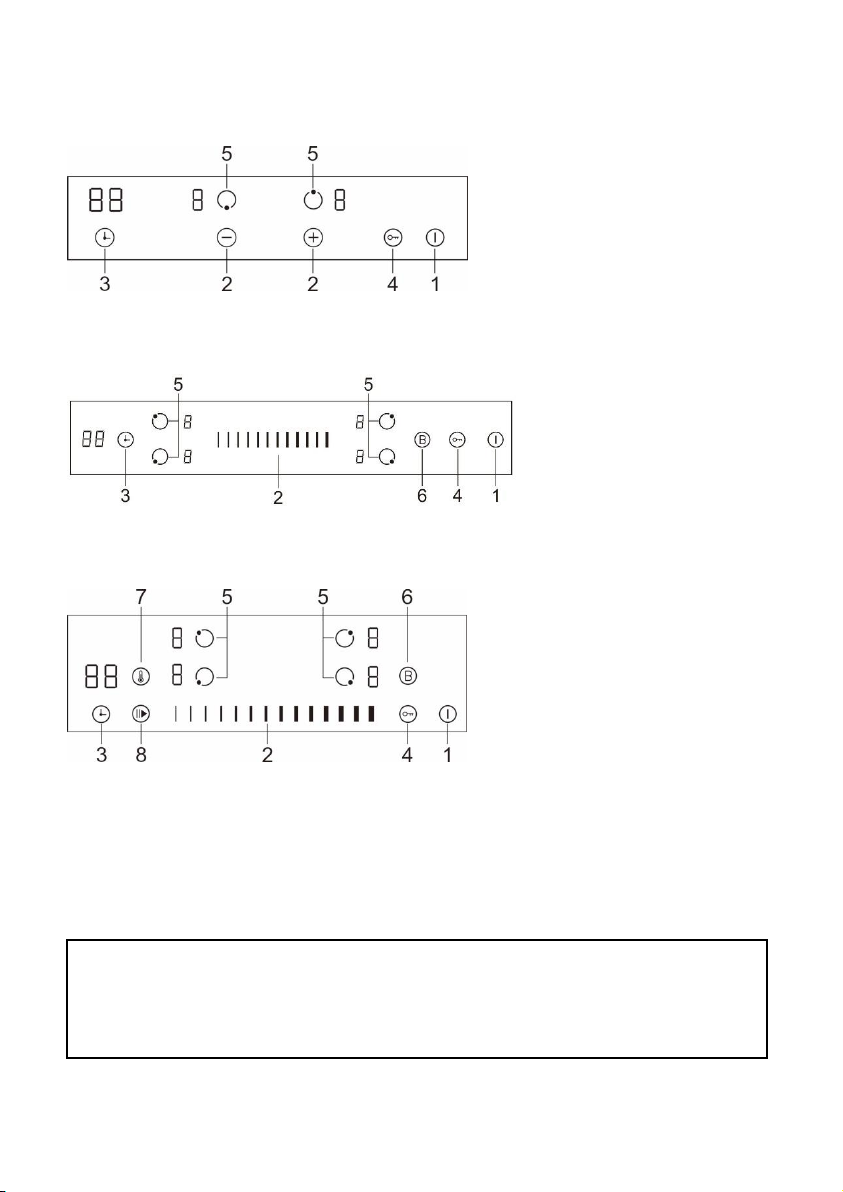

The Control Panel
EMPV-IDC12
EMPV-IDC24
EMPV-IDC30
EMPV-IDC30
1. ON/OFF switch 4. Child lock 7. Keep warm
2. Select power level 5. Select heating zone 8. Pause
3. Setting the timer 6. Boost control
