Empress Effects ECHOSYSTEM Manuale utente

user manual

version 1.05

INTRODUCTION

We're stoked you've chosen to make the Empress Echosystem

part of your sound! We hope you use it to create new and

amazing sonic textures. In time, those sounds may make you a

superstar. At which point, we hope you remember us and invite

us back stage so we can impress our wives and children.

Jason Fee - Designer

Steve Bragg –Designer

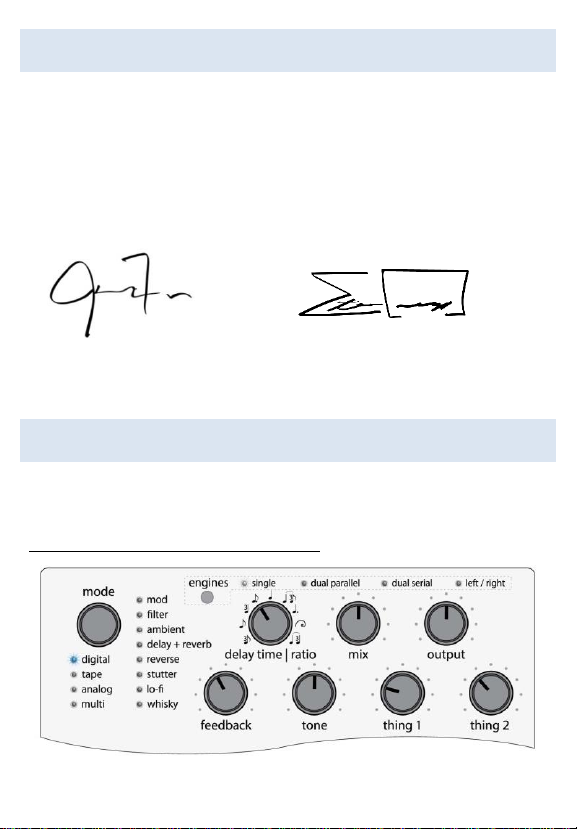

QUICKSTART

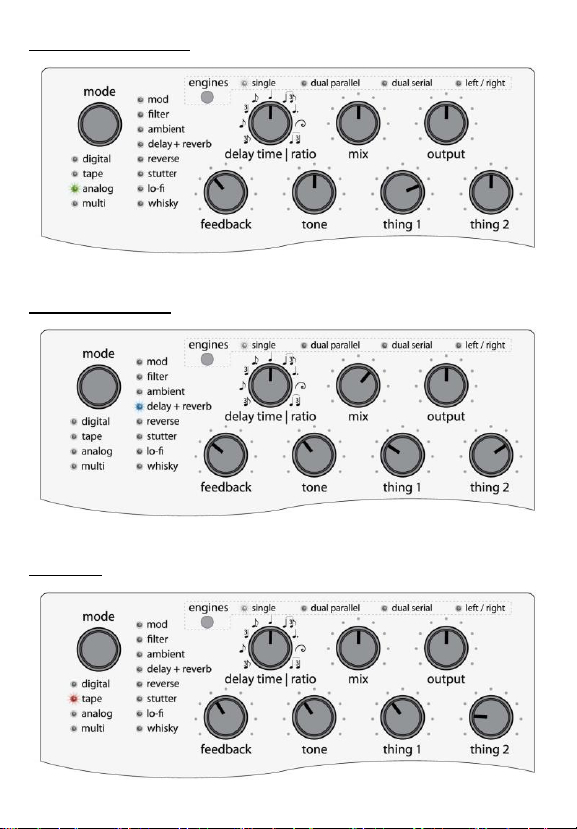

All modes are designed to sound good with all knobs at 12 o'clock.

Start there and then tweak to taste. Here’s a few others to try too.

Clean Digital Delay –Dotted Eighths

Warm Analog Delay

Delay and Reverb

Echoplex

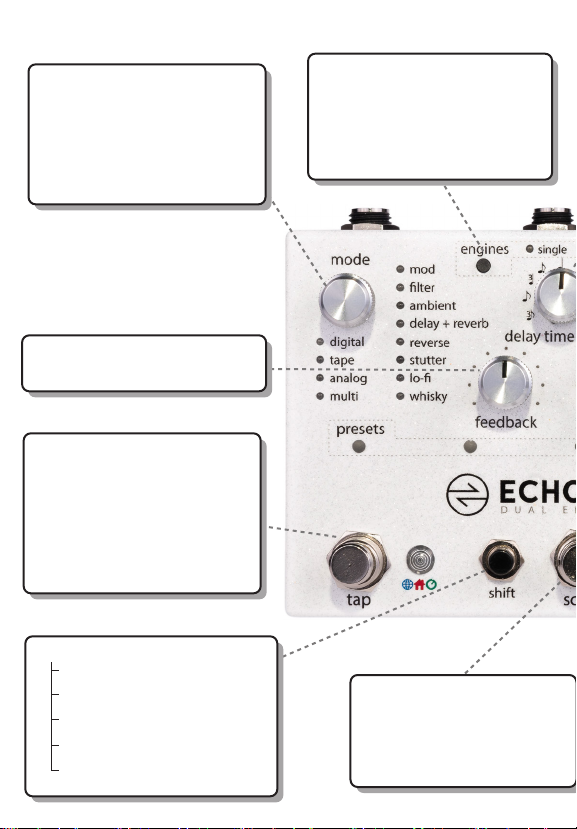

Controls at a Glance

mode selector: selects which

mode is active. Each mode can

have many submodes which are

indicated by dierent color LEDs.

when using dual engines, press

to switch active engine.

engines: press to cycle through

the 4 dierent routing modes.

hold tap and press engines to

send current tempo from the

active delay to the other delay

feedback: controls how long the

delay takes to decay.

shift +

engine - switch engine order

mode btn- solo active engine

knob(s) - assign exp pedal

scroll - save preset

tap - select delay time source

tap: tap to enter a delay time.

also used to engage a preset

that has been scrolled to with

the scroll stompswitch.

hold tap to temporarily set

innite repeats (in most modes).

release to return to knob setting.

scroll: press to scroll through

presets, then engage the preset

with the tap switch.

scroll + tap: will scroll

backwards through presets.

Controls at a Glance

thing 1 & thing 2: these two

controls take on dierent

functions depending on the

mode. They control things like

modulation depth and speed,

saturation, panning, lter, and

reverb controls

Check the mode reference chart

to see which function they

perform in a given mode.

mix: sets the ratio of wet signal

(delay) to dry signal (unaected).

Counterclockwise is 100% dry,

clockwise is 100% wet, with 50/50

being somewhere around 2 o’clock.

output: controls the overall

output volume for the pedal.

12 o’clock is unity.

delay time | ratio: controls

the delay time. in tap mode, it

controls the ratio of the delay

time relative to the tempo

that is tapped.

scroll: press to scroll through

presets, then engage the preset

with the tap switch.

tone: use to apply EQ to the

delay line. center is neutral. bypass: engage or bypass the

pedal. Can be set for true bypass

or buered bypass in advanced

conguration.

MODE REFERENCE CHART

Mode

Description

Thing 1

Thing 2

Digital

Pristine

Clean and pristine

Modulation

Depth

Modulation

Rate

Short Stuff 1980

Divides tap time by 4 for

really short sounds.

Perfect for slap-back

Mod Depth

Bandwidth

Ping Pong

Classic ping pong delay

Modulation

Depth

Modulation

Rate

Dynamic Duck

Wet signal gets turned

down when guitarist plays

louder, turns back up for

trails

Duck Amount

Release Speed

Dynamic

Feedback

Feedback signal gets

compressed by the input

signal

Duck Amount

Duck Threshold

Tape

New Tape

Good bandwidth with

some wow and flutter

Modulation

Depth

Modulation

Rate

Old Tape

The warm awesomeness

of old tape

Modulation

Depth

Modulation

Rate

Echoplex

Echoplex emulation

Saturation

Modulation

Width

Space Echo

RE-201 single tap

emulation

Input Drive

Modulation

Width

Analog

BBD

Bucket brigade delay

Saturation

Modulation

Tube BBD

Like above but tubey to

the max

Saturation

Modulation

Deluxe Memory

Boy

Classic emulation. Usually

you choose between v.

and c. but we let you stack

them

Vibrato Amount

Chorus Amount

Multi

Digital Multi

Multitaps

Intensities

(one per dot)

Intensity Depth

and pan width.

Tone Taps

The tone of each tap is

different

Tone Variations

(one per dot)

Intensity Depth

and Pan Width.

Preset Pattern

Mode

It takes a single tap and

uses a selectable pattern

of multi-taps

Delay Time

Pattern

(one per dot)

Volume and Pan

Variation

(one per dot)

Mod

Panning Delay

Delay line pans back and

forth

Pan Width

Pan Speed

Trem Delay

Tremolo on the output

Trem Depth

Trem Speed

Waveform

Modulation shapes

Waveform

(one per dot)

Modulation

Filter

Filter Pulse

Moving filter on delay

signal

Pulse Center

Frequency

Pulse Speed

Filter Warp

Filter on wet output

moves around depending

on volume of the delay

Filter Sensitivity

Response Speed

Swoosh Echo

Filtered delays that

swoosh down in tone

Modulation

Swoosh Speed

Ambient

Drunk Ewok

(lost in space)

Somewhere between

multitap delay and reverb

Delay Pattern

(one per dot)

Diffusion

Triggered Swell

Input to delay line is

ducked when it detects

the onset of a note

Swell Time

Modulation

Triggered Multi

Swell

Like previous mode, but

multi-tap

Swell Time

Flanger Amount

(which provides

stereo width)

Long Delay

Knob time goes up to 8

seconds

Modulation

Depth

Modulation

Rate

Delay + Reverb

Hall

Delay and hall reverb

Mix of Delay to

Reverb

Reverb Decay

Plate

Delay and plate reverb

Mix of Delay to

Reverb

Reverb Decay

Reverse

Reverse Delay

Chops the input signal up

and plays it backwards

High Frequency

Roll-Off

Compression

Amount

Reverse Dual

Pitch

Has two pitch shifted

reverse delays

(unity, +-10cents, +-4th, +-

5th, +-octave)

Sets pitch of

delay 1

Sets pitch of

delay 2

Triggered

Reverse

When a trigger is detected

it resets the reverse

counter, and triggers a

swell

Swell Time

Chorus Level

Stutter

Chop Mode

Signal gets chopped up

before feeding the delay

Chop Speed

Modulation

Auto Stutter

Detects a note then

stutters on that note.

Stutter repeats cycle

through filter sets.

Feedback knob adds

distortion.

Filter sequence

(one per dot)

Filter

Aggressiveness

Lo-Fi

Old Timer

Lo-fi with resonant filters

Oldness

Break-up

amount

Digital Death

Robot alias

Aliasing Freq

Alias Blend

Whisky

Knobs' Seesaw

Two pitched delay lines.

When input signal gets

above a threshold it

switches from one line to

the other.

Sets pitch

when playing

quiet

Sets pitch when

playing gets

louder

Christopher

Glitchens

Two pitched delays that

have fully variable pitch

control -1 octave to +1

octave.

Sets pitch of

delay 1

Sets pitch of

delay 2

This manual only lists modes that were available at the time of printing.

For the most up-to-date firmware and manual refer to empresseffects.com

SETTING DELAY TIME

To change the delay time source, hold the shift button and

press the tap stompswitch.

DELAY TIME SOURCES

Local Tap (Tap LED shines Red): When the user taps in a tap

time, it gets scaled by the ratio knob, and is saved with the

preset.

Global Tap (Tap LED shines Blue): When the user taps in Global

Tap, it sets the global tap time. This Global Tap propagates to

any other modes running with Global Tap. If you load a new

preset that has Global Tap, it will use this time. Each preset and

engine applies its own ratio setting to the global tap time

making it easy to sync delays at musical ratios.

Knob (Tap LED shines Green): Turning the knob adjusts the

delay time from 20ms to 1.2s (in most modes).

MULTI-TAP

Multi-tap modes allow you to tap in a sequence of up to 5 taps.

The tap LED will blink the sequence tapped, with the ratio

applied, and then pause for 2 seconds. Multi-tap modes have

their own global tap.
