Emprex GPS Bluetooth Receiver IGO-08A Manuale utente
2
GPS Bluetooth Receiver
IGO-08A
User’s Guide
Version 1.0
2
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment.
FCC Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, (2)
this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Information to user:
The users manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
1
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
1
Table of Content
Introduction ................................................1
Features ......................................................1
Package content.........................................2
Hardware Description ................................3
Technology Specification ..........................5
Operation ....................................................7
1
Introduction
IGO-08A is a GPS receiver with Bluetooth interface adopts
advanced ATMEL ANTARIS 4 Super Sense GPS IC, and
built-in active antenna for high sensitivity to tracking signal,
there’s also an external MMCX aerial terminal for users adding
higher MMCX antenna. GPS Heading will be correct in low
speed and stop through built -in Digital compass.
The data logger function is powerful for recording which place
you have been. User can download logger data and transfer to
GOOGLE EARTH format in PC.
The IGO-08A is well suited to system integrations including
PDA, Smart phone, Table PC and Notebook PC with Bluetooth
devices. It satisfies a wide variety of applications that are
purposes in automotive, and outdoor recreation navigation
systems.
Features
Adopts advanced satellite located core ATMEL
ANTARIS 4 Super Sense.
Quick location and 16 satellites tracing ability.
Built in WAAS/EGNOS demodulator, no need extra
hardware to receive WAAS/EGNOS signal.
Built in MMCX connector.
Battery capacity display
2
Digital Compass provides the function of immediate
indication of the North.
Built in Data Logger function
Support NMEA0183 version 2.2 for exporting data.
Easy wireless Bluetooth transmission is available in 10
meters distance.
Flexible design, easy connection with auto-navigation,
motorcade control, AVL, personal navigation, tracking
system and map service industry.
Package content
Please make sure of your package includes the following
items, If any item is damaged or missing, please contact
your dealer at once.
1. Bluetooth GPS receiver IGO-08A x 1
2. Lithium rechargeable battery x 1
3. USB cable x 1
4. Slipperiless pad x 1
5. Car charger x 1
6. Travel charger x 1
7. Application Disc with user’s guide x 1
3

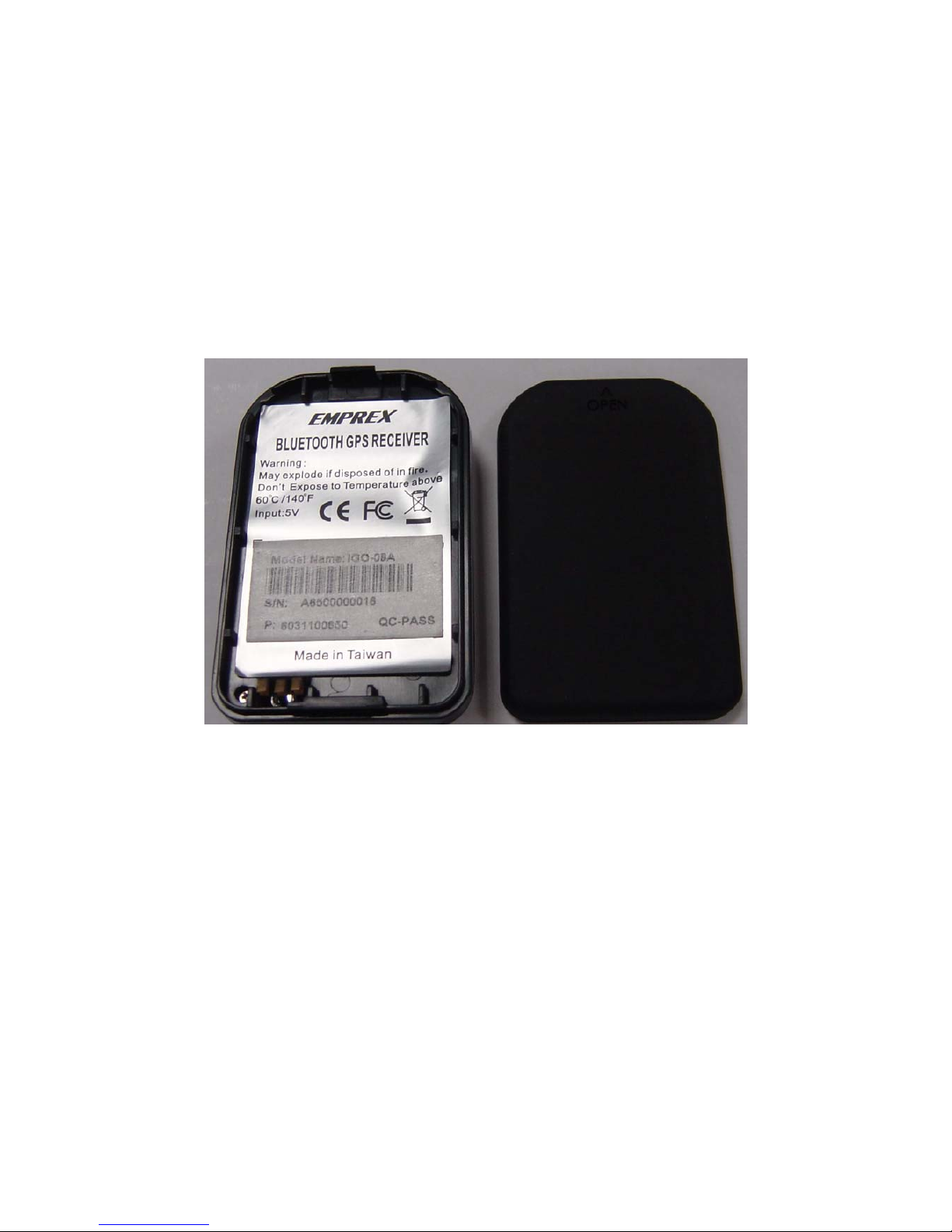

Hardware Description

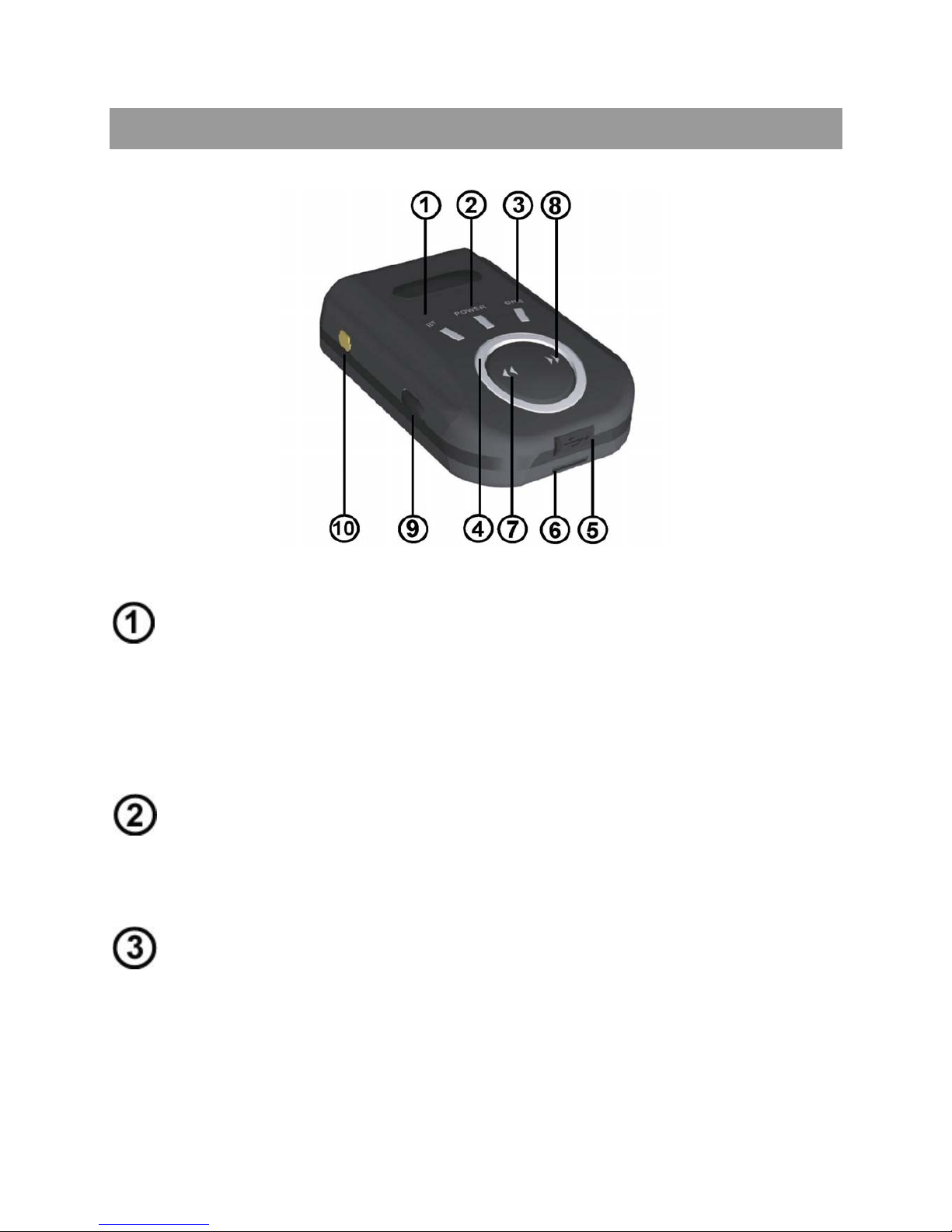

There are four LEDs to show different status:
Bluetooth（Blue）
Fast blink: Indicates this Bluethooth GPS is waiting for
pairing or master device’ connection.
Slow blink: Indicates this Bluetooth GPS is connecting
successfully.
Power LED（Red）
Lighten: Charging
Darken: Charging complete
GPS （Green）
Lighten: GPS power on
Darken: GPS power off
4
Circle LED (Red)
Digital compass & battery capacity display
Charge socket
Battery bolt
Switch 1 ()
Long press: Digital calibration On/ Off
Short press: Digital compass function On/Off
Switch 2 ()
Long press: PC connecting mode On/Off
Short press: BT function On/OFF
Power switch
Long press: Power On/ Off
Short press: Power capacity display on circle LED
MMCX Antenna Socket
5
Technology Specification
Satellite
receiving
Receiving and tracking 16 satellites at the
same time
Receiving frequency: 1575.42MHz
Receiving code: L1, C/A code
Accuracy
(Precision)
General positioning: 2.5m CEP
DGPS/SBAS: 2.0m CEP
Acquisition Cold start: 34 sec (Average)
Warm start: 33 sec (Average)
Hot start: 1 sec (Min)
Sensitivity: -158dBm (Super sense mode)
Dynamics: Altitude: max. 18,000m (Max.)
Velocity: max. 500m/sec (Max.)
Acceleration. Max. +/-4g (Max.)
DGPS WASS/EGNOS
Navigation
update rate:
Once per second
Baud Rate: 9600bps
GPS protocol NMEA 0183 V2.2, GGA, GSV, GSA, RMC
Bluetooth spec. Blue Tooth V2.0
6
Compass Digital compass (2 AXIS)
Data logger 25806 records
Power supply: DC 5.0V 5%
Power
consumption
77mA (Average)
Operating
Temp.
-10°C~ +60°C
Storage Temp. -20°C~ +85°C
Humidity 5%~95%
Size: 64(L) x 41 (W) x 19 (H)mm
Weight 54g (include battery)
Battery: Nokia 6100 compatible (spec. 3.7V / 700mA )
Operating Hour Up to 9 hours at battery full charge condition
Output connect Mini-USB (TTL Level)
