Emulex OneConnect OCe14000-Series Manuale utente

P009818-01A Rev. A Emulex Connects™ Servers, Storage and People

OneConnect™

OCe14000-series Adapters

Installation Manual

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

or translated to any electronic medium without the prior written consent of Emulex.

Information furnished by Emulex is believed to be accurate and reliable. However, no responsibility is assumed by

Emulex for its use; or for any infringements of patents or other rights of third parties which may result from its use. No

license is granted by implication or otherwise under any patent, copyright or related rights of Emulex.

Emulex, the Emulex logo, AutoPilot Installer, AutoPilot Manager, BlockGuard, Connectivity Continuum,

Convergenomics, Emulex Connect, Emulex Secure, EZPilot, FibreSpy, HBAnyware, InSpeed, LightPulse, MultiPulse,

OneCommand, OneConnect, One Network. One Company., SBOD, SLI, and VEngine are trademarks of Emulex. All

other brand or product names referenced herein are trademarks or registered trademarks of their respective

companies or organizations.

Emulex provides this manual "as is" without any warranty of any kind, either expressed or implied, including but not

limited to the implied warranties of merchantability or fitness for a particular purpose. Emulex may make

improvements and changes to the product described in this manual at any time and without any notice. Emulex

assumes no responsibility for its use, nor for any infringements of patents or other rights of third parties that may

result. Periodic changes are made to information contained herein; although these changes will be incorporated into

new editions of this manual, Emulex disclaims any undertaking to give notice of such changes.

Emulex, 3333 Susan Street

Costa Mesa, CA 92626

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

Table of Contents 3

Table of Contents

List of Figures ......................................................................................4

List of Tables .......................................................................................5

1. Introduction .....................................................................................6

Major Features......................................................................................... 7

Prerequisites ........................................................................................... 8

Adapter Identification................................................................................ 9

2. Installation..................................................................................... 10

Preparing the Adapter for Installation .......................................................... 10

Installing the Adapter .............................................................................. 12

Attaching Devices ................................................................................... 12

Emulex OneConnect Accessories ..............................................................15

Applying Power ...................................................................................... 16

Viewing the LEDs .................................................................................... 16

3. References .................................................................................... 18

Specifications ........................................................................................ 18

FCC and Regulatory Notices....................................................................... 20

Declarations of Conformity........................................................................ 22

Laser Safety Notice ................................................................................. 24

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

List of Figures 4

List of Figures

Figure 1-1 Emulex OCe14102 Adapter ............................................................... 6

Figure 1-2 Emulex OCe14401 Adapter ............................................................... 7

Figure 2-1 Typical Optical Transceiver .............................................................10

Figure 2-2 Releasing the Latch on an Optical Transceiver.......................................11

Figure 2-3 Removing the Bracket ....................................................................11

Figure 2-4 Installing an Optical Transceiver .......................................................14

Figure 2-5 Connecting a Fiber Optic Cable.........................................................14

Figure 2-6 Connecting a DAC Cable..................................................................15

Figure 2-7 Optical and DAC Adapter LED Indicators ..............................................17

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

List of Tables 5

List of Tables

Table 2-1 Cable and Connector Specifications....................................................13

Table 2-2 Emulex OneConnect Accessories........................................................15

Table 3-1 OCe14000-series Adapter Specifications ..............................................18

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

1. Introduction 6

1. Introduction

This manual describes the Emulex®OneConnect™ OCe14000-series of multi-protocol

PCI-Express adapters for 10 and 40 Gigabit/sec (Gb/s) Enhanced Ethernet (EE) fabric.

Emulex adapters provide ethernet networking and iSCSI functionality, as well as Fibre

Channel over Ethernet (FCoE) functionality for convergence of Fibre Channel (FC)

traffic onto 10 Gigabit EE fabric.

The OCe14000-series adapters include single port (OCe14101) and dual port

(OCe14102) 10 Gigabit Ethernet (GbE) to PCI Express adapters and a single port, 40GbE

to PCI Express adapter (OCe14401).

The single port 10 Gb/s OCe14101 and 40 Gb/s OCe14401 adapters support Ethernet

networking functionality only.

The OCe14102 is available with ethernet networking functionality, or as a full-featured

universal converged network adapter (UCNA) that supports NIC, iSCSI, and FCoE.

All Emulex adapters support NIC single root I/O virtualization (SR-IOV) and are full3y

compliant to the PCI Express CEM Specification Rev. 3.0/2.0/1.1. UCNAs combine two

major functional components: a 10 Gigabit networking MAC and an FC IOC to

interface with a unified lossless Ethernet switch. Adapters serve as a common interface

for both storage and IP traffic retaining familiar FC and networking software stacks, OS

drivers, and management. The supported PCIe connector is an x8.

Illustrations in this manual are only examples. The actual hardware may vary.

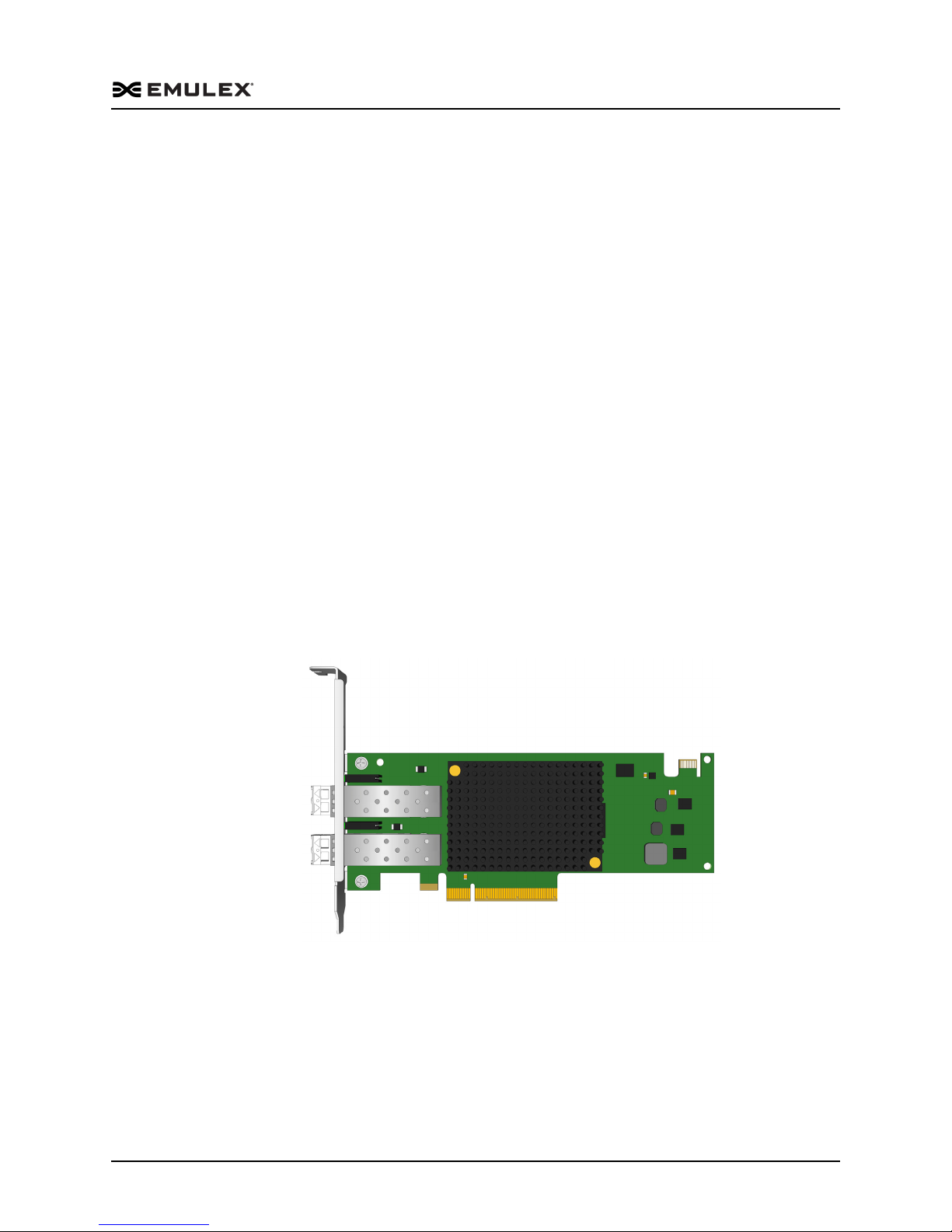

Figure 1-1 Emulex OCe14102 Adapter

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

1. Introduction

Major Features 7

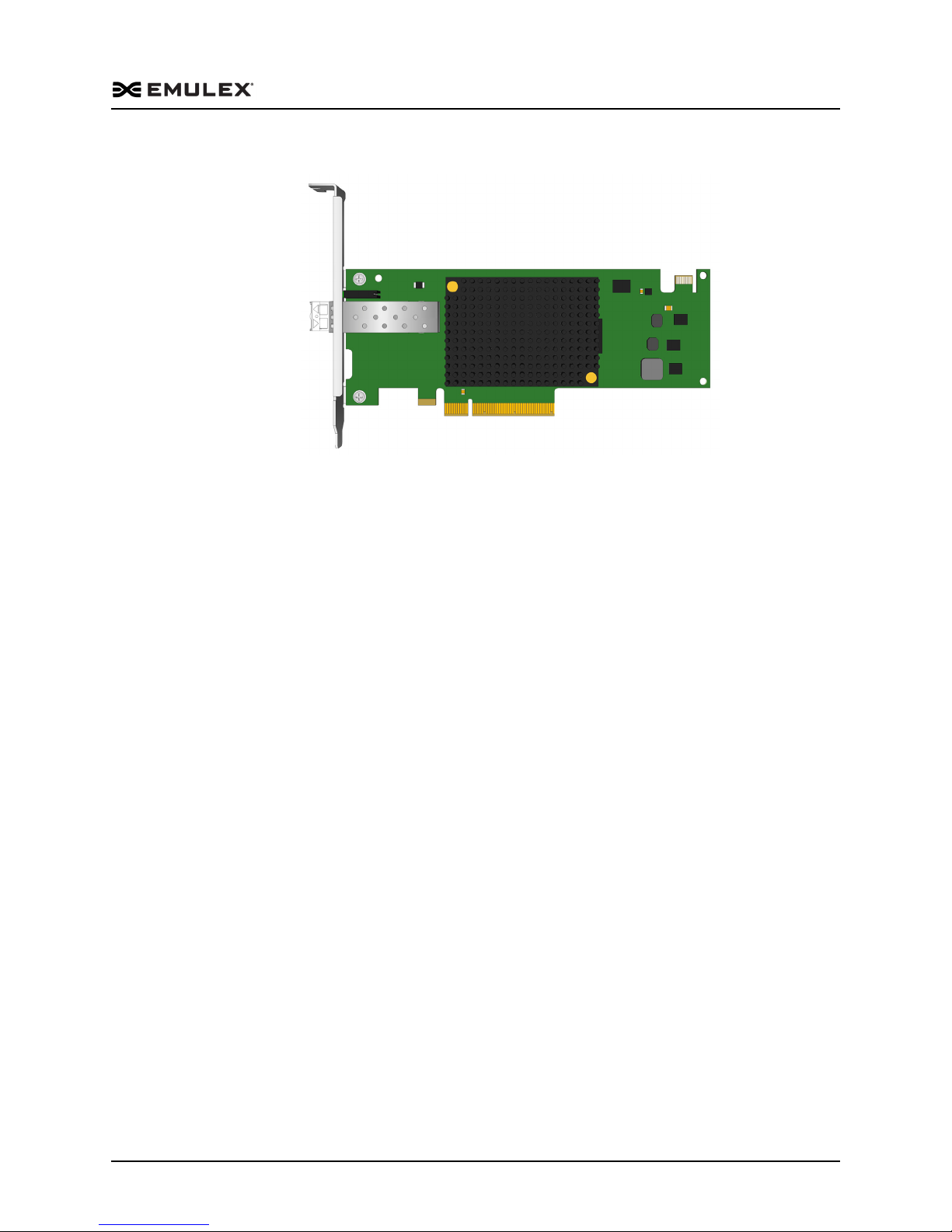

Figure 1-2 Emulex OCe14401 Adapter

Major Features

Eight PCIe functions, individually configurable to NIC, iSCSI, or FCoE

personalities with offload features

Eight-lane (x8) Generation 3 PCIe interface at 8GT/s, 5GT/s, or 2.5GT/s

(auto-negotiated with system)

Low-profile PCIe form factor PCBA: 6.600 inches by 2.713 inches

Comes with full height I/O bracket installed for low profile cards; optional low

profile I/O bracket is included

Support for 40GbE link speeds (OCe14401 adapters only)

Optical 10GBASE-SR network interface LC connectors

Support for 10 GbE SFP+ optical or Direct-Attach Copper (DAC) connectors

SFF-8431 Enhanced Small Form Factor Pluggable Module SFP+ compliant

QSFP+ (Quad Small Form Factor Pluggable) interface supporting optics and

direct attach cables (OCe14401 adapters only)

External volatile memory: 2Gb/4Gb DDR3 SDRAM technology

On-board flash memory: The flash is 128Mbit with a SPI interface. The flash

contains the vital product data (VPD) and Boot BIOS images. You can update

the flash with Emulex utilities.

Interoperates with existing FC SAN infrastructures – switches, arrays, SRM

tools (including Emulex utilities), SAN practices, and so forth

Unified Ethernet-to-FC SAN connectivity provided by an FCoE switch

Host Interface support provided through Emulex standard drivers

Comprehensive array of NIC, iSCSI and FCoE operating system drivers,

including support for Windows, Linux, and VMware

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

1. Introduction

Prerequisites 8

Parts and construction compliant to the European Union Directive of Restriction

of Hazardous Substances (RoHS), and similar regulatory requirements for other

countries.

Protocol-specific capabilities

NIC capabilities include:

NDIS 5.2, 6.0, and 6.2-compliant Ethernet functionality

IPv4/IPv6 TCP, UDP checksum offload

IPv4/IPv6 Receive Side Scaling (RSS)

IPv4/IPv6 Large Receive Offload (LRO)

IPv4/IPv6 Large Send Offload (LSO)

Programmable MAC addresses

Up to 128 MAC/VLAN addresses

Support for hash-based multicast MAC address filters

Support for hash-based broadcast frame filters per port

VLAN insertion and extraction

Jumbo packet support up to 9200 bytes

iSCSI capabilities include:

Full iSCSI protocol offload

Header, data digest (CRC) and PDU

Direct data placement of SCSI data

Up to 4K outstanding commands (iSCSI CNA only mode)

Up to 512 offloaded iSCSI connections (iSCSI CNA only)

iSCSI initiator and concurrent initiator/target modes

Support for multipath I/O

T10 PI support for end-to-end data integrity (for target mode drivers)

FCoE capabilities include:

Hardware offloads of Ethernet TCP/IP and concurrent iSCSI and FCoE

ANSI T11 FC-BB-5 support

Programmable World Wide Name (WWN)

Support for FIP and FCoE Ether Types

Concurrent logins (RPI): up to 8K per ASIC (FCoE CNA only mode)

Open exchanges (XRI): up to 4K per ASIC (FCoE CNA only mode)

FCoE initiator and target modes

Supports up to 255 NPIV interfaces

Prerequisites

PCI Express 3.0/2.0/1.1 compliant systems: x8 lane at up to 8 Gb/s per lane.

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

1. Introduction

Adapter Identification 9

Adapter Identification

Each adapter ships with several numbers clearly marked on the board. Emulex

recommends recording these numbers before installation.

IEEE address – a unique 64-bit identifier used for system configuration

World Wide Name (WWN) – derived from the IEEE address; the FC industry

uses the WWN for FC connectivity.

Serial number – assigned by Emulex and used when communicating with

Emulex

Note: If the adapter has two ports, it has two IEEE addresses and two WWNs, one for

each port.

OneConnect OCe14000-series Adapters Installation Manual P009818-01A Rev. A

2. Installation

Preparing the Adapter for Installation 10

2. Installation

The standard OCe14000-series adapter can be connected to fiber optic cables (used with

embedded optical transceivers) or DAC cables. Additional information for these cable

connections and other installation procedures are described in the following sections.

Preparing the Adapter for Installation

Before installing the adapter, you should perform the following steps:

1. Turn off the computer and unplug it.

2. Remove the computer case.

Note: The adapter comes with a standard PCIe bracket installed. A low-profile

bracket is included in the box with the adapter. The low-profile mounting

bracket is shorter than the standard bracket; approximately 3.11 in. (7.9 cm)

compared to 4.75 in. (12.06 cm) long.

3. For the standard OCe14000-series adapter, if you want to change the bracket to a

low profile version, follow steps 4–12; otherwise, proceed to “Installing the

Adapter” on page 12.

4. Some standard OCe14000-series adapters come with optical transceivers embedded

in their cage assemblies. These optical transceivers must be removed before the

bracket can be removed. If the adapter contains optical transceivers, continue with

the following steps; otherwise, proceed to step 7.

Caution: This is a delicate operation–take care not to damage the optical

transceiver.

The adapter uses different types of optical transceivers. Figure 2-1 shows an

example of one type with the bail (handle) extended.

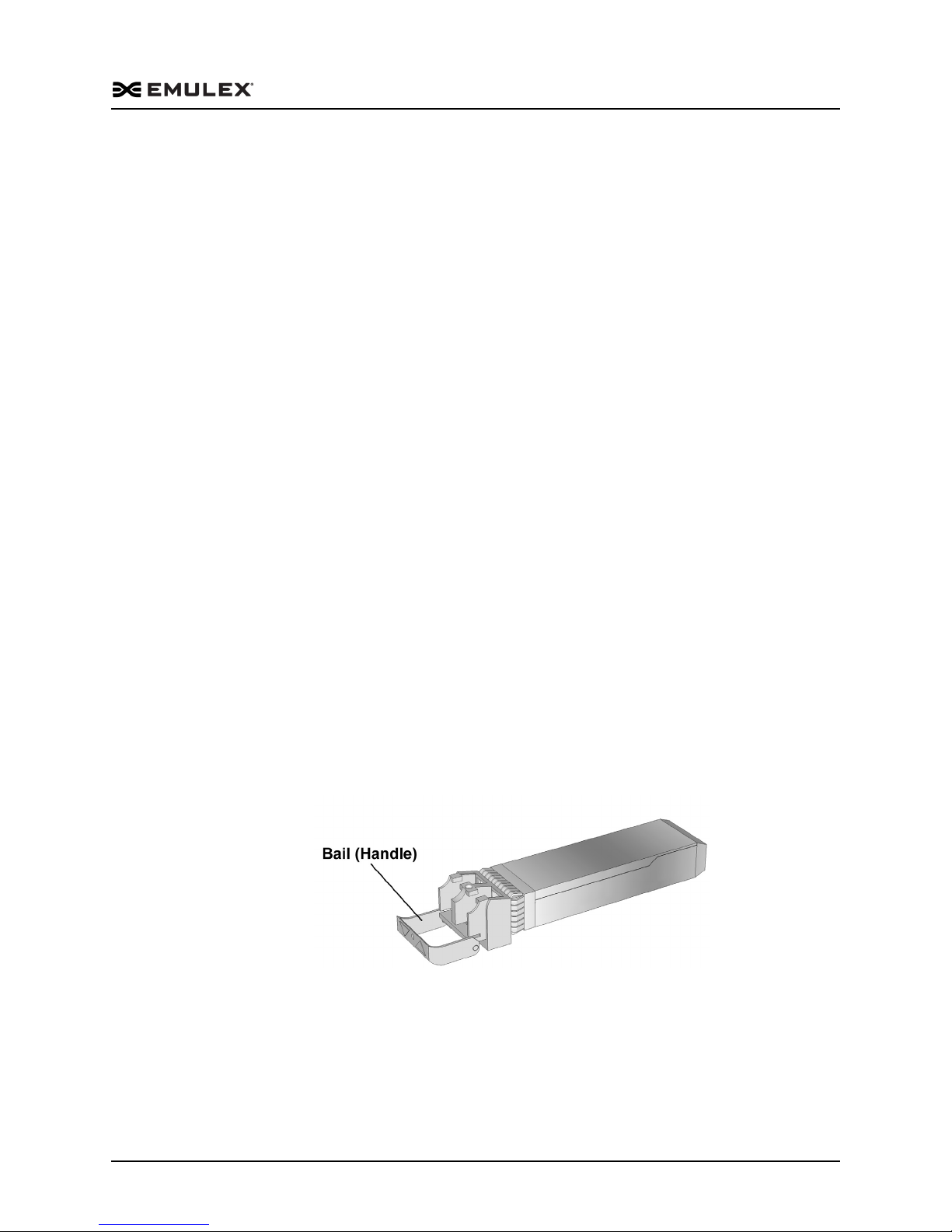

Figure 2-1 Typical Optical Transceiver

5. To remove a transceiver, pull the bail (handle) out and down to release the latch

and gently pull the transceiver out. Do not force it. After the latch is released, the

transceiver slides out easily.

Figure 2-2 shows a transceiver with the latch released (bail extended) and another

transceiver latched in place.

Altri manuali per OneConnect OCe14000-Series

Indice

Altri manuali Emulex Adattatore

Emulex

Emulex AW520A Manuale utente

Emulex

Emulex LPe1150 HBA Manuale utente

Emulex

Emulex OneConnect OCe14000-Series Manuale utente

Emulex

Emulex LP1005DC-CM2 Manuale utente

Emulex

Emulex LP10000 Manuale per l'uso e la cura

Emulex

Emulex LP1050DC Manuale di installazione e funzionamento

Emulex

Emulex LPe15004-Series Manuale utente

Emulex

Emulex LP10000 Manuale di installazione e funzionamento

Emulex

Emulex LP21000 Manuale utente

Emulex

Emulex LPE11000 HBA Manuale utente

Emulex

Emulex LPe11004 HBA Istruzioni per il montaggio

Emulex

Emulex LP10000 Manuale utente

Emulex

Emulex LP10000 Manuale operativo

Emulex

Emulex LP10000DC Manuale di installazione e funzionamento

Emulex

Emulex LP9002C Manuale di installazione e funzionamento

Emulex

Emulex NC551i Manuale utente

Emulex

Emulex OneConnect OCm11102-N-X Manuale del proprietario

Emulex

Emulex LP9402DC Manuale di installazione e funzionamento

Emulex

Emulex LP10000ExDC Manuale di installazione e funzionamento

Emulex

Emulex LPe11002 HBA Manuale utente

Emulex

Emulex LP1050Ex Manuale di installazione e funzionamento

Emulex

Emulex LP1050 Manuale di installazione e funzionamento

Emulex

Emulex LP11000 Manuale utente

Emulex

Emulex OneConnect OCe14000-Series Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
