HD360 Telescopic Pole Camera
Operation Manual
- 2 -
Menu
Product Overview …………………………………………………………3
4K Tablet Monitor……………………………………………….…………3-4
360°Intercom Camera (Optional)…………….……………………5
Hose Intercom Camera (Optional)…………………………………6
Infrared Thermal Imaging Camera (Optional)…………………7
Carbon Fiber Rod.………………………………………………………8
Installation & Use.………………………………………………………9
Button Operation.……………………………….……………………10-11
Screen Touch……………………..………………..……………………11-13
System Setting…………..…………………………………….………14-15
RoadCam App …………………………………………………………16
APP Monitoring Interface…….………………………….……….17
Charge/ Firmware upgrade/Attention…..…………………..18
Specifications……………………………………………………………19-21
RoadCam App Download…………………..……...……………….21
- 3 -
Product Overview
This HD360 can take up to 4K videos and 12 MP photos.
Functions of photographing, recording and controlling, like 360 °
camera rotation, can be completed through screen touch,
buttons both on monitor & rod. This detector uses a 10.1 HD
touch screen, a 5 megapixels 360°intercom camera (optional),
a 5 megapixels hose intercom camera(optional), an infrared
thermal imaging camera (optional) and a telescopic carbon fiber
rod combination.

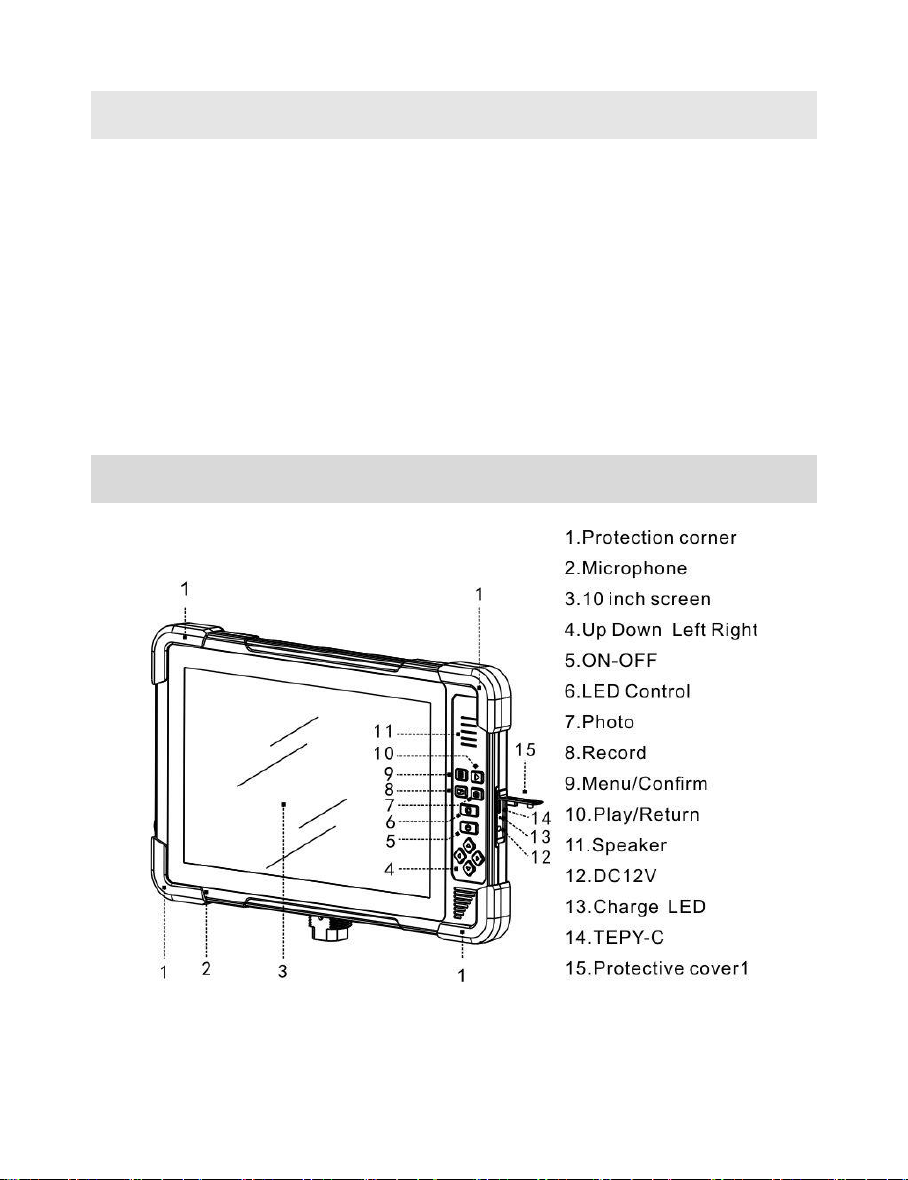

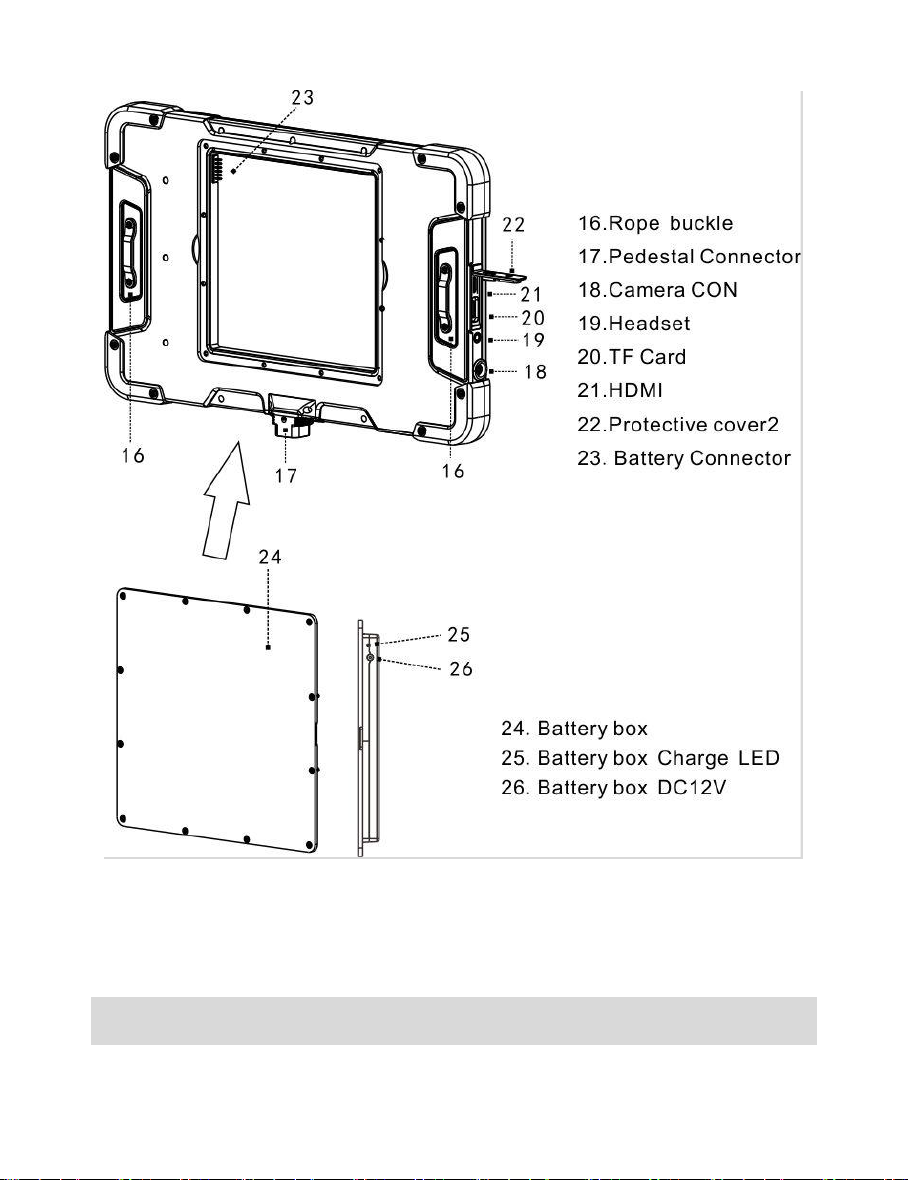

4K Tablet Monitor
- 4 -

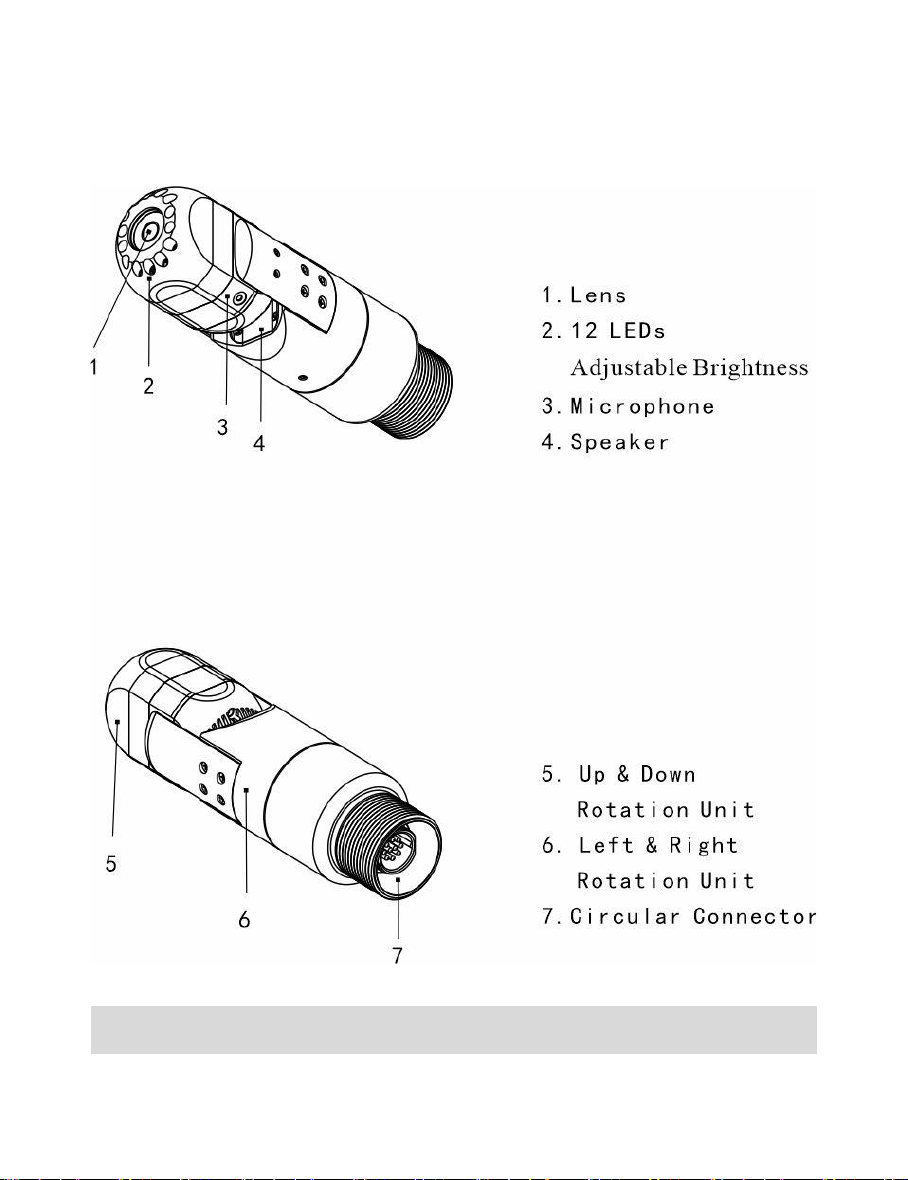

360°Audio & Video Camera （Optional）
- 5 -

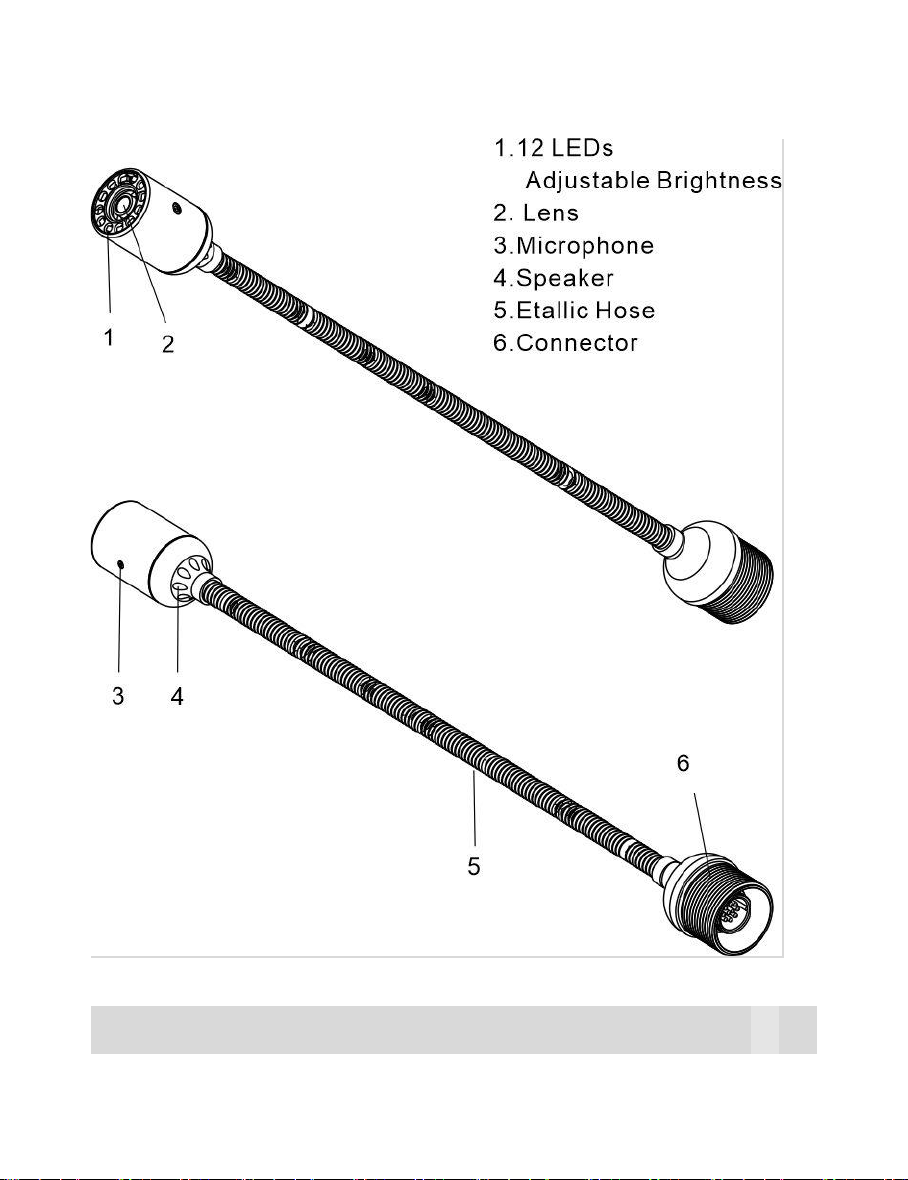

Audio and Video Camera (Optional)
- 6 -

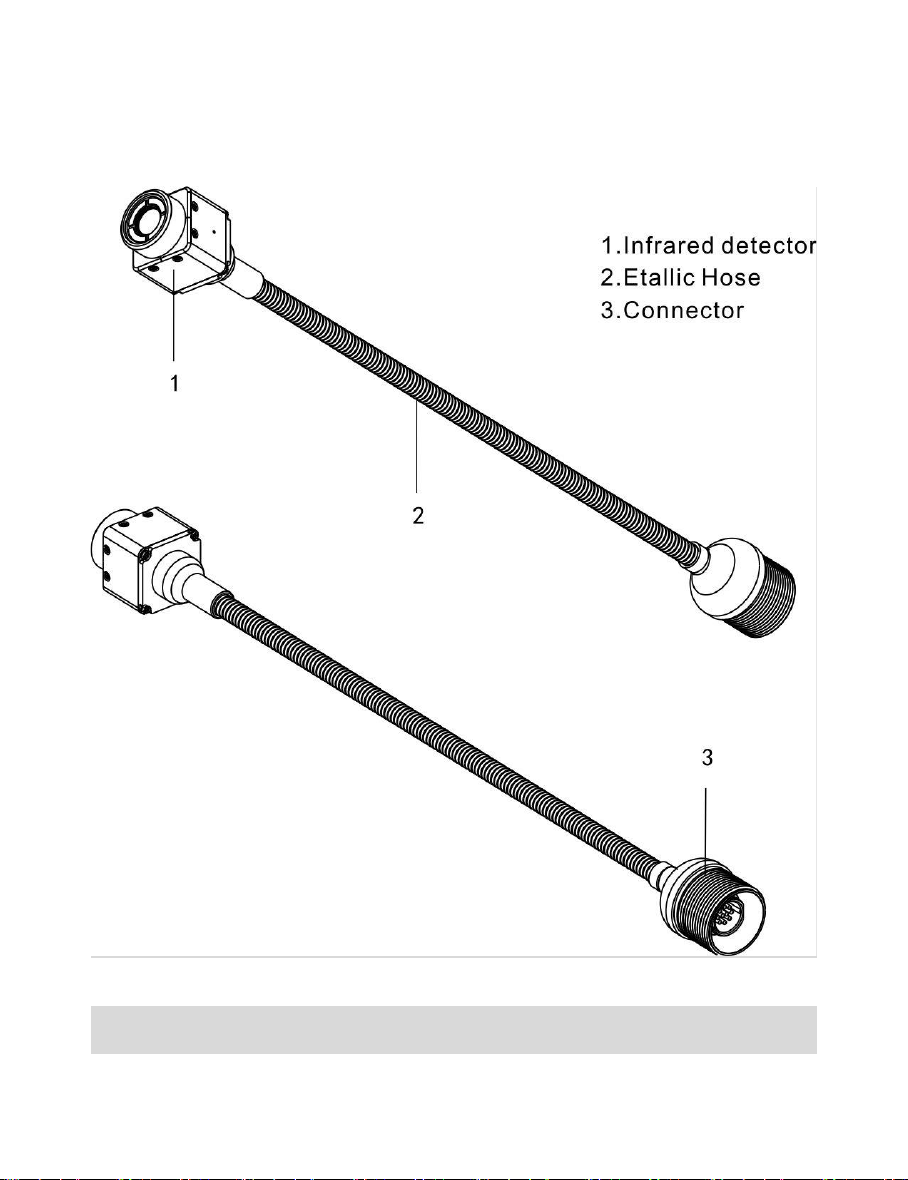

Infrared Thermal Imaging Detector (Optional)
- 7 -

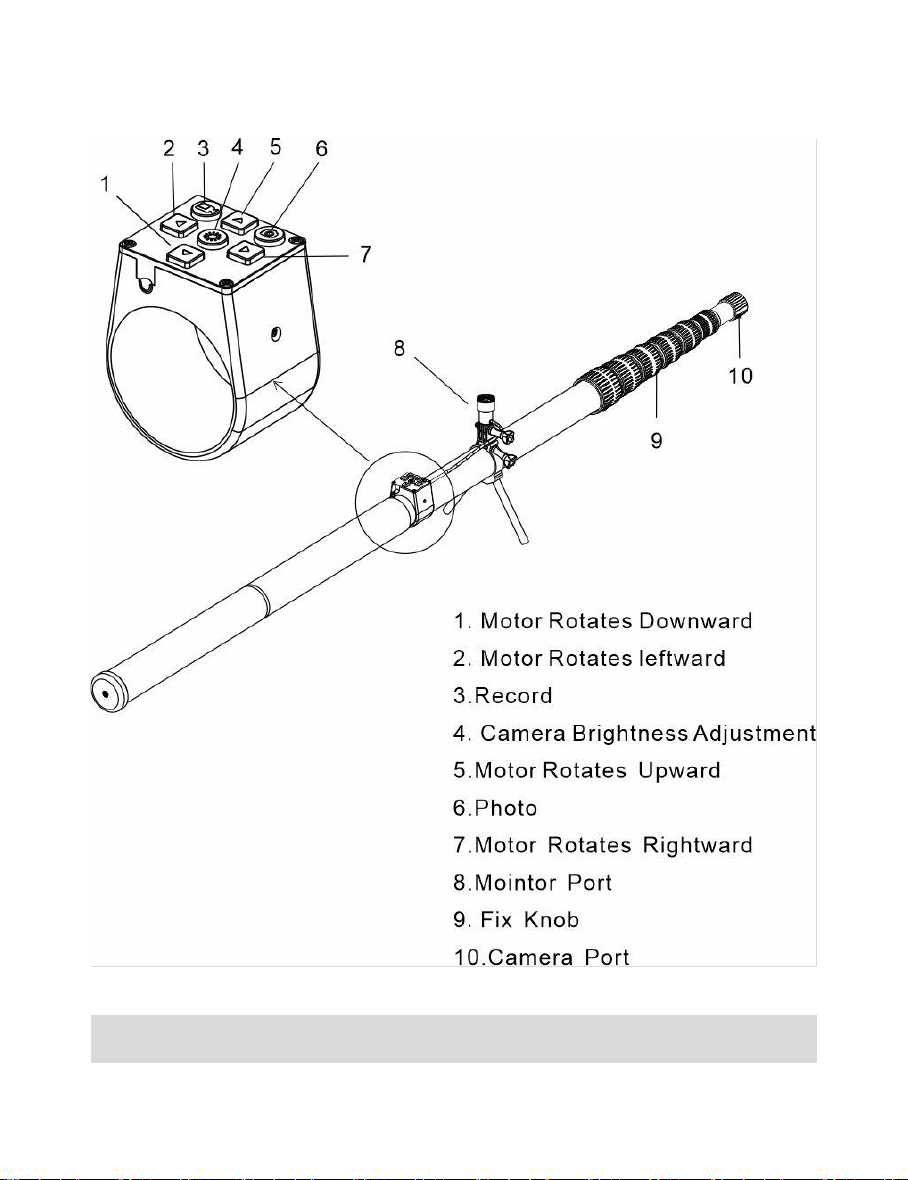

Carbon Fiber Rod
- 8 -

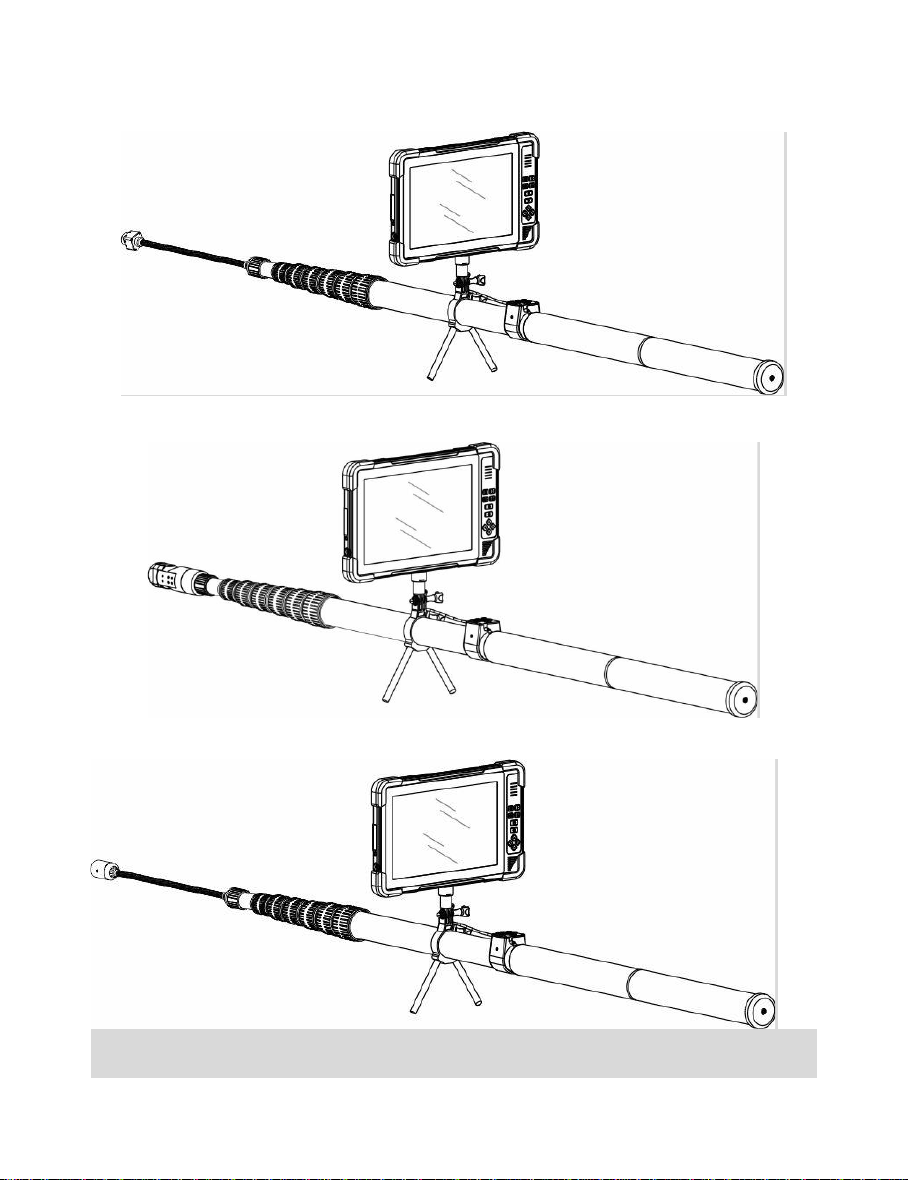

Installation & Use
- 9 -
1. Infrared Thermal Imaging Life Detector（Optional）
2. 360 ° Audio and Video Life Detector（Optional）
3.Audio and Video Life Detector（Optional）
Button Operation
- 10 -
⚫ON-OFF
Press briefly to power on. Press it for 3s to power off. If crash,
press it for 10s to power off and reset.
⚫Photo
Press briefly, flashes once and get a photo.
⚫Record
Press briefly to record, and the icon turns blue。The video
timer can time. Press again to end.
Play/Return
Press briefly to enter. Press Up-Down-Left-Right to select.
Press to confirm. Press Play again to exit.
⚫LED Control
Press it briefly to select On-7 brightness cycle-OFF.
⚫Menu/Confirm
Press it briefly to enter. Press Up-Down-Left-Right to select.
Press to confirm. Press Play to exit.
⚫UP
Press to turn camera upward. Release to stop.
⚫Down
Press to turn camera downward. Release to stop.
⚫Left
Press to turn camera leftward. Release to stop. Press &
