Encom Harmony IP I/O8 Manuale utente

IP I/O8

Network

Monitoring &

Control

User Manual

HARMONY

Harmony IP I/O8 Network Monitoring & Control User Manual

Harmony IP I/O8 Network Monitoring

& Control Manual

August 2020

Email:

[email protected]

Toll Free:

1 (855) 730-1122

Worldwide:

(403) 230-1122

Web:

www.encomwireless.com

Harmony IP I/O8 Network Monitoring & Control User Manual

Table of Contents

WARNINGS AND PRECAUTIONS ................................................................................................................. 3

INTRODUCTION ......................................................................................................................................... 4

The Harmony System .................................................................................................................................. 4

HARMONY IP I/O8 ....................................................................................................................................... 4

OVERVIEW ................................................................................................................................................. 5

Antennas with I/O8 Units ............................................................................................................................ 5

Antennas COMPATIBLE with Harmony IP I/O8 Units .................................................................................. 5

System Topology ......................................................................................................................................... 6

LED Indicators ............................................................................................................................................. 7

INSTALLING CONTROLPAKTM ...................................................................................................................... 8

Technical Specifications for Installing ControlPAK™ ................................................................................... 8

CONFIGURING YOUR HARMONY IP I/O8 ..................................................................................................... 9

LAN Connection and Startup ..................................................................................................................... 10

LAN Search ................................................................................................................................................ 11

Real Time LAN Search .......................................................................................................................... 11

LAN Search Tabs .................................................................................................................................. 12

Connect List ......................................................................................................................................... 13

Load List ............................................................................................................................................... 13

Modify List ........................................................................................................................................... 14

New List ............................................................................................................................................... 14

Adding Radios To Your Connect List .................................................................................................... 15

CONFIGURING THE UNIT ........................................................................................................................... 16

Basic Settings Tab ................................................................................................................................ 17

System Tab .......................................................................................................................................... 18

Alert Tab .............................................................................................................................................. 20

Snmp Tab ............................................................................................................................................. 21

Protocol Tab ........................................................................................................................................ 22

Calendar Tab ........................................................................................................................................ 23

Io Mapping Tab .................................................................................................................................... 24

Event Logs Tab ..................................................................................................................................... 25

Security Tab ......................................................................................................................................... 26

APPLICATIONS ......................................................................................................................................... 27

HARMONY IP I/O8 Inputs .......................................................................................................................... 27

HARMONY IP I/O8 Outputs ....................................................................................................................... 30

Loop Back Status Confirmation ................................................................................................................. 33

APPENDIX A: UPGRADING/DOWNGRADING FIRMWARE .......................................................................... 35

APPENDIX B: RF EXPOSURE ....................................................................................................................... 37

FCC ............................................................................................................................................................ 37

Health Canada ........................................................................................................................................... 37

APPENDIX C: DECLARATION OF CONFORMITY .......................................................................................... 38

FCC ............................................................................................................................................................ 38

Warning (Part 15.21) ................................................................................................................................. 38

Industry Canada ........................................................................................................................................ 38

Harmony IP I/O8 Network Monitoring & Control User Manual

WARNINGS AND PRECAUTIONS

The following symbols indicate important

safety warnings and precautions throughout

this manual:

WARNING indicates that serious

bodily harm or death may result

from failure to adhere to the

precautions.

CAUTION indicates that damage

to equipment may result if the

instructions are not followed.

NOTE indicates certain conditions

that the user should be aware of.

Harmony IP I/O8 Network Monitoring & Control User Manual

INTRODUCTION

THE HARMONY SYSTEM

The HARMONY line of devices enables you to monitor and

control field equipment from the comfort of your network

operations center.

Just install a HARMONY I/O device at a remote site for

immediate access to your equipment’s status, and easy

control of your equipment using STRATOS Elite, our

complete network visualization management system.

Reduce your operating costs by eliminating time

consuming and repetitive site visits. Everything you need

to know about a site is now available at your fingertips.

HARMONY devices can be used for applications such as:

§ School zone flasher control and monitoring

§ Solar power system monitoring

§ Traffic cabinet monitoring

§ Signage control

§ Gate control

§ Irrigation control and monitoring

§ Water/wastewater control and monitoring

§ Streetlight monitoring

§ SCADA applications

§ Any other application where remote equipment

needs to be monitored and controlled

HARMONY IP I/O8

The HARMONY IP I/O8 device is a self-contained digital

I/O gateway that supports 8 inputs and 8 outputs.

The device allows you to monitor and control remote

HARMONY devices from a user-friendly front panel.

Status LEDs show the state of the remote device’s digital

inputs. Switches allow you to manually turn the remote

device’s digital outputs on or off.

A simple web-based interface lets you configure, control

and check the status of the device. No extra software is

required.

With Encom proprietary “I/O Mapping” technology, any

input at any device within the system can be used to

control one or more outputs within the entire system,

through an IP network or the optional 900Mhz radio.

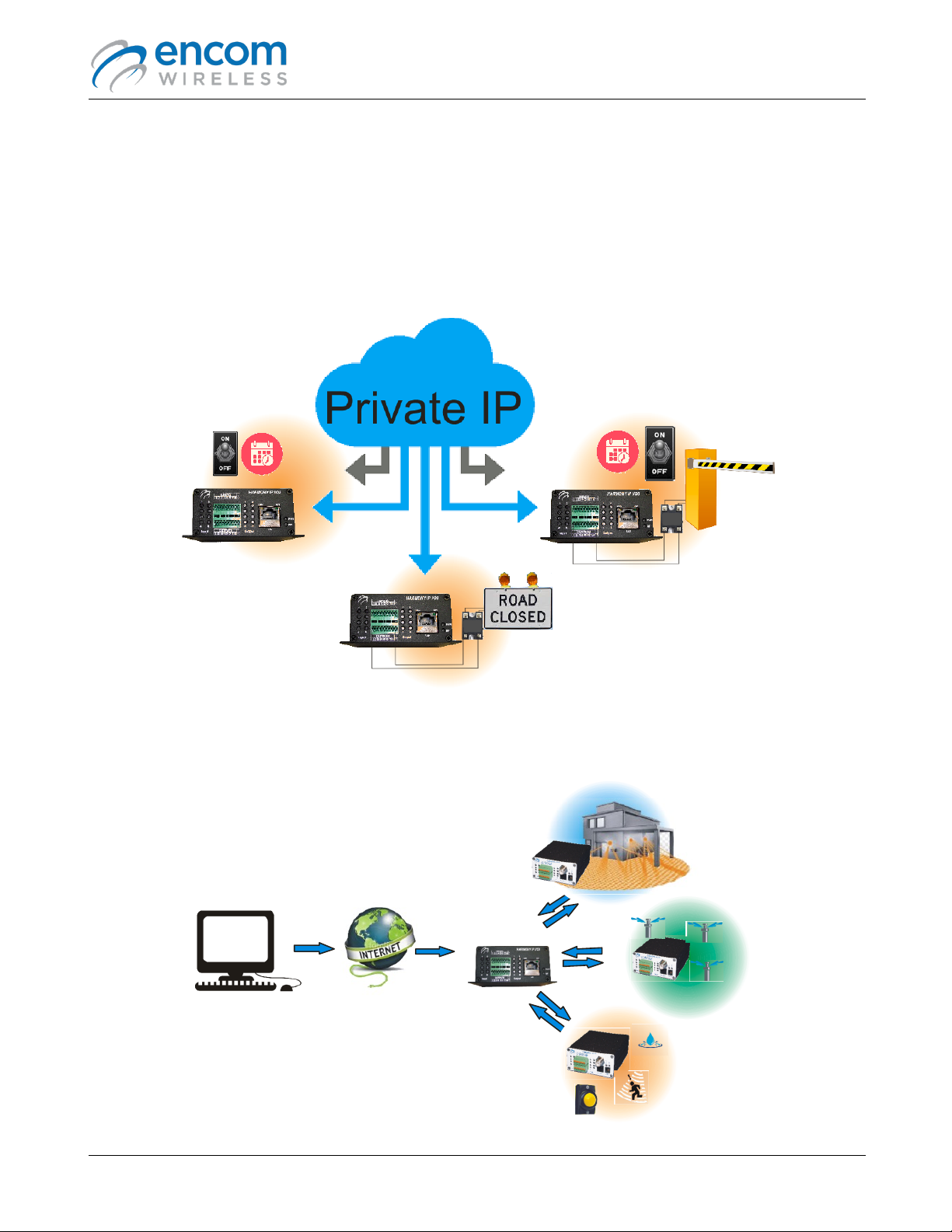

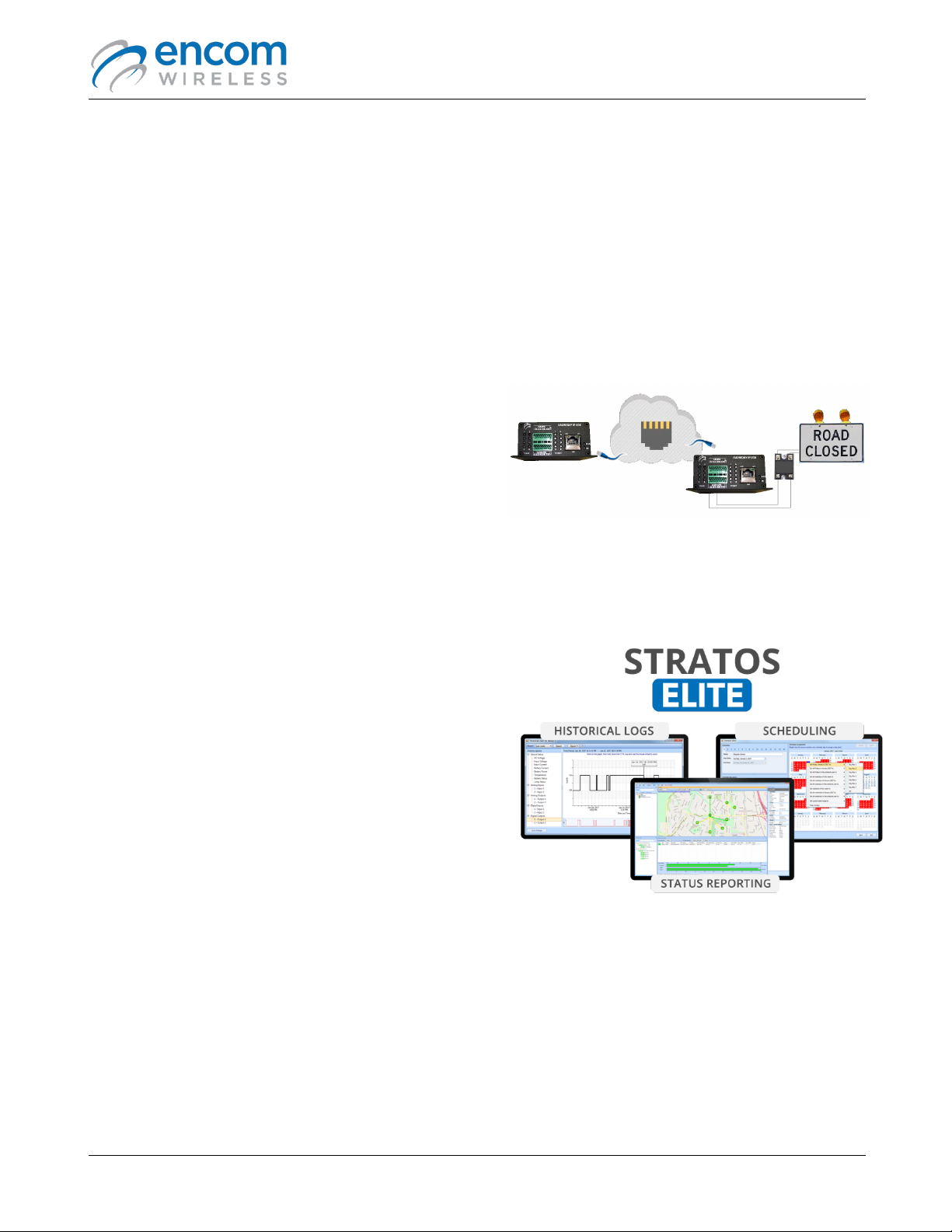

The following example shows two HARMONY IP I/O8

devices linked together using an Ethernet connection. A

switch on the IP I/O8 device on the left can be used to

remotely turn the ROAD CLOSED flashers on or off via

the IP I/O8 device on the right.

The HARMONY IP I/O8 is fully compatible with our

STRATOS Elite Central Management Software. You can

use STRATOS Elite to configure, manage and monitor IP

I/O8 devices along with all other HARMONY devices.

Use STRATOS Elite Central Software to:

§ Get a quick overview of your field devices using a

friendly map display

§ View the real-time status of your field equipment

§ Get e-mail alerts for important events and alarms

§ Log equipment status information for later review

§ Schedule periodic on/off events using a powerful

schedule editor

Harmony IP I/O8 Network Monitoring & Control User Manual

OVERVIEW

This manual is a guide and reference for

programming HARMONY IP I/O8 radios using

Encom’s ControlPAK™ programming and diagnostics

software.

It contains instructions, suggestions, and information

which guide you to set up and achieve optimal

performance from your equipment.

For complete network monitoring and control

functions, please refer to the STRATOS Elite manual

for details.

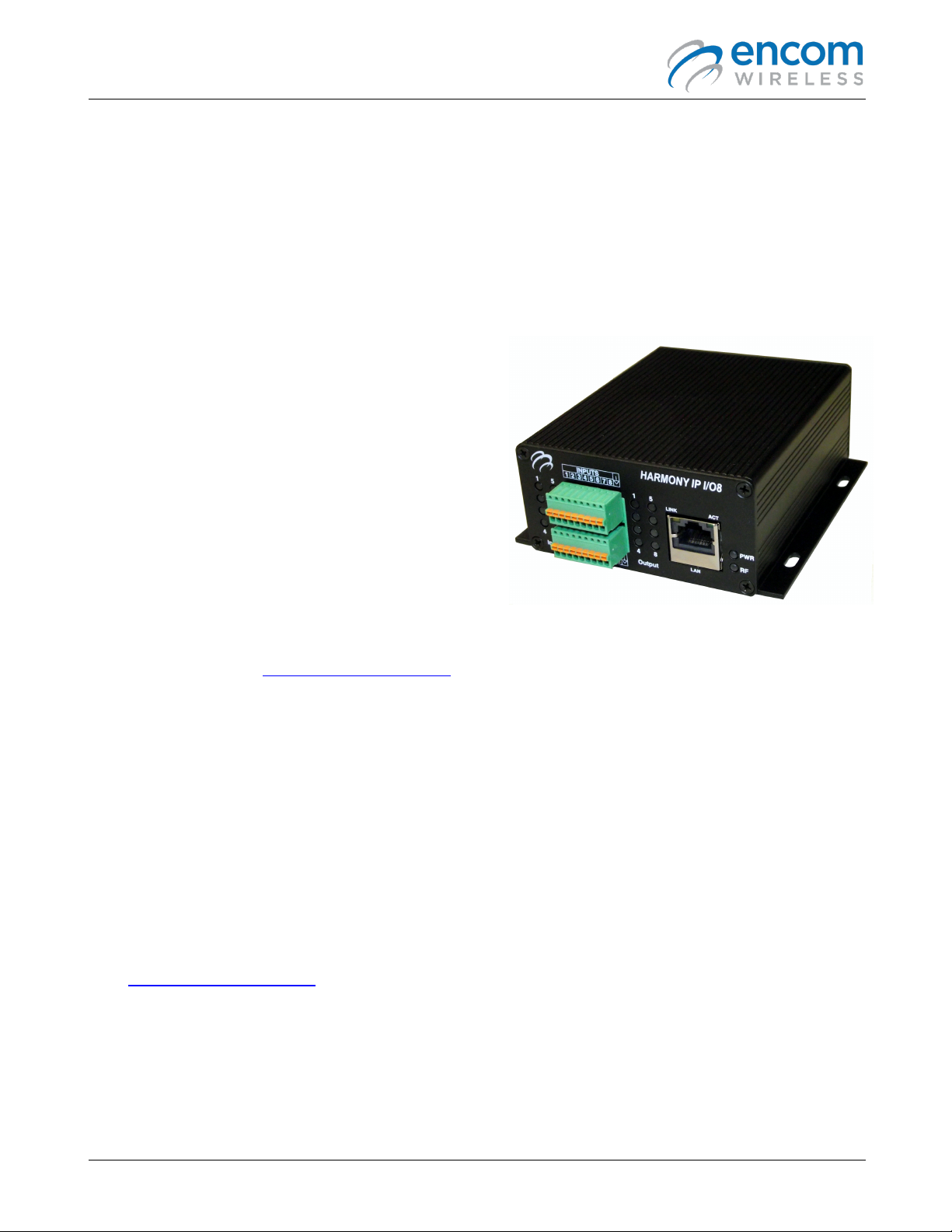

ANTENNAS WITH I/O8 UNITS

Integrated 900MHz wireless communication is an

option for HARMONY IP I/O8 devices, designed with

a reverse polarity TNC female antenna connector.

NOTE: An antenna is not supplied with the unit. To

order an antenna, please contact your local Encom

Wireless dealer or email [email protected].

ANTENNAS COMPATIBLE WITH

HARMONY IP I/O8 UNITS

There are 2 types of antennas typically used for

HARMONY IP I/O8 systems:

§ Yagi antenna

§ Omni antenna

Other types of antennas can be used if your system

has special requirements. Again, please reach out to

us at [email protected] to discuss any

unique application needs or challenges.

Harmony IP I/O8 Network Monitoring & Control User Manual

SYSTEM TOPOLOGY

There are two typical topologies supported with HARMONY IP I/O8s: I/O Mapping-Over-LAN and Networked

Modes.

I/O Mapping-Over-LAN provides simple ON/OFF control over an existing wired or wireless IP network for

unlimited input and output. No computer is required for normal operation in this configuration.

Networked Mode is used to set up for communication with STRATOS. This allows devices to be monitored and

controlled anywhere an internet connection is available.

IP I/O8

Security Lighting

Irrigation Control

Push Buttons

Motion

Detection

Water Leak

Detection
