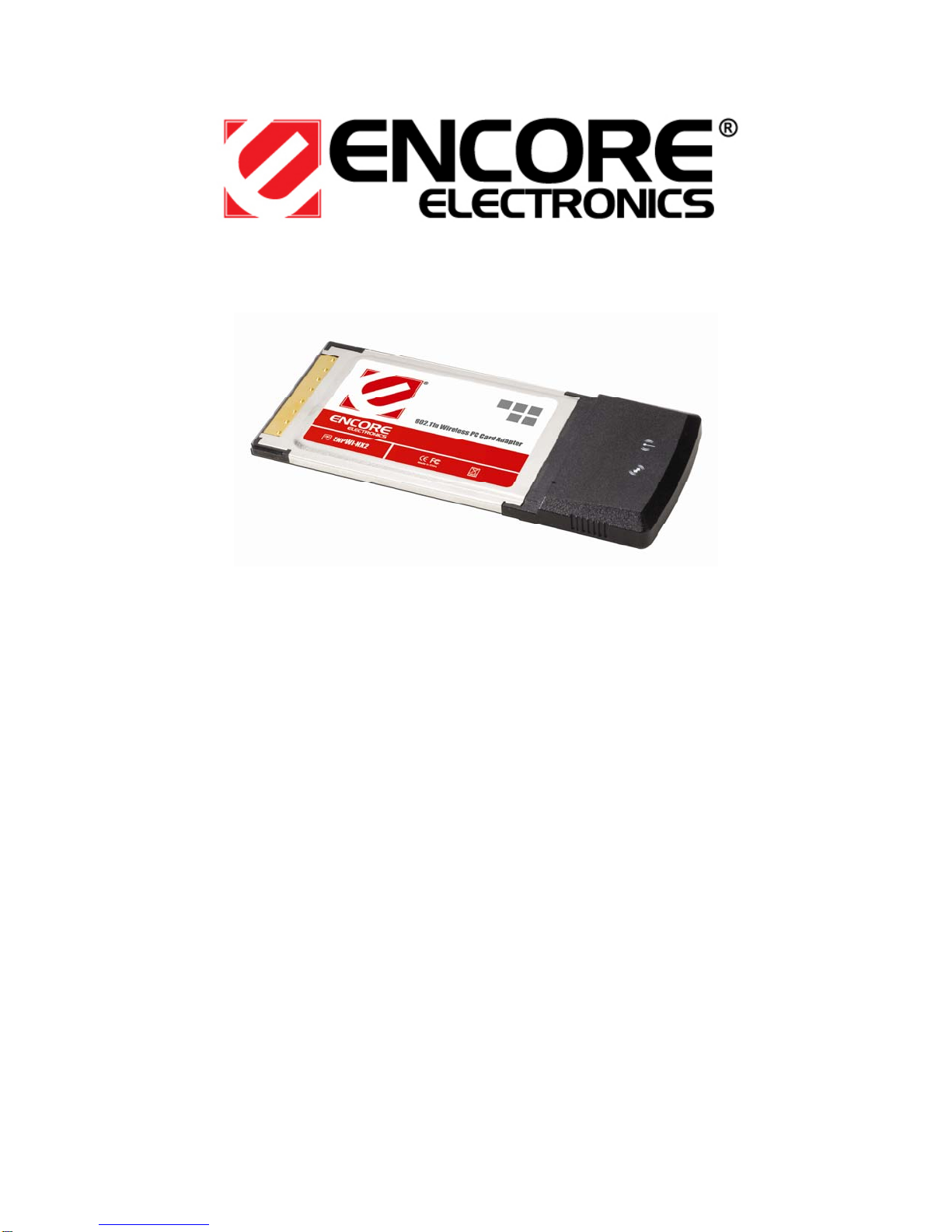

ENPWI-NX2

802.11n Wireless PC Card Adapter

The ENCORE ENPWI-NX2, 802.11n Wireless PC Card adapter is fully compliant

with IEEE 802.11n Draft 2.0, which provides users in launching IEEE 802.11n

wireless networks at up to 300 Mbps speed in the 2.4GHz band. It is also

backward-compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps

speed. It can be configured to connect to an ad-hoc network mode, connecting to

other 2.4GHz wireless devices and computers, or to the Infrastructure network

mode to connect to a wireless AP or wireless router for internet access. This

Card Bus adapter includes a convenient Utility Software for scanning available

wireless networks and an option in saving profiles of the preferred networks of

the user’s usual wireless connection. It is also equipped with a configurable

wireless security and encryption software.

Features:

•Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless

speed up to 300Mbps RX PHY Rate, 150Mbps TX PHY Rate

•Compatible with IEEE 802.11g high rate standard to provide wireless

Ethernet speeds of 54Mbps data rate

•Supports Multiple-Input-Multiple-Output (MIMO) technology with 1TX/2RX

•Maximum reliability, throughput and connectivity with automatic data rate

switching

•Supports wireless data encryption with 64/128-bit WEP standard for

security

•Supports WPA-PSK, WPA2-PSK, WPA, WPA2 Wireless Securities

•Two internal high performance antennas

•Software drivers supports Windows® XP and Windows Vista™

•Simple user setup & diagnostics software utilities

•Compliant with FCC Part 15.247 for US. ETS 300 328 for Europe

Specifications:

Standard

•IEEE 802.11b

•IEEE 802.11g

•IEEE 802.11n Draft 2.0

Radio Technology

•IEEE 802.11g / IEEE 802.11n:

Orthogonal Frequency Division

Multiplexing (OFDM)

•IEEE 802.11b: Direct Sequence

Spread Spectrum (DSSS)

Interface

32-bit Card Bus Type II Specification

Security

•64/128-bits WEP Encryption

•WPA-PSK, WPA2-PSK, WPA,

WPA2

Wireless LAN Frequency Range

•2412 ~ 2484 MHz ISM band

(channels 1 ~ 14)

Range Coverage

•Indoor: Up to 100 meters

(depends on environment)

•Outdoor: Up to 300 meters

(depends on environment)

Antenna

•Two internal high performance

antennas

Transmission Rate

•1, 2, 5.5, 6, 11, 12, 18, 22, 24,

30, 36, 48, 54, 60, 90, 120, 180,

240, 270, 300Mbps (auto

sensing for Rx)

•1, 2, 5.5, 6, 11, 12, 18, 22, 24,

30, 36, 48, 54, 60, 90, 120,

135,150Mbps (auto sensing for

Tx)

Receiver Sensitivity

•300Mbps: Typical - 65dBm @

10% PER

•54Mbps: Typical - 68dBm @

10% PER

•11Mbps: Typical - 84dBm @ 8%

PER

Modulation Schemes

•DBPSK/DQPSK/CCK/OFDM

(BPSK/QPSK/16-QAM/64-QAM)

Media Access Protocol

•CSMA/CA with ACK

Transmit Power

•15dBm typically @ 802.11b

•15dBm typically @ 802.11g

•14dBm typically @ 802.11n

Dimensions (L x W x H)

•115 x 54x 8.7mm

Diagnostic LEDs

•Activity & Link status

Operating Temperature

•0 ~ 40 oC

Storage Temperature

•-10 ~ 70 oC

Humidity

•10% ~ 95% RH, no

condensation

Certifications

•FCC Part 15.247 for US

•ETS 300 328 for Europe

Channel

•USA: 11

•Europe: 13

•Japan: 14

Support Operating Systems

•Windows® XP

•Windows Vista™
