Endon EL- 40101 Manuale utente

The Light pack contains:

IP54 rated led Wall light.

The following tools may be required:

Selection of cross and flat head screwdrivers.

Electric drill and assorted drill bits.

Wire strippers.

Electrical insulation tape.

INSTRUCTION MANUAL

This product is only suitable for connection to a 240V~50Hz supply.

It is recommended that this wall light is installed by a qualified electrician in accordance with current IEE

Wiring Regulations and local Building Regulations and is for the Domestic environment only.

The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature

circuit breaker).

This light has an IP54 rating suitable for use outdoors.

Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm2

(not supplied) to selected site, ensuring it is adequately protected through the full length of the cable run, it

must come out of the mounting surface in line with the entry to the fitting.

Except where installed in a conduit or duct , which provides equivalent protection against mechanical damage,

a cable buried in the ground shall incorporate an earthed armour or metal sheath or both, suitable for use as a

protective conductor, or be of insulated concentric construction. Buried cables shall be marked by cable

covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified. Buried cables,

conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable

disturbance of the ground.

This product contains breakable parts – be careful during handling and maintenance to avoid breakage.

These fittings use none-replaceable LED`s.

If any part of the (LED) housing is broken or cracked then it cannot be replaced and the fittings must not be

used - as the water ingress protection has been compromised.

Clean using a dry cloth only – do not use liquid or abrasive cleaners.

If any modification is made it will invalidate the warranty and may render the product unsafe.

Before you start

Please read these instructions carefully before fitting your new light and retain for reference.

Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit breaker

before commencing installation.

Ensure that no one else has access that would enable the supply to be inadvertently reconnected.

Check the packaging and make sure that you have all the required parts.

Follow each assembly step in order to prevent incorrect assembly

Make sure all screws / nuts, including electrical connections etc are fully tightened before use.

AS THESE LEDs ARE NOT DIMMABLE, DO NOT CONNECT THIS PRODUCT TO A DIMMER SWITCH.

EL- 40101 - Outdoor led wall fitting.

Safety Warnings

Endon Lighting

LS9 0SE

20150929

These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.

Assembly / user instructions

U130 104

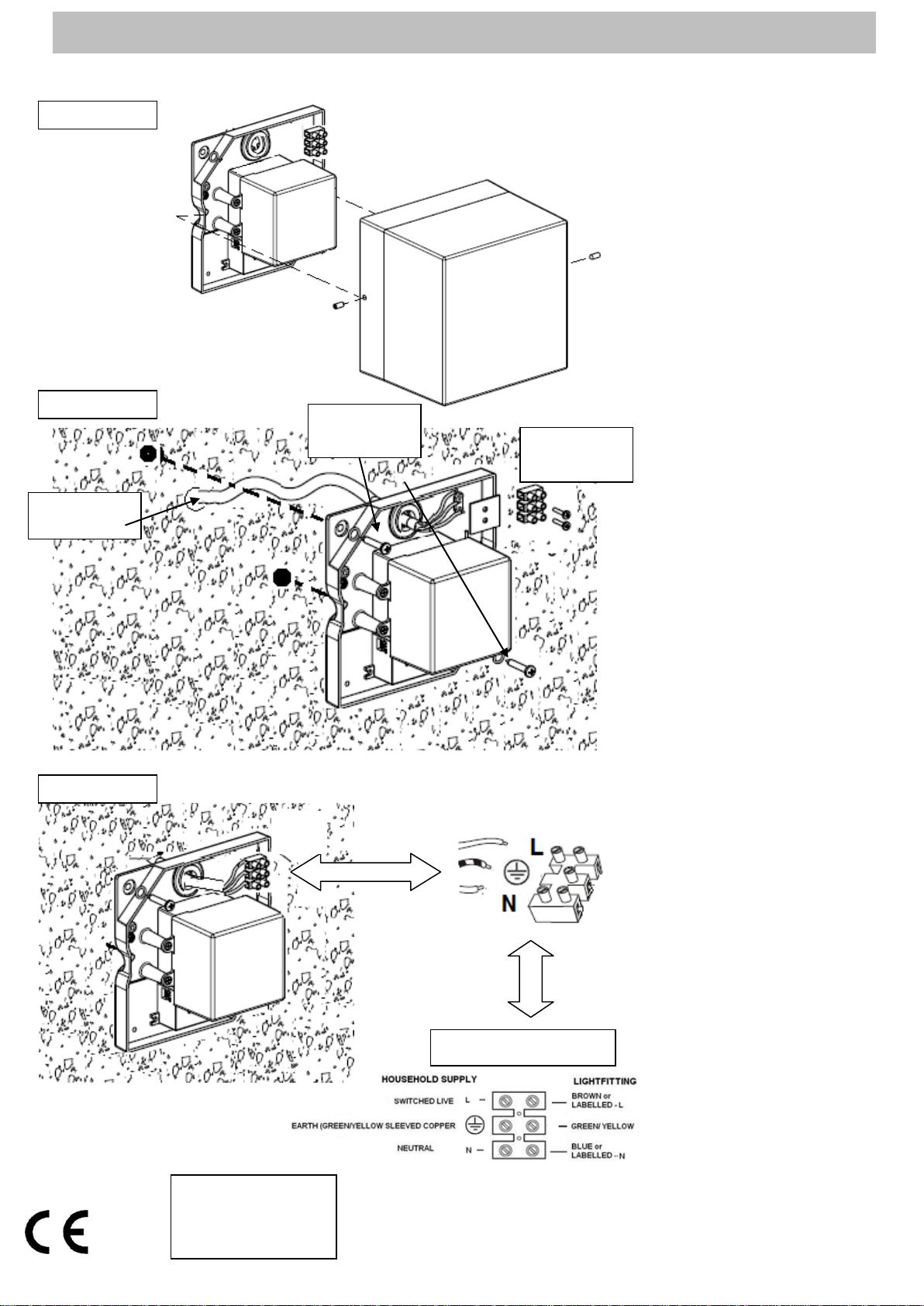

Diagram A

Diagram B

1. Determine the position

of your light fitting. Make

sure there is sufficient

cable coming out of the

wall to connect to the

terminal block. Ensure

that the mounting

surface is solid,

preferably a brick or

block wall and ensure

that there are no other

cables or pipes beneath

the surface.

2. Diagram A. Remove the

back pate bracket by

undoing the 4 bracket

grub screws as shown.

3. Diagram B. Use the

back plate bracket as a

template and mark the 2

fixings holes, making

sure the back plate is the

correct way up and the

top of it is horizontal.

Drill and plug the

mounting surface.

4. Bring the incoming

mains cable through the

grommet in the back

plate and then use

appropriate fixings to

secure the back plate to

the wall. The terminal

block can be removed

from the back plate for

ease of wiring to the

mains.

5. Diagram C. Connect the

mains wiring to the

internal terminal block

(A) – see wiring details.

The cable entry grommet

and any seals must be

securely in place to

ensure that the water

ingress protection is

maintained. NOTE: This

is a Class I fitting and

must be earthed.

6. Fit the front frame over

the back plate and

secure with the 2 grub

screws removed in 2

above. Take care not to

trap or strain the internal

cables.

7. Turn on the power and

test.

Back

plate

bracket

Incoming mains

cable

WIRING DETAILS

Bracket

screw

(A)

Bracket

screw

Mounting

screws

Terminal Block

taken off back

plate

Diagram C
