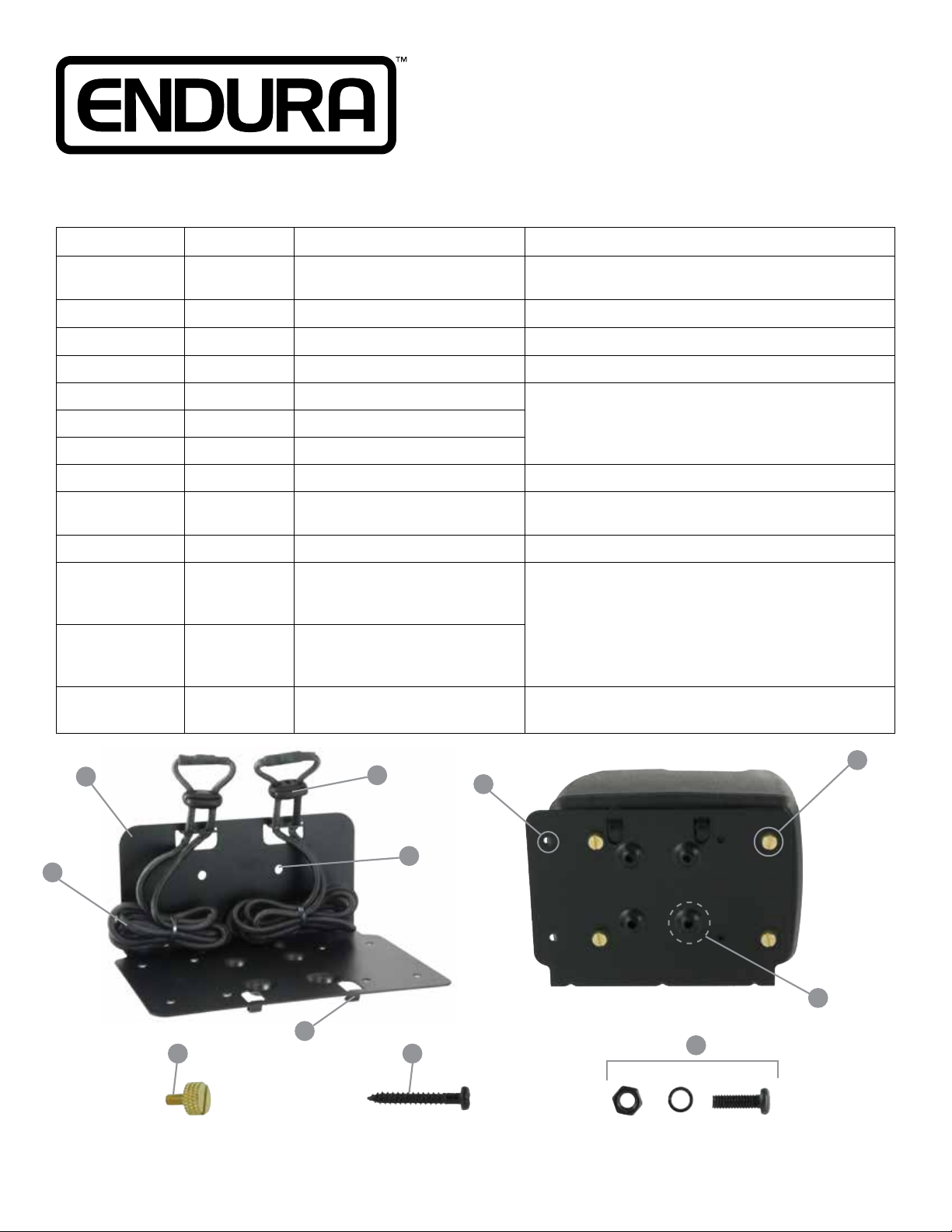

Information For Installing TWC2M-MB
Mounting Bracket For Endura
TWC2M Rapid Charger
Reference Quantity Description Installation Notes
A 1 Bracket Attach charger to this part. Use for mounting charger to a
dash or vertical surface.
B 2 Tie-down straps Factory installed on bracket for each charging position.
C 4 Brass screws Use to fasten charger to main bracket.
D 4 Wood screws (3/4” length) Used to attach bracket to dash or vertical surface.
E 4 Machine screws (1/2” length)
Use to fasten bracket to RAM-B-101U for floor mounting
(RAM-B-101U sold separately).
E 4 Hex nuts
E 4 Lock washers
F -- Retaining clip Allows length of tie-down strap to be adjusted.
G -- Opening for dash mounting Use wood screws (D) to secure the main bracket at four
points.
H -- Tie-down strap hook Connection point at front of bracket for tie-down straps.
I --
Charger connection point for
positioning front charging slot to
the left Use brass screws (C) to fasten charger to bracket. Insert
screw from underside of bracket at four points.
J --
Charger connection point for
positioning front charging slot to
the right
K -- Connection point for RAM-B-101U
mount
Use 4 machine screws, lock washers, and hex nuts to fas-
ten charger bracket to RAM-B-101U.
Overview – TWC2M-MB is designed for mounting TWC2M in a vehicle. Listed below are the parts included or
bracket features.
ENDURA™Chargers By Power Products • www.powerproducts.com • Toll Free 800-529-1618 • PPU-12
C
B
D
A
Bracket Installation – Below are general guidelines for installing TWC2M-MB. Please read all the steps before
beginning the installation.
1. Confirm that the correct pod is installed in TWC2M and that your radio batteries charge without issue before
securing the charger to the mounting bracket.
2. Install the mounting bracket in an area that will enable you to reach your power source.
3. Use the 3/4” wood screws to fasten the vertical part of the bracket to a dash or other vertical surface. The
bracket should be securely fastened at 4 points. Attached the charger to the bracket after it is secured to the
dash.
4. For mounting on a vehicle floor, fasten the bracket to RAM-B-101U (sold separately) using the 4 machine
screws, lock washers, and hex nuts. Place the RAM-B-101U under the bracket and align the holes so that it
can be fastened in four locations. Insert the machine screws through the top of the bracket and then through
the RAM-B-101U. Depending on the type of installation, it may be easier to fasten the RAM-B-101U to the floor
first, then attach the bracket. Attach the charger to the bracket after the bracket is fastened to the
RAM-B-101U.
5. The charger may be fastened to the bracket with the front charging position facing left or right. See reference
I/J on page 1.

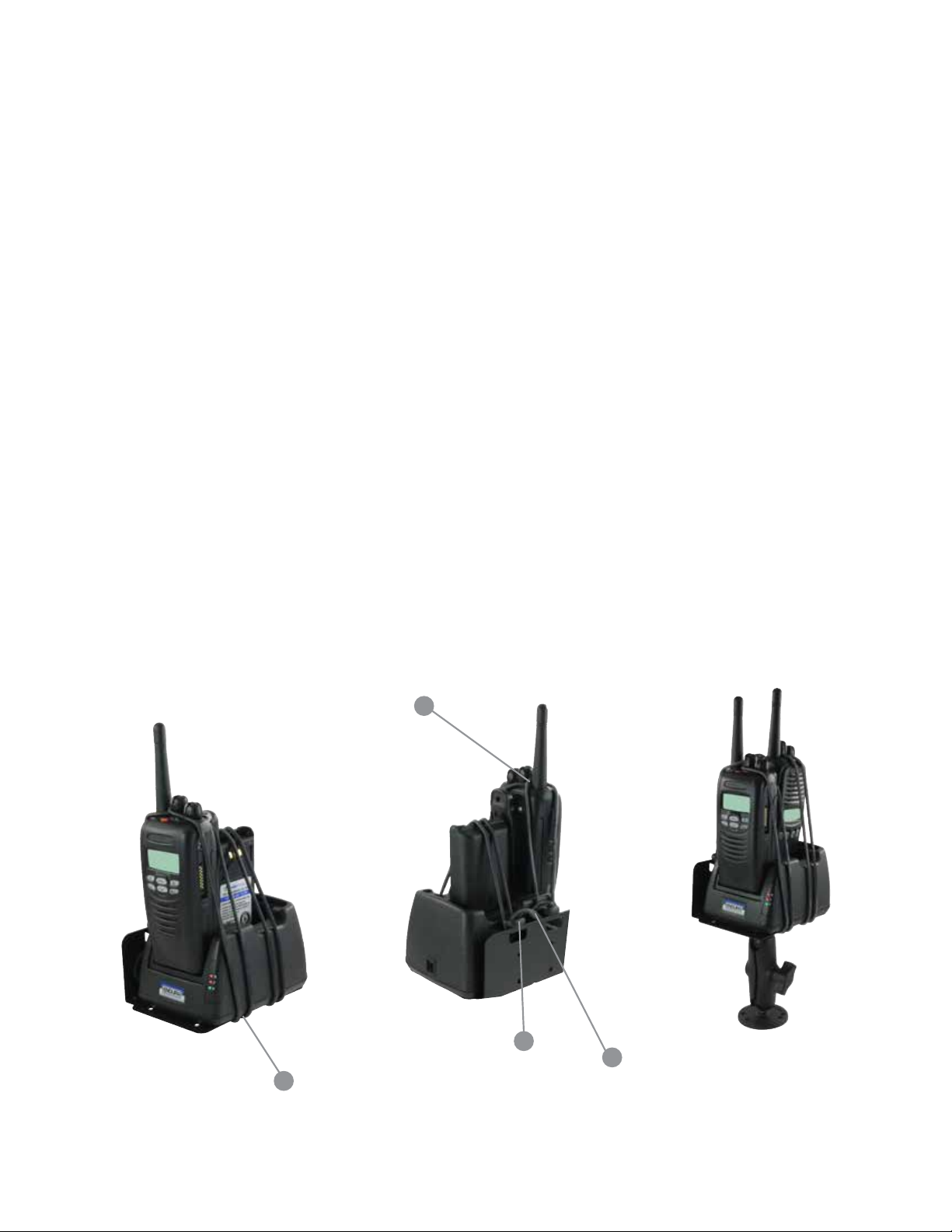

Tie-Down Straps – Each charging position has a tie-down strap which is factory installed on the bracket. The
straps should always be used to secure your radio (or batteries) when the charger is installed in a vehicle. With
the radio in the charger, adjust the length of the strap as follows:
1. Place the strap over the top of the radio and cross the two sections of cord so they form an X over the radio (A).
2. Connect the looped end of the strap to the hook on the front edge of the main bracket (B).
3. Compress the retaining clip (C) and hold firmly with one hand while pulling the gripped section of the strap (D)
with the other hand. Pull the strap until snug over the radio, but do not over-tighten as this will make it more
difficult to release the strap from the front hook when removing the radio.
4. You may find it more convenient to adjust the length of the tie down straps before securing the bracket to the
dash or floor.
TWC2M-MB used with
optional RAM-B-101U
for floor mounting.
ENDURA™Chargers By Power Products • www.powerproducts.com • Toll Free 800-529-1618 • PPU-12
