Dome-WB6 Quick Installation Guide (EN)
DIMENSION (Unit: mm) SPECIFICATION
PARTS SUPPLIED
PRIOR to USE
Install the mount onto a strong structure such as concrete wall
Use the supplied accessories when installing the mount bracket depends on mounting position
Construction: Aluminum Cast
Environment: Wall/Pillar/Corner Mount
Dimension (mm): 169.0x98.0x180.5mm
Weight: 805g (1.77lb)
2xScrews
Bracket
4xExpansion Bolt Sets
4x Expansion Bolt
4x Screws PA5*35
QIG
Dome-WB6 Quick Installation Guide (EN)
INSTALLATION
Wall Mount
Allow you match with the Junction Box with thread structure

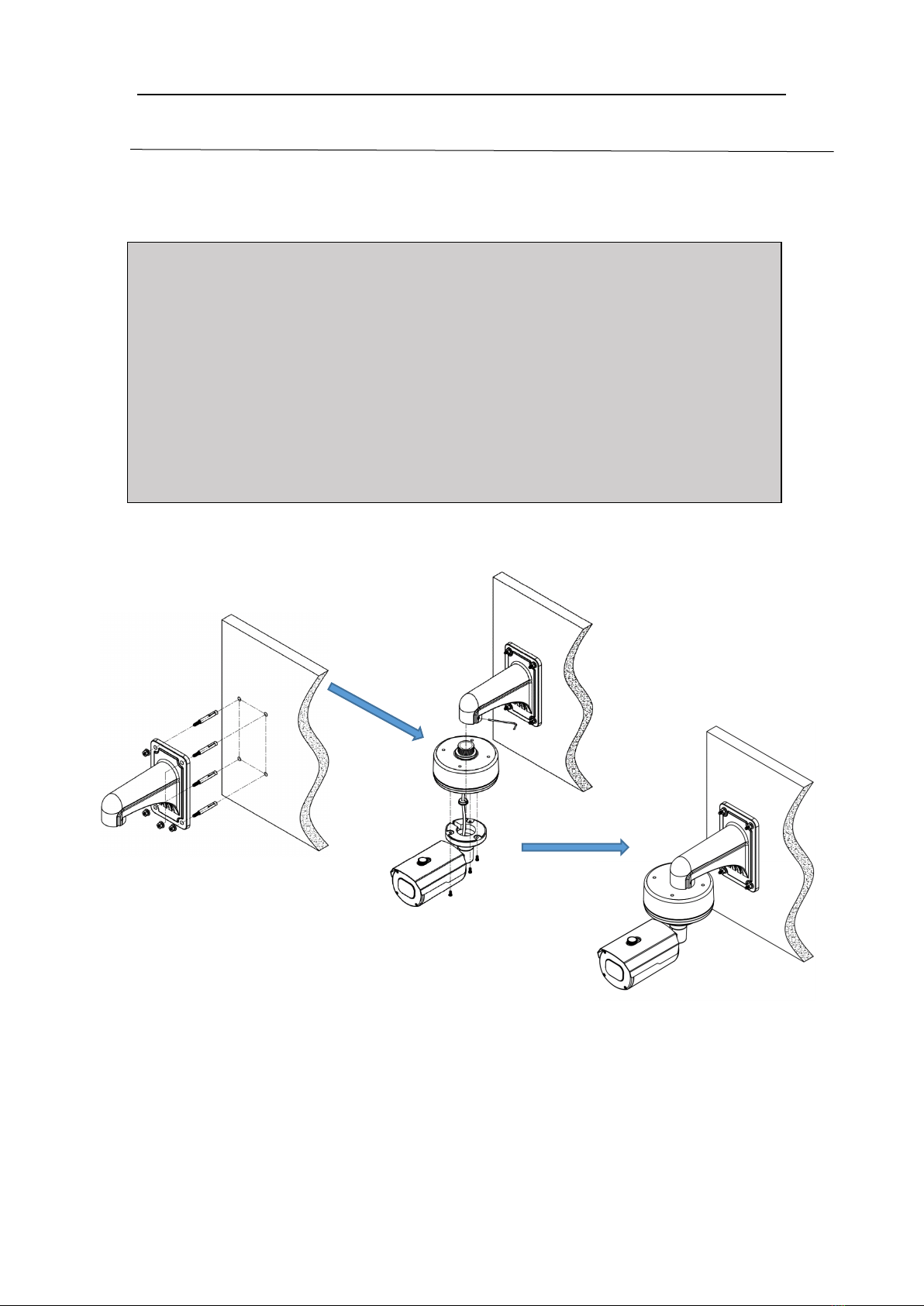

1. The Bracket can match the Junction Box (RS-CXH-J) with thread Structure, which can install
with the Bullet camera (ND/NI),
1. Locate the mounting template at the installation position and drill the wall.
2. Remove the release paper of bracket pad and attach to rear plate of the bracket
3. Route the power and BNC cable through the bracket
4. Tight the bracket to wall through the four screws
5. Screw the Junction Box to the bracket
6. According to the different box, we can match with bullet or dome. Details please refer to the
below Schemes.
7. Connect the power and BNC cable with the camera cables
8. Set the camera’s viewing angle
9. Put the dome cover to the dome unit and tighten screws.
Dome-WB6 Quick Installation Guide (EN)
2. The Bracket can match the Junction Box (AK-23 & AK-25 etc) with thread Structure, which
can install with the Dome camera (RB/FG),
Dome-WB6 Quick Installation Guide (EN)
Corner Mount
Pillar Mount
The Bracket can match one corner bracket for the Corner Mount, based on the above-
mentioned dome/bullet cameras (ND/NI/FG/RB)
Bracket can match one Pillar bracket for the Pole Mount, based on the above-mentioned
dome/bullet cameras (ND/NI/FG/RB).
