Eneo VKC-1415 Manuale utente

Installation and Operating Instructions

Color CCD-AF-Camera with integrated zoom lens, VKC-1415

Contents

1. Safety Instructions .................................................................................................................................................................. 3

2. General Description................................................................................................................................................................. 4

3. Connection and Operation ....................................................................................................................................................... 5

4. Settings in the OSD Menu ....................................................................................................................................................... 7

5. Troubleshooting .................................................................................................................................................................... 12

6. Specications ....................................................................................................................................................................... 13

7. External Controller Circuit Schematic .................................................................................................................................... 15

8. Dimensional Drawings .......................................................................................................................................................... 16

Montage- und Betriebsanleitung

Installation and Operating Instructions www.eneo-security.com/manuals

⇒

1. Safety Instructions

• Read these safety instructions and the operation manual rst before you install and commission the camera.

• Keep the manual in a safe place for later reference.

• Unauthorized intervention voids warranty.

• Contact your local dealer in case of malfunction

• Protect your camera from contamination with water and humidity to prevent it from permanent damage.

Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case.

• Do not open the camera housing. Maintenance and repair have to be carried out by authorized service centers.

• Operate the camera only at a temperature range of -10°C to +50°C and at a humidity of max. 90%.

• The camera is equipped with an automatic gain control (AGC) which increases the sensitivity at low light levels.

Noisy pictures at these conditions are quite normal.

• Pictures including bright spotlights will cause perhaps vertical lines (smear) or soft edges (blooming) on the monitor display.

This happens most probably in automatic shutter mode (ESC). This is not a defect but an effect caused by the CCD sensor.

• Use only a mild detergent to clean the housing. Never use dilution or gasoline for this can cause permanent damage to the surface.

The cameras should never:

• be operated beyond the technical specications. This can lead to destruction.

• Pointed with open iris towards the sun. (This can damage the sensor)

Note: This is a class A digital device. This digital device can cause harmful interference in a residential area; in this case

the user may be required to take appropriate corrective action at his/her own expense.

2. General Description

• 1/4” Interline transfer Sony super HAD

• Electrically driven 22x zoom lens

• Low speed shutter

• WDR (wide dynamic range)

• DIS (digital image stabilize)

• OSD screen menu for camera parameter adjustment

• Backlight compensation

• Gain control AGC

• 12 VDC power supply

• Excellent picture quality

• Various picture effects

• Digital zoom x11

• Flexible conguration

Supplied Items

1 x 1/4” Colour camera VKC-1415

1 x Installation ond operation manual

1 x 12 pin control cable

3. Connection and Operation

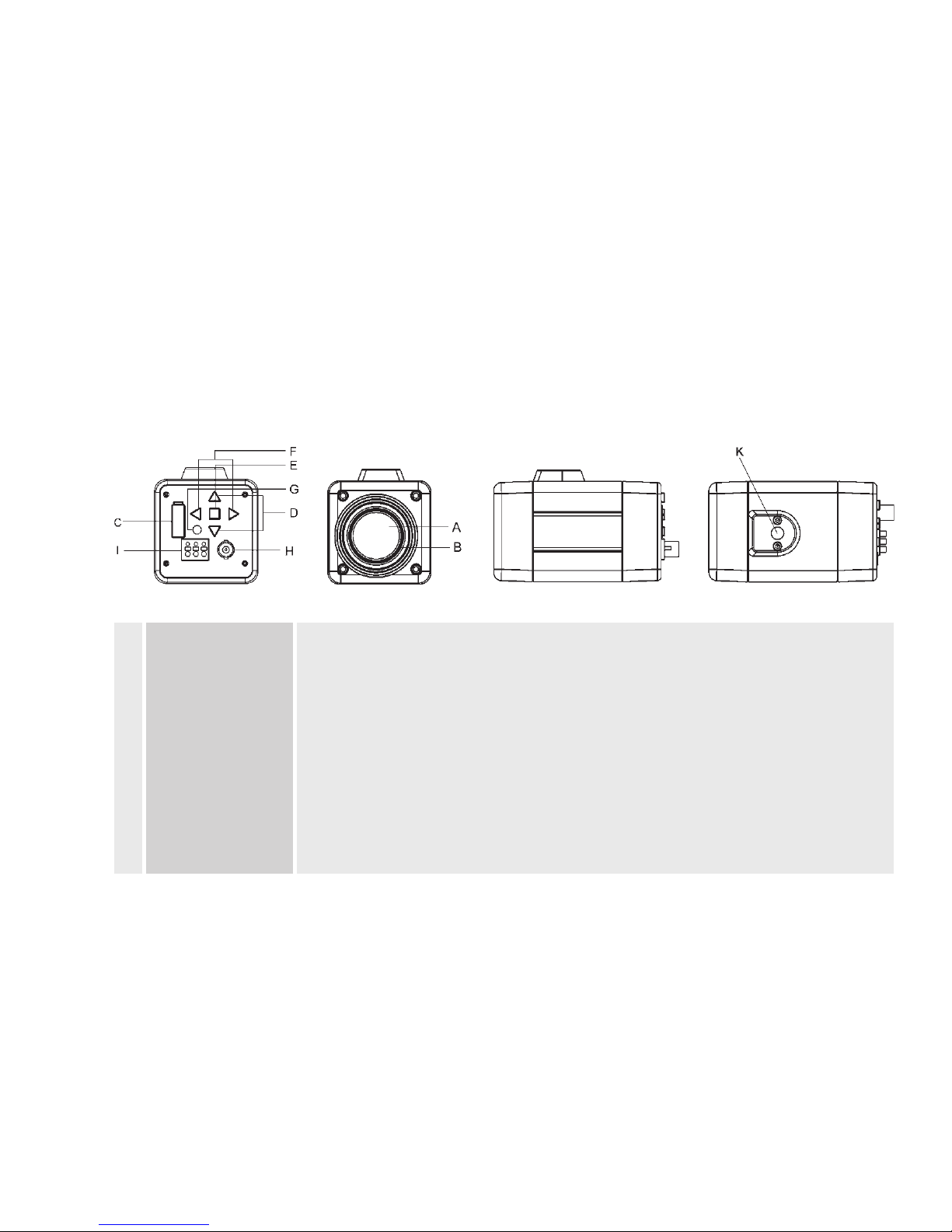

A Zoom Lens Integrated lens with 22x optical and 11x digital zoom.

B Filter mount Accepts commonly used lters with 37 mm diameter.

C Connector 12 pin connector (connection see below)

for control interface

D TELE, WIDE Zoom control: Push „WIDE” for wide angel views and „TELE” to zoom in.

E Enter Menu functions in the OSD display can be controlled when the OSD menu is activated.

F Focus button Press the „NEAR” side to focus on near objects and the „FAR” side to focus on far objects.

Focus buttons are activated when AF off mode.

G L/L adjust Line lock adjust.

H BNC connector Connection for monitor etc.

Front view Right hand camera side Bottom viewRear view

Connector for control interface

I Power supply Terminal block for power (12 VDC)

K Tripod mount Standard (1/4” - 20 UNC) thread for tripod mount

PIN Description Description PIN

485- RS-485- RS-485+ 485+

TX RS-232 TXD IN RS-232 RXD IN RX

GND Ground Motion detect out MD

AD2 External AD KEY 2 External AD KEY 1 AD1

NC NC Far (-), Near (+) FOKUS

COM Common Tele (+), Wide (-) ZOOM

Programming The menu is controlled with the camera buttons:

TELE button: Moves the cursor up

WIDE button: Moves the cursor down

NEAR button: Moves the cursor to the right

FAR button: Moves the cursor to the left

MENU button: ENTER

Status display The actual settings of the camera are displayed.

The selection of the settings to be displayed is done in the submenu display.

Main menu Press „MENU” (Enter) to change the settings.

Light gray bar The actual selection is marked with a light gray bar at the left hand side of the screen if the menu

allows different choices.

END To close the menu position the cursor to END and press ENTER.

Status display Main menu

4. Settings in the OSD Menu

➞

BLC

TITLE

DISPLAY

CAM SET

EFFECT

PRESET

END

MAIN MENU

BLC

TITLE

DISPLAY

CAM SET

EFFECT

PRESET

END

Settings in the main menu

Table of the settings in the main menu

WB AE BLC TITLE DISPLAY CAM SET EFFECT PRESET

AWB AUTO MENU DISP0 ID D-ZOOM FOCUS

INDOOR IRIS PRI ABCDEF...-,‘ DISP1 BPS NEGA/POSI SYNC

OUTDOOR SHUTTER PRI CENTER CMD <- -> DISP2 BRIGHTNESS B/W INIT

MANUAL R/B AGC TOP < > S E DISP PUSHON SHARPNESS MIRROR LOAD

WAWB MANUAL BOTTOM PIP SAVE

IRIS OFF FREEZE DNR

AGC END SHOT

SHUT

LOWSHUT

END END END END END END END

WB AWB Automatic white balance

INDOOR / OUTDOOR White balance for indoor or outdoor

MANUAL Manual white balance setting. The red and green picture values can be adjusted with

the and buttons. The setting is saved with ENTER.

WAWB Automatic white balance adjustment for wide angle

AE AUTO Automatic adjustment of iris, shutter and gain control (AGC)

IRIS PRI Manual iris adjustment

SHUTTER PRI Manual shutter adjustment

AGC Manual adjustment of gain control (on/off)

MANUAL Display and adjustment for IRIS, AGC and shutter

LOW SHUT Activate/deactivate the low shutter mode (mode can be changed in the preset menu)

BLC TOP, CENTER, Back light compensation

BOTTOM, OFF

TITLE TITLE MENU Enter the camera title with the TELE, WIDE, NEAR and FAR buttons

ABCDEF...-,‘ Character table

CMD <- -> < > S E Position of tiltle on the screen (must be set prior to writing).

Store with S and leave the menu with E.

➞

Description of the submenu settings

Display DISP0 Displays camera text and camera ID

DISP1 Displays camera text, camera ID and zoom lens position

DISP2 Displays camera text, camera ID, zoom lens position, AGC, shutter speed, aperture,

focus mode, white gain and auto exposure

DISP PUSHON Display OFF/ON/PUSHON (when button is pressed the display appears for 4-6 sec.)

CAM SET ID Input of camera ID number. This is displayed upon OSD activation.

BPS Baud rate of the serial interface (9600/19200 bps)

BRIGHTNESS User can adjust brightness level (0 ~ 90), level 30 is default setting.

SHARPNESS User can adjust sharpness level (0 ~ 20), level 10 is default setting.

EFFECT D-ZOOM Activation / deactivation of the zoom function

NEGA/POSI Switches between negative and positive display. Standard setting is OFF.

B/W Selection of colour or b/w picture. Standard setting is OFF.

MIRROR Selection of right, left, reverse picture

PIP Picture in picture on or off

FREEZE Select real an still picture

Caution: Freeze mode is automatically off, when zoom and focus operation.
