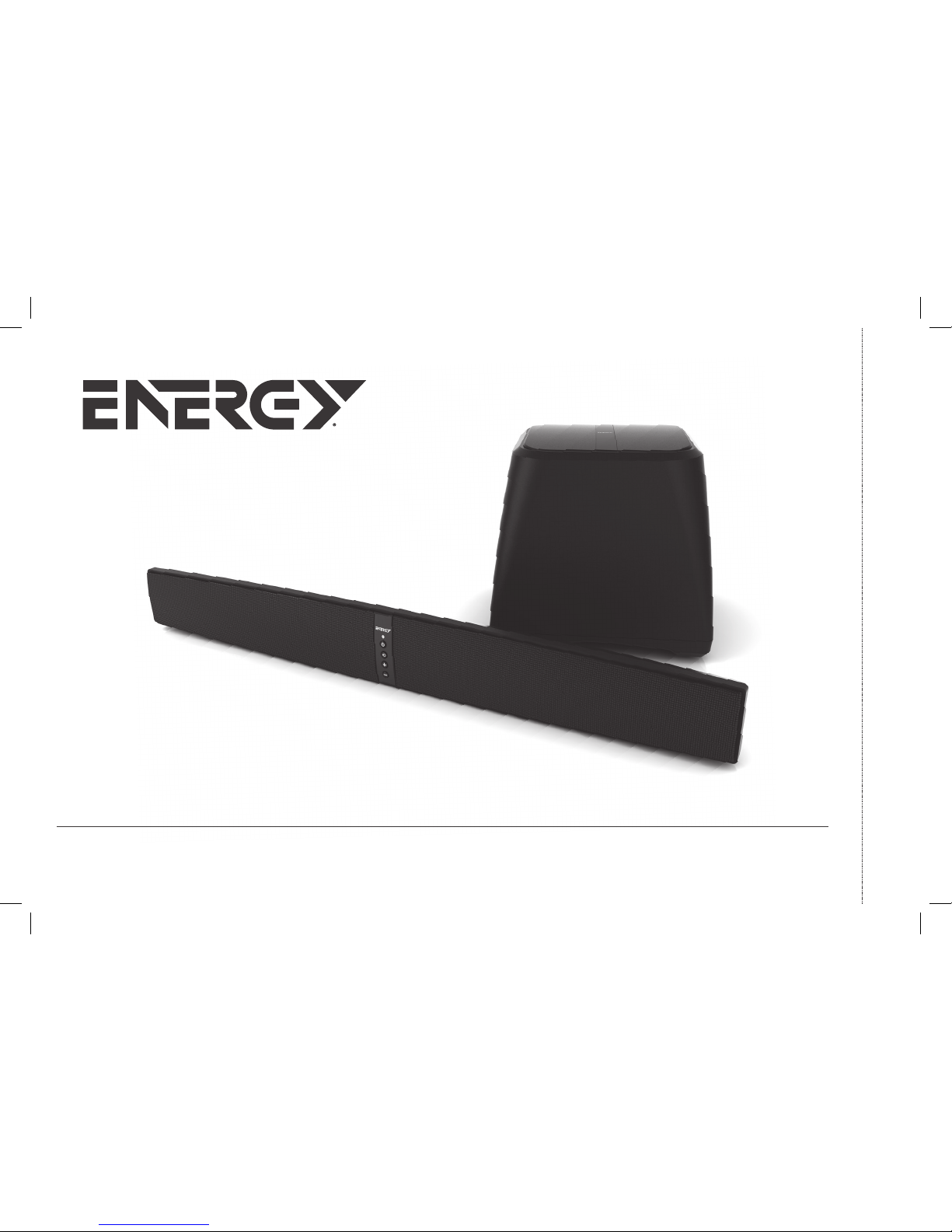

Energy BTS 2.1 Manuale utente

BTS 2.1

OWNER’S MANUAL

$TRIM LINE $ $ TRIM LINE $

WHAT’S INSIDE

Soundbar Subwoofer

Mounting Template

AC Power Adapter Remote3.5mm to Dual RCA Cable

$TRIM LINE $ $ TRIM LINE $

Optical

Digital Audio Out

Audio Out

ONOFF

Power

DC IN

Optical

ONOFF

Power

DC IN

Optical

Headphone

ONOFF

Power

DC IN

Optical

3.5mm TO DUAL RCA ANALOG CONNECTION (IF TV HAS NO HEADPHONE OUT SEE NEXT PAGE)

$TRIM LINE $ $ TRIM LINE $

Optical

Digital Audio Out

Audio Out

ONOFF

Power

DC IN

Optical

ONOFF

Power

DC IN

Optical

Headphone

ONOFF

Power

DC IN

Optical

DUAL RCA TO DUAL RCA ANALOG CONNECTION

QUICK START

NOTE: RCA Cables not included.

DIGITAL OPTICAL CONNECTION

NOTE: Digital Optical Cable not included. The Digital Optical Connection requires that the TV outputs “PCM” digital

sound and NOT Dolby® Digital sound from its Digital Output. Refer to the TV Owner’s Manual for guidance.

Optical

Digital Audio Out

Audio Out

ONOFF

Power

DC IN

Optical

ONOFF

Power

DC IN

Optical

Headphone

ONOFF

Power

DC IN

Optical

TV REMOTE PROGRAMMING

Press

and

Hold

1Solid Green

Solid Orange

One Foot

7Flashing Green

to Solid Green

8To program Volume Up and Volume

Down buttons repeat the steps shown

and replace steps 4 and 6 with the

button you want to program.

1 2 3

4 5 6

7 8

Mute

ChVol

Press Slowly x4

3Flashes Orange

Press Once x1

To program Volume Up and Volume Down buttons

repeat the steps shown and replace steps 4 and 6

with the button you want to program.

If you are trying to program a cable/satellite box

remote or other universal remote without success,

please try programming your TV or Cable Box

remote instead.

BLUETOOTH ®WIRELESS TECHNOLOGY

Bluetooth

EnergyBTS

Devices

Connected

Settings

Bluetooth

EnergyBTS

Not Paired

EnergyBTS

Devices

Settings

1 2 3 You can pair a device equipped with

Bluetooth

wireless technology at any time by activating it on

your device.

Once your device equipped with

Bluetooth

wireless

technology is paired, the BTS 2.1 will automatically

switch to the

Bluetooth

wireless technology input

(SOLID BLUE LIGHT) and you can stream your music.

If you switch inputs on the BTS 2.1, the

Bluetooth

wireless technology connection will automatically be

terminated.

You must disconnect your device before pairing

another device equipped with

Bluetooth

wireless

technology by either:

•Pressing and holding the SOURCE button on

the BTS 2.1 control panel 3 seconds

• Turning off

Bluetooth

wireless technology on

the paired device

• Pressing the

Bluetooth

wireless technology

button (∞) on the BTS 2.1 remote

*Example only. Your device may differ.

BUTTONS

On / Off

3D Surround

Bluetooth

Source

Status Light

Mute

Volume Up

Volume Down

Source

Volume Up

Volume Down

Mute

Subwoofer

Volume Up

Subwoofer

Volume Down

STATUS LIGHTS

STANDBY MODE

SOLID RED Power Off (Standby Mode) FLASHES GREEN ONCE 3D Surround turned on

SOLID GREEN Power On, Source is Optical Input FLASHES RED ONCE 3D Surround turned off

SOLID ORANGE Power On, Source is Analog Input FLASHES BLUE QUICKLY Waiting to pair with

Bluetooth

device

SOLID BLUE Power On, Source is Paired

Bluetooth

device

FLASHES GREEN /

ORANGE / BLUE

Volume Up, Volume Down, Subwoofer

Volume Up or Subwoofer Volume

Down is pushed

You do not need to turn off the BTS 2.1, just turn

off your TV (or Satellite / Cable Box) and the BTS

2.1 will automatically go into standby mode in

approximately 10 minutes.

Standby mode is indicated by a red status light on

the front panel. When your TV (or Satellite / Cable

Box) is turned back on the BTS 2.1 will automatically

turn on again.
