ENERMAX “Brick” EB208S Manuale utente

“Brick” EB208S 2.5”HDD Enclosure

User’s Manual Page 1

A. Package Content

• “Brick” EB208S 2.5”HDD Enclosure

• USB 2.0 cable

• Tool package (Screwdriver*1+Screw for top cover*1)

• User’s manual

• Carry Bag

B. Minimum System Requirements

1. Windows 98 SE/ ME /2000 /XP, and Windows Vista

2. Mac OS 9.x (Apple USB support 1.3.5 and greater) and Mac OS 10.1, 10.2, 10.3,

and 10.4

3. Computer with USB 2.0 or 1.1 interface

4. PC: Intel Pentium 233MHz-compatible processor or greater

5. Mac: G3 processor or greater

6. Minimum 32MB RAM

“Brick” EB208S 2.5”HDD Enclosure

User’s Manual Page 2

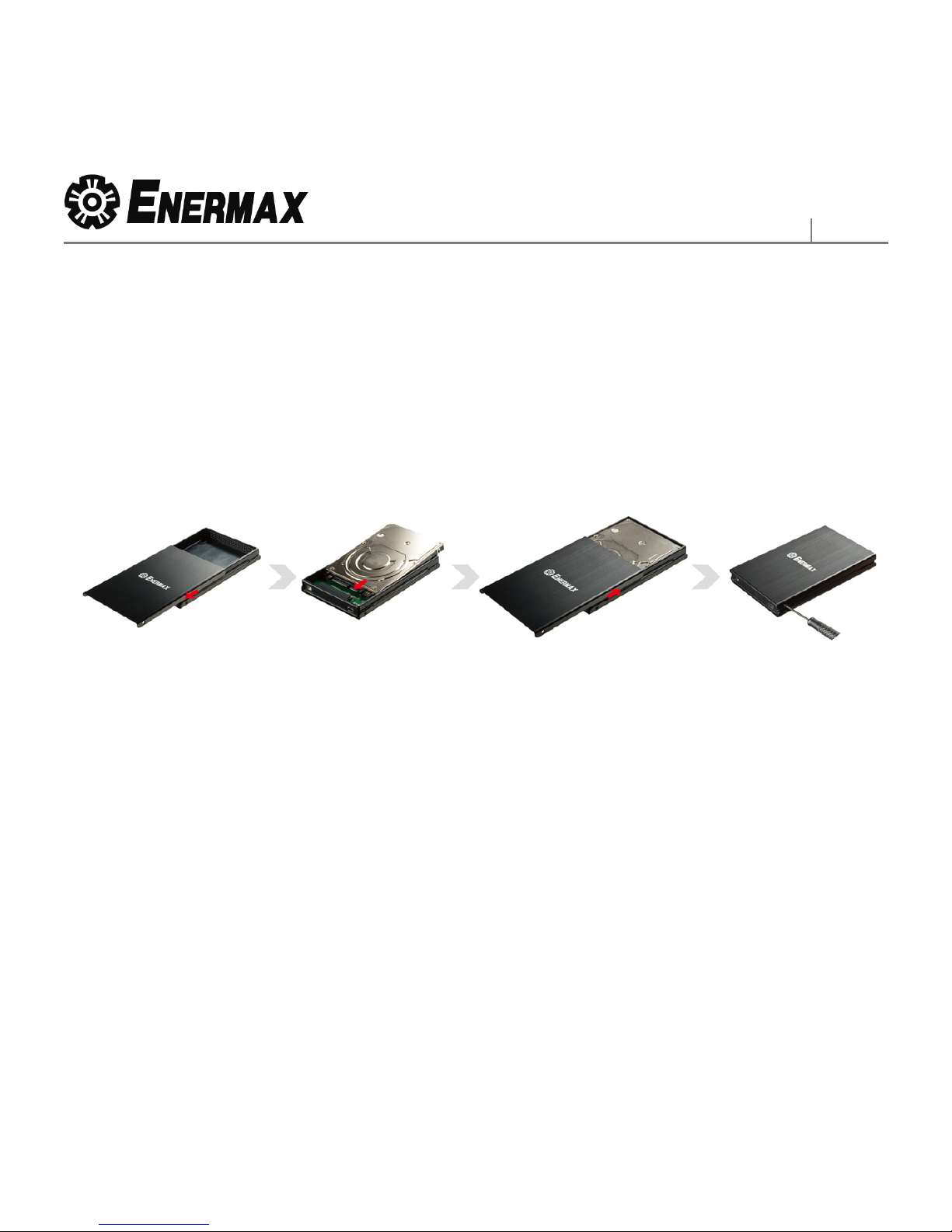

C. Hardware Installation

1. Slide out the top aluminum cover

2. Insert the SATA HDD and connect it to the SATA connectors on the PCBA.

3. Put top aluminum cover back

4. Fix the top cover with the screw enclosed in the tool package.

D. LED Indicator

• Power : Blue

• Access(Read/Write): Purple

“Brick” EB208S 2.5”HDD Enclosure

User’s Manual Page 3

E. Using your EB208S

Introduction

• Do not connect the enclosure to the computer until the driver is completely

installed.

• Please make sure you format the HDD before the ﬁrst time use.

• Driver installation is not required when using Windows ME/2000/XP/Vista

• When using Windows 98SE, please log on to www.enermax.com for drivers

• Unplug Procedure on a PC (Microsoft Windows)*

1. Click on the taskbar icon for the external hardware

2. Choose the external HDD and conﬁrm to remove it

• Unplug Procedure on a Macintosh (Apple Mac OS)*

1. Drag the external HDD icon into the trash bin

2. Turn off your device

*For safe removal of your drive and assure no data is lost, always follow the unplug

procedure. If not, errors message might show up.

• The USB cable with two USB plugs is designed for efﬁcient power supply.

Generally you only need one USB connection to drive the external HD. Some

desktops or laptops limit the host USB power supply to the external USB

devices or some HDDs require more power. In those cases, you need to plug

two USB plugs to get enough power supply.

“Brick” EB208S 2.5”HDD Enclosure

User’s Manual Page 4

F. Q & A

Question:

I could see the icon at the right down comer on the screen, but I still couldn’t ﬁnd

my external HDD.

Answer:

a. Please make sure your HDD has been installed correctly.

b. Please make sure your HDD has been set in “Master” position or factory default.

c. Please make sure you have installed correct driver for this enclosure for Windows

98SE.

d. Please make sure your HDD has been formatted.

The information contained in this manual is believed to be accurate and reliable.

Enermax Technology Corporation assumes no responsibility for any errors contained in this manual. Enermax

Technology Corporation reserves the right to make changes in the speciﬁcations and/or design of this product

without prior notice.

The diagrams contained in this manual may also not fully represent the product that you are using and are

there for illustration purposes only.

All mentioned company and product names are trademarks or

registered trademarks of their respectable owners.
