Enernet T9000 Manuale utente

Pub No. 12401-051707

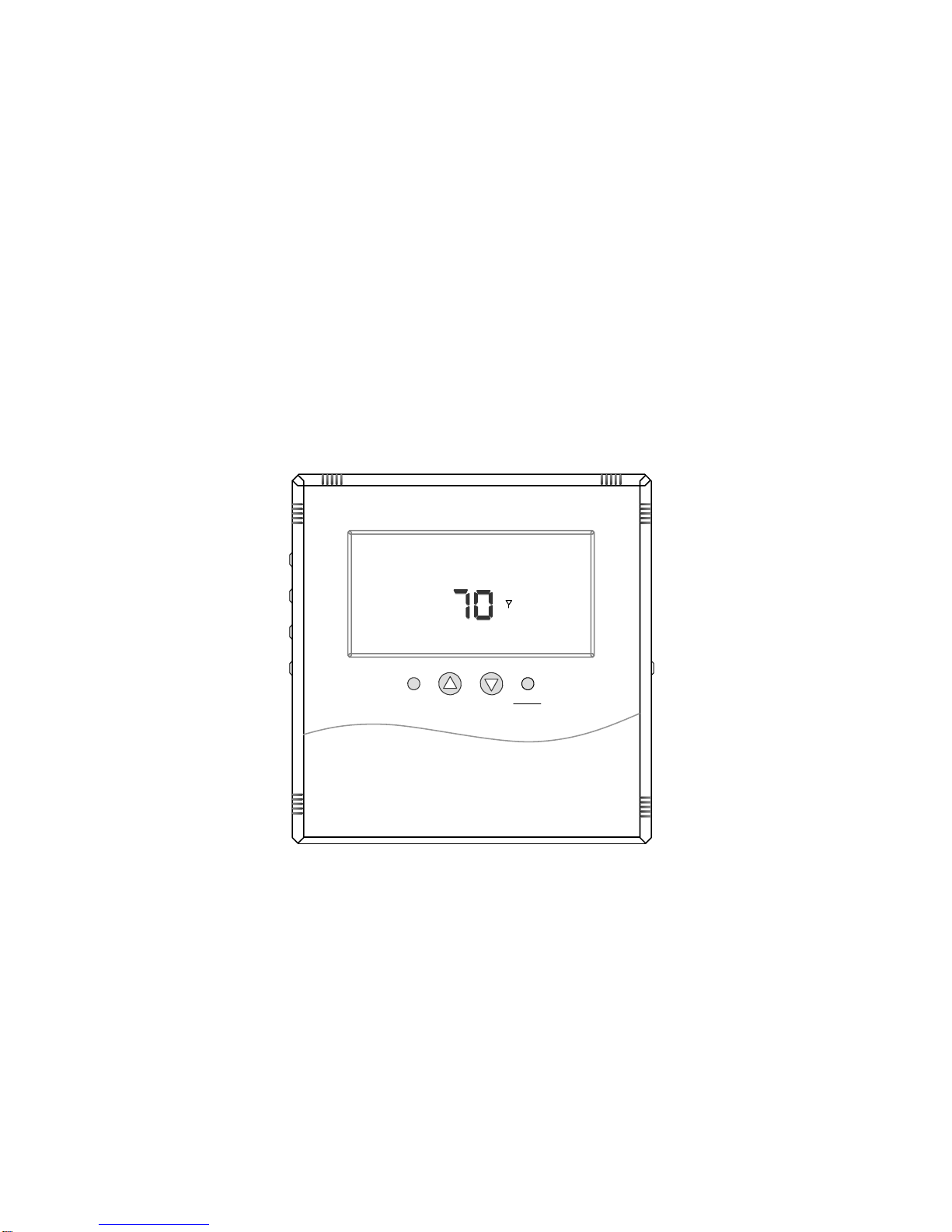

T9000 Wireless Thermostat

User Setup Guide

Fan Heat

Cool

Up Down

Fan Auto

COOL

OFF

11:20

Day

Set Point

F/C

Program

Run

Clock Light

ENERNET CORPORATION IS NOT RESPONSIBLE FOR ANY

RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED

MODIFICATIONS TO THIS EQUIPMENT. SUCH

MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

THIS EQUIPMENT COMPLIES WITH PART 15 OF THE FCC

RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO

CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL

INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED, INCLUDING INTERFERENCE

THAT MAY CAUSE UNDESIRED OPERATION.

THE ORIGINAL EQUIPMENT MANUFACTURER (OEM) MUST

ENSURE THAT FCC LABELING REQUIREMENTS ARE MET.

THIS INCLUDES A CLEARLY VISIBLE LABEL ON THE

OUTSIDE OF THE FINAL PRODUCT ENCLOSURE THAT

DISPLAYS THE FOLLOWING:

CONTAINS FCC ID: TGD12400/IC: 6120A-12400

ENERNET CORPORATION PROVIDES THIS PUBLICATION “AS

IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

THIS MANUAL MAY CONTAIN TECHNICAL INACCURACIES

AND/OR TYPOGRAPHICAL ERRORS. CHANGES ARE

PERIODICALLY MADE TO THIS MANUAL, WHICH ARE

INCORPORATED IN LATER EDITIONS.

ENERNET CORPORATION MAY MAKE CHANGES AND

IMPROVEMENTS TO THE PRODUCT(S) AND/OR PROGRAMS

DESCRIBED IN THIS PUBLICATION AT ANY TIME WITHOUT

NOTICE.

IN NO EVENT WILL ENERNET CORPORATION BE LIABLE FOR

DAMAGES, INCLUDING LOST PROFITS, LOST SAVINGS OR

OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH

PRODUCT, EVEN IF ENERNET CORPORATION OR AN

APPROVED RESELLER HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY

ANY OTHER PARTY.

ENERNET

Corporation

307 Dewittshire Road, Syracuse, New York 13214

Phone: (315) 449-0839 Fax: (315) 449-3056

T9000 — MODEL 124 Operation Guide

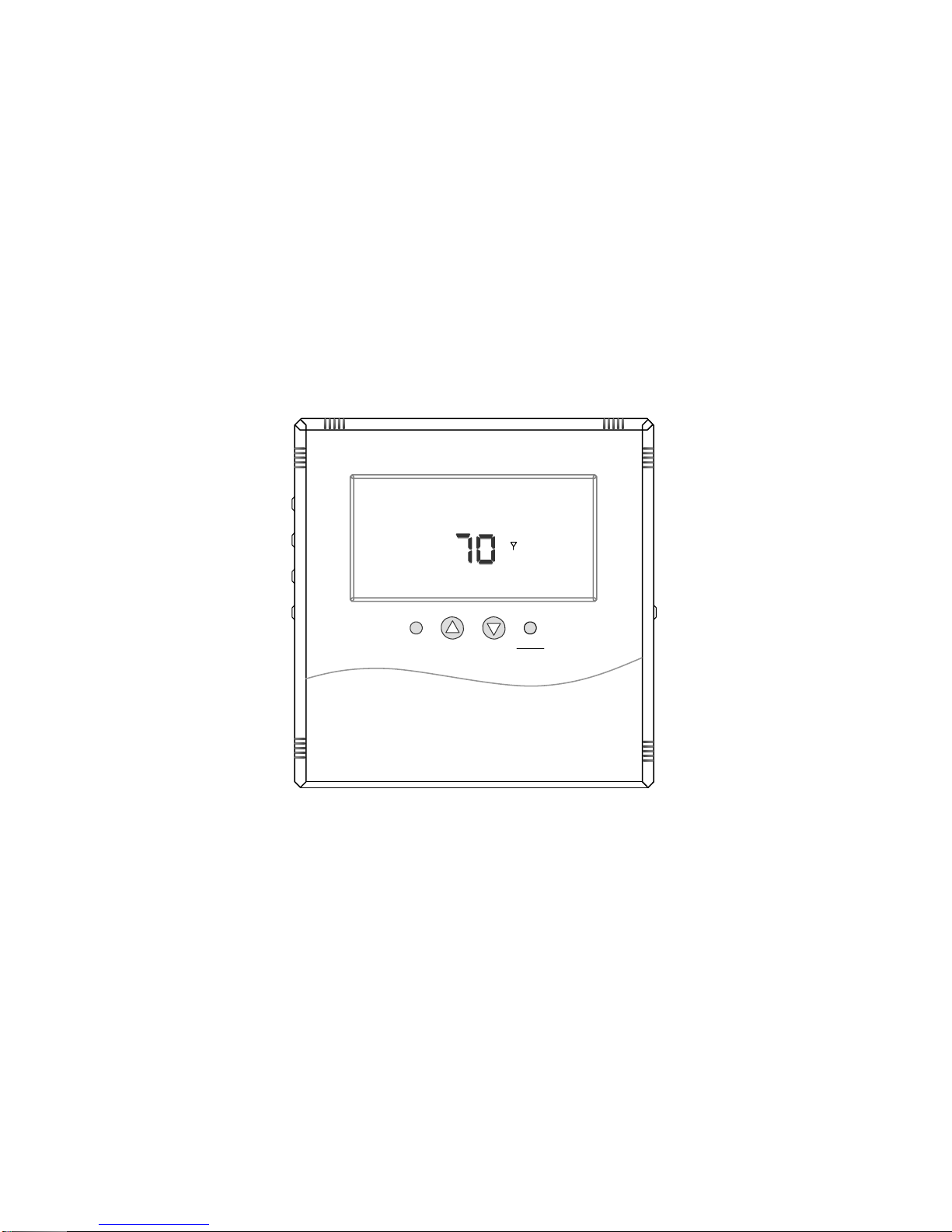

Figure 1 — T9000 Front View

Fan Heat

Cool

Up Down

F/C

Program

Run

Clock Light

Fan Auto

COOL

OFF

11:20

Day

Set Point

T9000 — MODEL 124 Operation Guide

INTRODUCTION

The T9000 Wireless Temperature Control is a two-part wireless

thermostat system designed to provide precision temperature

control without the installation labor and expense of wiring.

for approximately 18 months, and can be mounted in any suitable

location that will provide good temperature control. A large LCD

display (Figure 1) provides the user with current room

temperature, set point temperature, time, program interval, and

other system status information. In hotel applications,

programming, clock set up buttons and associated display

information are typically not displayed. The second part of the

T9000 system is called a Remote Control Node or “RCN”. An RCN

interfaces with the HVAC equipment, and communicates with its

thermostat using unlicensed 900 MHz, radio frequency energy. At

the time of installation, the T9000 thermostat is linked to one or

more RCN controls. The thermostat and RCN that have been

linked will not interfere with, or be affected by any other thermostat

or RCN in adjacent rooms, apartments, or neighboring homes.

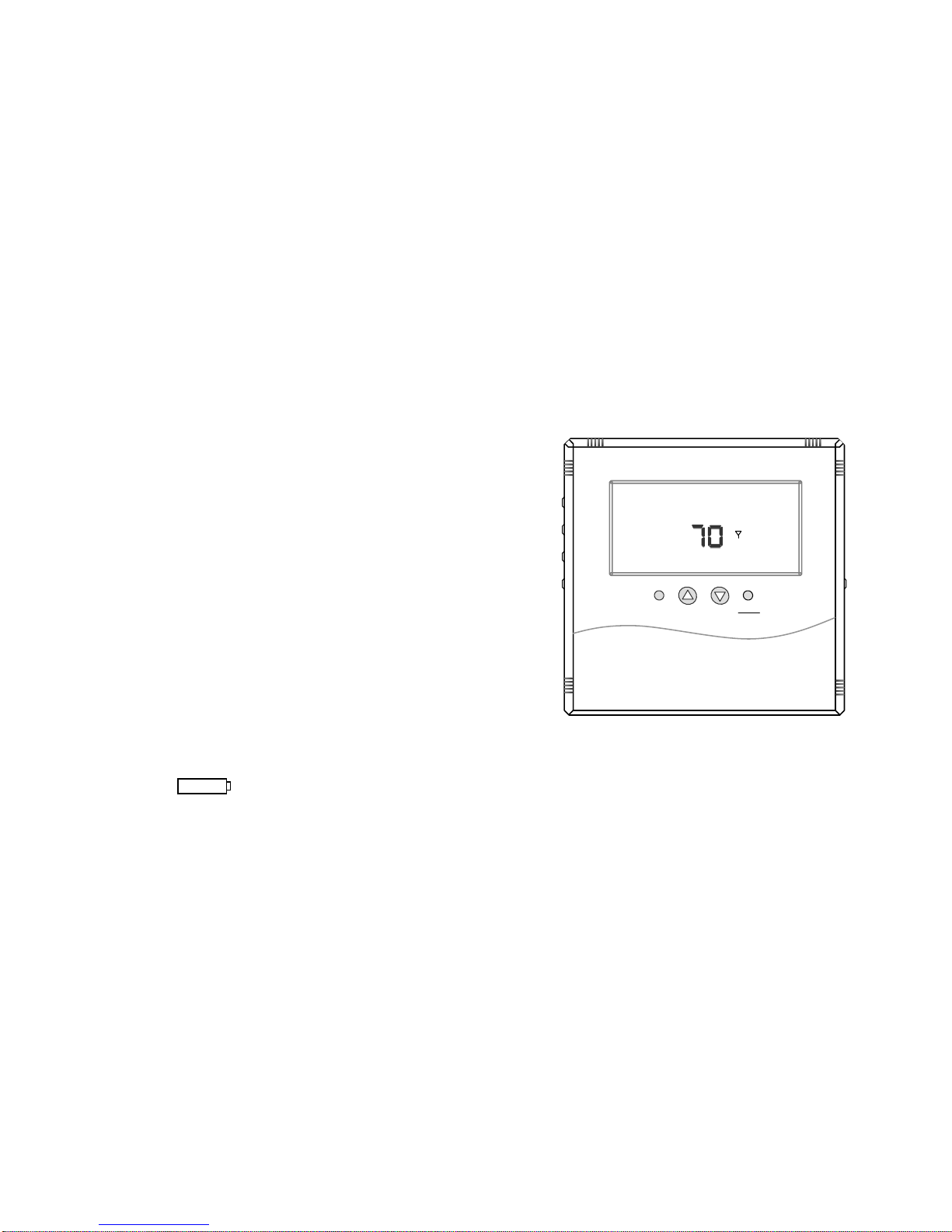

BATTERIES

Installing / Changing

A low battery icon will light on the thermostat display

when the batteries are within approximately one week of being

exhausted. The T9000 is designed to use standard AA size 1.5

volt alkaline batteries. If the batteries become completely

depleted, the heating/cooling system will go to the” OFF” state.

Figure 1 — T9000 Front View

Replacing Batteries

To open the thermostat, use both hands, press the two push-tabs

on the bottom of the thermostat housing with your thumbs while

pulling the front of the thermostat away from the base - Figure 2.

Fan Heat

Cool

Down

Fan

COOL

OFF

11:20

Day

Set Point

F/C

Program

Run

Clock

Fan Auto

Light

T9000 — MODEL 124 Operation Guide

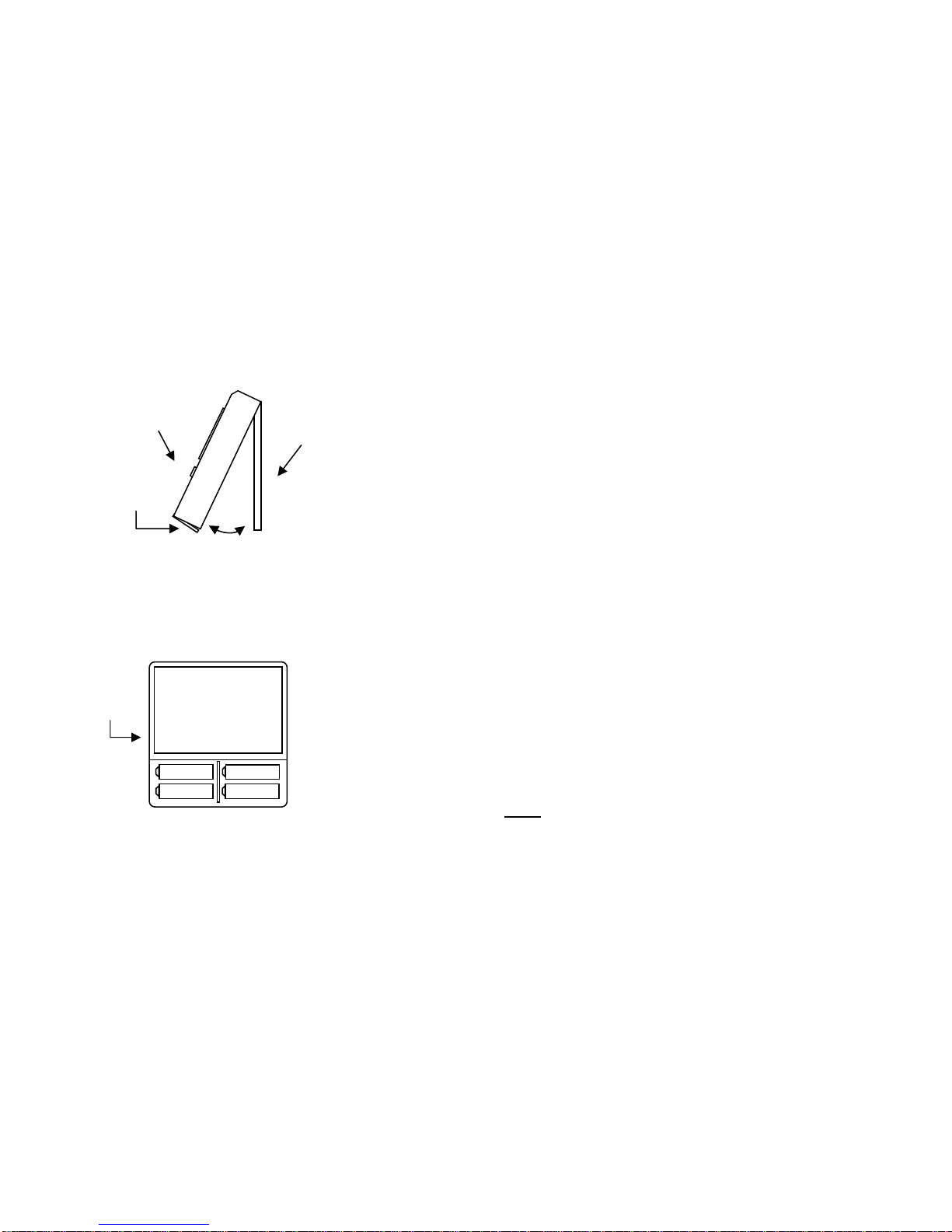

Figure 2 — Opening Thermostat

The T9000 operates with either 2 or 4 AA batteries. Four (4)

batteries double the time between battery changes (the average

user can expect 1 to 1.5 years of battery life). Batteries are

paired, one set on top of the other (see Figure 3).

Figure 3 — Battery Location

Note: Do not mix old and new batteries. When batteries are

changed, replace them all at the same time.

Programmed data for heating, cooling and time of day will be lost

when all, batteries are removed or depleted and will have to be re-

entered along with resetting the clock. To avoid this, batteries can

be replaced one set at a time before they are depleted. However,

after the first set is replaced, immediately replace the second set

with new batteries.

MOUNTING

Find a suitable location for mounting your thermostat, preferably

an interior wall, centrally located within the conditioned space at

about 5' above the floor. Try not to locate the thermostat in a

place where it could be exposed to heat such as warm air vents or

in a place where it could be exposed to direct sunlight.

Wall-Mount

The T9000 back mounting plate provides six (6) mounting holes.

The upper and lower holes on the vertical centerline will match up

with screw positions of a standard electrical switch box or drywall

mounting ring.

Step 1

Remove the back plate from the thermostat housing, (Figure 2)

and use it to mark locations for mounting holes. While operation of

Battery orientation is

critical.

Thermostat

opened back

Thermostat will operate on

either Set A, Set B or

both. When changing,

replace with all new

batteries. Never use a

mix of old and new.

Circuit Board

Set A Set A

Set B Set B

Base Plate

Front Cover

Latches

T9000 — MODEL 124 Operation Guide

the thermostat is not affected by orientation, we recommend using

a level across the top or side of the base plate to ensure a

professional installed appearance.

Step 2

Drill 3/8” holes and insert drywall fasteners (#6 screws

recommended) and fasten the back plate to the wall.

Back Stand

Located on the back of the housing is a built-in hinged stand

support. This feature permits the thermostat to stand on a flat

surface such as a table or shelf, in the event that permanent

mounting to a wall is not desired.

BUTTONS

A four button cluster is located on the front of the T9000.

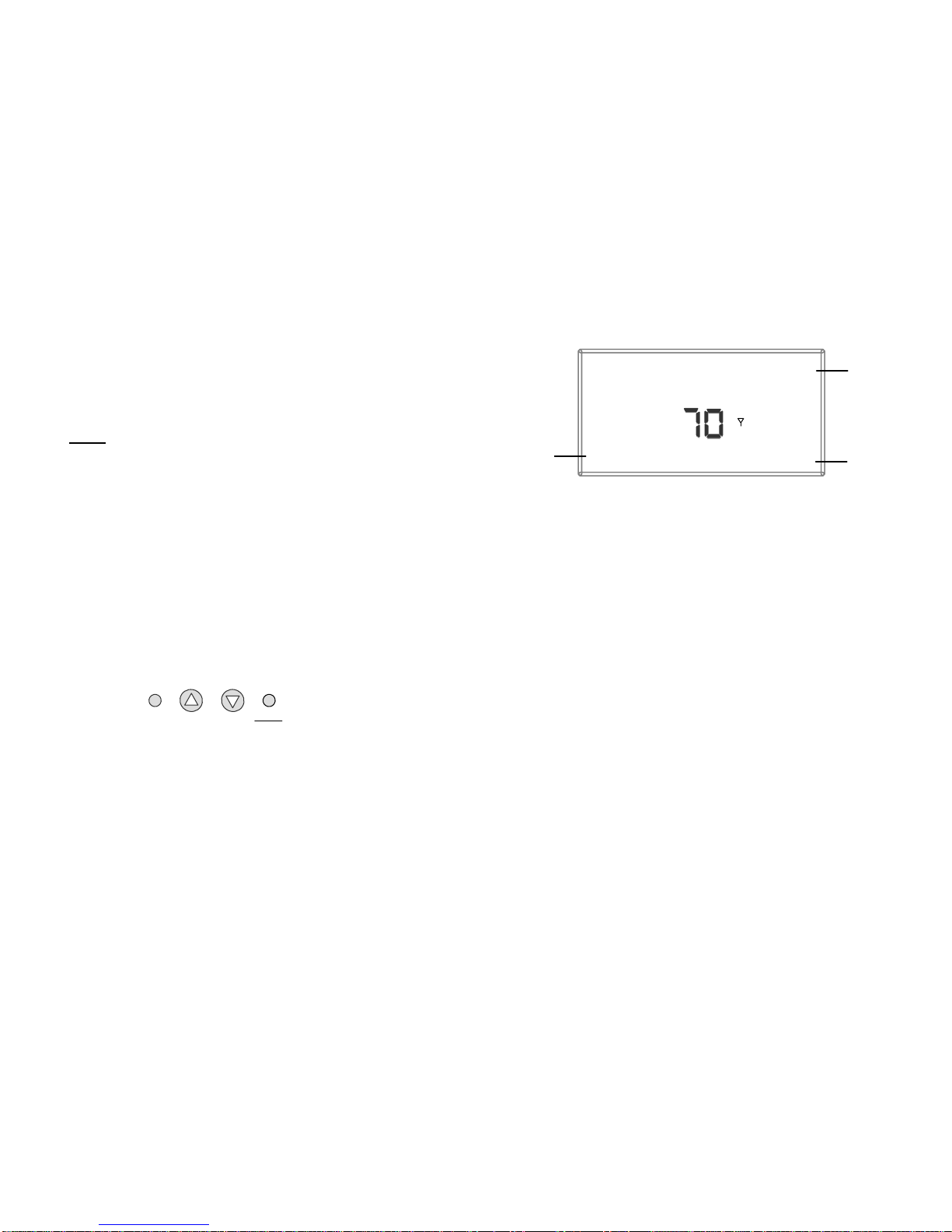

Figure 4 — Front Button Cluster

These buttons are used in adjusting fan operation, changing the

set point temperature up or down and changing the operating

mode of the thermostat. (Figure 13 provides definition of all button

and display items.) Figure 5 shows the display items that are

changed by these four buttons in normal operation.

Figure 5 — General Operation Display

Note that the UP, DOWN and HEAT/COOL buttons are also used

in setting the clock, programming the thermostat and linking to

nodes — covered later in this manual.

Four buttons located on the left side of the thermostat (Figure 1)

control display of temperature in either Fahrenheit or Celsius,

programming, clock setup and control of whether the thermostat is

under manual or program control.

F / C - Toggles Fahrenheit Celsius display

Program set up button

Run – Sets program or manual mode of operation

Clock set up button

BACKLIGHT

A single button on the right side of the thermostat activates the

display backlight. When pressed, the backlight will illuminate the

display briefly and turn off. If other buttons are pressed

immediately after the backlight button, the display will stay

Fan Heat

Cool

Up Down

Fan Auto

COOL

Set Point

Mode of

operation

Set Point

Fan

status

T9000 — MODEL 124 Operation Guide

illuminated until a few seconds after all button activity has ended.

Backlighting takes significant energy from the batteries and should

be used sparingly. Frequent use of the backlight function will

noticeably reduce battery life.

SETTING THE CLOCK

In all set up modes the T9000 will blink the display item you are

about to change. The UP and DOWN buttons change settings,

the HEAT/COOL button is used to move to the next item.

To set the clock, you will use the buttons marked CLOCK, UP,

DOWN, and HEAT/COOL.

Step 1

Press the CLOCK Button. The hour digits will blink. Press the UP

or DOWN button to change the hour. Note that AM / PM will

change as you roll the hour past 12. Be sure to set the hour

properly for AM or PM. Press the HEAT/COOL button to keep the

hour you've just set and to move to minutes.

Step 2

The Minute digits will now be blinking. Press the UP or DOWN

button to change to the desired minute. When the correct minute

is flashing press HEAT/COOL.

Step 3

One of the seven day icons (Mo, Tu, We, Th, Fr, Sa, Su) will now

blink, press UP or DOWN until the correct day icon is displayed

and press HEAT/COOL.

Step 4

Press the CLOCK button to keep all clock changes you've made

and resume normal operation.

THERMOSTAT PROGRAMMING

The T9000 provides four program periods: Morning, Day, Evening,

and Night. The time and temperature can be set for each period.

Upon initial power up the T9000 loads time and temperature

program default parameters for weekday and weekend days.

The default program parameters conform to Energy Star

guidelines and are a good point from which to start. Default

settings are:

WEEKDAY DEFAULT PROGRAM TIMES AND TEMPERATURES

Period Time Heat Cool

MORNING 6:00 AM 70°75°

DAY 8:00 AM 62°83°

EVENING 6:00 PM 70°75°

NIGHT 10:00 PM 62°78°

T9000 — MODEL 124 Operation Guide

WEEKEND DEFAULT PROGRAM TIMES AND TEMPERATURES

Period Time Heat Cool

MORNING 8:00 AM 70°75°

DAY 10:00 AM 62°83°

EVENING 6:00 PM 70°75°

NIGHT 11:00 PM 62°78°

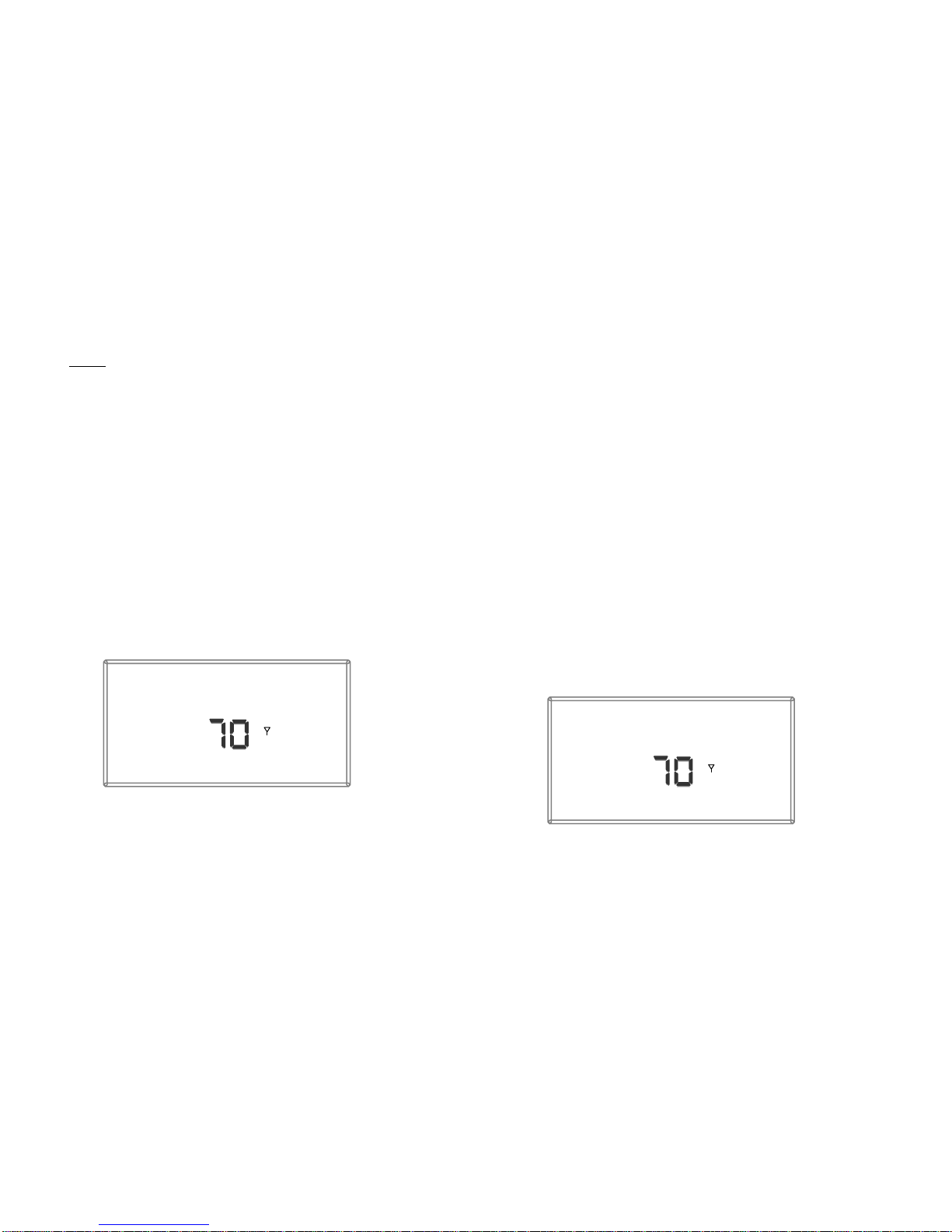

Separate heating and cooling programs can be entered. The

mode of the thermostat is displayed in the upper right corner of the

LCD screen. Figure 1 for instance shows a thermostat in COOL

mode. The mode the thermostat is in when the PROGRAM button

is pressed is the mode that will be controlled by that program. If in

the COOL mode as shown in Figure 1, the program entered will be

stored as the program for cooling.

To program the thermostat, you will use the PROGRAM,

HEAT/COOL, UP, and DOWN buttons.

Step 1

Press the PROGRAM button to put the thermostat into the

programming mode. The display will blink all of the day of the

week icons. Pressing the UP or DOWN button will toggle between

(weekday) icons and the (weekend) icons. Ensure the display is

blinking the days you want to program. Press HEAT/COOL.

Step 2

Next the Morning period will blink. Use the UP or DOWN button to

toggle through Morning, Day, Evening, or Night, stopping at the

period you want to program. Press HEAT/COOL.

Step 3

Next, the hour of the day will blink. This is the starting hour of the

period you have selected. Use the UP or DOWN button to change

the selected hour start time. Press HEAT/COOL.

Step 4

The minute of the day will blink next. This is the starting minute in

the hour. Use the UP or DOWN button to change the minute digits

to the desired setting. (Note that minutes change in five-minute

increments.) Press HEAT/COOL.

Step 5

The desired set point will now be blinking. This is the temperature

you want the thermostat to go to at the time of day you have

selected. Press the UP or DOWN button to change the set point

temperature to what you want. Press HEAT/COOL.

This completes the programming of the first period of the day.

T9000 — MODEL 124 Operation Guide

Step 6

If you started with the Morning time period, the next period, Day,

will now be blinking. Follow steps two, three, four, and five for

each period you wish to program.

NAVIGATING

You can quickly step through to a specific item you want to change

by pressing the HEAT/COOL button until what you want to change

is flashing. When the item you want to change is flashing, use the

UP or DOWN button to adjust.

EXITING PROGRAM MODE

Pressing the PROGRAM button at anytime will exit out of the

programming mode, save your changes to memory and return you

to normal thermostat operation.

Figure 6 – Program Mode Display

RUN BUTTON – Program / Manual Operation

The RUN button toggles the thermostat between manual operating

mode and program operating mode. When in the program mode

your thermostat responds to the times and temperatures

programmed.

Figure 6 shows a thermostat running in program mode. One of

the four periods, in this case “Day”, is displayed, letting you know

which period of the day the program is in. When in manual mode

as shown in Figure 7, the period of the day is not displayed.

Instead, the word “Hold” will be displayed above the Set Point

temperature, indicating the thermostat is holding that temperature.

In manual mode you can adjust to the desired temperature using

the UP and DOWN buttons, and the thermostat will maintain that

temperature until you change it again.

Figure 7 – Manual Mode Display

Fan Auto

HEAT

11:20

Day

Set Point

Fan Auto

HEAT

OFF

70O

11:20

Set Point

T9000 — MODEL 124 Operation Guide

CHANGING TEMPERTATURE WHILE RUNNING A PROGRAM

You can always change the temperature up or down while a

program is running. However, when the program moves to the

next period, the program set point temperature for that period will

take effect. For instance, assume the current program period is

Evening, with a programmed temperature of 70°, and the next

period, Night, is programmed for 65°, scheduled to start at 11:00

PM. If during the Evening time period you desired the space to be

warmer, you could press the UP button to raise the temperature

set point. The thermostat will hold that temperature until the next

program period, at which point the temperature will adjust to the

programmed temperature set point for that period. In this case the

Night period is set for 11:00 PM and 65°.

INSTALLING AND REMOVING NODES

A T9000 thermostat and Remote Control Node will not operate as

a system until they are linked together through the installation

process. The linking process binds one or more control nodes to a

thermostat so that they will communicate with each other as a

control system. Up to eight nodes can be linked to a single

thermostat. Until linked, a control node will not operate. Once

linked, a control node will only respond to its specific thermostat.

The thermostat and RCN that have been linked will not interfere

with or be affected by any other thermostat or RCN in adjacent

rooms, apartments, or neighboring homes. Linking information is

stored in non-volatile memory — It is not necessary to re-link the

thermostat and RCN if the thermostat batteries are removed or

after a power outage.

Installing Nodes

If multiple installation teams are installing and linking thermostats at

the same time, coordinate the activity to avoid the possibility of

installers simultaneously attempting to perform the linking process.

Because this is an RF system, installers in nearby rooms/areas

where it is possible RF overlap could exist run the risk of interfering

with each other. Installation and linking activity going on around a

system already installed will not interfere with it.

Refer to Figure 8 for inside thermostat button and jumper locations

and functions.

Step 1

Press the SW4-INSTALL button inside the thermostat. The

display will change to the Install Session screen shown in Figure

9, with the ‘Install’ Icon blinking.

The display always blinks the item that is active and can be

changed.

Altri manuali per T9000

Indice

Altri manuali Enernet Termostato

Enernet

Enernet T9000 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
